10 x 20 IS

IS Binoculars

Item Code: 3640C002AA
Binoculars Feature Page

Learn more about our superb image stabilization binoculars from All-weather options to conveniently compact models ready to travel at a moment's notice.


Compact and Lightweight IS Binoculars

With Its compact construction that is accompanied by excellent usability, including a rounded grip that can sit comfortably in your hand, the 10x20 IS binoculars are easy and light enough to use for extended periods of time. For situations in the field that call for a closer look and observing the fine details in nature, the 10x20 delivers bright, crisp images, where you’ll never miss a thing.

High Magnification Ratio: 10x

Engineered with an excellent optical system, Canon's 10x20 IS binoculars can deliver impressive performance and a stunning, close-up view through a high magnification ratio of 10x. This makes it easy to see details and action that would likely be missed with the naked eye. From the intricate feathers of a bird on a branch, or buck far in the distance, the 10x20 IS binoculars can help you get closer to the subject.

Images and effects are simulated.

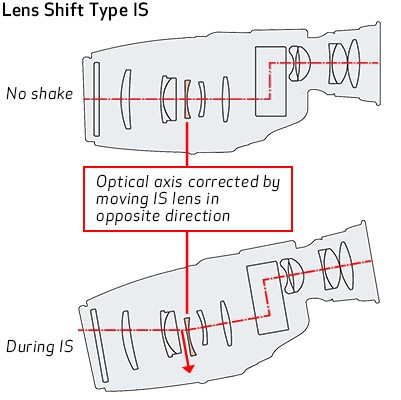

High Efficiency Shift-System Image Stabilizer System

The 10x20 IS binoculars feature a powerful Lens Shift Image Stabilization system that’s remarkably effective in canceling out possible shaking made by movement and vibration. Borrowing technology from Canon’s EF lenses, Lens Shift Image Stabilization maintains a steady view by incorporating a continually adjusting vibration gyro mechanism, moving the IS lens both vertically and horizontally. This helps the 10x20 IS binoculars deliver clear and sharp images with minimal color fringing for a view that’s consistently pleasing to look at.

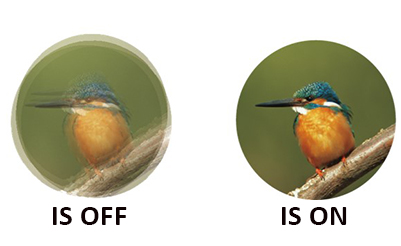

Powered IS Mode

Originating from Canon’s high-quality video and digital camera technology, the 10x20 IS binoculars’ Powered IS technology significantly improves upon conventional binocular IS technology. Activated with a single press of the IS button for up to 5 minutes of continuous operation, Powered IS makes it easy to maintain a high-magnification view, especially in situations where body movement or strong shake might occur. Toggle between Powered IS and Normal IS to pick the ideal mode for the scene, whether your subject is still or in motion.

Images and effects are simulated.

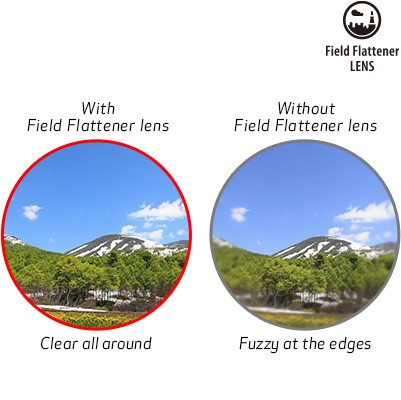

Field Flattener Lens

The 10x20 IS binoculars uses a field flattening lens element to provide edge-to-edge sharpness for vivid images. Countering the blurred effect typically rendered by the curvature of conventional lens elements, field flattener lenses help deliver a sharp, low-distortion image across the entire field of view.

Images and effects are simulated.

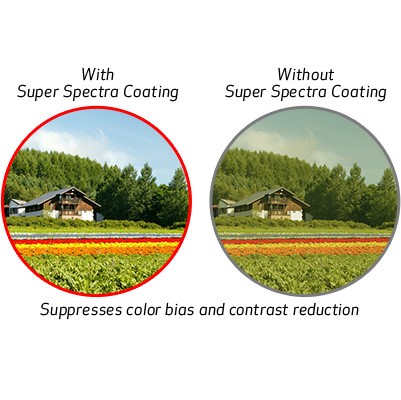

Super Spectra Coating

To reduce color bias, lens flare and ghosting as well as render a sharp view with contrast, the 10x20 IS binoculars incorporate Super Spectra Coating on its lenses. This coating effectively suppresses reflected light across a wide range of wavelengths, resulting in high contrast, high definition and a clear viewing experience.

Images and effects are simulated.

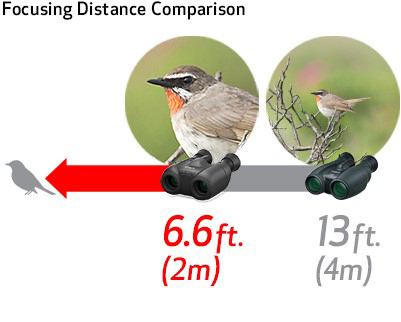

Minimum Focusing Distance of up to 6.6 ft. / 2m

A notable reduction over previous models, the 10x20 IS binoculars feature a minimum focusing distance of 6.6 ft. (2m) ideal for viewing animals, flowers and other small objects from a short distance. Combined with the 10x magnification ratio, it’s easy to see even the smallest details with the 10x20 IS binoculars.

Images and effects are simulated.

Ergonomic Design and Comfortable Grip

Not only does the incorporation of Lens Shift Image Stabilization improve optical performance, but it also has the added benefit of making the 10x20 IS binoculars easy and comfortable to hold. Through the miniaturization of the IS unit the binoculars provide an ergonomic and sturdy grip, allowing intuitive access to the IS switch, focusing ring diopter and more, with ease.

Images and effects are simulated.



Prism Binoculars



Objective Lens Effective Diameter

Approx. 0.79 in. / 20mm

Real Field of View


Apparent Field of View


Objective Lens Construction

3 elements in 2 groups

Eyepiece Lens Construction

4 elements in 3 groups

Exit Pupil Diameter

Approx 0.08 in. / 2.0mm

Eye Relief

Approx. 0.53 in. / 13.5mm

Prism Type

Porro I prism

Eye Width Adjustment

Approx. 2.2 – 2.83 in. / 56 – 72mm

Focusing Method

Manual focusing by turning the focusing knob


Super Spectra Coating

Closest Focusing Distance

Approx. 6.6 ft. / 2.0m

Image Stabilizer

Provided (Image Stabilizer button)

IS Compensation Angle


Amount of Adjustment for Difference in L/R Visual Acuity

±9.2 diopters

Power Source

1 lithium battery (CR123A)

Dimensions (W x L x H)

Approx. 4.6 x 5.6 x 2.7 in. / 118 x 142 x 69mm


Approx. 15.17 oz / 430g (excluding batteries)

Canon 10x20 IS binoculars

10x20 IS binoculars Canon 10x20 IS binoculars Eyepiece Cap Neck Strap Case Lithium Battery (CRA123A)

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you 10 x 20 IS that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store



Expand All




Introducing the Canon 8x20 IS and 10x20 IS Binoculars

The new Canon 8x20 IS and 10x20 IS binoculars are compact, lightweight* and provide high-resolution viewing to bring everything in sight closer. Powered by enhanced image stabilization (IS) technology for clear, steady views with little to no shake and a comfortable design and grip, these new binoculars are ideal for carrying, using and enjoying for extended periods of time.

Keep Steady with Canon IS Binoculars

Featuring impressive image stabilization technology along with features and magnifications to meet your viewing needs, Canon binoculars put you right in the middle of the experience.

This is to make Misc appear on the page when needed.


* The Canon 8x20 IS binoculars are the world’s lightest IS binoculars, without the battery. According to Canon Inc. research as of September 19, 2019.
