ZOOM Digital Monocular Black

Monocular

Item Code: 5544C006AA

Features

  • Compact, pocket-sized, and lightweight.
  • One-touch three-step telephoto magnification from 100mm optical to 400mm optical, and 800mm digital.
  • Optical Image Stabilization for shake correction.
  • Auto Focus with Face Tracking when viewing through the Electronic Viewfinder.
  • See clearly through the 0.39in XGA, 2.3M dot, 59.94fps Electronic Viewfinder.
  • 12 megapixel CMOS sensor.
  • Full HD 1080p 30fps video and up to 12 megapixels still image recording.1
  • Remote LiveView shooting and photo & video downloads with the free Canon Camera Connect App2.
  • Built-in Wi-Fi®,3 and Bluetooth®,4 Technology.
  • Built-in Microphone, USB-C Terminal, and microSD Card Slot.
  • USB-C Charger, USB-C Cable, microSD Card, and wrist strap included.

Go further and see farther with the ZOOM Digital Monocular.
Powerful magnification features, image stabilization, built-in wireless connectivity and more all packed in a sleek and compact design. Zoom into subjects at sporting events, nature walks, and more—quickly, clearly, and with ease. With the ZOOM in hand, see all the details you’ve been missing.


See It All with the ZOOM
Moments come and go and sometimes they may be too far in the distance to fully appreciate. Not anymore. With the ZOOM Digital Monocular you can bring the action closer quickly and easily and appreciate those moments as if you’re right in the middle of them.

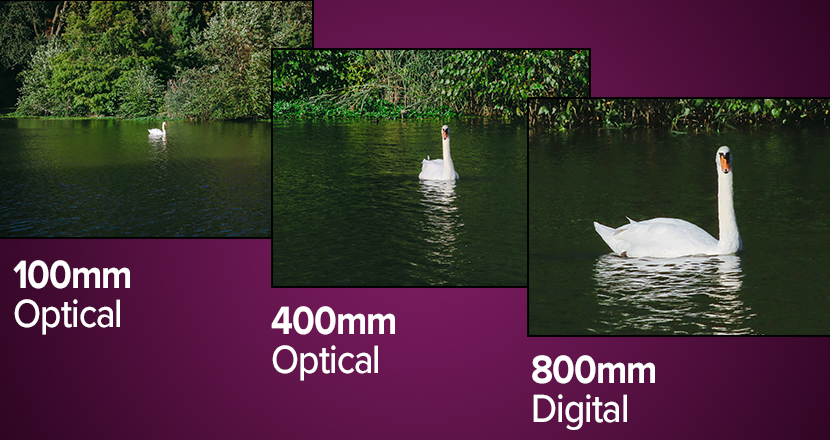

One-Touch Telephoto Magnification from 100mm to 400mm Optical + 800mm Digital.
Enhance your view with a 100mm optical telephoto zoom, and get even closer with one touch of a button to 400mm optical! If the scene still seems too far away, use the step zoom to directly jump to 800mm digital to close the gap even more. See details you thought were out of reach, from sports, to wildlife, while traveling and so much more.


Compact and Lightweight
Weighing just over 5oz and impressively compact and comfortable to use, the ZOOM is ideal to take with you almost anywhere. Whether hiking, traveling, at a soccer game or wherever you go, it’s convenient to carry, easy to use, and fits perfectly in your pocket, backpack or purse, so you can leave those heavier binoculars behind.

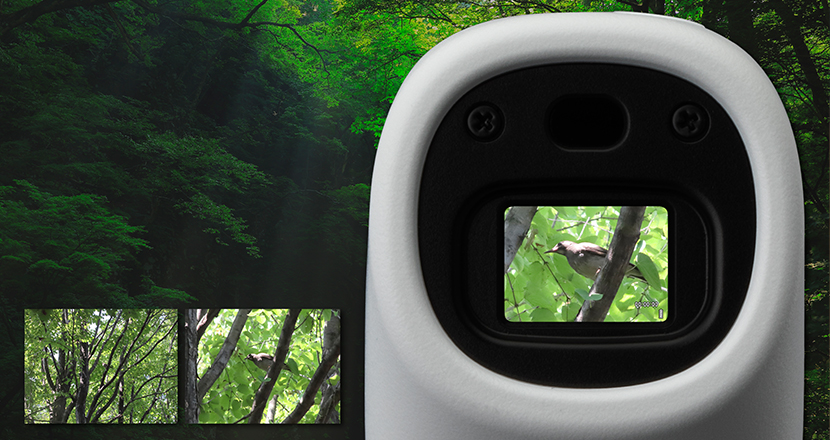

Clear, Vivid Views
The Electronic Viewfinder (EVF) is a 0.39-inch XGA OLED-based display featuring approximately 2.36 million dots and 59.94fps (frames per second) so you get a clear, vivid scene to enjoy whether viewing, taking pictures or recording video.1

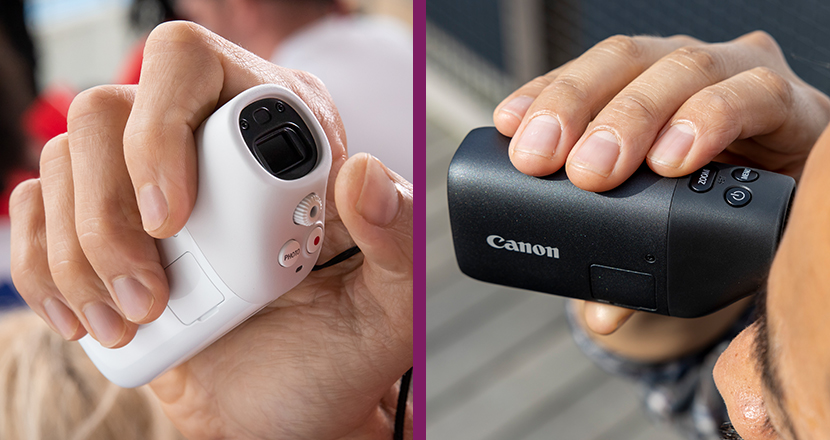

Simple Operation
The buttons on the ZOOM digital monocular are convenient to reach and use so you can quickly power it on, cycle the menu, zoom in and out, or even choose to grab a quick photo or record a video. There’s even a dioptic adjustment dial so you can customize the viewfinder to what’s most comfortable for you.


Optical Image Stabilization for Shake Correction
The ZOOM’s Optical Image Stabilization (IS) technology helps ensure that the view through the Electronic Viewfinder is clear and steady. The Powered IS helps even subtle shake such as when the user breathes to be corrected, while Dual Sensing IS corrects stronger shake – ideal for long viewing times and when following moving subjects.


Auto Focus with Face Tracking when Viewing through the Electronic Viewfinder
The ZOOM Digital Monocular features fast Auto Focus that helps you view and capture the moment clearly. The additional Face Tracking feature helps detect and track faces when looking through the electronic viewfinder so you can lock onto a subject and keep it in focus for the duration of your attention, even when there’s fast-moving action like at a sporting event.


12.0 Megapixel CMOS Sensor
The ZOOM is a great device for telephoto viewing as a monocular, and also features a 12 Megapixel CMOS sensor for capturing still photos.1 See a moment that you want to share or revisit? Just grip, look, shoot to save onto the microSD memory card.


Full HD 1080p 30fps Video Recording
The ZOOM gives you a variety of ways to enjoy the game, the sights, and the moments. You can also record and save video1 in Full HD at approx. 30 frames per second with just the touch of a button.


Remote Live View Shooting
With built-in Wi-Fi®,3 and Bluetooth®,4 technology you can connect your ZOOM to your compatible mobile device using Canon’s free Camera Connect app. Once paired, you can use the app to view what’s seen through the monocular’s viewfinder and remotely control the ZOOM to take pictures and record video.1,2


Share Images and Videos from your Mobile Device
Easily preview images and videos and transfer them to your mobile device! Just connect your ZOOM to the Canon Camera Connect app to transfer your content from the microSD card to your device to view and share anytime.2,3,4


Built-in Microphone
The ZOOM features a built-in stereo microphone to capture audio when recording video so you not only get the sights, but the sounds as well.

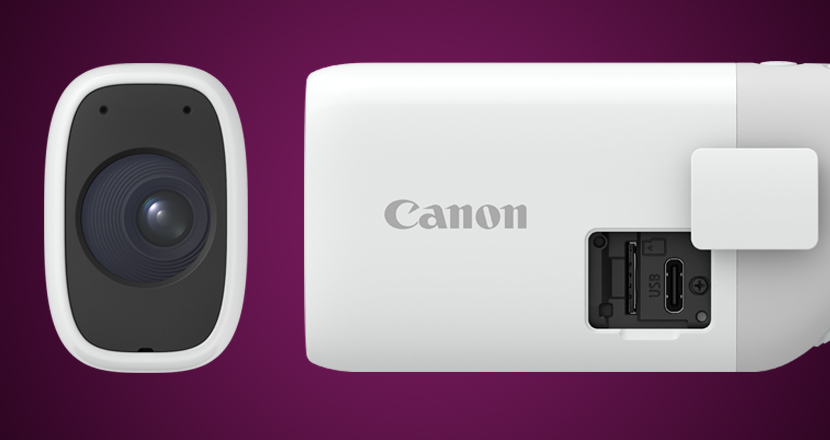

USB-C Terminal
The USB-C digital terminal allows you to fully charge and re-charge the built-in battery— no external or additional batteries required.

microSD Card Slot
Take advantage of the microSD card slot by inserting the memory card and shooting still images or Full HD video to save, store and share.1 You can even transfer the content from the card to your compatible mobile device using the free Canon Camera Connect app.3,4

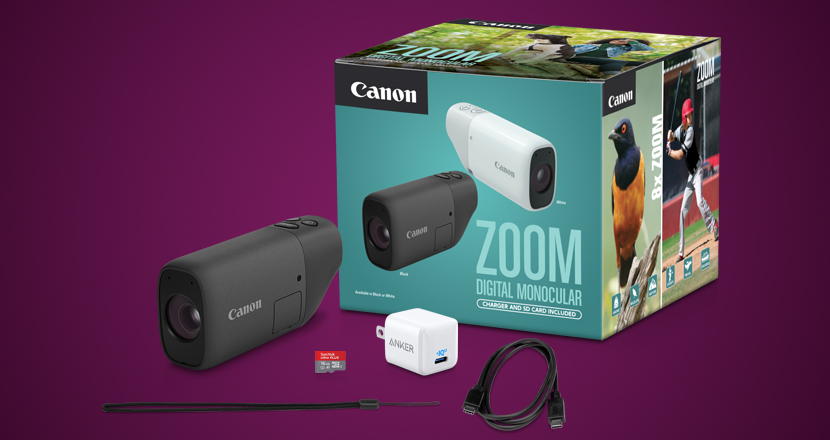

All You Need to Go Out and Zoom
With a USB-C charger and cable, along with a 16GB microSD card and wrist strap included in the box, you have everything you need to get out and enjoy the views!

Specifications

Type


Compact telephoto digital monocular

Imaging Processor


DIGIC 8

Type


CMOS sensor, 1/3-inch type^ (sensor aspect ratio: 4:3)
^ The center portion of a 1/2.3-inch type CMOS sensor is used.

Pixels


Effective Pixels: 12.1 Megapixels
Total Pixels: Approx. 12.1 Megapixels
* Rounded to the nearest 100,000.

Self-cleaning Sensor


Not provided.

Focal Length


Optical 4x lens that switches between two focal lengths.
• Telephoto side: approx. 100mm – 35mm equivalent (13.8mm)
• Super-tele side: approx. 400mm – 35mm equivalent (55.5mm)
• Digital Zoom: approx. 800mm – 35mm equivalent (2x digital)
* Focal length can be checked through the viewfinder.

Lens Configuration


11 elements in 8 groups
* Aspherical lens, extra-low dispersion lens not included
* Front lens surface has a cover glass (Not included in the lens construction)

Digital Zoom


Enables approx. 2x magnification

Step Zoom


• Switches among focal lengths in the following order, as controlled with the (ZOOM) button:
• Equivalent to approx. 100mm (optical) -> equivalent to approx. 400mm (optical) -> equivalent to approx 800mm (digital).

Telephoto Magnification


  Still Photo Shooting Movie Recording
Equivalent to approx. 100mm Approx. 1.2x Approx. 1.2x
Equivalent to approx. 400mm Approx. 4.8x Approx. 4.8x
Equivalent to approx. 800mm Approx. 9.6x Approx. 9.6x

Field Of View


• 100mm: 102’ @ 100 yd / 31 m @ 100 m
• 400mm: 25.7’ @ 100 yd / 7.8 m @ 100 m
• 800mm: 12.9’ @ 100 yd / 3.9 m @ 100 m

Focusing Range


• Wide-angle: Approx. 3.28 ft. - Infinity / 1m - Infinity.
• Telephoto: Approx. 14.76 ft. - Infinity / 4.5m - Infinity.
* Macro functionality not provided. Measure from the tip of the lens barrel.

Aperture Number


• Wide-angle side: f/5.6
• Telephoto side: f/6.3
* No aperture control.

Autofocus System


TTL Autofocus

AF Method


• Face+Tracking
• 1-point AF
* Fixed at the center of the screen for 1-point AF.

Image Stabilization Features


Lens shift system
* 4-axis correction (Yaw/Pitch/X/Y)
* Image stabilization cannot be deactivated.

Powered IS


Supported.

Dual Sensing IS


Supported.

Viewfinder


Electronic Viewfinder (Approx. 2.36 million dots)

Screen Size


0.39 inch-type

Eyepoint


Approx. 22mm (at -1m-1 from eyepiece lens end)

Dioptric Adjustment


Approx. -3 to +1m-1(dpf)

LCD Pixels


Approx. 1.04 million dots

LCD Coverage


Approx. 100%

Recording Media Type


microSD / microSDHC /microSDXC memory card
* SD speed class compatible.
* UHS speed class compatible.
* UHS-I compatible.

Card Access Indicator


Lamp lights up / blinks.

Read Error Warning


The error warnings are displayed in the viewfinder, and the shutter release locks.

Card Formatting


Low-level formatting.
* Logical formatting not available.

Image Recording Format


Compliant to Design rule for Camera File system 2.0 and Exif. 2.31
* Supports time difference information.

Image Type / Extension


Image Type Extension
Still photos JPEG JPEG
Movies MP4 MP4

* RAW / C-RAW / HEIF shooting are not supported.

Image Quality /Recorded Pixels


Image Quality Recorded pixels
JPEG Large / Fine 12.0 megapixels (4000 x 3000)

* Image quality adjustment not available.
* Lower image quality when equivalent to approx. 800mm, due to digital cropping.

Aspect Ratio


Fixed at 4:3 and not adjustable.

Image File Size / Number of Possible Shots / Maximum Burst


File size
(Approx. MB)

Possible Shots
(Approx.)
Maximum Burst
(Approx.)
4.6 11460 50

* Number of shots available and maximum burst in high-speed continuous shooting driving mode.
* Number of shots available and maximum burst apply to a 64 GB card conforming to Canon testing standards.
* File size, number of possible shots, and maximum burst vary depending on shooting conditions (including subject and memory card brand).

Exposure Composition


Supported +/- 3 stops

Drive Mode


Single Shooting, Continuous Shooting

Movie Recording Format


Container Format MP4
Video H.264 / MPEG-4 AVC
* Variable (averaged) bit rate
Audio MPEG-4 AAC-LC (stereo)

Recording Size / Compression Method


Full HD: 1920x1080 / Standard (IPB)
* Movie recording size adjustment not available.

Frame Rate


When set to NTSC: 29.97 / 23.98 fps

Movie Bit Rate


Approx. 30 Mbps
* Video only, not including audio.

File Size


Approx. 217 MB/min.

Maximum Recording Time


9 min. 59 sec.
* Movie recording is not possible during Wi-Fi connection

Total Cumulative Recording Time Available


8 GB Approx. 35 min.
32 GB Approx. 2 hr. 33 min.
128 GB Approx. 9 hr. 38 min

Maximum File Size


Card Format Maximum File Size
microSD FAT12/16 Max. 2 GB
microSDHC FAT32 Max. 4 GB
microSDXC exFAT Unlimited

Card Performance Requirements (movie recording)


Micro SD card with SD Speed Class 6 or higher

Color Sampling Method


YCbCr 4:2:0 (8 bit)

Video Range


Full range (0-255)

Recording Microphone


Built-in stereo microphone
* External microphone IN terminal not provided.

HDMI Output


Not supported
* HDMI OUT terminal not provided.

Mode


Auto ( White balance presets not provided.)

White Balance Shift


Not supported.

White Balance Bracketing


Not supported.

Built-in Flash


Not provided.

External Flash


Not supported.

Playback Methods


• Playback in the camera's electronic viewfinder.
• Playback on a smartphone (requires Camera Connect app (Remote control from app is not available for video)).

Display Conditions


Still photos: Images saved in Design rule for Camera File system format.
Movies: Movie files in MP4 format
* May not support playback of images from cameras other than Zoom.

Playback Functions


Playback -Playback
- Skip backwards (approx. 4 sec.)
- Previous frame
- Next frame
- Skip forward (approx. 4 sec.)




* slow motion, editing out first and last scenes, and volume adjustment are not available.

Shooting Information Display


Basic information display
* Display without information and detailed information display are not available.

Erasing Images


Select and erase images / All images on card.

Print Order (DPOF)


Not supported.

Direct Printing (PictBridge)


Wireless connections: Not supported
Wired Connections: Not supported

Display Device


Shown in the electornic viewfinder

Description


• Shooting settings
• Playback settings
• Wireless communication settings
• Function settings

Display Languages


31 languages are available.
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukrainian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turksih, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesian, Persian, Hewbrew, and Japanese.

Firmware Updates


Provided.
* Firmware can be updated using Camera Connect (transferring firmware from Camera Connect to the camera).

Terminal Type


USB Type-C

Applications


For charging the built-in battery and supplying the power to the camera.
* Recognized as a USB device when connected to a computer, and images on the memory card in the Zoom camera can be browsed and imported (transfer speed equivalent to Hi-Speed USB (USB 2.0)).

HDMI OUT Terminal


Not Provided.

Time Zone Setting (World Time)


Honolulu, Anchorage, Los Angeles, Denver, Chicago, New York, Caracas, Newfoundland, Sao Paulo, Fernando de Noronha, Azores, London, Paris, Cairo, Moscow, Tehran, Dubai, Kabul, Karachi, Delhi, Kathmandu, Dacca, Yangon, Bangkok, Hong Kong, Tokyo/Seoul, Adelaide, Sydney, Solomon Islands, Wellington, Chatham Islands, Samoa.

Time Difference Setting


Provided (15 minute increments).

Date / Time Back-up Battery


Same as battery that powers the camera.

Charging / Powering Specifications


Built-in rechargeable lithium-ion battery.
Rated Voltage: 3.6 V
Capacity: 800 mAh

Power Source


USB Type
(Connection type)
Camera Status
Power
Turned Off
Power turned On
Shooting Menu
Display
Playback During
Wi-Fi
Connection

Computer
Connection
Type-C 18 W (9 V / 2 A)
or more
Charging Supplying
power to the
camera

Supplying power to the camera + Charging
5 V / 3 A
5 V / 1.5 A -
5 V / 0.5 A -

* During Wi-Fi connection, excluding remote shooting.
* To avoid overheating, shooting may stop sooner when connected to a power supply during shooting.

Compatible Device


Commercially available USB Type-C devices that meet the specification requirements in charging /powering section*:
• ANKER PowerPort III Nano Charger (included)
• USB Power Adapter PD-E1 (Sold seperately).

Additional Third-Party Power Supplies*:
• Anker PowerPort Atom PD1 (Charging adapter)
• Anker PowerPort III Nano 20W
* Canon makes no representations or warranties with respect to any third party accessory or product mentioned.

Charging Temperature


Approx. 41-104°F / 5-40°C

Charging / Power Supply Display


Status
Lamp
Accessing to the files Green / Lit
Wi-Fi Connection established Green/ Blinking
USB Charging Orange / Lit
Viewfinder off Warning Green / Blinking
Error Green / Blinking

Charging Time


Charging Device

Charging Time for built-in Battery
PD-E1 1 hr. 50 min.

* To fully recharge a completely depleted battery (unless over-discharge; details conform to Canon testing standards).
* Charging time varies depending on remaining battery level and ambient temperature.
* For safety, charging takes longer in colder environments (41-50°F / 5-10°C).
* Charging time when connected to devices other than PD-E1 varies by device and is beyond the scope of this technical information.

Number of Shots Available


Approx. 150 shots
* Based on CIPA standards, at 73°F / 23°C

Movie Recording


Approx. 1 hr. 10 min..
* With a fully charged battery, at room temperatue 73°F / 23°C

Playback Time


Approx 2 hrs.
* With a fully charged battery, at room temperatue 73°F / 23°C

Start-up Time


Approx. 0.7 sec. * Based on CIPA testing standards.

Power-saving Functions


Feature
Time Options
Auto Power Off 15 sec. / 30 sec. / 1 min. / 3 min.
Viewfinder Off 3 min. / Disable

Operating Temperature


32-104°F/0-40°C

Operating Humidity


10-90%

Dimensions (W x H x D)


Approx. 1.31 x 2.00 x 4.06 in. / 33.4 x 50.8 x 103.2mm

Weight


Approx. 5.12 oz. / 145g (including memory card)
Approx. 5.08 oz. / 144g (camera body only)

ZOOM Digital Monocular

ZOOM Digital Monocular ZOOM Digital Monocular (black or white) Interface Cable IFC-100U 2.0 Wrist Strap WS-800 ANKER PowerPort III Nano Charger SanDisk 16GB Ultra® UHS-I microSDHC Memory Card (Class 10)
ZOOM Digital Monocular

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you ZOOM Digital Monocular that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Videos

Go further and see farther with the ZOOM Digital Monocular.



Powerful magnification features, image stabilization, built-in wireless connectivity and more, all packed in a sleek and compact design. Zoom into subjects at sporting events, nature walks, and more—quickly, clearly, and with ease. This pocket-sized monocular lets you see farther with a 100mm optical, 400mm optical, and 800mm digital zoom so you can enjoy the view. With the ZOOM in hand, see all the details you’ve been missing.

This is to make Misc appear on the page when needed.

Manuals

Manuals

ZOOM Digital Monocular User Guide

01/11/22
1.61 MB


This is to make Misc appear on the page when needed.

DISCLAIMERS


  1. Photo shooting and video recording functionality available only when compatible microSD is inserted in the ZOOM.
  2. Remote control functionality supported only with firmware version 1.1.0 or later.
  3. Compatible with iOS® versions 12.4/13.7, Android™ smartphone and tablet versions 6.0/7.0/7.1/8.0/8.1/9.0/10. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
  4. Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS® devices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen.or later) equipped with Bluetooth® version 4.1 or later and the Camera Connect App Ver. 2.7.10. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.

† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.

 Return to Top
