DiG!C DV III Image Processor

Designed and built by Canon for the highest quality HD RGB processing, the DIGIC DV III Image Processor uses proprietary circuits and architecture to deliver exceptional image quality at the highest speeds, with low power consumption and minimal heat output. It processes the RGB image data—originating from the single CMOS sensor of the camera—into three channels (Red, Blue and Green) to maintain the rich resolution and clean color fidelity formerly possible only in three-chip sensor designs.

Canon Log Gamma and Wide DR Gamma

Canon Log Gamma preserves shadow and highlight detail for maximum editing and grading in post-production without degrading image quality; contrast and sharpness are subdued with characteristics similar to negative film. Canon Log Gamma emphasizes rich gradients from mid-range to highlights and realizes 12-stops of Dynamic Range (DR). At ISO 850 and above, Canon Log Gamma enables 5.3 stops of latitude above optimal exposure (and 6.7 stops below), broadening the available dynamic range in color grading.

Wide DR Gamma exhibits high dynamic range, suppressing brightness while maintaining seamless gradations. A wide dynamic range of 800% preserves latitude for post-production work, but Wide DR Gamma is designed for perfect color "out-of-the-box."

Full Manual Control and Focusing Aids

The EOS C100 offers complete manual control of each aspect of the recording process. Create and recall custom picture settings, camera functions, and display options. Built-in ND filters expand control over exposure and depth-of-field. Manual control of video and audio capture gives you the power to fully control what you capture.

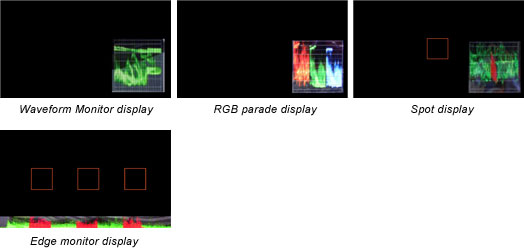

The EOS C100 is equipped with several powerful and intuitive focusing aids in both the EVF and LCD monitor that make it easy to confirm critical focus distance; Peaking Modes and Magnify Focus Modes are available while in standby or while recording. The EOS C100 also features the Edge Monitor Display on the LCD Monitor; green waveforms display the overall focus of the scene and red waveforms provide focus feedback of the three focus check boxes visible on the LCD monitor.

One-Shot AF

One-Shot AF assists in focusing adjustment with a dedicated button. Focus status is confirmed on the viewfinder and monitor.

Removable Hand Grip with XLR Inputs and Built-in Stereo Microphone

The EOS C100 accepts a removable hand grip unit with built-in tally lights, stereo microphone, and dual XLR audio inputs for stereo recording. Audio is captured in 16-bit 48 kHz linear PCM format and each channel allows for independent gain adjustment. Attach a second microphone in the integrated mount, or power a wide range of audio capture devices with the dual XLR inputs with phantom power supply.

AVCHD File Based Recording to SD Cards

EOS C100 records video to SD cards using AVCHD, a high-efficiency codec that has quickly become the standard in both the professional and consumer video markets. Maximum bit-rate is 24Mbps. Video files greater than 2GB are split into multiple files while recording, which are automatically joined together upon import using Canon Data Import. AVCHD video is widely supported across NLE systems and is the standard codec for Blu-Ray. The EOS C100 supports a variety of output media.
