EOS C300 Mark II PL

Cinema EOS

Item Code: 1131C002AA

CarePAK PRO provides accidental damage protection for peace of mind. To purchase, please contact an Authorized Cinema Dealer.

0% Financing Available

Click here to learn more about this special offer. Restrictions apply.

Providing access to all important user functions.

Find an authorized Canon dealer or rental house for Cinema EOS C300 Series.

Features

Canon 8.85 Megapixel Super 35mm CMOS Sensor

The heart of any Canon camera is its superb image-sensor technology. The EOS C300 Mark II PL Digital Cinema Camera integrates an 8.85 Megapixel Super 35mm 16:9 CMOS sensor that supports 4K (DCI) recording with a maximum resolution of 4096 x 2160 pixels. The camera fully utilizes the image data delivered by this 4K CMOS sensor to also enable Over Sampling HD Processing for 2K (DCI) and Full HD1080/60p recording.

Each pixel in this CMOS imaging sensor also maintains a wide pixel pitch that maximizes the amount of light that falls on to each photo site, thus enhancing the EOS C300 Mark II PL’s sensitivity while also minimizing noise and supporting ISO speeds of up to 102,400 for extreme low-light imaging. This sensor also reduces data-readout time to about half of what it was in the original EOS C300 Camera, which results in a significant reduction in rolling-shutter artifacts.


The information yielded from the 4K sensor is fully utilized to enable high-image-quality 2K (DCI)/Full HD recording (Over Sampling HD Processing) and to support multi-purpose production needs.


Dual DIGIC DV 5 Image Processors

The EOS C300 Mark II PL Digital Cinema Camera's re-designed imaging system includes dual DiG!C DV 5 image processors, which work in concert with the camera's advanced Super 35 CMOS sensor and XF-AVC codec to enable a wide variety of image quality and feature improvements. These include 15 stops of dynamic range, Canon Log 2 recording, Dual Pixel CMOS AF, simultaneous 4K and HD proxy recording, and 2K/Full HD frame rates of up to 120 fps.

Internal CFast™ 4K Recording Technology

CFast™ (CompactFast) 2.0 cards are the next-generation mass-storage media employed by the EOS C300 Mark II PL for in-camera 4K video recording. The EOS C300 Mark II PL Digital Cinema Camera features two CFast™ card slots, each of which is protected by a convenient hinged cover. The camera also includes an SD card slot for HD and Proxy recording. For example, the camera can simultaneously record 4K on two CFast™ (2.0) cards along with 2K proxy images on its SD card for off-line editing.


Proper operation cannot be guaranteed for all recording media. Long term usage may reduce a CFast™ card's write speed. We recommend users regularly fully format and refresh their card using the "Full Format and Refresh Tool." available via the following URLs:

ScanDIsk: https://kb.sandisk.com/app/answers/detail/a_id/17370

Lexar: https://www.lexar.com/support/downloads

Canon Log Gamma 2/ACES/Rec. 2020 Support

The EOS C300 Mark II PL Digital Cinema Camera features a new log gamma designated as Canon Log Gamma 2, which was designed explicitly for the camera's 10-bit recording capabilities. The files produced using Log format are ideal for color correction/grading in post-production, providing users with a high level of creative freedom while minimizing degradation of image quality. When using Canon Log 2, the Cinema EOS C300 Mark II PL can provide a dynamic range up to 1600%.

Users can now set the Canon Log 2 gamma profile which achieves a uniform output n a wide area of the log space making it easy to perform post-processing.

Canon XF-AVC Codec

The EOS C300 Mark II PL Digital Cinema Camera incorporates the new Canon XF-AVC codec that allows 4K image data to be recorded internally onto CFast (2.0) cards. (The camera features two CFast card slots and an SD card slot.) This makes it easy for users to record high quality compressed 4K images in the camera body without the need for external recorders. If full uncompressed RAW recording is needed, the EOS C300 Mark II PL Digital Cinema Camera can output its signal through dual 3G-SDI outputs to an external recorder.

Slow- and Fast-Motion Recording (Up to 120 fps)

The EOS C300 Mark II PL Digital Cinema Camera features shooting speeds ranging from 1 fps (for time-lapse filming) to its highest speed of 120 fps (in 2K/Full HD). A wide range of expressive effects are made possible for creative digital filmmaking.

Multiple Recording Modes (HD/2K/4K)

Multiple recording modes, resolutions and frame rates make the EOS C300 Mark II PL Digital Cinema Camera creatively flexible and able to work in any production environment.

Canon EOS C300 Mark II PL with PL-Lens Mount

Designed to integrate into existing production setups, the EOS C300 PL is fully compatible with a wide variety of industry-standard PL-mount lenses, ensuring the finest in today's technology and operability will work seamlessly with trusted optics already in the filmmakers possession. Compatibility with Canon's existing PL mount lenses means filmmakers can take advantage of the brilliant new optical designs Canon has developed for the Cinema market.

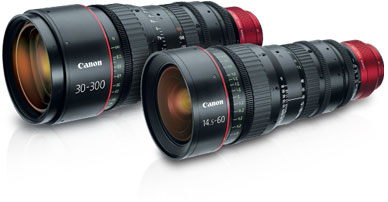

Canon's amazing CN-E PL mount zoom lenses deliver superlative performance for large-scale, big budget movie productions. The PL CN-E series is 4K ready and comes in two models: Wide Angle CN-E14.5-60mm T2.6 L S/SP and Telephoto CN-E30-300 T2.95-3.7 L S/SP.

Canon Cinema Zoom Lenses

Canon's Cinema Zoom lenses offers outstanding optical performance for demanding high-end productions. With fluorite, aspherical lens elements and an advanced optical design, our Cinema Zoom lenses are capable of 4K-image reproduction. The wide-angle CN-E14.5-60mm T2.6 L S/SP provides industry-leading breadth of range; the telephoto CN-E30-300mm T2.95-3.7 L S/SP rivals best-in-class zoom magnification and telephoto focal length. Together these lenses cover the range most commonly used in cinema shooting.

Additional Lenses are already under development, reflecting's Canon's commitment to offer the broadest range of professional cinema lenses to meet filmmaker's needs, now and in the future.

Versatile and Refined Ergonomics

The EOS C300 Mark II PL Digital Cinema Camera builds on the innovative and efficient ergonomic design of the original, while also providing new advantages. Redesigned from the ground up to maximize shooting comfort and usability improvements asked for by users, the EOS C300 Mark II PL Digital Cinema Camera's modular design allows different components to be added or removed as needed to not only meet the demands of a particular shooting environment, but to also maximize the comfort of the camera operator. In addition to the core body of the EOS C300 Mark II PL Digital Cinema Camera, the EOS C300 Mark II PL Digital Cinema Camera comes with a removable hand grip, improved low-angle camera handle extension with additional attachment points, and removable LCD monitor and control panel with XLR audio inputs.

Ultra-High Resolution OLED EVF with Adjustable Viewing Angle

The EOS C300 Mark II PL Digital Cinema Camera features a 0.46 Inch 1.77 Megapixel color OLED EVF (Organic Light Emitting Diode Electronic ViewFinder). OLED technology increases the color reproducibility, contrast and response of the viewfinder, making camera operation and the judging of image characteristics seen in the viewfinder much easier. The EVF also offers 60º of tilt for more comfortable operation in a variety of positions.

Connectivity and Camera Control

The EOS C300 Mark II PL Digital Cinema Camera comes equipped with two 3G-SDI, a genlock input, a time code input/output, and an HDMI output. (The camera's various "assist-displays" - waveform monitor, edge monitor, peaking, zebra and magnify - can be output to the SDI and HDMI outputs.)

RC-V100 Remote Support LANC Compatible

The EOS C300 Mark II PL Digital Cinema Camera supports the Canon RC-V100 multi-functional remote controller for enabling image quality adjustments and camera operations to be set from a distance. The EOS C300 Mark II PL Digital Cinema Camera is also LANC compatible and supports a variety of LANC accessories from third-party manufacturers.

Wireless Remote Capabilities

Users can take dynamic control of the functionality of the EOS C300 Mark II PL Digital Cinema Camera using a standard web browser with the optional WFT-E6A or WFT-E8A wireless file transmitter. Almost all shooting operations and settings can be controlled from a laptop, tablet or smart phone. Focusing functions have been added, and the focusing area can even be moved by touch, allowing accurate focusing operations even when direct access to the camera is not available.

Full Manual Control

The EOS C300 Mark II PL Digital Cinema Camera is also a fully manual digital camera. Users of the EOS C300 Mark II PL Digital Cinema Camera have full manual control of all camera functions including iris, shutter speed, gain, zoom, focus, and audio, giving them the ability to adapt to both technical and artistic challenges when shooting. For maximum customization, users have access to Custom Picture Settings, Custom Functions, and Custom Display Options to tailor the camera precisely to their needs.

Specifications

Sensor


CMOS sensor (single-panel) equivalent to Super 35 mm

Total Pixels


Approx. 9.84 megapixels (4206 x2340)

Number of effective pixels


Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution
Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution

Lens Mount


PL mount

Exposure Modes


(1) Manual exposure based on shutter setting, iris setting, ISO/gain setting, and ND filter setting
(2) Push auto iris control, auto iris control (Light metering system selection, shift possible)

Shutter Setting


Speed, Angle, Clear Scan, Slow, or Off mode selected
Either 1/3 or 1/4 steps selected as speed increment

lris Setting


1/2-stop, 1/3-stop or fine setting selected
(1) Push auto iris control
(2) Auto iris control *
* Available only with some EF lenses

ISO


1 step, 1/3 step settings
[*100 - 160 - 25600 -*102400
*When the sensitivity is expanded

Gain


Normal [*-6dB - -2dB - 42dB - *54db]
Fine: Setting in 0.5d8 step increments possible
* When the sensitivity is expanded

ND Filter


5 density settings (2,4,6,8(*), 10(*) stops) [(*) when expansion is selected]
Motorized drive

Focus Control


DAF (Dual Pixel CMOS AF) supported
Manual focus, one-shot AF, continuous AF, AF-Boosted MF (*), face detection AF (Only lenses that support AF functions can be used in any of these modes.)
*See Technical Description.

LCD Monitor


4 (10.1 cm diagonal) color wide-screen LCD with 16:9 aspect ratio
Approx. 1.23 million dots (854 x RGB x 480), 100% field of view coverage

Viewfinder


0.46 (1.18 cm on the diagonal), color organic EL display with a widescreen 16:9 aspect ratio
Approx. 1.17 million dots (1024 x RGB x 576), 100% field of view ratio

White Balance


Kelvin setting (setting range: 2000K to 15000K), daylight, tungsten, settings (A/B)

Frame Rate


59.94 Hz, 50.00 Hz, 24.00 Hz
59.94 Hz mode 59.94i / 59.94P / 29.97P / 23.98P
50.00 Hz mode 50.00i / 50.00P / 25.00P
24.00 Hz mode 24.00P

CFast Card


Movie recording, custom picture settings, metadata 2-slot

SD Card


Recording of movies and photos (JPEG), custom pictures, metadata, menus and other data possible

Video Compression Formats


MPEG-4 AVC/H.264

Audio Recording System


Linear PCM (16bit/24bit- 48 kHz - 4ch)

File Format


MXF

Bit Rate


410/310/225/210/160Mbps Intra-frame 50Mbps Long GOP
35 or 24Mbps Long GOP (for proxy recording on SD cards)

CFast Card


Intraframe recording
Resolution : 4096x2160 / 3840x2160 / 2048x1080 / 1920x1080
Color Sampling: YCC422 10bit/(*)RG8444 (12bit/10bit)
(*) Only with 2048x1080 or 1920x1080; 29.97P, 23.98P, 25.00P and 24.00P

Long GOP recording
Resolution : 2048x1080 / 1920x1080
Color Sampling: YCC422 10bit

SD Card


Movies: Long GOP recording only (*)
Resolution : 2048x1080 / 1920x1080
Color Sampling: YCC420 8bit
Photo: JPEG
Resolution : 2048x1080 / 1920x1080

(*) Proxy recording using low bit rate

Count-Up


Drop frame(*) or non-drop frame

Operation Mode


Rec run, free run, regeneration
(*) Only in the 59.94 Hz mode

Zoom Remote Controller


Canon RC-V100

Special Rec


Slow & Fast motion recording (max. 120 fps supported), frame recording, pre-recording, interval recording

Other


Relay recording, double slot recording, 4K RAW output, custom picture settings, color bar, peaking display, zebra display, My Menu settings, waveform monitor display, edge monitor display, customized functions, function assignment buttons (1 to 11), key lock, marker displays, Enlarged display, custom display Browser remote control using WFT unit, peripheral illumination correction, monaural microphone, fan control, magnification chromatic aberration compensation, GPS information recording, etc.

Playback Operations


Normal playback, fast forward (at speeds of 5x, 15x, 60x), fast reverse (at speeds of 5x, 15x, 60x), frame forward, frame reverse, forward skip, reverse skip, rec review

Clip Display


3x4 (clip) index screen
[Original, OK mark, check mark, shot mark, expand, proxy, photo (SD card) index displays available]

Clip Information Displays


Clip metadata display, custom picture data display

Edit


Clip deletion, clip copying

Body

Input


GENLOCK terminal (also serves as SYNC OUT terminal), TIME CODE terminal (input output switching), REMOTE terminal, MIC terminal, AUDIO terminal

Output


MON. terminal, REC OUT terminal, HDMI OUT terminal, headphones terminal, SYNC OUT terminal (also serves as GENLOCK terminal), TIME CODE terminal (input output switching), VIDEO terminal

Input/output control


Expansion system terminal (WFT/other unit)

Edit


Clip deletion, clip copying

Monitor Unit

Input


INPUT terminal (XLR) x 2, VIDEO terminal

Output


AUDIO terminal

Power Supply


14.4V DC (battery pack), 16.7 V DC (DC-IN)

Image Processing Platform


Dual Digic DV 5

Main Unit Weight


Approx. 4.4 lb (2000 g)

Dimensions (W x H x D)


Approx. 5.9 x 7.2 x 7.2 in (149 x 183 x 183 mm)- with thumb rest

EOS C300 Mark II

EOS C300 Mark II EOS C300 Mark II Body (with Grip) Shoulder Strap Camcorder Body Cap Monitor Unit Handle Unit Handle Bracket Expansion Unit Attachment Battery Pack (BP-A30) Battery Charger (CG-A10) Power Adapter (CA-A10) Eye Cup Viewfinder Cap Thumb Rest Tripod Base (TB-1) Measure Hook (x1) 50 cm Cables for Monitor Unit (x2) Hexagon Socket, Head Cap Screws (x10) with Allen Key
