EOS C700

Cinema EOS

Tech Explained: Learn The Science Behind 4K Optics.

Providing access to all important user functions.

Features

The EOS C700 offers the option of two different sensor designs. The EOS C700 offers a 4.5K CMOS sensor with 15 stops of dynamic range. The standard sensor will be offered in both PL and EF mounts. The EF mount version of the camera features Dual Pixel CMOS AF Technology.

The EOS C700 GS PL features global shutter technology. Global shutter technology is helpful for sports, fast action, concerts and events where it eliminates "jello" and "flash band" artifacts.

The image on a global shutter sensor is captured simultaneously by every pixel on the sensor. Standard CMOS sensors capture the image by scanning the scene from top to bottom. Depending on the speed of the scan, the time delay between the scan of the first line and the last sometimes results in a "jello" effect where straight lines appear curved or wobble as the camera or subject moves. By capturing the entire image at once these artifacts are removed. The EOS C700 GS PL features 14 stops of dynamic range and does not offer Dual Pixel CMOS AF.

The EOS C700 features a new design when compared to previous Cinema EOS products. The EOS C700 is a full size cinema camera allowing for both traditional studio style and handheld configurations.

The camera body includes built in cheese plates with numerous 3/8-16 and 1/4-20 threaded holes on the top and bottom to easily attach accessories. The top handle attaches in a variety of positions for assisting in achieving optimum balance.

The EOS C700 has an optional 0.7-inch OLED Electronic Viewfinder (EVF-V70). Canon's first professional grade viewfinder features Full HD 1920x1080 viewing, surround view, view assist and false color. The EVF also has the ability to display an HDR simulated picture with a "stretched" dynamic range for increased shadow detail and highlight retention.

Both sides of the camera can have redundant main displays with menus and controls. A built in control panel on the camera operator side allows quick access to the camera controls. Canon's optional new Remote Operation Unit OU-700 attaches to the camera's right side and mimics all the functions of the built-in Main Display. It conveniently flips up for access to the CFast and SD card slots. This allows for camera operation from both sides of the camera making camera adjustment easy for both operator and assistant.

The intuitive six button layout of the menu system allows quick access to frequently used camera functions such as ISO, shutter, slow and fast motion, etc. and may instantly feel very familiar and comfortable to camera operators. Within each quick access function is the ability to access deeper menu options so complete camera control and customization is always accessible while the menu remains clean and easily usable.





The EOS C700 can be used with an optional accessory Shoulder Support Unit SU-15 with industry-standard rosettes on each side and 15mm rods in front. The unit has a comfortable shoulder pad that consists of two sections that can adjust to fit the width of a camera operator's shoulder. Attaching the shoulder pad to the camera allows for easy handheld operation and still provides a quick release bottom to connect to a tripod.










The EOS C700 has a significantly upgraded power management system to help facilitate connecting with various third party accessories. The camera comes standard with a V-mount plate to accept common professional battery systems. External power supplies of +10 - 34 VDC plug into the camera via an industry-standard 4-pin XLR Style power connector. Camera accessories can be powered via a 24V DC 3-pin and a 12V DC 2-pin connector located on the front of the camera to help with cable management.

The EOS C700 offers a choice of two lens mounts, PL or Cinema Lock EF. The Canon Cinema Lock EF mount is the same ruggedized version first seen on the EOS C300 Mark II.

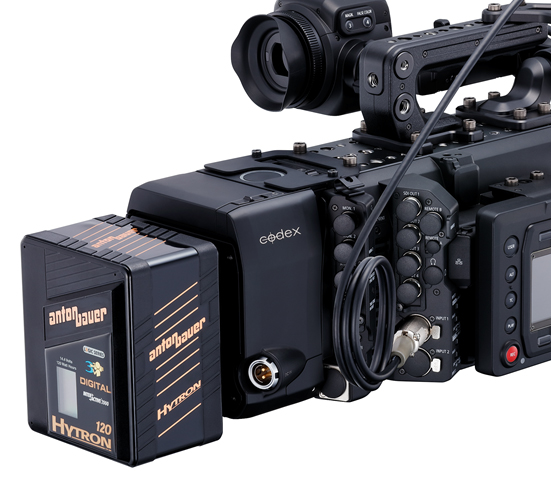

With an optional Codex CDX-36150 attached, the EOS C700 can record uncompressed 10-bit or 12-bit 4K RAW up to 120 fps, 2K RAW up to 240 fps, or ProRes 4K up to 60 fps.

The Codex CDX-36150 is made specifically for the EOS C700 and attaches to the rear of the camera and is controlled directly through the cameras menu system.

The Codex CDX-36150 RAW Recorder is attached to the EOS C700 by removing the battery plate at the rear of the EOS C700 and replacing it with the recorder. This modularity of the EOS C700 allows the recorder to be connected securely without wires and act like an integrated part rather than an external accessory. The rear of the Codex recorder has a battery plate with onboard Gold Mount battery connector. External power (10-32 VDC) can also be supplied to the 2-pin connector on the recorder body.

Codex CDX-36150 is an integrated system when attached to the EOS C700. The Codex Recorder allows recording not only 4K RAW, but also ProRes at significantly higher frame rates than internal CFast Cards. When recording RAW files are saved as a .RMF frame sequence in an uncompressed format with no "baked in setting." Clip development can then be easily adjusted in post using the included Canon Raw Development (CRD) software.

The CDX-36150 uses one Codex Capture Drive 2.0 (1 TB or 2 TB capacity), a familiar and commonly available professional recording media.




The EOS C700 has two modes of internal recording: Canon XF-AVC and Apple ProRes. Both record to internal CFast Media.

XF-AVC records up to 59.94p in 4K onto the CFast media.

The camera also records Apple ProRes to CFast media. This is the first time a Canon Cinema EOS camera records ProRes internally. This can help significantly reduce the time and cost of transcoding video files for productions using ProRes as an intermediate and delivery format.

Simultaneous dual CFast recording is available for creating an immediate backup.

The EOS C700 features two CFast 2.0 card slots on the camera right side and one SD card slot. The EOS C700 can record XF-AVC and ProRes (along with metadata) simultaneously to either or both CFast cards. Simultaneous recording is helpful, for example, where one card might go to the post house and the other could be stored safely in the production company's archive. Relay recording is also possible for situations where changing cards and losing precious seconds is not an option (sporting events, speeches, nature documentaries). At the same time, an 8-bit 4:2:0 Proxy XF-AVC file can be recorded to the SD card for immediate editing. The SD card can also capture JPEG still frames (2048x1080 or 1920x1080), metadata, menus and other information.




The EOS C700 supports Canon Log 2 and Canon Log 3 Gamma. Canon Log is designed to reproduce, in post production, the entire tonal range that the CMOS image sensor is capable of. Log workflow provides the user with higher dynamic range, more highlight and shadow retention, and more flexibility in grading. Canon Log 2 provides the largest dynamic range and image detail. While Canon Log 2 provides the most post-production flexibility and the full 15 stops of dynamic range of the sensor, it requires more post time. For users looking for most of the benefits of log workflow, but with shorter turnaround times, Canon Log 3 provides an alternative with only a slightly reduced dynamic range of 14 stops.




The EOS C700 features the option to output ST 2084 over the monitor port to assist in HDR production. ST 2084 allows compatible monitors to simulate the HDR look of the final piece allowing for easier lighting and other technical decisions on set during the acquisition process.

The optional Canon Electronic Viewfinder (EVF-V70) also allows for a ST 2084 simulation mode to allow the camera operator to see HDR visuals close to what is supplied on the monitor signal. This can further facilitate creative decisions on set where HDR reference equipment and output devices might not be available.

The EOS C700 supports Rec. 2020, which is the UHDTV display color space. Rec. 2020 support means that production looking to go straight to the UHD format can start in that expanded color space without the need to do conversions.

The EOS C700 supports ACES 1.0 of the Academy Color Encoding System. Using Canon supplied IDTs, images captured on the EOS C700 can be imported directly into the ACES compatible systems.

Additionally, video output from the camera can be monitored by selecting the ACES Proxy.

Aces Proxy allows the camera to send a monitor output that simulates ACES space to a compatible monitor or device. Modifications made using the proxy output can be saved and later brought into the editing or grading suite to help insure changes and color choices made on set are accurately reproduced in post.

Canon 17, 24 and 30-inch Reference Displays support ACES image display. The EOS C700 has four 3G-SDI outputs at the rear of the camera. So, while the Codex CDX-36150 records 4K RAW, the EOS C700 can simultaneously send the 4K image to a Canon Reference Display. The Canon Monitor debayers the RAW image and converts it to an ACES color space. In addition to ACES, Canon's new DP-2420 Reference Display nicely supports HDR, Canon Log3 and Hybrid Log Gamma.




The EOS C700 Digital Cinema Camera features next generation Dual Pixel CMOS AF (DAF) Technology. Each pixel in the camera's CMOS sensor is configured with two photodiodes. Two independent image signals can then be detected at each photosite. By implementing phase-difference AF, smooth focusing is accomplished using Canon EF lenses with much higher speed and accuracy than was possible with previous technologies.

The EOS C700 has rapid one-touch AF (with a push-button) and continuous AF within approximately 80% of the overall image area. Face detection AF is another autofocus mode that can track a person's face in the frame and maintain focus on them.

To further fine tune AF performance, the EOS C700 offers the ability to set the AF tracking speed and response.

DAF also makes possible the Dual Pixel Focus Guide. Dual Pixel Focus Guide presents the user with a rectangle in the center of the EVF or monitor. The rectangle turns green when the subject is in focus. If the subject is out of focus the box will turn gray and the arrows will indicate which way to adjust the lens to regain focus.

New in the EOS C700 is a focus pre-set feature. Separate predetermined focus points can be selected and when the SET button is pushed, the lens will move focus from one mark to the other.

"DIGIC" is Canon's acronym for Digital Imaging Integrated Circuit. The EOS C700 uses three DIGIC DV 5 processors to power the advanced features of the camera. DIGIC works in conjunction with other subsystems of the camera such as the lens and sensor to support the various features and the image processing engine.

Internal ND Filters
The EOS C700 features in-camera ND filters to help save production time and help increase shooting versatility without the need to change filters. The internal ND filters are selected with the ND FILTER + and - buttons on the left side of the camera.

The EOS C700 uses an internal, motorized ND assembly consisting of two rotating disks with glass ND filters between the rear of the lens and the front of the sensor. This combination of ND filters allows 2, 4 and 6 stops of ND in normal mode and 8 and 10 stops in extended mode.




Anamorphic Lens Support
The EOS C700 supports anamorphic format lenses by electronically desqueezing the image in the viewfinder and on connected monitors for viewing. On the sensor users can take advantage of the camera's full 4K resolution by using 1.3x squeeze anamorphic lenses that cover the full 16x9 area of the EOS C700 sensor. Popular 2x squeeze anamorphic lenses that cover a native 1.2:1 aspect ratio on the sensor can be used as well using a cropped area of the sensor.




B4 Lenses
Two B4 mount adapters are available for the EOS C700, B4 to EF adapter (MO-4E) and B4 to PL adapter (MO-4P). Canon's B4 mount adapter blows up the image slightly, resizing the 2/3" image circle to approximately 1" to correspond with native HD resolution on the EOS C700 sensor. This design helps minimize light loss through the adapter, while maintaining depth of field and range of the 2/3" lens. For power and control with B4 servo lenses the C700 features a 12-pin lens connector on the front of the camera body.




Slow and Fast Motion Recording
The EOS C700 has the fastest frames rates available of any Canon Cinema EOS Camera to date. In addition to the 4K 60P, EOS C700 also features 2K recording up to 120 frame per second and a crop 2K mode featuring up to 240 frames per second.




IP Streaming
IP Streaming enables users to send their video online, in real time, as they shoot. It works with compatible IP decoders, IP streaming software and other devices for live streaming to video websites, news shows, video productions, post production facilities, editing rooms and broadcast stations.

The EOS C700 supports MPEG2-TS with UDP, RTP, RTSP+RTP protocols.

Wireless Remote Capabilities
The EOS C700 can connect to a wireless network using a Canon wireless file transmitter (WFT-E6A / WFT-E8A). Using the WFT Transmitter, users can operate the camera and view live images using a Wi-Fi® connected device with a compatible web browser.

GPS
When an optional Canon GP-E1 GPS receiver is connected to the EOS C700, GPS information can be added to the metadata. This is selected using the menu. GPS position (altitude, latitude, longitude) and time can be recorded where GPS service is available.

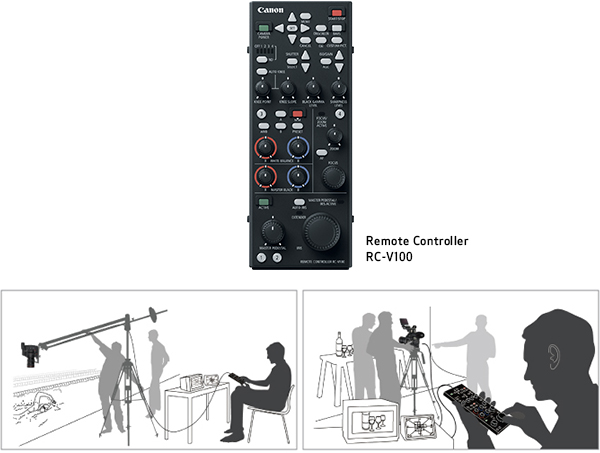

RC-V100 Support
Canon's RC-V100 Remote Controller plugs into the EOS C700 via an RS422 connector on the rear panel. This optional accessory allows image quality adjustments and camera operations to be set from a distance.

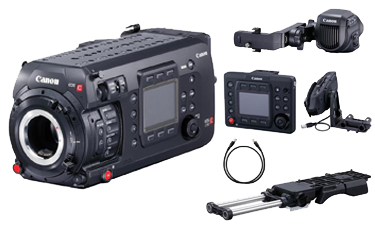

Viewfinder EVF-V70, Remote Controller RC-V100, Shoulder Support Unit SU-15, Remote Operation Unit OU-700, Shoulder-Style Grip Unit SG-1, GPS GP-E1, Wireless File Transmitters WFT-E6A / WFT-E8A.

Specifications

Sensor


CMOS Sensor with DAF Technology

Total Pixels


Approx. 11.54 megapixels (4622 x 2496)

Number of Effective Pixels


Approx. 8.85 megapixels (4096 x 2160):
When 4096 x 2160 or 2048 x 1080 is selected as the resolution

Approx. 8.29 megapixels (3840 x 2160):
When 3840 x 2160 or 1920 x 1080 is selected as the resolution

RAW Recording Pixels 4512 x 2376

with March 2017 update

Lens Mount


EF mount (cinema lock type)

Exposure Modes


(1) Manual exposure based on shutter setting, iris setting, ISO/gain setting, and ND filter setting
(2) Push auto iris control, auto iris control
(Light metering system selection, shift possible)

Shutter Setting


Speed, Angle, Clear Scan, Slow, or Off mode selected
Either 1/3 or 1/4 steps selected as speed increment

Iris Setting


1/2-stop, 1/3-stop or fine setting selected
(1) Push auto iris control
(2) Auto iris control

Lenses that support Auto Iris:
EF Lenses
EF-S 18-135mm f/3.5-5.6 IS USM EF-S 18-135mm f/3.5-5.6 IS STM EF-S 18-55mm f/3.5-5.6 IS STM
EF-S 55-250mm f/4-5.6 IS STM EF-S 10-18mm f/4.5-5.6 IS STM EF 24-105mm f/3.5-5.6 IS STM
CINE-SERVO Lenses
CN7×17 KAS S/E1 CN20×50 IAS H/E1 CN-E18-80mm T4.4 L IS KAS S
CN7×17 KAS S/P1 CN20×50 IAS H/P1
ENG Broadcast Lenses
2/3 mount lenses which allow for 12-pin communication using B4 mount
HJ14ex4.3B IASES HJ18ex7.6B IASES HJ24ex7.5B IASES
HJ17ex7.6B IASES HJ22ex7.6B IASES

ISO


1 step, 1/3 step settings
[*100 - 160 - 25600 - *102400]
*When the sensitivity is expanded

ND Filter


5 density settings (2, 4, 6, 8*, 10* stops)
*when expansion is selected

Focus Control


Dual Pixel CMOS AF support
Manual Focus, One-Shot AF, continuous AF, AF-Boosted MF, Face Detection AF
Only lenses that support AF functions can be used in any of these modes

Focus Guide


Lens must support AF

Controls Display


3.0-inch (7.66cm on the diagonal) color liquid crystal
Approximately 1.036 million dots

Viewfinder


Optional OLED Electronic View Finder (EVF-V70) sold separately

FHD 1920 x 1080 0.7

White Balance


AWB, USER setting setting (setting range: 2000K to 15000K/ -20CC to +20CC), AWB, daylight, tungsten, settings (A/B)

Frame Rate


59.94 Hz, 50.00 Hz, 24.00 Hz
59.94 Hz mode: 59.94i/59.94P/29.97P/23.98P
50.00 Hz mode: 50.00i/50.00P/25.00P
24.00 Hz mode: 24.00P

CFast Card (2 slots)


Movie recording (XF-AVC/ProRes), custom pictures, metadata recording

SD Card


Records movies XF-AVC (proxy), photos (JPEG), custom pictures, metadata, menus and other data

Codex Capture Drive


Video (RAW) (Available with Codex Recorder Attached to C700) / ProRes*

*with March 2017 Update

Video


(1) XF-AVC/ MPEG-4 AVC/H.264
(2) ProRes/ Apple ProRes Codec
(3) RAW / Uncompressed

Audio


Linear PCM (24 bit- 48kHz)
4-Channel Recording

Resolution/Sampling


4096x2160 YCC422 10 bit/3840x2160 YCC422 10 bit
2048x1080 YCC422 10 bit/1920x1080 YCC422 10 bit
2048x1080 RGB444 12 bit/1920x1080 RGB444 12 bit
2048x1080 RGB444 10 bit/1920x1080 RGB444 10 bit

Bit Rate


810 / 440 / 410 / 310 / 225 / 210 / 170 / 160 / 90Mbps Intra-frame 50 Mbps Long GOP

Resolution/Sampling


4096x2160 YCC422 10bit/3840x2160 YCC422 10bit
2048x1080 YCC422 10bit/1920x1080 YCC422 10bit
2048x1080 RGB444 12bit/1920x1080 RGB444 12bit

Bit Rate


ProRes4444 / ProRes422HQ / ProRes422

Resolution/Sampling


2048x1080 YCC420 8 bit/1920x1080 YCC420 8 bit

Bit Rate


24/35Mbps Long GOP

Bit Depth


12/10 bit

Resolution


4096x2160, 4512x2376

Count-Up


Drop frame* or non-drop frame
*Only in the 59.94 Hz mode

Operation Mode


Rec run, free run, regeneration

Gamma


Canon Log 3 / Canon Log 2 / Canon Log / Wide DR / etc.

Color Space


Cinema Gamut / BT.2020 Gamut /DCI-P3 Gamut/BT.709 Gamut

LUT


BT.709/ BT.2020/ DCI/ ACESproxy/HDR-ST2084 and others

Others


Slow & Fast motion recording (max. 240 fps supported), relay recording, double slot recording, custom picture settings, color bar, peaking display, zebra display, My Menu settings, waveform monitor display, custom function, assignable buttons, key lock, marker displays, enlarged display, custom display, Browser Remote control using WFT unit, peripheral illumination correction, monaural microphone, fan control, magnification chromatic aberration compensation, GPS information recording, etc.

Playback Operations


Normal playback, frame forward, frame reverse

Clip Display


List display of clip file names

Clip Information Display


Clip metadata display, custom picture data display

Edit


Clip deletion

Input


GENLOCK terminal (also serves as SYNC OUT terminal), TIME CODE terminal (input/output switching), REMOTE terminals (A/B), MIC jack, XLR: 2 sets, CTRL terminal, System extension terminal

Output


MON. (1/2) terminals, SDI-OUT terminal (4 sets), HDMI OUT terminal, headphones jack, SYNC OUT terminal (also serves as GENLOCK terminal), TIME CODE terminal (input/output switching), VIDEO terminal

Input/Output Control


LENS terminal, Ethernet terminal

Input


DC IN 12V jack (XLR 4-pin jack)

Output


DC 24V 2A/DC 12V 2A terminal/D-TAP terminal

Image Processing Platform


Triple Digic DV 5

Related Accessories


EVF-V70, UN-5/UN-10, OU-700, SU-15, SG-1, UC-V75, UC-V1000, MO-4E / MO-4P, RC-V100, WFT-E6A, WFT-E8A, GP-E1

Third-Party Products


(1) Codex
CDX-36150 (Codex Recorder for Canon EOS C700) / Removable Capture Drive for CDX-36150

(2) IDX
V-Mount battery (Also IDX AC adapter and cable, etc.)

IP Streaming


Streams video to decoder transmission device or computer over the network.

Bit rate / Resolution / Frame Rate


9Mbps/4Mbps: 1920x1080 [59.94i/50.00i]
2Mbps: 1280x720 [29.97P/25.00P]
1.5Mbps: 720x480(/579)/[59.94i/50.00i]

Audio


MPEG-2 ACC-LC

Audio Rate


256KBbps

Transfer Media


Wi-Fi / Ethernet

Protocols


UDP, RTP, RTP + FEC, RTSP + RTP

Error Correction


FEC

Standards


IEEE 802.11b/g/n (2.4 GHz band), IEEE 802.11a/n (5 GHz band)

Transmission Frequencies and Channels


IEEE 802.11b/g/n (2.4 GHz band), 2412-2462MHz, 1-11ch (US, Canada, Korea, Taiwan, Philippine, Mexico, Saint Pierre, Miquelon, Brazil)
2412-2472 MHz, 1-13ch (in countries other than the ones listed above)

IEEE 802.11n/11a (5 GHz band): Differs depending on the model’s destination.

Wi-Fi Setup Method


(1) WPS [Wi-Fi Protected Setup] (push-button system, PIN code system)
(2) Manual Setup
(3) Search for Access Points

Authentication Systems


Open system, WPA-PSK, WPA2-PSK

Encryption


WEP-64, WEP-128, TKIP, AES

Dimensions (W x H x D)


Approx. 6.6 x 6.1 x 12.9 in
(167 x 154 x 327mm)

Weight


Approx. 3440 g (7.6 lb)

EOS C700 Kit Contents

EOS 5D Mark IV Kit Contents EOS C700 Camera Body (with Body Cap) Handle Unit Mic Holder Clamp Base Extension Unit Attachment Reinforcing Plate Button Battery Base Feet (x4) Tape Measure Hook (x2) Allen Key (X2)
EOS 700
