EOS Rebel T7i EF-S 18-55mm IS STM Lens Kit
DSLR
Canon Store: $

Express yourself in full detail with our Canon Creator Kits.

Advance your photography skills by enrolling in one of our Canon Online Learning Photography Classes with tips, techniques and tricks of the trade from our industry experts.
Turn your compatible Canon camera into a high-quality webcam for video conferencing and more.

Unlock Your Potential
Take your photos to the next level with the image quality and near-instant autofocus of the EOS Rebel T7i camera. A 45-point all cross-type AF system* and optical viewfinder lets you stay ready for that unforgettable moment with virtually no lag between what you see and what you get when you press the shutter. Fast and accurate Dual Pixel CMOS AF with phase-detection locks focus quickly and accurately to help make sure you don’t miss a great shot. A 24.2 Megapixel CMOS (APS-C) sensor helps you capture special moments from vacations to family events in brilliant color, detail and vibrancy for beautifully memorable photos and videos. With a maximum ISO of 25600, you can capture photos in low light with minimal chance of blur. Built-in Wi-Fi®**, NFC*** and Bluetooth®^ connectivity lets you share these precious moments with friends and family and upload them directly to the web.































Features
Optical Viewfinder with a 45-point All Cross-type AF System
To help you frame your ideal shot, the EOS Rebel T7i camera has an optical viewfinder that lets you see exactly what the lens sees. Equipped with a convenient 45-point all cross-type autofocus system*, the optical viewfinder helps ensure you can quickly get a subject in focus, regardless of its movement or where it is in the frame. Simply compose the photo you want and the autofocus will quickly lock on. With virtually no lag between what you see and the image you get when you press the shutter, you can get the shot you want, when you want.
* Depending on the lens, the number of points, number of cross-type points, and number of dual cross type points will differ. Additionally, the EF-S 18-55mm 4-5.6 IS STM lens does not support all cross-type points.

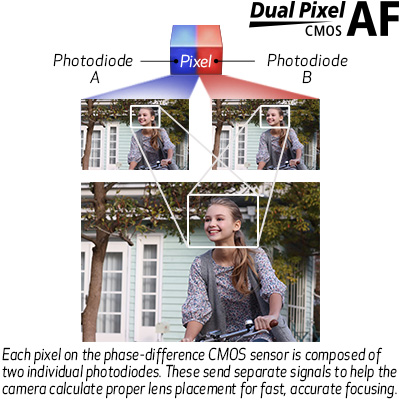

Fast & Accurate Dual Pixel CMOS AF
Once you’ve lined up the shot you want using Live View on the LCD touchscreen, there’s virtually no wait for the camera to focus thanks to the EOS T7i’s Dual Pixel CMOS AF which helps deliver the world’s fastest autofocusing speed at 0.03 sec.^^ Equipped with phase-detection, it can quickly and accurately determine how far away an object is and where the lens should focus, and offers fast, smooth and precise autofocus that stays locked onto your subject, even if your subject is in motion, for both photos and videos. Dual Pixel CMOS AF helps ensure your results are sharp, keeps the time it takes to lock focus onto your subject to a minimum and smoothly maintains focus where you want it.
[Measurement conditions]
- Focusing brightness: EV 12 (room temperature, ISO 100)
- Shooting mode: M
- Lens used: EF-S 18–55mm f/4–5.6 IS STM (at focal length of 55mm)
- Live View AF shooting using the shutter button.
- AF method: Live 1-point AF (with Center AF point)
- AF operation: One-Shot AF

^^ Among all the interchangeable lens digital cameras incorporating the APS-C size image sensors with phase-difference detection AF on the image plane. As of February 14, 2017 (based on Canon research). Calculated based on the resulting AF speed measured according to the CIPA guidelines. (Varies depending on the shooting conditions and the lenses used.) Internal measurement method.
24.2 Megapixel CMOS (APS-C) Sensor
The EOS Rebel T7i camera has a powerful 24.2 Megapixel CMOS (APS-C) sensor that can capture images of incredible depth and beauty. Thanks to its high resolution, the EOS Rebel T7i can capture images of immense quality in more lighting situations. Take photos and videos with fine details and dynamic, rich colors from the deepest reds to emerald greens to lush blues and purples. Simply turn the camera on and feel confident that the results will be stunning whether they’re being shared on the web or blown up into poster-sized prints.

DiG!C 7 Image Processor
The DIGIC 7 Image Processor powers the EOS Rebel T7i camera to produce high image quality and fast operation, even in in low light. When using high ISO settings, the image processing helps keep results sharp and detailed in virtually any lighting situation. Powerful all around, the DIGIC 7 Image Processor helps ensure your photos and videos look sharp and lifelike with minimal unwanted noise or grain.

Built-in Wi-Fi®** Capability
The EOS Rebel T7i camera is designed to make Wi-Fi® connections** fast and easy. It can exchange data with other Wi-Fi® compatible Canon cameras, and transfer files directly to a compatible smart device using the Camera Connect app. It can also connect directly to Canon’s Connect Station CS100 device, upload directly to various web services like CANON iMAGE GATEWAY#, Facebook® and YouTube® and print directly to wireless Canon printers.

Built-in NFC*** Capability
With its built-in NFC (Near Field Communication) capability***, the EOS Rebel T7i camera connects directly to compatible Android devices as well as Canon’s Connect Station CS100 device by simply touching the NFC icon located on the camera to the device.

Built-in Bluetooth®^ Capability
Bluetooth®^ pairing lets you quickly and easily connect the EOS Rebel T7i camera to the optional Wireless Remote Control BR-E1 for remote shooting. It also helps you connect the camera to compatible smart devices using the free Canon Camera Connect app. This low-energy connection can be set to connect automatically upon discovery of the two devices and helps preserve battery life while maintaining a wireless connection. You can also establish a direct Wi-Fi connection to use your phone as a viewfinder, and check and download previously captured photos and videos.

Remote Shooting
With the Canon Camera Connect app** installed, the EOS Rebel T7i camera can connect to your compatible smartphone or tablet via Wi-Fi®**, or connect to the optional Wireless Remote Control BR-E1 for simple remote shooting via Bluetooth®^.

** Compatible with iOS® versions 8.4/9.3/10.2, Android™ smartphone and tablet versions 4.1/4.2/4.3/4.4/5.0/5.1/6.0/7.0/7.1. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
*** Compatible with Android™ smartphone and tablet versions 4.1/4.2/4.3/4.4/5.0/5.1/6.0/7.0/7.1.
^ Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS® devices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen. or later) equipped with Bluetooth® version 4.0 or later and the Camera Connect App Ver. 2.0.30. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.
# One-time registration is required on CANON iMAGE GATEWAY online photo album.
Vari-angle Touch Screen
The EOS Rebel T7i camera features a Vari-angle Touch Screen 3.0-inch ClearView LCD II monitor with a touch-sensitive screen that can be ideal for composing and reviewing your photos. Tap the screen during Live View while taking photos or videos and thanks to Dual Pixel CMOS AF, the EOS Rebel T7i will quickly snap focus to that location in the image. Two-finger touch gestures can be used for zooming or changing images after you’ve taken them, and menu and quick control settings can be accessed quickly and easily. To keep the 1.04 million dot display bright, clear and easily viewable with minimal glare, the LCD monitor is constructed to help minimize reflections and treated with smudge-resistant coating.

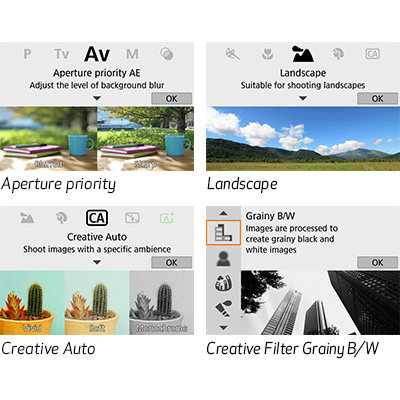

Feature Assistant
The EOS Rebel T7i camera features a convenient new user interface called Feature Assistant. Both simple and advanced camera features are explained with easy-to-understand graphics and descriptions, letting you explore how different camera settings affect the image. Learn how shutter speed can “pause” fast motion, for example, or how aperture priority can help give you a smooth, artistically-blurred background. To suit your shooting style, a simple tap on the screen can switch between Feature Assistant, shooting mode or Canon’s traditional User Interface (UI).

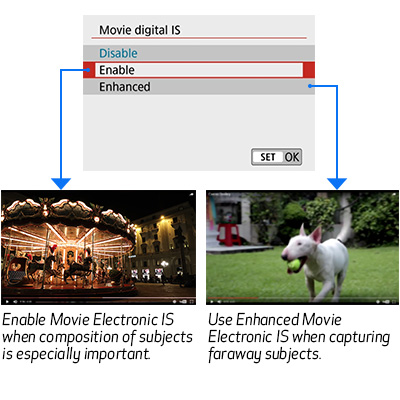

Movie Electronic IS
A shaky video can make even the best content hard to watch. The EOS Rebel T7i camera features Movie Electronic IS^^^ to help minimize the blurring effect of camera shake. When enabled and used with a compatible Canon lens, Movie Electronic IS adds 5-axis stabilization in the horizontal, vertical and rotational planes. The result? Smooth Full HD movies for your friends and family to enjoy.
^^^ Movie Electronic IS cannot be used with the following lenses: EF 50mm F1.2L USM, EF 85mm F1.2L II USM, EF 200mm F2L IS USM, EF 300mm F2.8L IS II USM, EF 400mm F2.8L IS II USM, EF 500mm F4L IS II USM, EF 600mm F4L IS II USM, EF 800mm F5.6L IS USM, EF 200–400mm F4L IS USM.

HDR Movie & Time-Lapse Movie
HDR photos can capture dynamic scenes that have vibrant, natural color with bright details. HDR Movie Mode helps you do the same with videos, with less blown-out highlights and more rich and colorful movies. A video of a sunset, for example, could have the sun and colorful sky, along with the shadowy landscape below, all with color and detail throughout the frame.
For even more creative options, Time-Lapse Movie mode condenses long stretches of time into shorter videos (minimum settable shutter speed of 1/25). Watch how traffic varies at an intersection over the course of rush hour, or how the moon moves across the sky at night.

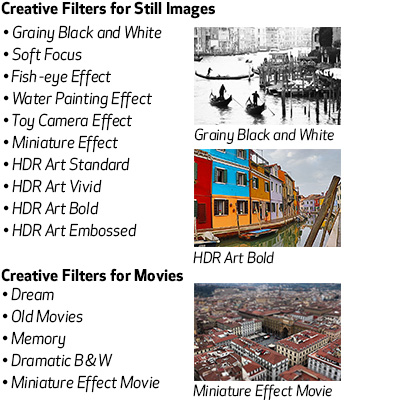

Creative Filters for Still Images and Video
The EOS Rebel T7i camera comes with a number of different creative filters that are available as presets and can be previewed before shooting. Effects for still images include Art Bold, Water Painting and Fisheye effect, while effects for video include Dream, Old Movies and Memory. Express or enhance the mood of a scene and make photography with the EOS Rebel T7i even more fun with creative filters.

High-speed Continuous Shooting at up to 6.0 fps
To help you get multiple images of a fast-moving subject and help ensure you capture the moment you want, the EOS Rebel T7i camera is capable of taking up to 6.0 frames per second. Whether you’re capturing a kitten pouncing on a toy or your friends skiing on a winter trip, the EOS Rebel T7i can take the shot and stay locked on throughout the action.

Specifications
Type
Digital AF/AE single-lens reflex camera with built-in flash
Recording Media
SD/SDHC/SDXC memory cards
SD speed class-compatible UHS-I compatible High-speed writing is supported when a UHS-I compatible SD card is used. Compatible with Eye-Fi Cards. Multimedia cards (MMC) cannot be used (card error will be displayed).
Image Format
Approx. 22.3mm x 14.9mm (APS-C Size)
Compatible Lenses
Canon EF lenses (including EF-S lenses, excluding EF-M lenses)
Lens Mount
Canon EF mount
Type
CMOS sensor (supporting Dual Pixel CMOS AF)
Pixels
Effective pixels: Approx. 24.2* megapixels
Total pixels: Approx. 25.8* megapixels
* Rounded to the nearest 100,000.
Pixel Unit
Approx. 3.72µm square
Aspect Ratio
3:2 (Horizontal : Vertical)
Color Filter System
RGB primary color filters
Low Pass Filter
Installed in front of the image sensor, non-detachable
Dust Deletion Feature
(1) Self Cleaning Sensor Unit
Removes dust adhering to the low-pass filter.
Self-cleaning executed automatically (taking approx. 2 sec.) when power is turned on or off. Manual execution also possible (taking approx. 5 sec.).
After the cleaning is performed, the camera will automatically restart (power OFF to ON).
(2) Dust Delete Data acquisition and appending
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
(3) Manual cleaning
Recording Format
Complies with Design rule for Camera File system 2.0 and Exif 2.3
File Size
3:2 Aspect Ratio
Large: 6000 x 4000
Medium: 3984 x 2656
Small 1: 2976 x 1984
Small 2: 2400 x 1600
RAW: 6000 x 4000
4:3 Aspect Ratio
Large: 5328 x 4000
Medium: 3552 x 2664
Small 1: 2656 x 1992
Small 2: 2112 x 1600
RAW: 6000 x 4000
16:9 Aspect Ratio
Large: 6000 x 3368
Medium: 3984 x 2240
Small 1: 2976 x 1680
Small 2: 2400 x 1344
RAW: 6000 x 4000
1:1 Aspect Ratio
Large: 4000 x 4000
Medium: 2656 x 2656
Small 1: 1984 x 1984
Small 2: 1600 x 1600
RAW: 6000 x 4000
Backup Recording
N/A
File Numbering
The following three types of file numbering method can be set:
(1) File numbering method
Continuous numbering The numbering of captured images will continue even after you replace the camera's card. Auto reset When you replace the camera's card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card. (2) Manual reset Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording
Simultaneous recording is possible using a combination of RAW and JPEG (Large).
Color Space
sRGB, Adobe RGB
Picture Style
(1) Auto
(2) Standard
(3) Portrait
(4) Landscape
(5) Fine Detail
(6) Neutral
(7) Faithful
(8) Monochrome
(9) User Def. 1-3In Basic Zone modes, [Auto] will be set for and of the mode, and [Standard] will be set for other modes. In Creative Zone modes, you can select or set the Picture Style.[Auto] is the default setting for [User Def. 1-3].
Settings
(1) Auto (Ambience priority/White priority)
(2) Daylight
(3) Shade
(4) Cloudy*
(5) Tungsten light
(6) White fluorescent light
(7) Flash
(8) Custom (Custom WB)
* Effective also in twilight and sunset.
Auto White Balance
Option between ambience priority and white priority settings
Color Temperature Compensation
Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels Corrected in reference to the current WB mode's color temperature.
Type
Eye-level SLR (with fixed pentamirror)
Coverage
Coverage At approx. 19mm eye point
Magnification
Approx. 0.82x / 23.2° (50mm lens ∞, -1 m-1)
Eye Point
Approx. 19mm (at -1m-1 from the eyepiece lens center)
Dioptric Adjustment Correction
Adjustable from approx. -3.0 to +1.0 m-1 (dpt)
Focusing Screen
Fixed
Mirror
Quick-return half mirror
Viewfinder Information
Displayed with transparent liquid crystal
(1) AF point information Including Area AF frame(2) Spot metering circle(3) Electronic level
(4) Grid
(5) Aspect line
(6) Flicker detection
Depth Of Field Preview
Provided with depth of field preview button
Type
TTL secondary image-forming phase-difference detection system with AF-dedicated sensor
AF Points
AF Points Up to 45 points (cross-type AF points: max. 45)The number of AF points, cross-type AF points and dual cross-type AF points varies depending on the lens used. Note that, with aspect ratio of 1:1, the maximum number of AF points becomes 35. (Each left and right end line of AF points in total of ten are not usable.)
AF Working Range
AF Working Range Conditions: One-Shot AF, at 73°F/23°C, ISO 100 (based on Canon's testing standards and environment)
Focusing Modes
(1) Autofocus One-Shot AF Predictive AI Servo AFAI Focus AF (*Switches between One-Shot AF and AI Servo AF)
*Switches between One-Shot AF and AI Servo AF(2) Manual focus (MF)
AF Point Selection
(1) Single-point AF (Manual selection)The checkmark cannot be removed from this option.(2) Zone AF (Manual selection of zone)All the AF points are divided into nine focusing zones.(3) Large Zone AF (Manual selection of zone)All the AF points are divided into three focusing zones.(4) Automatic selection AF (45 points)
AF Assist Beam
AF Assist Beam Intermittent firing of built-in flash
Effective range With an EOS-dedicated Speedlite attached, the Speedlite's AF-assist beam is emitted instead.
Metering Modes
7560-pixel RGB+IR metering sensor
63-zone (9x7) metering
1) Evaluative metering (linked to all AF points)
2) Partial metering (center, approx. 6.0% of viewfinder)
3) Spot metering (center, approx. 3.5% of viewfinder)
4) Center-weighted average metering
Metering Range
EV 1-20 (room temperature, ISO 100, evaluative metering)
Exposure Control Systems
Creative Zone Program AE (Shiftable)Shutter-priority AE Aperture-priority AE Manual exposure (including bulb)Basic Zone Scene Intelligent Auto (Program AE/ non-shiftable)Flash Off Creative Auto Portrait Landscape Close-up Sports Special Scene Group Photo Kids Food Candlelight Night Portrait Handheld Night Scene HDR Backlight Control Creative Filters Grainy B/W Soft Focus Fish-eye Effect Water Painting Effect Toy Camera Effect Miniature Effect HDR Art Standard HDR Art Vivid HDR Art Bold HDR Art Embossed
ISO Speed Range
ISO Speed Range Manual Setting For [Highlight tone priority], the settable ISO speed range will be ISO 20025600.
Auto ISO Speed Settings*1 It depends on [Maximum] of [ISO Auto].
*2 If fill-in flash will cause overexposure, ISO 100 or a higher ISO will be set.
Exposure Compensation
Exposure Compensation*Up to ±2 stops, indicated in the viewfinder.
*Up to ±3 stops when [Shooting screen: Guided] is set.
AE Lock
(1) Auto AE lock
* In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.
(2) Manual AE lock
* In the P, Tv, Av, and M modes, enabled with the AE lock button. (Press again to update.)
* Enabled in all metering modes.
Type
Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
Shutter Speeds
1/4000 to 30 sec., bulb (total shutter speed range. Available range varies by shooting mode.)
X-sync at 1/200 sec.
Shutter Release
Soft-touch electromagnetic release
Self Timer
10-sec. delay, 2-sec. delay
Shutter Lag Time
With SW-1 ON, time lag between SW-2 ON and start of exposure: approx. 0.070 sec. Time lag between simultaneous SW-1/SW-2 ON and start of exposure: approx. 0.250 sec. Time lag with the aperture stopped down by 3 stops or less from the open aperture. Excludes AF operation time.
Flash Metering
E-TTL II autoflash (evaluative flash metering and average flash metering), FE Lock
Flash Exposure Compensation
±2 stops in 1/3-stop or 1/2-stop increments
FE Lock
Provided
External Flash Settings
(1) External flash control Flash firing, E-TTL II metering, Flash mode, Wireless functions, Flash zoom, Shutter synchronization, Flash exposure compensation, Flash exposure bracketing and Clear settings. The radio wireless flash functions can be set from the camera. (2) External flash Custom Function setting The setting options for both (1) and (2) will differ depending on the Speedlite used.
Drive Modes
Single shooting High-speed continuous shooting Max. approx. 6.0 fps. Maximum continuous shooting speed with 1/500 sec. or faster shutter speed, maximum aperture (varies depending on the lens), Anti-flicker shooting set to Disable, with a fully-charged Battery Pack LP-E17 and at room temperature (73°F/23°C).With the AF mode set to One-Shot AF and the Image Stabilizer turned off when using the following lenses: EF 300mm f/4L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM. Low-speed continuous shooting Max. approx. 3.0 fps Self-timer: 10 sec./remote control2 sec. self-timer Continuous shooting after 10-sec. self-timer (2 to 10 shots)
Continuous Shooting Speed
Continuous Shooting Time If the recording time reaches 29 min. 59 sec., the movie shooting stops automatically. Movie shooting does not stop automatically even if the file size reaches 4GB. (When an SDXC card is formatted in ex FAT, a movie will be recorded in a single movie file even if it exceeds 4GB.)
Maximum Burst
Maximum Burst The number of possible shots and maximum burst (standard) apply to an 8GB card based on Canon’s testing standards. The maximum burst (High-speed) apply to a 16GB card based on Canon’s testing standards. The file size, number of possible shots and maximum burst vary depending on shooting conditions(aspect ratio of 3:2, subject, memory card brand, ISO speed, Picture Style, etc.)“Full” indicates that shooting is possible until the card becomes full.
Shooting Modes
Still photo shooting and video shooting
Focusing
Dual Pixel CMOS AF Dual Pixel CMOS AF is possible with all EF and EF-S lenses. Contrast AF is not provided. Manual focus Magnifying the image by 5x or 10x for manual focus possible.
Metering Modes
Real-time metering with image sensor AE lock possible. The metering timer can be changed. Evaluative metering (315-zone) Partial metering (center, approx. 6.0% of viewfinder)Spot metering (center, approx. 2.6% of viewfinder)Center-weighted average metering AE lock possible. The active metering timer can be changed.
Metering Range
EV 0-20 (room temperature, ISO 100, evaluative metering)
Grid Display
(1) Off
(2) 3x3
(3) 6x4
(4) 3x3+diag
File Format
MP4:
Video: MPEG-4 AVC / H.264
* Variable (average) bit rate
Audio: AAC
MOV: ALL-I (FHD 29.97, time-lapse movies only)
File Size
Recording Size:
[Full HD]
Standard: 1920 x 1080 (60 fps/25 fps/24 fps): 216 MB/min.
Lightweight: 1920 x 1080 (30 fps/25 fps): 87 MB/min.
[HD]
Standard: 1280 x 720 (60 fps/50 fps): 187 MB/min.
Lightweight: 1280 x 720 (30 fps/25 fps): 30 MB/min.
[SD]
Standard: 640 x 480 (30 fps/ 25 fps): 66 MB/min.
Lightweight: 640 x 480 (30 fps/ 25 fps): 23 MB/min.
* If the recording time reaches 29 min. 59 sec., the movie shooting stops automatically.
* The file size is 4 GB, and shooting does not stop automatically.
Frame Rates
NTSC | ||
1920 x 1080 | 59.954 fps | IPB (Standard) |
29.97 fps | IPB (Standard) | |
IPB (Light) | ||
23.98 fps | IPB (Standard) | |
1280 x 720 | 59.94 fps | IPB (Standard) |
29.97 fps | IPB (Light) | |
640 x 480 | 29.97 fps | IPB (Standard) |
29.97 fps | IPB (Light) |
Continuous Shooting Time
Continuous Shooting Time If the recording time reaches 29 min. 59 sec., the movie shooting stops automatically. Movie shooting does not stop automatically even if the file size reaches 4GB. (When an SDXC card is formatted in ex FAT, a movie will be recorded in a single movie file even if it exceeds 4GB.)
Focusing
Dual Pixel CMOS AF Contrast AF is not provided. Manual focus Magnifying the image by 5x or 10x for manual focus possible (not possible during movie shooting).
Range
Full range (0-255)
Exposure Control
Exposure Control*In Basic Zone modes, exposure control is exerted as appropriate for the detected scene
Exposure Compensation
Exposure Compensation*Up to ±2 stops, indicated in the viewfinder.
*Up to ±3 stops when [Shooting screen: Guided] is set.
Type
TFT color, liquid-crystal monitor
Monitor Size
3.0-inch (screen aspect ratio of 3:2)
Approx. 3.03 in./7.70cm diagonal (approx. 2.51 in./6.37cm width, approx. 1.67 in/4.25cm height)
Pixels
Approx. 1.04 million dots
Coverage
Approx. 95%*
* When the aspect ratio is 16:9, vertical viewfinder coverage is approx. 93%.
Brightness Control
Adjustable to one of seven brightness levels
Coating
Clear View LCD II Anti-smudge coating applied. Anti-reflection coating not applied.
Interface Languages
25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)
Display Format
Single-image display No information display Basic information display Detailed shooting information display Basic shooting information Lens information and RGB histogram White balance Picture Style and sharpness Contrast, color saturation and color tone Color space and noise reduction Lens aberration correction GPS information (when GPS Receiver is used)Index display4-image9-image36-image100-image
Highlight Alert
With detailed information display, overexposed highlight areas with no image data will blink.
Histogram
Brightness and RGB
Items
Pressing the Quick Control button displays the Quick Control screen during viewfinder shooting, Live View shooting, movie shooting and playback.
After selecting an item, you can select contents by operating the Main Dial.
Protection
Single image (select image) Select range All images in a folder All images in a card All found images (only during image search)
Compatible Printers
PictBridge-compatible printers (wireless LAN only)
Printable Images
JPEG images compliant to Design rule for Camera File System RAW images can be printed. Movies cannot be printed.
DPOF
Complies to DPOF Version 1.1
Custom Functions
15 Custom Functions with 44 settings settable with the camera
Custom Controls
Functions can be assigned to the following control parts: Shutter button (halfway pressing)AE lock button SET button
My Menu Registration
My Menu Registration Up to six top-tier menu options and Custom Function settings can be registered. Up to five My Menu tabs can be added.
USB Terminal
Hi-Speed USB (USB 2.0)For PC communication For GP-E2 connection For Connect Station connection
Video Out Terminal
Type C (resolution switches automatically)
* Video is not displayed unless the video format appropriate for the connected TV set, [NTSC] or [PAL], is set.
Extension System Terminal
3.5mm diameter stereo mini jack Directional Stereo Microphone DM-E1 connection
Battery
Battery Pack LP-E17 x 1With the AC Adapter AC-E6N and DC Coupler DR-E18, AC power operation is possible.
Battery Life
Battery Life
Battery Check
Automatic battery check when the power switch is turned ON. Displayed in 4 levels.
Power Saving
Power turns off after the set time (10/30* or 30 sec., 1, 2, 4, 8 or 15 min.) of non-operation elapses
* Normally 10 sec. is set. 30 sec. will be set for function setting, Live View shooting, image playback, etc.
Date/Time Battery
Built-in secondary battery
When fully-charged, the date/time can be maintained for approx. 3 months Recharge time: approx. 8 hrs. To become capable to maintain the right date/time for 3 months after main battery power depletion.
Start-up Time
Approx. 0.2 sec. (based on CIPA testing standards)
Dimensions (W x H x D)
Approx. 5.16 x 3.93 x 3.00 in. (131.0 x 99.9 x 76.2mm)CIPA compliant.
Weight
Approx. 18.77 oz. / 532g (including battery pack and SD memory card)
Approx. 17.11 oz. / 485g (body only)
Working Temperature Range
32-104°F/0-40°C
Working Humidity Range
85% or less All data are based on Canon's Standard Test Method. Subject to change without notice.
If a problem occurs with a non-Canon lens attached to the camera, consult the lens maker.
Canon, DIGIC and EOS Rebel are registered trademarks of Canon Inc. in the United States and may also be registered trademarks or trademarks in other countries. Microsoft, Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple, Inc., registered in the United States and other countries. HDMI, the HDMI logo and High-Definition Multimedia Interface are registered trademarks or trademarks of HDMI Licensing, LLC in the United States and/or other countries. All other products and brand names are registered trademarks, trademarks or service marks of their respective owners in the United States and/or other countries.
USB Tethered SDK
EOS Rebel T7i EF-S 18-55mm IS STM Kit

Compatible Supplies & Accessories
Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you EOS Rebel T7i EF-S 18-55mm IS STM Lens Kit that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store

AC Adapter AC-E6N
An AC adapter for use with DC coupler DR-E6 when using household outlets to power the EOS 80D Digital SLR.
MSRP: 110.0

Angle Finder C (incl. Adapter Ec-C, Ed-C)
Angle Finder C lets you adjust the viewing angle while providing a 2.5x magnification for critical focusing with a full screen image that also shows exposure data.
MSRP: 280.0

Battery Charger LC-E17
Battery charger LC-E17 to provide power to compatible rechargeable Li-ion batteries.
MSRP: 70.0

EOS Body: CarePAK PLUS (3YR)
CarePAK PLUS is a cost-effective and easy-to-use additional coverage plan. It provides up to four years of service and support from the date you purchased your Canon product. It includes protection from accidental damage in handling or liquids, data recovery of the installed memory card (in Cameras only), repairs for excessive wear and tear, priority repair service and free return shipping, $0 deductible, genuine Canon factory repair only with genuine Canon parts, and is transferable if you sell your camera.

DC Coupler DR-E18
MSRP: 60.0

Dioptric Adjustment Lens E (+0.5)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera. Please see the Compatibility tab for a list of compatible EOS cameras.
MSRP: 17.0


Dioptric Adjustment Lens E (+1)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.
MSRP: 17.0


Dioptric Adjustment Lens E (+1.5)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.
MSRP: 17.0


Dioptric Adjustment Lens E (+2)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.
MSRP: 17.0


Dioptric Adjustment Lens E (-2)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.
MSRP: 17.0


Dioptric Adjustment Lens E (-3)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.
MSRP: 17.0


Dioptric Adjustment Lens E (-4)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera. Requires Rubber Frame Ef, Eb or Ec
MSRP: 17.0


Dioptric Adjustment Lens E (0)
The Dioptric Adjustment Lens provides near- and far-sighted users a clear viewfinder image without the use of eyeglasses. The lens fits into the eyepiece holder of you EOS camera.
MSRP: 17.0

Directional Microphone DM-E1
Crisp sound. Superb performance. The new Directional Microphone DM-E1 can help experienced videographers and aspiring filmmakers alike achieve high-quality audio when recording video using a compatible Canon EOS digital camera*.
MSRP: 249.99

Directional Microphone DM-E1
Crisp sound. Superb performance. The new Directional Microphone DM-E1 can help experienced videographers and aspiring filmmakers alike achieve high-quality audio when recording video using a compatible Canon EOS digital camera*.
MSRP: 249.99

EOS Body: CarePAK PLUS (2YR)
CarePAK PLUS offers protection from accidental damage such as drops, spills, power surges, and more, including normal wear and tear, beyond the standard warranty period. It also includes Image Recovery (included with Cameras, Lens, Camcorders, and Printers with a memory card slot only), priority repair service, free return shipping, $0 deductible, genuine Canon factory service with only genuine Canon parts, and is transferable if you sell or gift your product. With a CarePAK PLUS, a damaged product will be repaired to good working condition or replaced with an equivalent product.

EOS Body: CarePAK PLUS (2YR)
CarePAK PLUS offers protection from accidental damage such as drops, spills, power surges, and more, including normal wear and tear, beyond the standard warranty period. It also includes Image Recovery (included with Cameras, Lens, Camcorders, and Printers with a memory card slot only), priority repair service, free return shipping, $0 deductible, genuine Canon factory service with only genuine Canon parts, and is transferable if you sell or gift your product. With a CarePAK PLUS, a damaged product will be repaired to good working condition or replaced with an equivalent product.

EOS Body: CarePAK PLUS (3YR)
CarePAK PLUS offers protection from accidental damage such as drops, spills, power surges, and more, including normal wear and tear, beyond the standard warranty period. It also includes Image Recovery (included with Cameras, Lens, Camcorders, and Printers with a memory card slot only), priority repair service, free return shipping, $0 deductible, genuine Canon factory service with only genuine Canon parts, and is transferable if you sell or gift your product. With a CarePAK PLUS, a damaged product will be repaired to good working condition or replaced with an equivalent product.

EYEPIECE EP-EX15 II
The Canon EP-EX15 II Eyepiece Extender provides a 5/8" (15mm) extension of the cameras eyepiece away from the camera body and reduces the camera's viewfinder magnification by 30%. It is particularly useful for eyeglass wearers and prevents a user's face or nose from touching the camera body or LCD display.
MSRP: 20.0

GPS Receiver GP-E2
Rugged and lightweight design Records location as EXIF information to images when shooting Can act as a stand-alone GPS logger Camera time can be synched by the built-in atomic clock
MSRP: 390.0

HTC-100
Mini-HDMI Cable: connects Canon HD Camcorders/select PowerShot Cameras to HDMI compatible TV.
MSRP: 80.0

Hand Strap E2
The Canon Hand Strap E2 is designed to add support and comfort to hand-holding a Canon SLR camera. The strap attaches to the eyelets at the sides of the camera.
MSRP: 60.0

Interface Cable IFC-400PCU
The Canon IFC-400PCU USB Interface Cable enables you to transfer your camera pictures to a computer fast. The cable connects to your camera and to the USB port on your PC or MAC Computer. Comes standard with the EOS 1Ds Mark III, 1D Mark IV, 1D Mark III, 1Ds Mark II, 1D Mark II N, 1D Mark II, 5D Mark II, 7D, 5D, 50D, 40D, 30D, 20D, 10D, Digital Rebel XTi, Digital Rebel XT and Digital Rebel. Please see Compatibility tab for compatible models.
MSRP: 16.0

Magnifier MG-Ef
MSRP: 45.0

Protecting Cloth PC-E1
The Protecting Cloth is for the purpose of protecting equipment such as a camera and lens from dirt and scratches, etc., but it cannot protect equipment from shocks or pressure.
MSRP: 35.0

Remote Control RC-6
Allows for wireless camera operation and shutter release with the Canon T2i, T1i, 5D, 7D, and Mark II Cameras.
MSRP: 30.0

Remote Controller Adapter RA-E3
A conversion adapter that is used with the Timer Remote Controller TC-80N3. For use with cameras with a remote control terminal which is other than N3 type, such as EOS70D.The adapter allows use of Canon Timer Remote Controller TC80-N3.
MSRP: 45.0

Remote Switch RS-60E3
Compact remote switch replicating all of the functions of the shutter release button.
MSRP: 30.0

Rubber Frame EF
MSRP: 10.0

Semi Hard Case EH27L
Compatible with: EOS Rebel T6s EF-S 18-55IS STM Kit, EOS Rebel T6i EF-S 18-55IS II Kit, EOS Rebel T5i EF-S 18-55IS STM Kit, EOS Rebel T5 Kit , EOS Rebel T3i EF-S 18-55IS II Kit and EOS Rebel T3 Kit.
MSRP: 80.0

Sling Backpack EDC-10
The Sling Backpack EDC-10 is a rugged, all-purpose bag designed to hold a combination of cameras, lenses and accessories for your needs.
MSRP: 39.99

Timer Remote Controller TC-80N3
Remote switch for EOS cameras with the N3-type socket. This remote switch has a self-timer, interval timer, long exposure timer and exposure-count setting feature. The timer can be set from 1 second to 99 hours. A new dial enables you to easily enter the numeric settings with a single thumb. It has an illuminated LCD panel and a 2.6ft/80cm cord.
MSRP: 210.0

USB Cable IFC-200U
The Canon IFC-200U USB Interface Cable enables you to transfer your camera pictures to a computer fast. The cable connects to your camera and to the USB port on your PC or MAC Computer. Comes standard with the EOS 1Ds Mark III, 1D Mark IV, 1D Mark III, 5D Mark II, 7D, 60D, 50D, 40D, Rebel T2i, Rebel T1i, Rebel XSi and Rebel XS. Please see Compatibility tab for compatible models.
MSRP: 35.0

USB Cable IFC-500U
The Canon IFC-500U USB Interface Cable enables you to transfer your camera pictures to a computer fast. The cable connects to your camera and to the USB port on your PC or MAC Computer. Please see Compatibility tab for compatible models.
MSRP: 50.0

USB Cable IFC-500U II
MSRP: 50.0
Wireless Remote Control BR-E1
A wireless remote controller compatible with Bluetooth enabled cameras for wireless focusing, still shooting and video recording, and zooming using the Power Zoom Adapter PZ-E1. Operating distance is approximately 16 ft in any direction.
Brochures
Resources
Comparison Charts
Articles
Software Development Kit (SDK)
The Canon EOS Digital Camera Software Development Kit (EDSDK) enables developers to integrate select Canon cameras directly into their software application solutions, giving them access to remote camera control and communication functionality of the camera. There are two versions of the EDSDK compatible with Windows or Macintosh.
The Software Developer Kit is provided free of charge and can be found at DeveloperCommunity.usa.canon.com.
To learn more please visit the Canon Developer Community site and register to download Canon’s SDKs.
Videos
Introducing the EOS Rebel T7i Digital Camera
Join Jon Lorentz from Canon USA as he introduces the new EOS Rebel T7i DSLR camera with insight into major features for both still and video modes.Canon: Perfect Moments
Being at the right place at the right time means nothing without the right camera. Be prepared and own the moment with the Canon EOS Rebel T7i.Canon Autofocus
For over 30 years, autofocus has been a vital tool for making sure your images are sharp. In this video, learn how Canon has continually created new breakthroughs in autofocus technology.Stepping up to a Canon Full-frame Camera
A full-frame camera - whether DSLR or Mirrorless - provides many advantages over cameras and smartphones with smaller sensors. Learn more including some Canon full-frame camera options that will deliver the high-level performance you're looking for.
Sample Images

More Details

More Details

More Details

More Details
DISCLAIMERS
* The number of AF points, cross-type AF points and Dual cross-type AF points vary depending on the lens used.
** Compatible with iOS® versions 8.4/9.3/10.2, Android™ smartphone and tablet versions 4.1/4.2/4.3/4.4/5.0/5.1/6.0/7.0/7.1. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
*** Compatible with Android™ smartphone and tablet versions 4.1/4.2/4.3/4.4/5.0/5.1/6.0/7.0/7.1.
^ Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS® devices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen. or later) equipped with Bluetooth® version 4.0 or later and the Camera Connect App Ver. 2.0.30. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.
† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
