EOS Rebel T8i EF-S 18-55mm IS STM Lens Kit

DSLR

Item Code: 3924C002AA

Learn more about the three decades (and counting) of advanced autofocus innovation in our EOS cameras.

CarePAK PLUS offers protection from accidental damage such as drops, spills, power surges, and more.

Features

Optical Viewfinder with a 45-point All Cross-type AF System* with Face Detection

Equipped with a convenient 45-point all cross-type autofocus system* with Face Detection, the EOS Rebel T8i camera's optical viewfinder helps to ensure that you can quickly get a subject in focus, regardless of its movement or where it is in the frame. Even moving or small subjects can be captured in your desired composition. This comes in handy when trying to photograph fast-moving subjects in unpredictable situations.


Images and effects are simulated

High Image Quality with 24.1 Megapixel CMOS (APS-C) Sensor

The Canon EOS Rebel T8i camera features a powerful 24.1 Megapixel CMOS (APS-C) sensor that can capture high-resolution images and beautiful 4K video. Take photos and videos with fine details and dynamic, rich colors from the deepest reds to emerald greens to lush blues and purples. Simply turn the camera on and feel confident that the results will be stunning.


High-Speed Continuous Shooting of up to 7.0 fps

With the ability to help capture multiple shots with practically no time wasted, the EOS Rebel T8i camera is equipped with a DIGIC 8 Image Processor that allows the camera to perform quickly and shoot up to 7 frames per second (up to 7.5 fps during live view shooting). The EOS Rebel T8i camera is tailored to meet and even exceed the speed of the action while shooting through the optical viewfinder - ideal for sports, wildlife, moving subjects or anything unpredictable.

4K 24p Video*1

Capture 4K videos at a frame rate of up to 24p for high definition, cinematic results. Recording at almost four times the resolution of Full HD, you can see your subject in stunning clarity. Beautiful time-lapse videos can also be created in 4K simply and easily with the dedicated Time-lapse Movie mode.

*1 Contrast AF is used for 4K UHD movies.

Vertical Video

Great for the vlogger guru, the EOS Rebel T8i features vertical video support that allows you to mix up your shot length and camera angles to make your videos interesting, and unique.

DIGIC 8 Image Processor

The DIGIC 8 Image Processor helps produce high image quality and fast operation, even in in low light. When using high ISO settings, the image processor helps keep results sharp and detailed in virtually any lighting situation. Powerful all around, the DIGIC 8 Image Processor helps ensure your photos and videos look sharp and lifelike with minimal noise or grain.

ISO 100-25600; Expandable to up to 51200**

Featuring an ISO range of 100-25600 (expandable to 51200**), the EOS Rebel T8i camera is well suited for low-light photography. Whether trying to capture the action at night, photographing at the fastest possible shutter speed or simply suppressing camera shake blur, the EOS Rebel T8i has an extended ISO range that contributes to its ability to excel in nearly every situation it faces.

Equipped with an Approx. 220,000 Pixel New AE Sensor and EOS iTR AF (Face Priority)

The EOS Rebel T8i camera is equipped with an advanced 220,000-pixel AE sensor that greatly contributes to the camera's impressive AF performance for both stills and video. The EOS Rebel T8i camera also incorporates Canon's EOS Intelligent Tracking and Recognition system (EOS iTR AF) that detects and tracks your face - while looking through the optical viewfinder - automatically switching the AF point to optimize face tracking.

Fast and Accurate Dual Pixel CMOS AF with Eye-Detection AF

Adding to its internal design, the EOS Rebel T8i lets you shoot with Dual Pixel CMOS AF for fast, accurate autofocus that helps you get the photo you want right as the moment happens. The EOS Rebel T8i camera features an expansive focus area of approx. 88% horizontal and 100% vertical^ when working with select compatible EF and EF-S lenses. The Eye Detection AF (during Live View shooting) analyzes the image and automatically determines where to focus based on your subject's eyes, helping you capture a once-in-a-lifetime moment in sharp detail.

^ When shooting still photos. Actual coverage varies depending on the lens in use.

Vari-angle Touch Screen, 3.0-inch LCD

The EOS Rebel T8i camera features a 3.0-inch Vari-angle Touch Screen LCD that can be ideal for composing high and low angle shots with ease, and reviewing your photos. Touch gestures can be used for zooming in or swiping through images after you've taken them. With just a flip of the screen, the Vari-angle Touch Screen LCD also lets you capture that picture-perfect selfie.

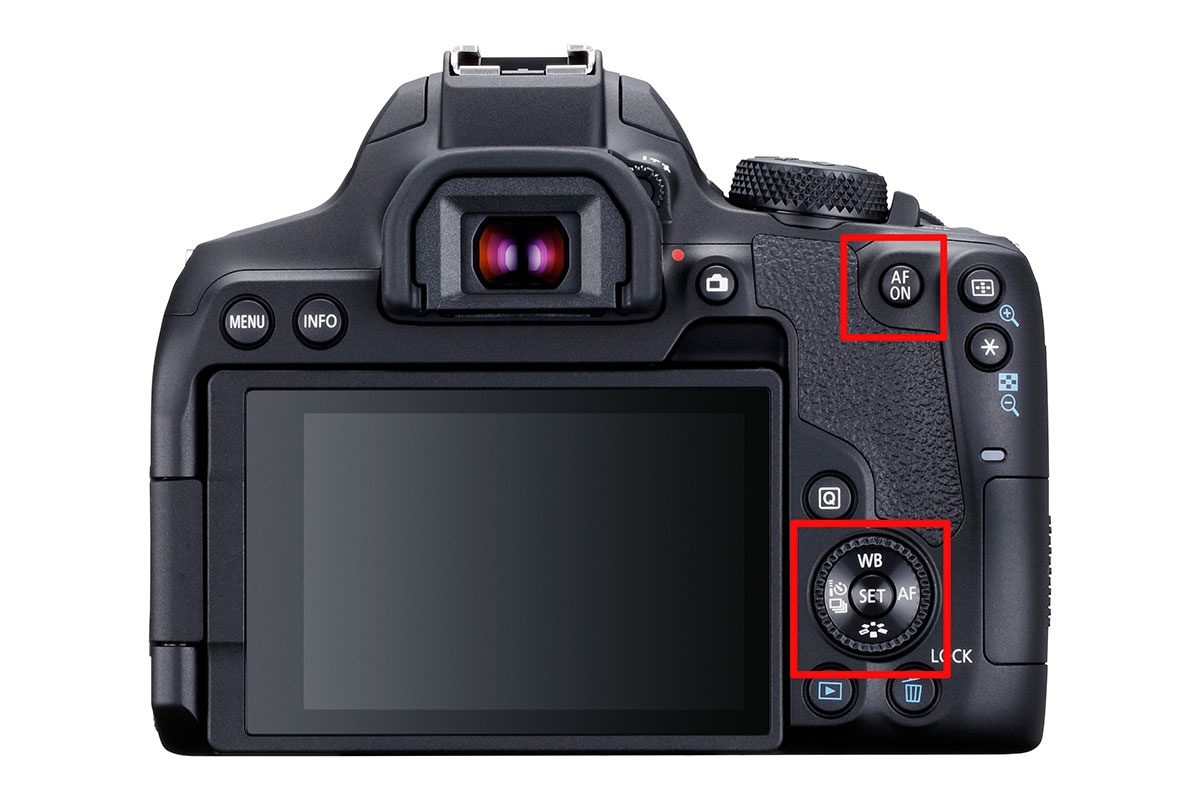

Quick Control Dial and AF-ON Button

The EOS Rebel T8i camera features various operating controls, such as buttons and dials that are located on the back of the camera, making them easy for you to locate and operate. To help you concentrate on what you are shooting, even if you are looking through the optical viewfinder, the AF-ON button helps to keep track of the moving subject so you won't miss a once in a lifetime shot. You can also quickly change settings by simply turning the quick control dial.

Built-in Bluetooth®^ Capability



Bluetooth®^ pairing helps you connect the EOS Rebel T8i camera to compatible smart devices using the free Canon Camera Connect app. This low-energy wireless connection helps preserve battery life while allowing remote control of the camera. It also sends continuously updated GPS*1 location data from your phone, letting you geotag what you've captured so you can know precisely where you took that stunning vacation photo.

Built-in Wi-Fi®*** Capability



The EOS Rebel T8i camera is designed to make using Wi-Fi®*** connectivity fast and easy. It can transfer files directly to a compatible smart device using the free Canon Camera Connect app. Simply connect to the Camera Connect app to transfer images to your smart device, then share and upload from the device directly to various social media sites and web services or print directly to compatible wireless Canon printers.

*1 In certain countries and regions, the use of GPS may be restricted. Therefore, be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.

Specifications

Type

Digital AF/AE single-lens reflex camera

Image Processor

DIGIC 8

Recording Media

SD/SDHC/SDXC memory cards
  • SD speed class-compatible
  • UHS-I compatible
  • High-speed writing is supported when a UHS-I compatible SD card is used
  • Eye-Fi card is not supported
  • Multimedia cards (MMC) cannot be used (card error will be displayed)

Image Format

Approx. 22.3 x 14.9mm (APS-C Size)

Compatible Lenses

Canon EF lenses (including EF-S lenses, excluding EF-M lenses)

Lens Mount

Canon EF mount

Type

CMOS sensor (supporting Dual Pixel CMOS AF)

Pixels

Effective pixels: Approx. 24.1* Megapixels
Total pixels: Approx. 25.8* Megapixels

* Rounded to the nearest 100,000.

Pixel Unit

Approx. 3.72µm square

Aspect Ratio

3:2 (Horizontal:Vertical)

Color Filter System

RGB primary color filters

Low Pass Filter

Installed in front of the image sensor, non-detachable

Dust Deletion Feature

(1) Self Cleaning Sensor Unit
  • Removes dust adhering to the low-pass filter.
  • Self-cleaning activated automatically (in-progress display for approx. 2 sec.) when power is turned on or off. Manual operation also possible (in-progress display for approx. 8 sec.).
  • After the cleaning is performed, the camera will automatically restart (power OFF to ON).
(2) Dust Delete Data acquisition and appending
  • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
  • The dust coordinate data appended to the image is used by the compatible versions of Canon's Digital Photo Professional software to automatically erase the dust spots.
(3) Manual cleaning

Recording Format

Compliant to Design rule for Camera File system 2.0 and EXIF 2.31

File Size

3:2 Aspect Ratio
Large: 24 Megapixels (6000 x 4000)
Medium: Approx. 10.6 Megapixels (3984 x 2656)
Small 1: Approx. 5.9 Megapixels (2976 x 1984)
Small 2: Approx. 3.8 Megapixels (2400 x 1600)
RAW / C-RAW: Approx. 24 Megapixels (6000 x 4000)

4:3 Aspect Ratio
Large: Approx. 21.3 Megapixels (5328 x 4000)
Medium: Approx. 9.5 Megapixels (3552 x 2664)
Small 1: Approx. 5.3 Megapixels (2656 x 1992)
Small 2: Approx. 3.4 Megapixels (2112 x 1600)
RAW / C-RAW: Approx. 24 Megapixels (6000 x 4000)

16:9 Aspect Ratio
Large: Approx. 20.2 Megapixels (6000 x 3368)
Medium: Approx. 8.9 Megapixels (3984 x 2240)
Small 1: Approx. 5.0.Megapixels (2976 x 1680)
Small 2: Approx. 3.2 Megapixels (2400 x 1344)
RAW / C-RAW: Approx. 24 Megapixels (6000 x 4000)

1:1 Aspect Ratio
Large: Approx. 16 Megapixels (4000 x 4000)
Medium: Approx. 7.1 Megapixels (2656 x 2656)
Small 1: Approx. 3.9 Megapixels (1984 x 1984)
Small 2: Approx. 2.6 Megapixels (1600 x 1600)
RAW / C-RAW: Approx. 24 Megapixels (6000 x 4000)

File Numbering

The following three types of file numbering method can be set:
(1) File numbering method
Continuous numbering
  • The numbering of captured images will continue even after you replace the camera's card.
Auto reset
  • When you replace the camera's card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.
(2) Manual reset
  • Resets the file number to 0001, and creates a new folder automatically.


RAW + JPEG Simultaneous Recording

Simultaneous recording of RAW or C-RAW plus Large/Fine JPEG is supported.

Color Space

sRGB/Adobe RGB

Picture Style

(1) Auto
(2) Standard
(3) Portrait
(4) Landscape
(5) Fine Detail
(6) Neutral
(7) Faithful
(8) Monochrome
(9) User Def. 1–3
  • In Basic Zone modes, [Auto] will be set for < Fish-eye effect > and < HDR art standard > of the < Creative filters > mode, and [Standard] will be set for other modes.
  • In Creative Zone modes, you can select or set any Picture Style.
  • [Auto] is the default setting for [User Def. 1–3]. Any Picture Style can be selected, modified, and saved to any User-defined setting.

Settings

(1) Auto (Ambience priority/White priority)
(2) Daylight
(3) Shade
(4) Cloudy*
(5) Tungsten light
(6) White fluorescent light
(7) Flash
(8) Custom (Custom WB)
(9) Color temperature (K) (Manually adjustable between 2000 - 10000K)

* Effective also in twilight and sunset.

Auto White Balance

Option between ambience priority and white priority settings

White Balance Shift

Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
   • Corrected in reference to the current WB mode’s color temperature.

Type

Eye-level optical viewfinder (with fixed pentamirror)

Coverage

At approx. 19mm eye-point
Vertical / Horizontal – approx. 95%
(With 50mm f/1.8 STM lens; Large/Fine JPEG image, 3:2 aspect ratio)

Magnification

Approx. 0.82x/23.2° (with 50mm lens at infinity, -1m-1)

Eye Point

Approx. 19mm (at -1m-1 from the eyepiece lens center)

Dioptric Adjustment Correction

Adjustable from approx. -3.0 to +1.0m-1(dpt)

Focusing Screen

Fixed

Mirror

Quick-return all-surface half mirror

Viewfinder Information

Displayed with transparent liquid crystal
(1) AF point information
  • Including Area AF frame
(2) Spot metering circle
(3) Electronic level
(4) Grid
(5) Aspect line
(6) Flicker detection

Depth Of Field Preview

Provided with depth of field preview button

Type

TTL secondary image-forming phase-difference detection system with AF-dedicated sensor

AF Points

Up to 45 points (cross-type AF points: max. 45)

AF Points and AF Patterns
AF Points (max.)
Dual cross-type AF points supporting f/2.8 and f/5.6
1
Cross-type AF points supporting f/5.6
45
AF points supporting f/8
27
(Cross-type AF point 9)
  • The number of AF points, cross-type AF points, dual cross-type AF points and f/8 AF support varies depending on the lens used.

  • Note that, with aspect ratio of 1:1, the maximum number of AF points becomes 35. (Each left and right end line of AF points in total of ten are not usable.)

AF Working Range

Conditions: One-Shot AF, at 73°F/23°C, ISO 100 (based on Canon's testing standards and environment)

AF Point
Brightness
One center AF point focusing supporting f/2.8
EV -3 to 18
One center AF point focusing supporting f/5.6
EV -1 to 18
Peripheral AF points focusing supporting f/5.6
EV -0.5 to 18



Focusing Modes

(1) Autofocus
  1. One-Shot AF
  2. AI Servo AF
  3. AI Focus AF
    • Switches between One-Shot AF and AI Servo AF automatically.
(2) Manual focus

AF Area Selection

(1) Single-point AF (Manual selection)
  • The check mark cannot be removed from this option.
(2) Zone AF (Manual selection of zone)
  • All the AF points are divided into nine focusing zones.
(3) Large Zone AF (Manual selection of zone)
  • All the AF points are divided into three focusing zones.
(4) Automatic selection AF (45 points)

Automatic AF Point Selection: EOS iTR AF

EOS iTR AF (face Priority):
Gives greater priority to people's faces when AF points are selected automatically.

With One-Shot AF:
  • Faces of people in the AF area take precedence, and when no faces are detected, the camera focuses on the closest subject.
  • When an AF-assist beam fires, AF points are selected automatically using only AF information.

With AI Servo AF:
  • AF points are selected automatically in the AF area to keep tracking the face in focus.
  • When no faces are detected, AF points are selected in the AF to keep tracking the same color with the focused subject.
  • If a face is deteced when tracking the subject other than the face, the focusing point may switch to the detected face.

AF Assist Beam

Intermittent firing of built-in flash
Effective range

Center
Approx. 13.1 ft. / 4.0m
Periphery
Approx. 11.5 ft. / 3.5m
• With an EOS-dedicated Speedlite attached, the Speedlite's AF-assist beam is emitted instead.





Metering Modes

220,000-pixel RGB+IR metering sensor
216-zone (18 x 12) metering optical viewfinder
(1) Evaluative metering (linked to all AF points)
(2) Partial metering (center, approx. 6.5% of viewfinder)
(3) Spot metering (center, approx. 2.0% of viewfinder)
(4) Center-weighted average metering

Metering Range

EV 1–20 (room temperature, ISO 100, evaluative metering)

Exposure Control Systems

(1) Creative Zone
  1. Program AE (Shiftable)
  2. Shutter-priority AE
  3. Aperture-priority AE
  4. Manual exposure (including bulb)
(2) Basic Zone
  1. Scene Intelligent Auto (Program AE/non-shiftable)
  2. Special Scene (SCN)
    1. Portrait
    2. Smooth skin
    3. Group Photo
    4. Landscape
    5. Close-up
    6. Sports
    7. Kids
    8. Food
    9. Candlelight
    10. Night Portrait
    11. Handheld Night Scene (Takes 4 quick shots; processed in-camera into one finished JPEG image)
    12. HDR Backlight Control (Takes 3 quick shots; processed in-camera into one finished JPEG image)
3) Creative Filters
  1. Grainy B/W
  2. Soft Focus
  3. Fish-eye Effect
  4. Water Painting Effect
  5. Toy Camera Effect
  6. Miniature Effect
  7. HDR Art Standard
  8. HDR Art Vivid
  9. HDR Art Bold
  10. HDR Art Embossed


ISO Speed Range

Manual setting

Normal ISO Speed
ISO 100–25600 (in 1/3-stop increments)
Expanded ISO Speed
ISO 51200
• For [Highlight tone priority], the settable ISO speed range will be ISO 200-25600.



Auto ISO Speed Settings

Shooting Mode
ISO Settings
No Flash
Flash (built-in)*1
Flash (external)*1
Scene Intelligent Auto, Creative Auto
ISO 100–25600 ISO 400–3200 ISO 400–1600
Flash Off
ISO 100–25600


*1 If fill-in flash will cause overexposure, ISO 100 or a higher ISO will be set.



Exposure Compensation

Manual
±5 stops in 1/3- or 1/2-stop increments*
AEB
±3 stops in 1/3- or 1/2-stop increments
* Up to ±2 stops, indicated in the viewfinder.

* Up to ±3 stops when [Shooting screen: Guided] is set.




AE Lock

(1) Auto AE lock
  • In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.
(2) User-applied AE lock
  • In the P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
  • Possible with all metering modes.

Type

Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
  • Viewfinder shooting – Mechanical 1st and 2nd curtain
  • Live View shooting – Electronic 1st curtain/Mechanical 2nd curtain
  • Live View with flash: equivalent to Viewfinder shooting

Shutter Speeds

1/4000 to 30 sec., bulb (total shutter speed range. Available range varies by shooting mode.)
X-sync at 1/200 sec.
Creative Zone: 1/4000-30 sec., bulb
Basic Zone: 1/4000-1 sec.

Self Timer

10-sec. delay, 2-sec. delay

Shutter Lag Time

(1) With shutter button half-pressed — time between fully pressed and start of exposure: approx. 0.070 sec.
(2) Time lag when shutter button fully pressed without initially being pressed half-way: approx. 0.250 sec.
  • Time lag with the aperture stopped down by 3 stops or less from the open aperture.
    Excludes AF operation time.

Flash Metering

E-TTL II autoflash (Evaluative- face priority, Evaluative, Average), FE Lock

Flash Exposure Compensation

±2 stops in 1/3- or 1/2-stop increments (when set on camera body)

FE Lock

Provided

Continuous Shooting Priority (CSP) Mode

Supported (with accessory Canon Speedlites only)

External Flash Settings

(1) External flash control
  • Flash firing, E-TTL II metering, Flash mode, Wireless functions, Flash zoom, Shutter synchronization, Flash exposure compensation, Flash exposure bracketing and Clear settings.
  • The radio wireless flash functions can be set from the camera.
(2) External flash Custom Function setting
  • The setting options for both (1) and (2) will differ depending on the Speedlite used.

Drive Modes and Continuous Shooting Speed during Viewfinder Shooting

(1) Single shooting
(2) High-speed continuous shooting
  • Max. approx. 7.0 fps. (Viewfinder Shooting)
  • Max. approx. 7.5 fps. (Live View Shooting)
  • Maximum continuous shooting speed with 1/1000 sec. or faster shutter speed, maximum aperture (varies depending on the lens), Anti-flicker shooting set to Disable, with a fully-charged Battery Pack LP-E17 and at room temperature (73°F/23°C).
(3) Low-speed continuous shooting
  • Max. approx. 3.0 fps
(4) Self-timer: 10 sec. or 2 sec. delay (Remote Control possible with optional accessory Canon BR-E1 Remote Controller)
(5) 2 sec. self-timer / remote control
(6) Continuous shooting after 10-sec. self-timer (2 to 10 shots)

Maximum Burst: Image file sizes, number of shots, burst rates

Image-recording Quality
Image File Size
(approx. MB)
Possible Shots
(approx.)
Maximum Burst
(approx.)
Large (Fine)
8.4 3,600 170
Large (Normal)
4.5 6,610 170
Medium (Fine)
4.6 6,480 167
Medium (Normal)
2.6 11,400 167
Small 1 (Fine)
3.1 9,690 163
Small 1 (Normal)
1.8 16,010 163
Small 2
1.8 16,340 164
RAW
27.2 1,120 40
C-RAW
15.8 1,930 75
RAW + Large (Fine)
35.6 850 35
C-RAW + Large (Fine)
24.2 1,250 57


• The number of shots available and standard maximum burst in viewfinder shooting with a 32GB UHS-I card conforming to Canon testing standards.
• The file size, number of possible shots and maximum burst vary depending on shooting conditions (aspect ratio of 3:2, subject, memory card brand, ISO speed, Picture Style, etc.)




Shooting Modes

Still photo shooting and video shooting

Focusing

(1) Dual Pixel CMOS AF
  • Dual Pixel CMOS AF is possible with all EF and EF-S lenses.
  • Contrast AF is not provided for still-image Live View shooting
(2) Manual focus
  • Magnifying the image by 5x or 10x for manual focus possible.
  • Manual Focus Peaking available

Metering Modes

384-zone (24 x 16)
Real-time metering with image sensor
  • AE lock possible. The metering timer can be changed.
(1) Evaluative metering- supported
(2) Partial metering (center, approx. 5.8% of viewfinder)
(3) Spot metering (center, approx. 2.9% of viewfinder)
(4) Center-weighted average metering
  • AE lock possible. The active metering timer can be changed.

Metering Range

EV -2–20 (room temperature, ISO 100, evaluative metering)

Grid Display

(1) Off
(2) 3x3
(3) 6x4
(4) 3x3+diag

File Format

MP4
Video: MPEG-4 AVC / H.264
  • Variable (averaged) bit rate
Audio: AAC
  • Color sampling YCbCr 4:2:0 (8-bit); Color matrix Rec.ITU-R BT.709
MOV: ALL-I (4K UHD 29.97 and FHD 29.97, time-lapse movies only)

Video Recording Size and Frame Rates

Movie Recording
Frame Rate (FPS)
Compression Method
4K UHD* (3840 x 2160)
23.98 fps IPB (Standard)
Full HD (1920 x 1080)
59.954 fps IPB (Standard)
29.97 fps
23.98 fps
IPB (Standard)
29.97 fps IPB (Light)
HD (1280 x 720)
59.94 fps IPB (Standard)
HDR movies
(1920 x 1080)
29.97 fps IPB (Standard)
Creative filter movies
(1920 x 1080)
29.97 fps
23.98 fps
IPB (Standard)
29.97 fps IPB (Light)
4K UHD Time-lapse movies*
(3840 x 2160)
29.97 fps ALL-I
Full HD Time-lapse movies
29.97 fps ALL-I
Video snapshots (1920 x 1080)
29.97 fps IPB (Standard)


* The image is cropped around the center of the image sensor.




Estimated Recording Time, Movie Bit Rate, and File Size

Video Recording Size
Total Recording Time on Card (approx.)
Movie Bit Rate
File Size (approx.)
8GB
32GB
128GB
4K UHD
23.98 fps
IPB
(Standard)
8 min. 35 min. 2 hrs. 21 min. Approx.120 Mbps
Approx. 861 MB/min.
Full HD
59.94 fps
IPB
(Standard)
17 min. 1 hr. 10 min. 4 hrs. 43 min. Approx. 60 Mbps
Approx. 432 MB/min.
29.97 fps
23.98 fps
IPB
(Standard)
35 min. 2 hr. 20 min. 9 hrs. 23 min. Approx. 30 Mbps
Approx. 217 MB/min.
29.97 fps
IPB (Light)
1 hr. 26 min. 5 hrs. 47 min. 23 hrs. 11 min. Approx. 12 Mbps
Approx. 88 MB/min.
HD
59.94 fps
IPB
(Standard)
40 min. 2 hrs. 42 min. 10 hrs. 49 min. Approx. 26 Mbps
Approx. 188 MB/min.


• If the recording time reaches 29 min. 59 sec., the movie shooting stops automatically.
• Bit rate indicates video output only, auido is not included.
• File size and time indicates video output + audio
• With [Digital IS: Disable] set.




Focusing

(1) Dual Pixel CMOS AF
  • Contrast AF is only during 4K video recording
(2) Manual focus
  • Magnifying the image by 5x or 10x for manual focus possible
    (Magnification not possible during movie shooting).
  • Manual Focus Peaking availble

Range

Full range (0–255)

Exposure Control

Shooting Mode
Frame Rate
Shutter Speed (sec.)
Aperture Value Setting
ISO Speed (recommended exposure index)
Setting
Range (sec.)
Setting
Range
Movie Auto Exposure
59.94 fps
Auto 1/4000-1/60*1 Auto Auto ISO 100-12800
Conditions that affect the minimum ISO speed.
  • Highlight tone priority: ISO 200
    Conditions that affect the maxiumum ISO speed.
  • In 4K UHD movie recording: ISO 6400
  • When digital zoom is set: ISO 6400
  • [Max. for Auto] setting
  • Expanded ISO speeds: H (equivalent to ISO 25600)
29.97 fps
1/4000-1/30
23.98 fps
1/4000-1/25
Movie Manual Exposure
23.98 - 59.94 fps
Manual 1/4000-1/8 Manual Manual Auto


Exposure modes in movie shooting:
  • P, Tv, or Av – movie auto exposure only
  • M – manual exposure control

* 1/30 when [Movie Auto slow shutter] is set to [Enable]




Exposure Compensation

Up to ±3 stops in 1/3- or 1/2-stop increments

Type

TFT color, liquid-crystal monitor

Monitor Size

3.0-inch (screen aspect ratio of 3:2)
Approx. 3.0 in./7.5cm diagonal (approx. 2.5 in./6.2cm width, approx. 1.6 in/4.2cm height)

Dots

Approx. 1.04 million dots

Angle of view

Approx. 170° vertically and horizontally

Brightness Control

Adjustable to one of seven brightness levels

Coating

Clear View LCD II
  • Anti-smudge coating not applied.
  • Anti-reflection coating not applied.

Interface Languages

29 (English, Japanese; Arabic, Chinese [Simplified/Traditional], Czech, Danish, Dutch, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Korean, Malay, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese)

Display Format

(1) Single-image display
  • No information display
  • Basic information display
  • Detailed shooting information display
    • Basic shooting information
    • Lens information and RGB histogram
    • White balance
    • Picture Style and sharpness
    • Contrast, color saturation and color tone
    • Color space and noise reduction
    • Lens aberration correction
    • GPS information (when GPS Receiver is used)
(2) Index display
  • 4-image
  • 9-image
  • 36-image
  • 100-image

Highlight Alert

With detailed information display, overexposed highlight areas with no image data will blink.

Histogram

Brightness and RGB

Items

Pressing the Quick Control button displays the Quick Control screen during viewfinder shooting, Live View shooting, movie shooting and playback.

After selecting an item, you can select contents by operating the Main Dial.

Protection

(1) Single image (select image)
(2) Select range
(3) All images in a folder
(4) All images in a card
(5) All found images (only during image search)

Erase

Except protected images
(1) Select image to erase
(2) Select range
(3) All images in a folder
(4) All images in a card
(5) All found images (only during image search)

Compatible Printers

Images can be sent via Wi-Fi to a PictBridge-compatible (Wireless LAN) printer and printed.

Printable Images

JPEG images compliant to Design rule for Camera File System
  • RAW images cannot be printed.
  • Movies cannot be printed.

DPOF

Compliant to DPOF Version 1.1

Select Image

Supported
* RAW/C-RAW images and movies cannot be specified for printing.

Custom Functions

14 Custom Functions can be configured

Custom Controls

Functions can be assigned to the following control parts:
  • Shutter button (halfway pressing)
  • AF-ON button
  • AE lock button
  • DISP button
  • SET button

My Menu Registration

• Up to six top-tier menu options and Custom Function settings can be registered.
• Up to five My Menu tabs can be added.

My Menu tab overall operations
   • Adding a tab
   • Deleting tabs in a batch
   • Deleting all tab items
   • Setting the menu display
My Menu tab detailed operations
   • Selecting item to register
   • Sorting registered items
   • Deleting selected registered items
   • Deleting registered items in a batch
   • Deleting tabs
   • Changing a tab name (16 ASCII characters)



USB Terminal

Hi-Speed USB (USB 2.0; Micro-B connection type)
  • For PC communication
  • For GP-E2 connection
  • For Connect Station connection

HDMI Video/audio Output

HDMI mini OUT terminal (Type C), CEC not compatible
* images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.

HDMI HDR Output

OFF / ON
  • HDMI HDR output can be used for HDR TVs.
    * HDMI output of RAW images consists of HDR images.
    * HDMI output of JPEG involves processing to simulate HDR images.
    * An HDR display icon is shown when the camera is connected via HDMI to an HDR TV.
    * Still photos: Supports RAW, C-RAW, and JPEG in single-image display.
    * Display is delated by approx. 1 sec. for RAW and C-RAW images, which are processed.
    * Not supported during movie playback.
  • HDR specification: Conforms to ITU-R BT.2100 (PQ)

External microphone input terminal

3.5mm diameter stereo mini jack
  • Directional Stereo Microphone DM-E1 connection

Battery

Battery Pack LP-E17 x 1
  • With the AC Adapter AC-E6N and DC Coupler DR-E18, AC power operation is possible.

Battery Life

Shooting Method
Battery
Temperature
Shooting Condition
AE 100%
50% flash use
Viewfinder shooting
LP-E17
At 73°F/23°C
Approx. 1240 Approx. 800
Live View shooting
LP-E17
At 73°F/23°C
Approx. 360 Approx. 310



Battery Check

Automatic battery check when the power switch is turned ON. Displayed in 4 levels.

Power Saving

Power turns off after the set time (10/30* or 30 sec., 1, 2, 4, 8 or 15 min.) of non-operation elapses

* Normally 10 sec. is set. 30 sec. will be set for function setting, Live View shooting, image playback, etc.

Date/Time Battery

Built-in secondary battery
When fully-charged, the date/time can be maintained for approx. 3 months
  • Recharge time: approx. 8 hrs.
  • To become capable to maintain the right date/time for 3 months after main battery power depletion.

Start-up Time

Approx. 0.3 sec. (based on CIPA testing standards)

Dimensions (W x H x D)

Approx. 5.16 x 4.04 x 3.00 in. (131.0 x 102.6 x 76.2mm)
  • CIPA compliant.

Weight

Approx. 18.17 oz. / 515g (including battery pack and SD memory card)
Approx. 16.61 oz. / 471g (body only)

Working Temperature Range

32-104°F / 0-+40°C

Working Humidity Range


85% or less

EOS Rebel T8i EF-S 18-55mm IS STM Lens Kit

EOS Rebel T8i EF-S 18-55mm IS STM Lens Kit EOS Rebel T8i EF-S 18-55mm f/4-5.6 IS STM Battery Pack LP-E17 Battery Charger LC-E17 Neck Strap EW-400D
EOS Rebel T8i EF-S 18-55mm IS STM Lens Kit

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you EOS Rebel T8i EF-S 18-55mm IS STM Lens Kit that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Brochures

Loading...

Sample Images

More Details

More Details

More Details


*ISO speed is based on recommended exposure index.


This is to make Misc appear on the page when needed.

Videos


Introducing the New Canon EOS Rebel T8i with Jon Lorentz

Join Jon Lorentz from Canon USA as he introduces the new EOS Rebel T8i camera. Offering a powerful 24.1 megapixel CMOS (APS-C) sensor, 4K vertical video support and continuous shooting of up to 7.0 frames per second (during optical viewfinder shooting), and much more.

This is to make Misc appear on the page when needed.

DISCLAIMERS


* The number of AF points, cross-type AF points and Dual cross-type AF points vary depending on the lens used.

** For still images.

*** Compatible with iOS® versions 11.4/12.4/13.3, Android™ smartphone and tablet versions 5.0/5.1/6.0/7.0/7.1/8.0/8.1/9.0/10.0. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.

^ Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS® devices: iPhone 4s or later, Pod Touch 5th gen. or later) equipped with Bluetooth® version 4.1 or later and the Camera Connect App Ver. 2.6.10. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.

† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.

 Return to Top
