    EOS R5 C

    Mirrorless

    Item Code: 5077C002AA
    Write a review Read all reviews

    EOS R5 C

    EOS R5 C Full-frame, 8K Cinema EOS System Camera
    Compact and lightweight, the EOS R5 C is a true hybrid camera, boasting many of the video formats and features from the Cinema EOS lineup as well as many of the still-imaging capabilities of the EOS R5 camera in a beautifully designed body.

    The EOS R5 C is a complete package that offers filmmakers, multimedia journalists, and advanced amateurs a cost-effective 8K, 4K, and FHD video camera to help unlock their creative potential.

    Features

    Expand All

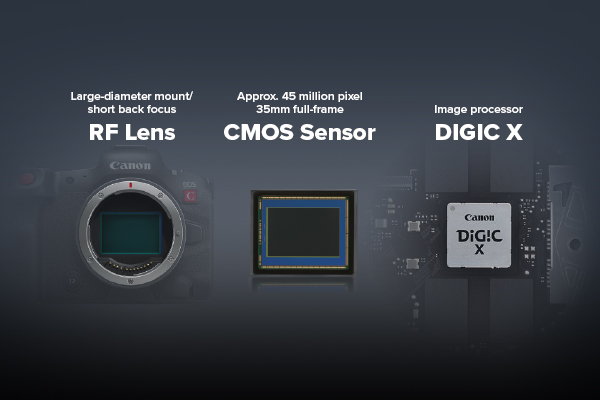

    Shares Common Features & Technology with the EOS R5 Camera

    Canon's 45 Megapixel full-frame, CMOS imaging sensor is at the heart of the EOS R5 C camera's superb image quality, which also leads the way for impressive 8K/60P RAW cinematic video shooting.

    Focus and speed are paramount in the EOS R5 C camera, providing impressive still-image continuous capture at speeds of up to 20 frames per second, and with Dual Pixel CMOS AF II capability, to track split second movements of even the most elusive subjects. With 1,053 Automatic AF zones, it is easy to photograph people with the use of Eye, Face and Head Detection AF, or intuitively track the whole body, face or eye of cats, dogs, or birds with Animal Detection AF. For those with the need for speed, Canon has also included still-image vehicle subject detection to assist with accurate tracking of cars and motorcycles. Connectivity like 5GHz and 2.4GHz Wi-Fi® and Bluetooth®, is also included for the transfer of still imagesi .

    Video Control for the Dedicated Video Professional

    As soon as the EOS R5 C's main switch is moved to the "video" position, the familiar Cinema EOS menu system and interface take over. Expected high-level video features such as waveform monitors, video codec options, and extensive audio control become available - greatly expanding the EOS R5 C's video potential for the experienced camera operator or video content creator. During “photo" operation, menus are nearly the same as on the EOS R5 camera.

    Supports 8K/60P Internal RAW Recording

    The 8K sensor and DIGIC X processor produce high-quality video at up to 8K/60P. Use of the Cinema RAW Light format with its high-efficiency mode enables internal card recording without an external recorder.

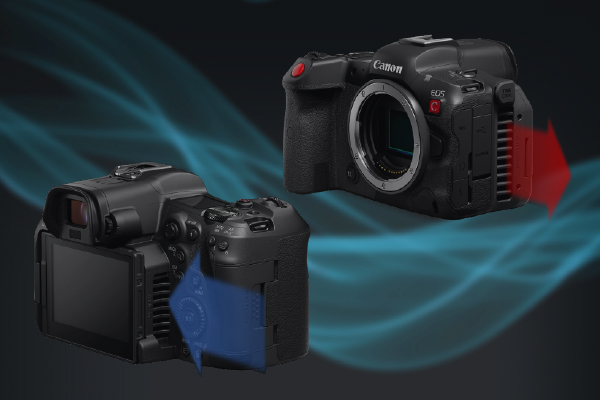

    Internal Cooling Fan Enables Non-stop 8K/60P Recording

    The EOS R5 C camera features a cooling fan built into the body, forcing out the heat from inside. This enables continuous and virtually limitless shooting of high-definition 8K/60P video without interruption.ii

    Expanded Interface for Professional Needs

    The EOS R5 C camera provides a Timecode input/output terminal for easy synchronization when shooting with multiple cameras and other interfaces. A cable protector is also included as standard to prevent cable disconnection or damage to the terminal if strong force is applied when connecting interface or HDMI cables.

    Canon’s Multi-function shoe with digital audio interface supports the optional TASCAM CA-XLR2d-C professional audio XLR microphone adapter for up to 4-channel audio. This optional accessory adds two full-sized XLR terminals with phantom power and shotgun mic mount, enabling digital 4-channel and 24-bit audio recording to meet professional video production needs.

    Carries on the Ergonomic EOS Design

    The EOS R5 C camera's body design is incredibly compact and lightweight. When paired with a Canon RF lens (or EF lens using the Mount Adapter EF-EOS R), it offers outstanding performance that fits easily and comfortably in your hand, making handheld shooting a breeze whether shooting video or still images. Its Electronic Viewfinder is optically extended, for eye-level viewing similar to the conventional EOS R5 camera, and it uses the same ergonomic grip design.

    Full-featured 13 Assignable Buttons

    The EOS R5 C camera is designed with operational flexibility in mind, conforming to each individual professional workflow, including 13 marked, assignable buttons that allow for user-friendly customized operation.

    8K Sensor and DIGIC X Processor

    The EOS R5 C camera is the first Cinema EOS System Camera to provide internal 8K (8192x4320) 60P RAW recording. 8K video offers outstanding definition and realism with 16 times the resolution of full HD video, enabling unprecedented capabilities in video expression and highly flexible workflows, such as 4K cropping from 8K footage. The EOS R5 C camera can also record 8K video in the highly versatile MP4 format. Lighter, smaller proxy video files can also be recorded while shooting 8K. This makes for an efficient workflow during editing, previewing, and other tasks.

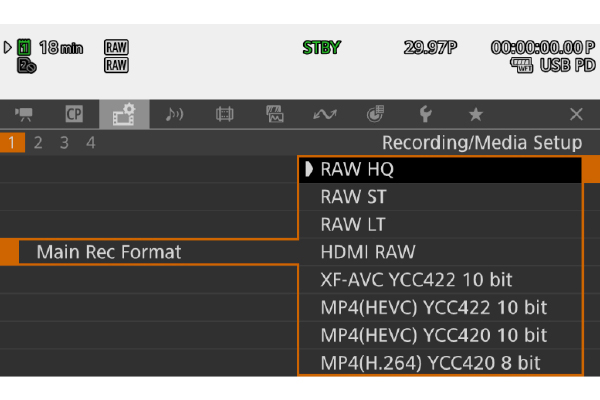

    Internal Cinema RAW Light up to 8K/60P



    The camera supports recording of two 8K formats, both Cinema RAW Light, which is amazing for post-production grading and archiving, or MP4, which is optimized for faster online use. Formats can be selected according to the user's needs. In addition, 5.9K in Super 35mm mode and 2.9K in Super 16mm mode are also available for internal recording to CFexpress cards.

    Cinema RAW Light can be recorded internally with data optimized for HDR video rendering. Cinema RAW Light video files have been optimized for better efficiency to achieve 12-bit recording in all frame rates.

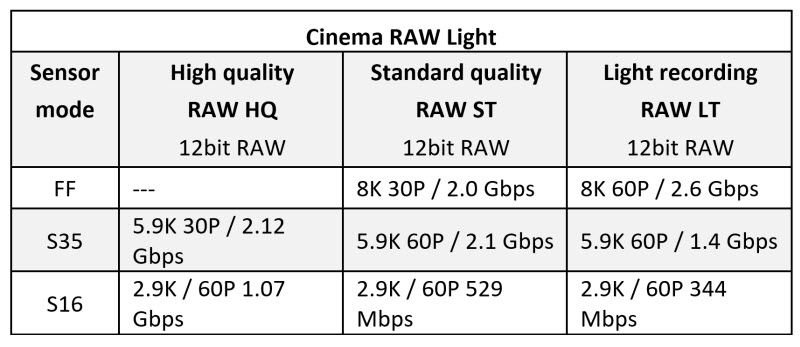

    Thanks to three newly-developed Cinema RAW Light modes (High quality RAW HQ, standard quality RAW ST, and Light recording RAW LT), users can select the RAW video mode according to their shooting needs.

    Supports 8K HDR Recording (HLG/PQ)

    The combination of ultra-high-definition 8K recording and HDR lets users shoot more realistic and lifelike video. The EOS R5 C camera supports HDR recording in Hybrid Log Gamma (HLG) and Perceptual Quantization (PQ) formats. This helps ensure full color rendition and wide latitude with a great range from black to pure white - outstanding for the delivery of live streams, broadcasts and post-production projects.

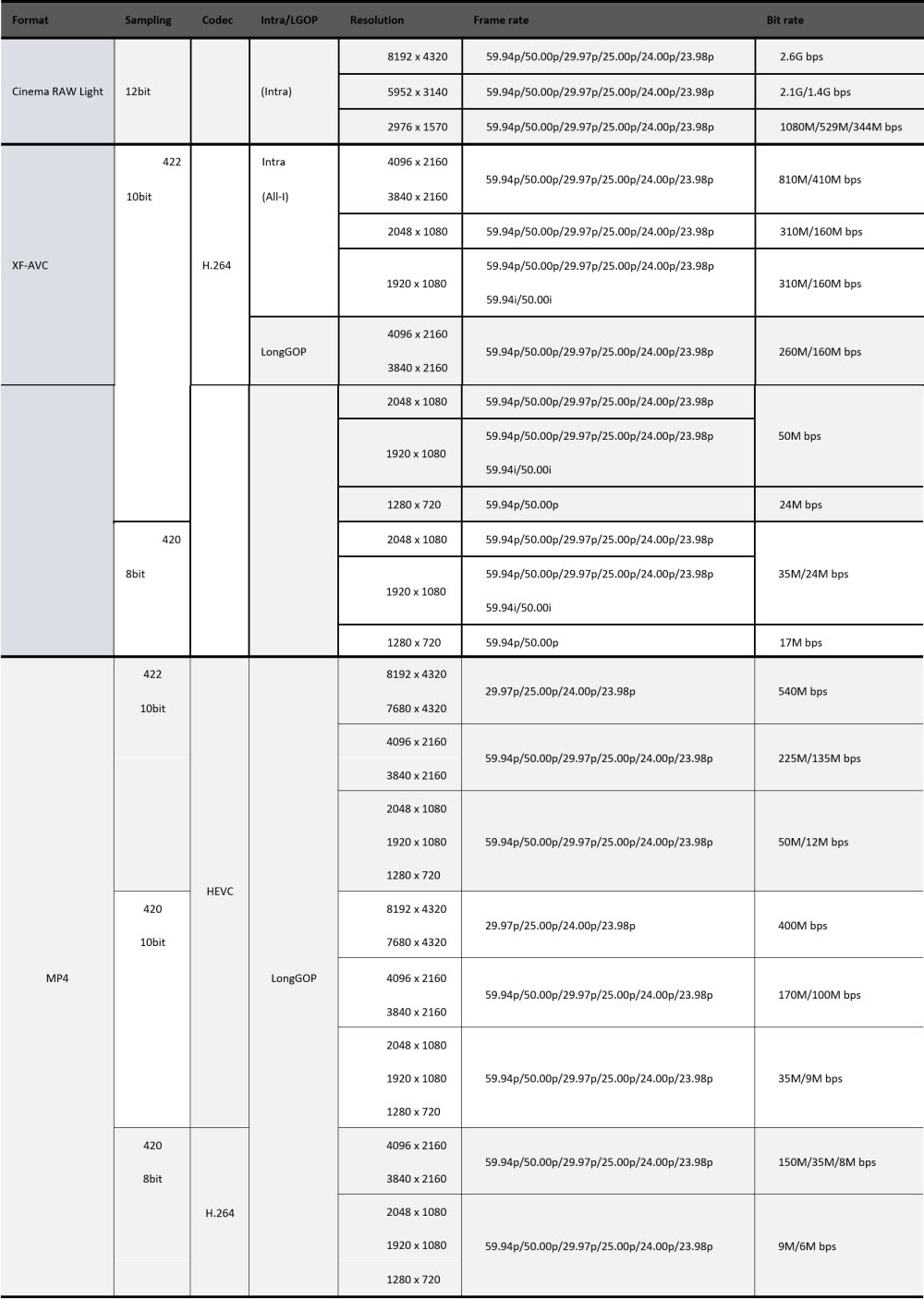

    Wide Variety of Recording Formats

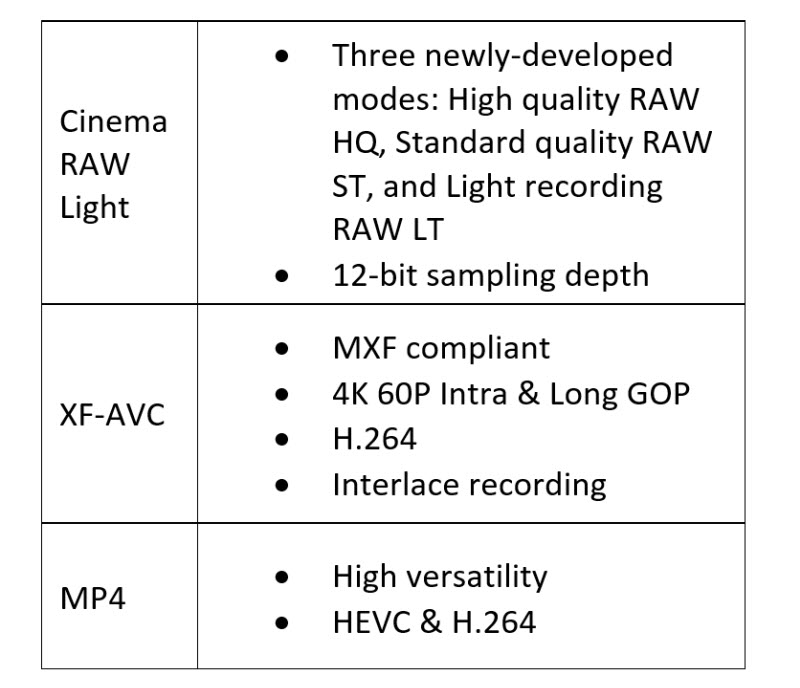

    The EOS R5 C camera offers users a wide variety of recording formats to choose from to fit individual workflows and output needs. Along with Cinema RAW Light, which provides light data sizes for RAW recording, the EOS R5 C camera supports MXF-based XF-AVC, which conforms to broadcasting standards, and highly versatile MP4.

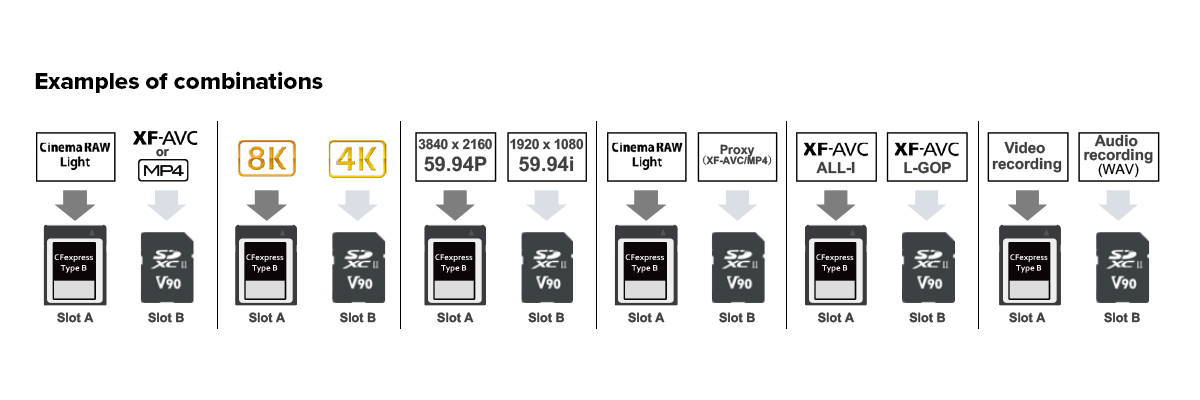

    Simultaneously Record Different Formats

    The EOS R5 C camera is capable of recording two independent video files simultaneously, such as Cinema RAW Light and MP4 at various resolutions including 4K and HD, as well as lightweight proxy files for various professional workflows.

    XF-AVC and MP4 Codecs for 10-bit 4:2:2 Video

    In addition to Cinema RAW Light, the EOS R5 C camera offers XF-AVC and MP4 codecs to provide familiar and trusted codecs for easy ingestion and post-production workflows across cinema, broadcast, and many professional markets and applications. XF-AVC offers robust 10-bit 4:2:2 files in a .MXF wrapper for simple compatibility with non-linear editing systems (NLEs) and existing workflows.

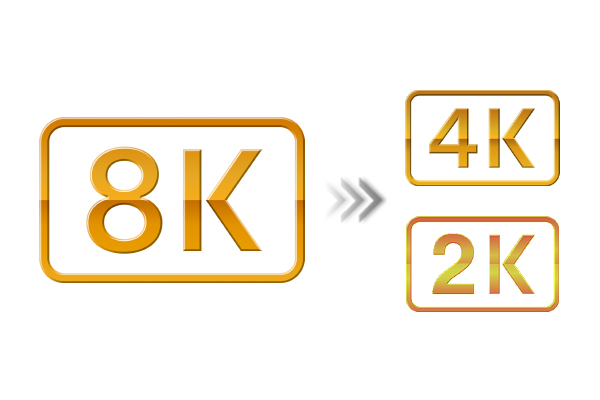

    4K and 2K Oversampling

    The EOS R5 C camera reads out signals for all effective pixels from its full-frame 8K sensor, enabling 4:2:2 10-bit high-definition recording through oversampling during 4K and 2K video recording. A high-definition debayer algorithm has been included and the 4K generated from the abundant RGB data of the 8K sensor enables more refined imaging capabilities with less incidence of moiré, false colors, “jaggies” and noise.

    HDMI 8K RAW Output to Compatible Recorders

    The EOS R5 C camera supports RAW output via HDMI and ProRes RAW recording with compatible external recorders such as Atomos devices*. By connecting the EOS R5 C camera with a supported external recorder, users can shoot in Apple ProRes RAW at up to 8K 30P. Proxy data can also be simultaneously recorded to an SD card in-camera, providing efficient post-production operations.

    *Only Atomos NINJA V+ is supported as of January 2022. A separate HDMI cable is required to connect to the NINJA V+.

    Up to 4K 120P Slow and Fast Motion Recording Mode in 4:2:2 10-bit

    The EOS R5 C camera can record High Frame Rate (HFR) movies at up to 120P at 4K resolution (4096x2160/3840x2160) in 4:2:2 10-bit without cropping the sensor.

    Amazing for shooting scenes full of fast-paced action, the EOS R5 C camera's fast and intuitive autofocus remains enabled even during HFR recording, making it ideal when shooting from a gimbal or drone, delivering outstanding focus accuracy at HFR or at common frame rates.

    Simultaneous Audio Recording Enabled with HFR

    Unlike some other cameras where audio is not recorded during HFR shooting, the EOS R5 C camera can record .WAV audio as a separate file from video, virtually eliminating the need for separate audio recording and delivering HFR video and audio files in one convenient device when shooting slow motion or fast motion video.

    Canon Log 3 Expands Expressive Possibilities

    The EOS R5 C camera features Canon Log 3, which is found in many Canon cameras and works with multiple Canon EOS and Cinema EOS cameras. The wide dynamic range can be used for a wider range of grading after shooting. Canon Log 3 is a gamma that is designed for simple grading, such as tightening dark areas and adjusting tones. It carries on Canon Log's ease of use with less noticeable noise. It can also be used when shooting with other Cinema EOS system cameras such as the EOS C300 Mark III and EOS C70 cameras.

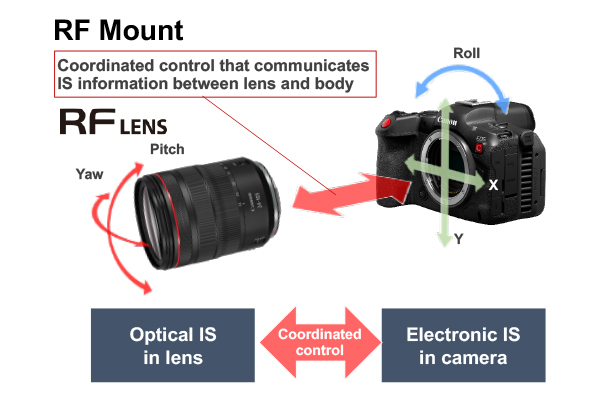

    Enhanced Image Stabilizationiii



    Enhanced image stabilization is achieved through coordinated control when Canon's RF lenses with optical IS are combined with the EOS R5 C camera's electronic IS when shooting XF-AVC or MP4 formats. With an RF lens that has optical IS and the electronic IS in the EOS R5 C camera, coordinated control helps achieve the optimum hand-shake correction effects. This helps achieve better anti-vibration performance than with conventional IS-equipped EF lenses (using optional Mount Adapter EF-EOS R) and electronic IS together.

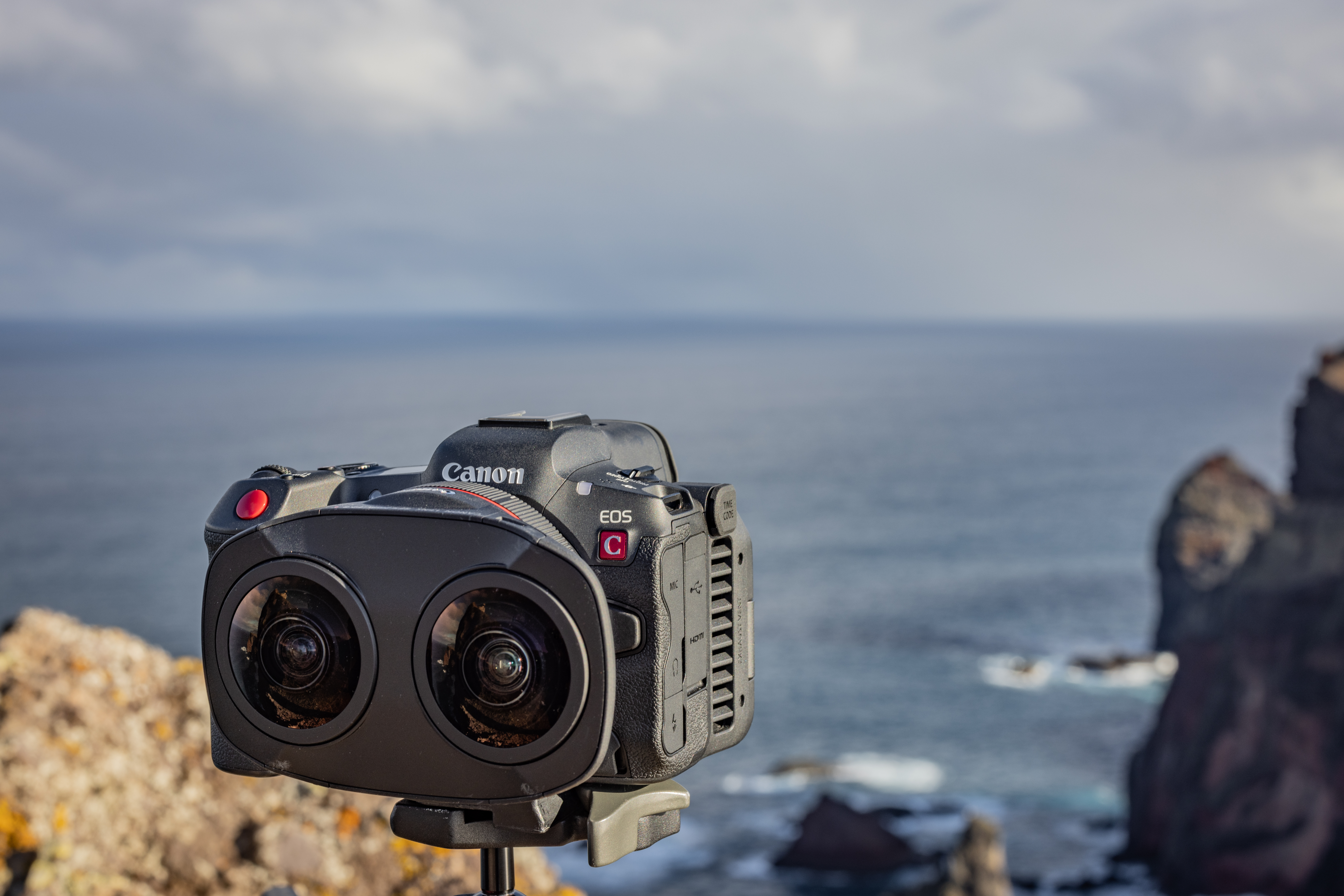

    Canon VR with RF5.2mm F2.8 L Dual Fisheye Lens Support and Workflow

    The EOS R5 C camera is an excellent camera pairing with Canon's RF5.2mm F2.8 L Dual Fisheye Lens to achieve stereoscopic 3D 180° VR video (viewing in 3D requires the use of a compatible Head Mount Display). A plug-in for Adobe® Premiere Pro® and Canon's EOS VR Utility are available to streamline the workflow from shooting to editing.

    Dual Pixel CMOS AF with iTR AF X

    Canon's Dual Pixel CMOS AF technology uses every pixel on the imaging sensor to detect focus, and also to capture actual image information achieving both high precision focusing and high image quality.

    With most Canon RF and EF lenses, AF for video can be carried out over approximately 80% of the vertical and horizontal area of the screen. Touch AF allows positioning an AF point by simply touching the LCD screen, in addition to quick manual positioning with the 8-way Multi-controller on the rear of the camera.

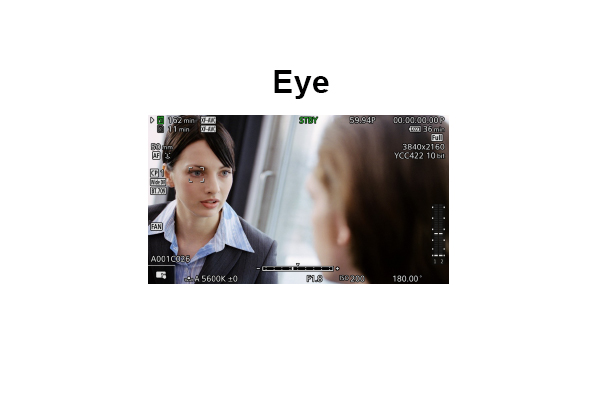

    In addition, the camera features Eye AF/Head Detection AF, developed with the use of deep learning technology to improve subject tracking. It also provides human detection (eyes/face/head), allowing it to track subjects accurately even when AF control is not available.

    Users can track focusing as desired depending on their subject or shooting situation. A wide variety of AF modes enable autofocus shooting that flexibly responds to the subject's movement. Users can leave focusing to the camera and concentrate on their camera work.

    • High Still-Image Quality Featuring a 45 Megapixel Full-frame CMOS Sensor and DIGIC X Processor.
      • Still-imaging features and operation are nearly identical to Canon's EOS R5 cameraiii. The EOS R5 C camera features the same Canon-developed CMOS sensor with approx. 45 effective megapixels, and a DIGIC X Image Processor to enhance the speed of operations across the board. This means fast, efficient performance and phenomenal image quality for big prints, impressive video and more.
    • DIGIC X Image Processor with an ISO range of 100-51200; Expandable to 102400iv.
      • Delivering high standard and expanded ISOs (for still images), and a broad range of options to help enhance shooting in varied and fast-changing lighting situations, the EOS R5 C camera can shoot at expanded sensitivities down to ISO 50 (L) and up to 102400 (H)
    • High-Speed Continuous Shooting of up to 12 fps with Mechanical Shutter and up to 20 fps Electronic (Silent) Shutter.
      • High-speed continuous shooting with full AF subject detection and tracking, at all still-image quality settings.

        A high-precision Dual Pixel CMOS AF system allows the EOS R5 C camera to reliably capture approx. 100% of the still-image area, with most Canon lenses.
    • The Same Subject Detection and Tracking AF as the Canon EOS R5 Camera, Even at Shooting Speeds as Fast as 20 fps.
      • Head and Eye Detection
        • Select "People" as the EOS R5 C's "subjects to detect," and like the EOS R5, it can focus on a detected person's eyes, face, head (if a face is obscured), or even entire body if a head cannot be detected.
      • Animal Detectionv
        • For still images, the same revolutionary Animal Detection AF as the EOS R5 can identify and focus upon eyes, faces or bodies of birds, cats and dogs — and can do so over virtually the entire image area, with many Canon lenses. This opens up game-changing possibilities for wildlife images, even with subjects as challenging as birds in flight.
      • Vehicle Detection
        • Carried-over from the high-performance Canon EOS R3 camera, the EOS R5 C adds Vehicle Detection AF as a subject detection option, during still-image shooting. Cars and motorcycles, especially in racing applications, can be identified and tracked, even at high speeds. User-selectable Spot Detection lets the R5 C's AF detect the helmets of an exposed rider or driver, and put focus upon them, instead of the leading edge of the vehicle.
    • AF Area Flexibility
      • Select the size of the active AF area — from a precise single AF point to the entire available AF area — and rapidly move a user-selected area via the 8-way Multi-controller on the back of the camera. The EOS R5 C has the same range of choices for still-image AF method selection as the EOS R5 camera.
      • AF Area Coverage of Approx. 100% x 100% for Still Images
        • The EOS R5 C camera features an expansive focus area of approx. 100% horizontal and 100% verticalvi when working with select RF and EF lenses, during still-image shooting. With older EF lenses, or with EF Extender types I and II, the EOS R5 C focuses on approx. 80% horizontally and 80% vertically of the image. This means fast and impressive focusing even when composing your subject far from the center of the frame.
      • EV -6vii Low-light autofocus
        • Amazing for nighttime photography or in very low light settings, the EOS R5 C camera's brilliant AF can operate for still images in light as dim as a light rating of EV -6 where other AF systems may fail or search.
        • Still-image AF is possible with lens + Canon RF tele extender combinations having maximum effective apertures as slow as f/22 —meaning AF is still possible with the RF800mm F11 IS STM + RF2x extender!

    CFexpress Type-B
    Brand Model Capacity Approved for Photo Approved for Video
    Lexar LCFX10-512CRB 512 GB OK OK
    ProGrade Digital (COBALT) PGCFX650GCPNA 650 GB OK OK
      (GOLD) PGCFX1TBAPNA 1 TB OK RAW Recording and 4K High Frame Rate Recording may not be possible
      (GOLD) PGCFX512GAPNA 512 GB OK OK
    SanDisk SDCFE-512G-ANCNN 512 GB OK RAW Recording and 4K High Frame Rate Recording may not be possible
    Sony CEB-G512 512 GB OK RAW Recording and 4K High Frame Rate Recording may not be possible

    SD Card
    Brand Model Capacity SpeedClass Approved
    Angelbird AVP256SDMK2V90 256 GB C10/U3/V90 OK
      AVP128SDMK2V90 128 GB C10/U3/V90 OK
    Delkin Devices DDSDG2000256 256 GB C10/U3/V90 OK
      DDSDG2000128 128 GB C10/U3/V90 OK
    ProGrade Digital PGSD128GBCKNA 128 GB C10/U3/V90 OK

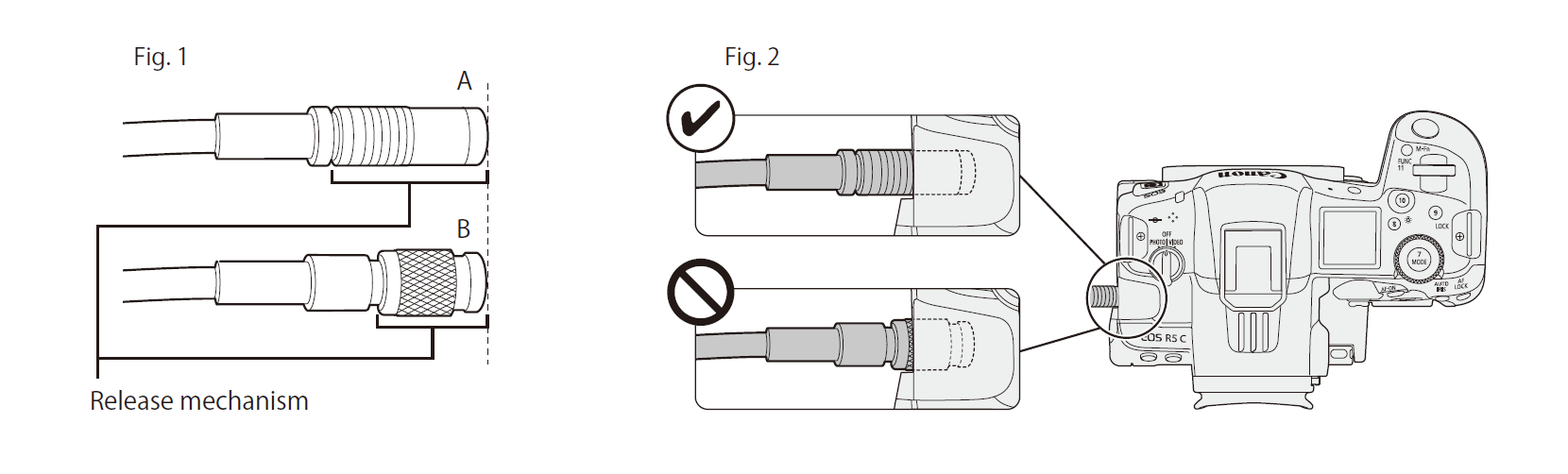

    Time Code Cable

    Cable tested for use with this camera: Canare D2.5HDC***E-D (“***” indicates length).

    Specifications

    View Full Specifications

    Expand All

    Type


    Digital single-lens non-reflex AF/AE camera

    Image Processor


    DIGIC X

    Recording Media


    CFexpress card
    • Type B: Card slot

    SD card
    • SD card speed class-compatible.
    • Compatible with UHS-II
    • Eye-Fi cards and Multimedia cards (MMC) are not supported.

    Compatible Lenses


    Canon RF lens group (excluding EF, EF-S and EF-M lenses)
    When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

    Lens Mount


    Canon RF mount

    Type


    CMOS sensor (compatible with Dual Pixel CMOS AF)

    Effective pixels


    Approx. 45.0 megapixels

    Sensor Size


    Approx. 36.0 x 24.0 mm

    Pixel Size


    Approx. 4.40 µm square

    Total Pixels


    Approx. 47.1 megapixels

    Aspect Ratio


    3:2 (Horizontal:Vertical)

    Color Filter System


    RGB primary color filters

    Low Pass Filter


    Installed in front of the image sensor, non-detachable

    Dust Deletion Feature


    1. Self Cleaning Sensor Unit
      • Removes dust adhering to the low-pass filter.
      • At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indi-cated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen).
      • After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
      • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
    2. Dust Delete Data acquisition and appending
      • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
      • The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software (v. 4.14 and higher) to automatically erase the dust spots.
      • Not available with EF-S lenses, in cropped shooting or multi-exposure shooting.
    3. Manual cleaning (by hand)

    Recording Format


    Compliant to Design rule for Camera File system 2.0 and Exif 2.3*.
    *Supports time difference information in Exif 2.31.

    Image Format


    JPEG, HEIF, RAW (CR3, 14 bit RAW format), C-RAW (Canon original); Movies: ALL-I, IPB, RAW

    HDR Mode-Continuous Shooting


    (1) 1 shot only
    (2) Continuously
    (3) Multiple Exposure

    Advanced shooting operations


    (1) Focus Bracketing
    (2) Interval Timer
    (3) Bulb Timer
    (4) Multi-Shot NR


    File Size


    3:2 Aspect Ratio
    Large/RAW/C-RAW: 8192 x 5464
    Medium: 5808 x 3872
    Small 1: 4176 x 2784
    Small 2: 2400 x 1600

    1.6x (Crop)*
    Large/RAW/C-RAW: 5088 x 3392
    Small 2: 2400 x 1600

    4:3 Aspect Ratio
    Large: 7280 x 5464
    Medium: 5152 x 3872
    Small 1: 3712 x 2784
    Small 2: 2112 x 1600
    RAW/C-RAW: 8192 x 5464

    16:9 Aspect Ratio
    Large: 8192 x 4608
    Medium: 5808 x 3264
    Small 1: 4176 x 2344
    Small 2: 2400 x 1344
    RAW/C-RAW: 8192 x 5464

    1:1 Aspect Ratio
    Large: 5456 x 5456
    Medium: 3872 x 3872
    Small 1: 2784 x 2784
    Small 2: 1600 x 1600
    RAW/C-RAW: 8192 x 5464

    • Values for Recording Pixels are rounded to the nearest 100,000 or 10,000.
    • For RAW and JPEG images, information outside the cropping area is not retained.
    • JPEG images are generated in the set aspect ratio.
    • RAW images are generated in [3:2], and the set aspect ratio is appended.
    * Indicate an inexact proportion.







    File Numbering


    The following file numbers can be set:
    1. File numbering methods
      • Continuous numbering
        • The numbering of captured images continues even after you replace the card.
      • Auto reset
        • When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
    2. Manual reset
      • Resets the file number to 0001, and creates a new folder automatically.
    *When manually resetting the file number, folders can also be renamed.

    RAW + JPEG / HEIF Simultaneous Recording


    Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.

    Color Space


    Selectable between sRGB and Adobe RGB

    Picture Style


    1. Auto
    2. Standard
    3. Portrait
    4. Landscape
    5. Fine Detail
    6. Neutral
    7. Faithful
    8. Monochrome
    9. User Defined 1-3
      • In Scene Intelligent Auto, [Auto] will be set automatically.
      • [Standard] is the default setting for [User Def. 1-3].

    Settings


    1. Auto (Ambience priority/White priority)
    2. Day Light
    3. Shade
    4. Cloudy*
    5. Tungsten light
    6. White fluorescent light
    7. Flash
    8. Custom (Custom WB)
    9. Color temperature
    * Effective also in twilight and sunset.

    Auto White Balance


    Option between ambience priority and white priority settings.

    White Balance Shift


    Blue/amber bias: ±9 levels
    Magenta/green bias: ±9 levels
    Corrected in reference to the current WB mode's color temperature.

    Type


    OLED color electronic viewfinder; approx. 5.76 million dots resolution

    Coverage


    Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).

    Magnification / Angle of View


    Approx. 0.76x / Approx. 35.5 degrees (with 50mm lens at infinity, -1 m-1)

    Eye Point


    Approx. 23mm (at -1 m-1 from the eyepiece lens end)

    Dioptric Adjustment Range


    Approx. -4.0 to + 2.0 m-1 (dpt)

    Viewfinder Information


    1. Maximum burst
    2. Possible shots/Sec. until self-timer shoots
    3. Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
    4. Shooting mode
    5. AF method
    6. AF operation
    7. Image quality
    8. Card
    9. Drive mode
    10. Metering mode
    11. No. of remaining shots for focus bracketing, multiple exposures, or interval timer
    12. Electronic level
    13. Movie recording time available
    14. Battery level
    15. Image Stabilizer (IS mode)
    16. Histogram (Brightness/RGB)
    17. Quick Control button
    18. Anti-flicker shooting
    19. White balance/White balance correction
    20. Picture style
    21. Auto Lighting Optimizer
    22. Still photo cropping / Aspect ratio
    23. AF point (1-point AF)
    24. AEB/FEB
    25. View Assist
    26. HDR PQ
    27. Flash ready / FE lock / High-speed sync
    28. Electronic shutter
    29. Touch shutter / Create folder
    30. AE lock
    31. Shutter speed / Multi-function lock warning
    32. Aperture value
    33. Wi-Fi® function
    34. Wi-Fi® signal strength
    35. Bluetooth® function
    36. Exposure simulation
    37. Magnify button
    38. ISO speed
    39. Highlight tone priority
    40. Exposure compensation
    41. Exposure level indicator

    Focus Method


    Dual Pixel CMOS AF II

    Number of AF zones available for Automatic Selection


    AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
    Stills: Max. 1053 zones (39 x 27)
    Movies: Max. 819 zones (39 x21)

    AF Working Range


    EV -6 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at 73°F/23°C, ISO 100)
    * Except RF lenses with a Defocus Smoothing (DS) coating.

    AF Methods


    AF Method
    Face+Tracking AF
    Spot AF
    1-point AF
    Expand AF Area
    (Above, below, left and right/Around)
    Zone AF
    Large Zone AF (Vertical/Horizontal)

    Subject to Detect

    People, Animals, No Priority
    * Available with [AF method] set to Face+Tracking, Zone AF, or Large Zone AF (vertical/horizontal)

    Metering Modes


    Real-time metering with image sensor (384 [24x16 zone metering])
    1. Evaluative metering (AF point-linked)
    2. Partial metering (approx. 6.1% of the area at the center of the screen)
    3. Spot metering (approx. 3.1% of the area at the center of the screen)
    4. Center-weighted average metering

    Metering Range


    EV -3 - 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting)

    Exposure Control Modes


    1. Scene Intelligent Auto
    2. Flexible-priority AE (Fv)
    3. Program AE (P)
    4. Shutter-priority AE (Safety shift possible) (Tv)
    5. Aperture-priority AE (Safety shift possible) (Av)
    6. Manual exposure (M)
    7. Bulb
    8. Custom shooting mode C1, C2, C3

    ISO Speed Range


    Available ISO speeds; user-set

    Normal ISO 100-51200 (1/3- or 1-stop increments)
    Expanded L: equivalent to ISO 50, H: 102400
    • For [Highlight tone priority], the minimum ISO speed limit will be ISO 200 to 51200.
    • Expanded ISO cannot be set for HDR mode or during HDR PQ shooting.

    User-defined ISO range - still photo shooting

    ISO Speed Range ISO Speed
    Minimum L (50)-51200 (in 1-stop increments)
    Maximum ISO 100-H (102400) (in 1-stop increments)

    * Expanded ISO speeds are noted as being equivalent to these speeds.

    User-defined Auto ISO range - still photo shooting

    Auto Range ISO Speed
    Minimum ISO 100-25600 (in 1-stop increments)
    Maximum ISO 200-51200 (in 1-stop increments)

    ISO Auto details in still photo shooting

    Shooting Mode No Flash Using Flash
    Auto ISO 100-12800 ISO 100-1600*3
    P  ISO 100*1*2-51200*2  ISO 100*1*2-6400*2*4
    TV
    AV
    M
    B ISO 400*3

    *1 ISO 200 when [Highlight tone priority] is set to [Enable] or [Enhanced].
    *2 Varies depending on [Maximum] and [Minimum] of [Auto range].
    *3 If outside the setting range, changed to the value most close to ISO 400.
    *4ISO 1600 when using a lens that is not compatible with Variable control of maximum ISO Auto limit for E-TTL.

    Exposure Compensation


    Manual ±3 stops in 1/3- or 1/2-stop increments
    AEB ±3 stops in 1/3- or 1/2-stop increments

    AE Lock


    1. Auto AE lock
      • The metering mode for AE lock after focus can be customized.
    2. User-applied AE lock
      • In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
      • Enabled in all metering modes.

    Type


    1. Mechanical
    2. Electronic 1st-Curtain
    3. Electronic Shutter (1st and 2nd curtain - silent*)
    *Cannot be used in conjunction with the following functions: flash photography, HDR shooting, multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High].
    * A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.
    * In electronic shutter shooting under conditions such as flash firing by other cameras or with fluores-cent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.

    Shutter Speeds


    When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb
    When [Electronic] is set: 1/8000-0.5 sec.

    X-sync Speed


    Mechanical Shutter: 1/200 sec.
    Elec. 1st-curtain: 1/250 sec.

    Shutter Release


    Soft-touch electromagnetic release

    Self Timer


    10-sec. delay, 2-sec. delay

    Shutter Lag Time


      Flash Mechanical Shutter Electronic 1st Curtain Electronic shutter
    Shutter-release time lag *Measured with shutter button pressed fully from half-pressed position



    		 Not used Approx. 81 ms Approx. 50 ms Approx. 50 ms
    Used N/A N/A -

    Still Photo IS


    Optical IS with RF and EF lenses equipped with Image Stabilization.
    • Always on
    • Only for shot

    Video IS


    A narrower angle of view is used when digital image stabilization is selected in the menu. This is equivalent to approx. 1.1x longer focal length when Electronic Image Stabilization mode (Standard) is selected. Also, this is equivalent to approx. 1.43x longer focal length when Electronic Image Stabilization mode (High) is selected.

    E-TTL balance


    Ambience priority, standard, flash priority

    Compatible E-TTL Speedlites


    Canon EX- and EL-series Speedlites

    E-TTL II Flash Meterings


    1. Evaluative (Face Priority)
    2. Evaluative
    3. Average

    Slow Sync (P/Av modes)


    1. 1/250* - 30 sec., auto
    2. 1/250* - 1/60 sec., auto
    3. 1/250* sec. (fixed)
    * Electronic 1st curtain shutter only
    * With mechanical shutter — 1/200 sec.

    Flash Function Menu


    Provided for EX- and EL-series Speedlites

    Flash Exposure Compensation


    ±3 stops in 1/3- or 1/2-stop increments

    Continuous flash control


    1. E-TTL each shot
    2. E-TTL 1st shot

    Drive Modes and Continuous Shooting Speed


    Drive Modes Icon Display Mechanical Shutter Electronic 1st curtain Electronic shutter
    Single Shooting Yes Yes Yes
    High-speed
    Continuous +
    shooting*¹

    		 Green*² Approx. 12 shots/sec. Approx. 20 shots/sec
    White Approx. 9.2 shots/sec.
    White (Blinking) Approx. 6.8 shots/sec.
    High-speed
    Continuous shooting
    		 Green*² Approx. 6.0 shots/sec. Approx. 8.0 shots/sec.
    White Approx. 5.1 shots/sec. Approx. 6.0 shots/sec.
    White (Blinking) Approx. 3.9 shots/sec. Approx. 4.9 shots/sec.
    Low-speed
    Continuous Shooting
    		 Green*² Approx. 3.0 shots/sec.
    White
    White (Blinking)
    Self-timer:10 sec / remote control Yes
    Self-timer:2 sec / remote control Yes
    * Automatically switches among modes Green, White, and White (Blinking).
    * Continuous shooting speed is lower under certain shooting and measurement conditions: shutter speed, aperture value,subject conditions, brightness, type of lens, timing when internal memory becomes full (temporarily disables shooting)
    - Mechanical / electronic 1st curtain: use of flash, anti-flicker shooting: Enable, Dual Pixel RAW shooting- Enable, type of battery, battery level, temperature, use of a battery grip, use of WFT, use of built-in Wi-Fi.
    - Electronic shutter: State of aperture in continuous shooting
    * With Certain lenses, zooming during continuous shooting with electronic shutter may cause changes in exposure even at the same f/number.
    *1: For shooting RAW images in [High-speed continuous +], 13-bit A/D conversion will apply regardless of the mode (A, B, or C).
    *2: With Anti-flicker shooting, max. continuous shooting speed may drop to approx 6.2 fps (with electronic 1st curtain shutter) or approx. 4.9 fps (with mechanical shutter).
    * For Dual Pixel RAW shooting, Low-speed continuous shooting will apply.

    Still photo file size / Number of possible shots / Maximum burst for continuous shooting


    Still Shooting with Mechanical Shutter or electronic 1st-curtain shutter, shot at approx. 12 fps
    Quality
    		 Maxiumum Burst [Approx.]
    SD Card (UHS-I) SD Card
    [High-speed]
    (UHS-II)

    		 CFexpress Card
    JPEG*4 L (fine) 190 350 350
    HEIF*³ L (fine) 190 280 280
    RAW*4 RAW 66 87 180
    C-RAW 130 260 260
    RAW+JPEG*4 RAW +
    L (fine)
    		 64 79 160
    C-RAW +
    L (fine)
    		 100 130 240
    RAW+HEIF*³ RAW +
    L (fine)
    		 61 74 90
    C-RAW +
    L (fine)
    		 110 140 140



    With Electronic shutter, shot at approx. 20 fps
    Quality
    		 Maxiumum Burst
    CFexpress Card
    JPEG*4 L (fine) 170
    RAW*4 RAW 83
    C-RAW 130
    RAW+JPEG*4 RAW + L (fine) 84
    C-RAW + L (fine) 150
    *¹: The number of possible shots and maximum burst (SD card) apply to a 32 GB SD card based on Canon testing standards.
    *²: The number of shots available and maximum burst (CFexpress card) apply to a 325 GB CFexpress card conforming to Canon testing standards.
    *³: Available when [HDR PQ] for HDR shooting is set to [Enable].
    *⁴: When [HDR PQ] for HDR shooting is set to [Disable].
    *⁵: With mechanical shutter or electronic 1st-curtain shutter, shot at approx. 12 fps.
    * File size, number of possible shots, and maximum burst vary depending on shooting conditions (including 1.6x crop/aspect ratio, subject, memory card brand, ISO speed, Picture Style, and Custom Function).

    HDR PQ Shooting


    Disable / Enable

    HDR PQ Shooting - Still


    Recording format Bit depth Color sampling method HDR specification
    HEIF 10 bit YCbCr 4:2:2 ITU-R BT.2100 (PQ)

    Focusing

    Dual Pixel CMOS AF

    Exposure Compensation

    ±3 stops in 1/3- or 1/2-stop increments

    Canon Log

    Provided (Off / Canon Log 3)

    Video Recording Size and Frame Rates

    Please Click here for full specifications

    Recording Times

    Please Click here for full specifications

    Type


    TFT color, liquid-crystal monitor

    Monitor Size


    3.2-inch (screen aspect ratio of 3:2)
    3.15 in./8.01cm diagonal (2.63 in./6.67cm width, 1.75 in./4.44cm height)

    Dots


    Approx. 2.1 million dots

    Coverage


    Approx. 100% vertically/horizontally

    Brightness Control


    Manually adjustable to one of seven brightness levels

    Coating


    Clear View LCD II
    • Anti-smudge coating applied.
    • Anti-reflection coating not applied.

    Interface Languages


    12 (English, German, Spanish, French, Portuguese, Italian, Ukraine, Russian, Polish, Simplified Chinese, Korean, Japanese)

    Display Format


    Item Still Photo Movie
    -
    Magnify zoom display 1.5x-10x (5 levels) -
    AF point display Yes -
    Grid display Off / 3x3 / 6x4 / 3x3+diag -
    Rating OFF / 1 to 5 Stars
    Select images / Select range / All images in folder / All images on card /
    All found images
    Image Search Search conditions
    Rating / Date / Folder / Protect / Type of file
    Protect Select images / Select range / All images in folder / Unprotect all images in folder / All images on card /
    Unprotect all images on card /All found images
    In-camera RAW image processing Supported -
    Resizing Supported -
    Cropping Supported -

    Highlight Alert


    The white areas with no image data will blink.

    Histogram


    Brightness and RGB

    Function


    The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.

    Protection


    1. Single image (select image)
    2. Select range
    3. All images in a folder
    4. All images on card
      • Image browsing and image search can be based on ratings.
      • Ratings-based image selections also possible with DPP.
    5. All found images (only during image search)

    Erase


    Except protected images

    1. Select images to erase
    2. Select range
    3. All images in folder
    4. All images on card
    5. All found images (only during image search)

    Compatible Printers


    Not supported

    DPOF


    Compliant to DPOF Version 1.1

    Standards Compliance


    IEEE 802.11a/ac/b/g/n

    Transmission Method


    DS-SS modulation (IEEE 802.11b)
    OFDM modulation (IEEE 802.11g/n/a/ac)

    Transition Frequency (Central Frequency)

    2.4 GHz band
    Frequency: 2412 to 2462 MHz Channels: 1 to 11 channels

    5 GHz band Frequency: 5180 to 5825 MHz

    Channels: 36 to 165 channels

    Connection Method


    (1)Camera access point mode
    (2)Infrastructure mode

    Security


    Connection Method Authentication Encryption
    Encryption Key Format and Length
    Camera Access Point WPA2-PSK AES • ASCII 8 characters
    Open Disable
    Infrastructure Open WEP • Hexadecimal 10 digits
    • Hexadecimal 26 digits
    • ASCII 5 characters
    • ASCII 13 characters
    Disable
    Shared key WEP Same as WEP above
    WPA-PSK TKIP
    AES
    		 • Hexadecimal 64 digits
    • ASCII 8-63 characters
    WPA2-PSK

    Communication with a Smartphone


    Images can be viewed, controlled, and received using a smartphone.
    Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
    Images can be sent to a smartphone.

    Remote Operation Using EOS Utility


    The camera can be controlled via Wi-Fi® using EOS Utility.

    Print from Wi-Fi® Printers


    Not supported.

    Send Images to a Web Service


    Still photos (RAW, C-RAW, HEIF, and JPEG) and movies (MP4) can be uploaded to image.canon server album.
    With the image.canon server, images can be sent to social media or a photo album link can be sent (by the image.canon specifications).

    Standards Compliance


    Bluetooth Specification Version 5.0 compliant (Bluetooth low energy technology)

    Transmission Method


    GFSK modulation

    Custom Functions


    22 Custom Functions are settable.

    Custom Controls


    Customizable Buttons

    Shutter button
    Movie button
    MODE button
    AF-ON button
    AE lock button
    AF point button
    Depth of field preview button
    Lens AF stop button
    Multi-function button
    LCD panel illumination button
    Set button
    Multi-controller


    Customizable Dials

    Main dial
    Quick control dial 1 and 2
    Control ring

    My Menu Registration


    • Up to six top-tier menu items and Custom Functions can be registered.
    • Up to five My Menu tabs can be added.
    My Menu tab overall operations
    • Adding a tab
    • Deleting tabs in a batch
    • Deleting all tab items
    • Setting the menu display
    My Menu tab detailed operations
    • Selecting a registered item
    • Sorting registered items
    • Deleting selected registered items
    • Deleting registered items in a batch
    • Deleting tabs
    • Changing a tab name (16 ASCII characters)

    USB Terminal


    Equivalent to Hi-Speed USB (USB 3.1 Gen 2)

    • For PC communication
    • Terminal type: USB Type-C
    • Shared with terminal for in-camera charging with USB Power Adapter PD-E1.
    • In-camera Charging: Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1.
    • Video Output (UVC).
    • Canon App(s) for iPhone
    • PTP connection/GP-E2

    Video Out Terminal


    HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible

    • Images can be displayed through the HDMI output and on screen at the same time.
    • Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.

    Clean HDMI output


    Provided

    Microphone Input Terminal


    3.5mm diameter stereo mini jack

    Headphone Terminal


    3.5mm diameter stereo mini jack

    Battery


    LP-E6NH/LP-E6N/LP-E6*
    • With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible.
    • With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible.
    * LP-E6 is automatically recognized as Mode C - Blinking White Drive mode regardless of capacity.

    Battery Check


    Automatic battery check when the power switch is turned ON.
    Displayed in 6 levels on top LCD panel.

    • Battery level can be checked on the LCD panel and in the viewfinder.
      Battery Info display in Set-up Menu:
    • Type of power source used.
    • Remaining capacity (percentage of battery charge remaining).
    • Recharge performance: (3-level display of battery's ability to hold a charge)

    Start-up Time


    Approx. 0.4 sec.
    • Based on CIPA testing standards.

    Dimensions (W x H x D)


    Approx. 5.6 x 4.0 x 4.4 in. / 142 x 101 x 111mm
    • Based on CIPA standards.

    Weight


    Approx. 1.7 lbs. / 770g (including battery, CFexpress card; without body cap)
    Approx. 1.5 lbs. / 680g (body only; without battery, card or body cap)

    Working Temperature Range


    32-104° F / 0-+40°C

    Working Humidity


    85% or less

    EOS R5 C

    EOS R5 C
    • EOS R5 C Digital Cinema Camera
    • Battery Pack LP-E6NH
    • Battery Charger LC-E6
    • Shoulder Strap SS-1200
    • Interface Cable IFC-100U
    • Cable Protector
    • Camera Cover R-F-5

    Compatible Supplies & Accessories

    Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you EOS R5 C that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





    Expand All

    Sample Images

    More Details

    More Details

    More Details

    More Details



    *ISO speed is based on recommended exposure index.

    This is to make Misc appear on the page when needed.

    Videos



    Introducing the Canon EOS R5 C Digital Camera


    The Canon EOS R5 C is a true hybrid camera, combining many of the video formats and features from the Canon Cinema EOS lineup as well as the still-imaging capabilities of the EOS R system. Learn about the EOS R5 C and what makes it ready for anything.


    Crossing the Invisible Line - A Film by Keith Ladzinski and the EOS R5 C


    Join professional photographer Keith Ladzinski as he combines two of his passions - outdoor sports and photography/filmmaking - and see how he utilized the versatility of the EOS R5 C to capture the action.


    Behind The Scenes with Keith Ladzinski and the EOS R5 C


    Get a behind the scenes look at Explorer of Light, Keith Ladzinski, as he tests the versatile EOS R5 C to get the best of both worlds. With Cinema EOS video capabilities and EOS R system photo performance, the EOS R5 C is built without compromise.


    The Soul of Madeira - A Film by Kevin Clerc and the EOS R5 C


    This beautiful short film by Director and Drone Pilot Kevin Clerc is a visual ode to Madeira, an archipelago situated in the North Atlantic Ocean. The stunning imagery is made possible by the versatility of the EOS R5 C which combines the video capabilities of Cinema EOS and the photo performance of the EOS R5.


    Tier Zero and the EOS R5 C


    Join the content development team, Tier Zero, as they explore the features and capabilities of the EOS R5 C that make it ready for anything.


    Behind The Scenes with Tier Zero and the EOS R5 C


    Go behind the scenes with Tier Zero as they take you through their creative process and how the EOS R5 C helped bring their vision to life.


    Exploring Sri Lanka with Juliana Broste and the Canon EOS R5 C


    Whether it's still images or video, travel filmmaker and content creator, Juliana Broste always gets the shot with the EOS R5 C.

    This is to make Misc appear on the page when needed.

    DISCLAIMERS


    iWireless connectivity for the transfer of video files requires the use of the Canon WFT-R10 wireless transmitter.
    iiContinuous recording of video is dependent upon media capacity and continuous power to the camera. Continuous power options include Canon's PD-E1 USB power adapter (sold separately), or the DR-E6C DC coupler (sold separately) combined with the CA-946 compact power adapter (sold separately) or compatible third party solutions
    iiiThe EOS R5 C camera does not feature In-Body Image Stabilization (IBIS). Electronic IS during video recording detects camera/lens movement or shake, and digitally moves the image on the image sensor to counter the detected movement, but the image sensor itself does not physically move. Electronic IS will slightly crop the outer edges of the full video recording area.
    ivFor still images
    vEffectiveness varies depending on the subject. In some cases, dogs, cats or birds may not be detected, while some animals other than dogs, cats or birds may be detected.
    viWhen taking still photos. Actual coverage varies depending on the lens in use. Focus area will not be covered with the following RF lenses: RF600mm F11 IS STM, RF800mm F11 IS STM.
    viiCamera settings: Center AF point, normal temperature, One-shot AF, ISO 100.

    † Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.

     Return to Top
