EOS R
Mirrorless
Canon Store: $
Pricing reflects camera body only.
Turn your compatible Canon camera into a high-quality webcam for video conferencing and more.
Learn more about the three decades (and counting) of advanced autofocus innovation in our EOS cameras.
Download the free Autofocus Firmware Update for your EOS R or EOS RP camera now!
Be the Revolution.
Meet Canon's new addition to the EOS System, the EOS R camera. The foundation of this system is an entirely new lens mount, designed for optical excellence today and incredible optical potential for the future.
Get ready to capture a variety of subjects in many different environments. Versatility is key with the EOS R; a 30.3 Megapixel Full-frame CMOS sensor and the DIGIC 8 Image Processor deliver stellar low-light performance, even in dark situations. Focus can be attained with incredible speed and accuracy thanks to Canon's proprietary Dual Pixel CMOS AF system and a maximum of 5,655 manually selectable AF points*. This system also captures smooth 4K video that's easy to share and can be enhanced in post-production thanks to the included Canon Log. The built-in, high-precision EVF and a Vari-angle Touchscreen LCD make it easy to adapt to different shooting situations. In daylight or in the dark, in the studio or on the street, the EOS R's lightweight, intuitive and durable design means strong performance and gorgeous results.
Whether capturing landscapes or wildlife, wedding portraits or dance performances, the EOS R is an advanced and impressive imaging tool that's primed to deliver the stunning photos and videos that photographers, moviemakers and any visual storytellers need to make their stories fly. Witness a new beginning with the EOS R and be the revolution.
Features
Compatible with EF/EF-S Lenses*
Whether you're purchasing your first EOS camera or your fifth, the EOS R camera is designed to integrate smoothly into existing EOS systems. Engineered to work seamlessly with RF lenses, it maintains complete compatibility with EF and EF-S lenses by using one of three optional Mount Adapters. When using EF-S lenses, the EOS R even crops automatically to reflect the APS-C sized sensor the lenses are designed for.
* Optional Mount Adapter EF-EOS R is required when using EF/EF-S lenses with an EOS R camera.

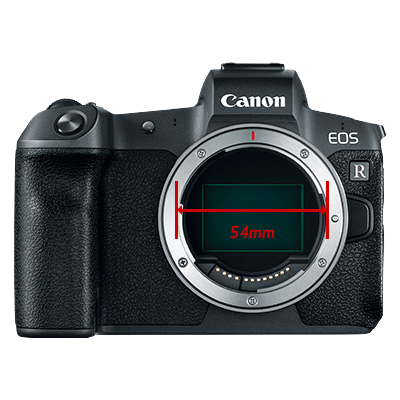

54mm Large Diameter and Short Back Focus
The RF mount on the EOS R camera has a large, 54mm internal diameter that enables impressive handling and provides increased flexibility for lens design. And thanks to the camera's mirrorless design, the lens's rear element can be much closer to the image plane. This reduced back focus distance, combined with the RF mount's 54mm diameter, helps facilitate lenses of stellar optical quality and stunning performance while enabling innovative compact camera and lens designs.
* Optional Mount Adapter EF-EOS R is required when using EF/EF-S lenses with an EOS R camera.
20mm Flange Focal Distance with Robustness for Professional Use
All RF lenses feature a 20mm flange focal distance, which is the distance from the lens mount to the surface of the image sensor. This flange focal distance balances the benefits of short back focus with the engineering requirements necessary for mount stability. Accordingly, the RF mount's flange focal distance ensures excellent optical performance while maintaining the mount rigidity and camera durability necessary for real-world operation.
Certain images and effects are simulated.
12 Pins for Quickly Communicating Large Amounts of Information
With a robust 12 pin connection between the camera and the lens, the EOS R camera and RF lenses are able to communicate at a higher speed, transmitting a larger amount of data and information for incredibly fast AF, plus enhanced image stabilization and optimization.
Variety of Mount Adapter Options for Expanded Compatibility with EF/EF-S Lenses
Mount adapters, such as the Mount Adapter EF-EOS R, deliver seamless connections between the EOS R camera and EF and EF-S lenses with all functions intact. Offering L series level weather and dust sealing, the Mount Adapter EF-EOS R is even compatible with EF extenders like the Extender EF 1.4x III to extend your camera's optical reach. With an entire arsenal of EF and EF-S lenses at your disposal, the Mount Adapter EF-EOS R and other mount adapters ensure endless creative possibilities for the EOS R camera.
Beyond enabling use of EF and EF-S lenses on the EOS R camera, the Control Ring Mount Adapter EF-EOS R and the Drop-in Filter Mount Adapter EF-EOS R add functions that open up a number of new possibilities for creative image capture. The Control Ring Mount Adapter EF-EOS R adds a control ring like those found on RF lenses, providing the same level of control to your EF and EF-S lenses and supporting the same setting configuration regardless of lens. The Drop-in Filter Mount Adapter EF-EOS R enables compatibility with EF and EF-S lenses and includes drop-in filter capability for use with circular polarizing filters or variable ND filters. This enhancement enables compatibility with numerous lenses regardless of their front diameter, and makes filter use possible with lenses like the ultra-wide EF 11–24mm f/4L USM lens or the tilt-shift TS-E 17mm f/4L lens which cannot accept a filter on the front.
30.3 Megapixel Full-frame CMOS Sensor
The EOS R camera features a Canon-developed and produced 35mm full-frame CMOS sensor with approx. 30.3 effective megapixels. It employs the DIGIC 8 Image Processor to enhance the speed of operations across the board. This means fast, efficient performance and phenomenal image quality for big prints, impressive 4K video and more.
ISO 40000
The EOS R camera has a standard ISO sensitivity range of 100–40000 for stills and 100–25600 for video (100–12800 for 4K video shooting). Combined with the EOS R camera's remarkable low-light AF performance, still and video shooting is possible even in dark situations in a variety of places and occasions.
Digital Lens Optimizer
The EOS R camera has an in-camera Digital Lens Optimizer that works with RF lenses (and EF/EF-S lenses with a Mount Adapter) to provide a substantial improvement in image quality. The Digital Lens Optimizer limits deterioration in image quality caused by low-pass filters or wide-aperture lens designs. It is particularly effective at correcting peripheral aberration, providing a high amount of detail for beautifully natural results. It's usable both during shooting and when developing RAW data, and does not affect continuous shooting speeds. Data from compatible EF and EF-S lenses is built into the camera, and data information from RF lenses is transferred near instantly through the EOS R's 12 pin communication system.
High-speed Focusing in 0.05 sec.***
The EOS R camera's highly responsive Dual Pixel CMOS AF system features an incredible 5,655 manually selectable AF points** and can delivers the world's fastest AF focusing speed of 0.05 sec.*** This means fast action can be captured and focus can be maintained with speed, accuracy and ease. Whether taking candid photos in the park or making movies in an event space, the EOS R's fast AF helps ensure speedy, accurate and consistent AF.
Test conditions:
- Focusing brightness: EV 12 (room temperature, ISO 100)
- Shooting mode: M
- Lens in use: RF 24-105mm F4 L IS USM, with a focal distance of 24mm
- Still photo shooting with shutter button operation
- AF method: 1-point AF (with Center AF point)
- AF operation: One-Shot AF
** Available AF points may decrease when shooting with AF cropping or in movie mode, or depending on camera settings or lens attached.
*** Among interchangeable lens digital mirrorless cameras incorporating 35mm full frame equivalent image sensors with phase-difference detection AF on the image plane and contrast detection AF, available in the market as of September 5, 2018 (based on Canon's Research). Calculated based on the resulting AF speed measured according to the CIPA guidelines. (Varies depending on the shooting conditions and the lenses used.) Internal measurement method.
AF Area Coverage of Approx. 88% x 100%^
The EOS R camera features an expansive focus area of approx. 88% horizontal and 100% vertical^ not only with RF lenses, but also when working with select EF lenses. With older EF lenses, or with Extender types I and II, the EOS R focuses approx. 80% horizontally and 80% vertically. This means fast and impressive focusing even if your subject is way off center.
^ When shooting still photos. Actual coverage varies depending on the lens in use.
AF Points and AF Area
The EOS R camera features a sophisticated AF system with a maximum of 5,655 manually selectable AF points**, which covers almost the entire image sensing area. The EOS R can also be configured to focus on specific areas, using an extended range of selectable modes that include 1-point AF, Expand AF Area, Zone AF and Large Zone AF in addition to the conventional Face+Tracking AF.
Certain images and effects are simulated.
EV -6^^ Low-light Autofocus
Amazing for nighttime photography or in very low light, the EOS R camera's brilliant AF can operate in light as dim as a light rating of EV -6^^ where other AF systems may fail or search. Phenomenal AF is achieved even when using lenses with high F numbers. This ultra-sensitive AF works in concert with the EOS R's EVF to clearly capture subjects even when there's limited light.
^^ When using RF 50mm F1.2 L USM, with central AF point.
f/8 and f/11 Compatible in All AF Areas
The EOS R camera's brilliant AF system doesn't just work with bright lenses. With the EOS R, autofocus will operate over nearly the entire image area even when used with compatible f/8 and f/11 lenses. For example, users can take ultra-telescopic 800mm shots using a compact EF 100–400mm f/4–5.6 IS II lens together with an EF 2x III extender, and AF will function properly over the entire field. When used with a III-type extender, the effective AF range is limited to an area roughly 88% x 100% of the total image frame, or 80% x 80% if combined with a I/II type extender.
Variety of AF Modes including Eye Detection AF
The EOS R camera's Face+Tracking mode helps enhance reliability for tracking moving subjects. When the camera detects a human face, it uses the subject's eye as the AF point, choosing the eye closest to the camera by default. Photographers can also select which eye to focus on by touching the screen or using the camera's AF point selection button and cross keys.
^^ When using RF 50mm F1.2 L USM, with central AF point.
Touch and Drag AF
Touch and Drag AF makes it fast and easy to select a focus point without taking your eye away from the viewfinder. Using the Touchscreen LCD, it's as simple as pointing to the desired area of focus. The chosen AF point is then displayed in the camera's EVF for quick confirmation.
Focus Peaking
Among the EOS R camera's manual focus aids, Focus Peaking helps establish the focus area quickly and clearly. With manual focus peaking, the outline of the area in focus is indicated by a colored line. Focus Peaking is usable in conjunction with the EOS R's Focus Guide feature, and can be customized with peaking color and detection level specifications that fit the project at hand.
Certain images and effects are simulated.
Dual Pixel Focus Guide
For help when using manual focus while recording videos and shooting still images, the EOS R camera's Dual Pixel Focus Guide not only indicates when subjects are in focus, but also displays where the position of focus is relative to the subject. This function can be combined with Zone AF or Face Detection AF as well.
4K 30p, Full HD 60p, HD 120p
Whether shooting videos to share with friends online or serving as a secondary camera on a large production, the EOS R camera offers advanced recording features such as 4K at 29.97 fps, Full HD at 59.94 fps and HD at 119.9 fps. Helpful functions include distortion correction during recording and Movie Digital IS. Additionally, video can be recorded during still photo shooting by simply pressing the Movie Shooting button.
Canon Log
Canon Log is included in the EOS movie gamma selections. This feature reduces heavy shadows and blown out highlights, delivering movie images with approximately 12 stops of dynamic range (at ISO 400) for excellent shadow and highlight detail. Especially useful for moviemakers and videographers planning on using video clips in post-production and integrating EOS R footage with clips from other cameras, Canon Log is an indispensable tool that helps make the EOS R a serious movie camera.
Certain images and effects are simulated.
10-bit 4:2:2 HDMI Output
For advanced video capture and for generating video that can be incorporated with footage shot on other cameras in post-production, the EOS R camera has an HDMI port that can output 4K video directly to an external drive. The camera can also output 10-bit movie footage in ITU-R BT.2020 color when Canon Log setting is activated.
Headphone Jack
To help confirm the clarity and levels of sound being recorded, the EOS R camera is equipped with a 3.5mm diameter stereo mini jack for use of compatible headphones when recording video. It has a maximum output level of -14dBV, helping deliver audible and high-quality audio to wired headphones.
Microphone Input
For use with an external microphone, the EOS R camera has a 3.5mm diameter stereo mini jack in addition to its built-in stereo microphone. Particularly useful in situations with specific sound recording needs, the EOS R's compatibility with external microphones helps ensure that sound recordings complement the quality of the captured footage.
4K IPB/ALL-I MP4 H.264
The EOS R camera can record 4K video using IPB or ALL-I* compression and save them as MP4 files. This helps provide further flexibility with both file size, image quality and integration with video clips recorded with other cameras.
*4K All-I recording requires an SD Memory card with a minimum write speed of 60MB/s.
0.5-type OLED EVF with Approx. 3.69 Million Dots
The EOS R camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 3.69 million dots and a 23mm eyepoint. Displaying a bright image and extensive shooting information that rotates with the camera, the viewfinder excels in bright conditions where viewing the camera's LCD may prove difficult.
The EOS R's electronic viewfinder has been created to provide a bright, sharp and colorful 100% view of the subject at hand. Equipped with an aspherical lens, the EVF shows a crisp and vivid image with minimal aberration or distortion, even when the eye moves off the center of the visual field.
The EOS R's EVF has a bright, 23mm-high eyepoint design that creates a generous 30mm space between your nose and the rear of the viewfinder. This makes it easy to compose and view images in the viewfinder with or without glasses. A dioptric adjustment of -4 - +2 means it's simple to change as needed to suit various users.
The EVF's 0.5-inch OLED based display features approximately 3.69 million dots for an incredibly sharp and detailed image that makes it easy to check focus and view the extensive image data that's displayed.
Vari-angle Touchscreen LCD
The EOS R camera features a 3.15-inch, 2.1 Megapixel Clear View LCD II Vari-angle Touchscreen LCD. Brightness is adjustable in seven levels and four types of color adjustment are supported, including warm and cool tones. Its extensive flexibility makes it easy to compose and shoot from virtually any angle, making selfies simple and enabling the LCD to fold away when not in use. The brightness of the EVF and the LCD monitor can even be adjusted individually - a first for an EOS camera. Touchscreen features include settings, review and even AF point selection.
Dot-matrix LCD Panel
An LCD panel on the top of the camera features a dot-matrix display that shows information on the camera's status, recording mode and more. It gives real-time setting information both when the camera is in use or on standby, and can be inverted from black to white to suit viewing preferences or the ambient light source. For convenience, the LCD remains on even when the camera is powered down.
Lightweight and Compact
With a compact, lightweight and comfortable design, the EOS R camera reflects Canon's decades of experience designing and manufacturing cameras. With an intelligent layout of buttons, dials and screens, the EOS R is intuitive for new users and feels familiar to EOS users, offering the advanced features and nimble operation EOS users demand.

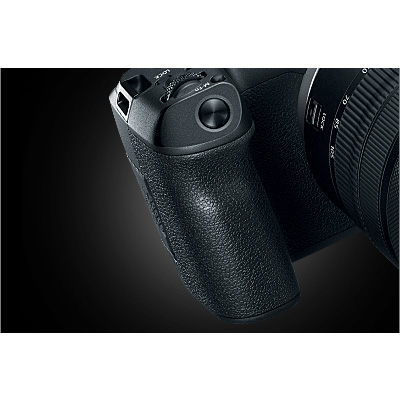

Deep Grip with Convenient Shutter Button Position
Although relatively compact in size, the camera features a large, ergonomic grip that makes the camera easy and comfortable to hold, even for long stretches of time. The EOS R's shutter button is even positioned atop the camera grip in a way that's easy to access and will feel familiar to any EOS user. With the EOS R's thoughtfully designed grip, shutter position and button layout, switching between the EOS R and other EOS cameras can be both comfortable and intuitive.
Lens Balance
The EOS R camera is designed and engineered to create a balanced and reliable user experience. Whether shooting with the impressive RF 28-70mm F2 L USM's zoom, with the compact RF 35mm F1.8 Macro IS STM or with an EF lens with adapter and extender attached, the EOS R's deep grip, even weight and shallow body reflect a thoughtful design that's ideal for extended use.
Fv Mode
The EOS R camera features an all-new Flexible-priority AE mode. With Fv mode, shutter speed, aperture setting and ISO sensitivity are set automatically by default, and change according to the setting changes the photographer makes. This gives the user the freedom to specify or change aperture, shutter speed or ISO sensitivity, without having to change modes, providing confidence that the camera will select the correct corresponding settings.
Lens Control Ring
All RF lenses feature a control ring on the lens barrel, which expands the EOS R camera's direct control options by offering numerous adjustments and operations such as exposure compensation, or aperture value, and can be customized to suit the preferences of the user. A clicking mechanism indicates setting changes. For photographers and moviemakers who would prefer a silent control ring, the clicking mechanism can be removed by a Canon service provider for a fee.
Multi-function Bar with Customizable Functions
The EOS R camera's newly designed multi-function bar provides a high level of functionality and customization options for fast, intuitive shooting. Positioned to sit right under the thumb, the multi-function bar recognizes three touch actions: swipe, left tap and right tap. This allows the user to change settings including AF mode, ISO sensitivity, white balance and movie modes; check manual focus and more. The bar can also be used to quickly browse finished photos or set shortcuts during playback.
Magnesium Alloy Body
Comfortable and solid in the hand, the EOS R camera features a rigid yet lightweight magnesium alloy chassis that enhances body durability while shielding the camera from electromagnetic radiation and heat. It also has a tempered front panel for internal rigidity.
Shutter Durability
The EOS R camera has a robust, electronically controlled focal-plane shutter that's rated to approx. 200,000 cycles for consistent and reliable use. It shoots as fast as 1/8000 sec. at up to 8 fps, and up to 5 fps with Servo AF.
Dust & Water-resistant Sealing
The EOS R camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas like the buttons, terminal covers, the battery compartment and the card slot cover. Precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body. Combined with an RF lens, or any other weather-sealed EF/EF-S lens, the EOS R proves to be a reliable partner in virtually any climate.
Shutter Closes if Powered Off without Lens
The EOS R camera has a mechanism to close the shutter when the camera is powered down. A mechanical shutter sound is audible when the camera is turned on or off. To protect the shutter curtain, focus is moved to infinity for RF and EF lenses and the minimum aperture is set for RF lenses when the camera is turned off.
USB Charge Compatible
The EOS R camera is compatible with the USB Power Adapter PD-E1 for in-camera charging via USB. Featuring an industry standard USB-C connector, the USB Power Adapter PD-E1 makes for easy charging without the necessity to remove the battery from the camera.
Battery Pack LP-E6N
For power and the convenience of compatibility among multiple cameras, the EOS R camera uses Battery Packs LP-E6N, the same batteries used on the EOS 5D Mark IV and others. Especially helpful for photographers with multiple EOS cameras, the Battery Pack LP-E6N is a robust, long-lasting battery that helps deliver power, shot after shot, recording after recording.
Battery Grip BG-E22
The EOS R camera's dedicated Battery Grip BG-E22 holds 2 Battery Packs LP-E6N, while enabling virtually seamless vertical operation and additional functions with all buttons similarly configured in a comfortable and dedicated grip. Designed to maintain an optimal balance between the weight of the camera body and lens, the Battery Grip BG-E22 also adds a flash sync terminal for use in the studio. It also has a useful battery charging function (with optional USB power delivery adapter attached) that's particularly helpful for power-hungry operations like video recording or shooting over an extended period of time with the EVF.
Silent Shutter
Especially helpful for wildlife photography, journalism and situations where the photographer needs to remain discrete, the EOS R camera has a silent shutter feature that uses an inaudible electronic shutter instead of the camera's focal-plane shutter.
DPP Express
Canon's Digital Photo Professional Express makes speedy processing of JPEGs and CR3 RAW files on a compatible handheld device a breeze. Working with Canon's Camera Connect app^^^ to create a streamlined wireless workflow, DPP Express lets you adjust settings right on your mobile device, saving files to the cloud, a PC or your camera.
^^^ Compatible with iOS® versions 9.3/10.3/11.2, Android™ smartphone and tablet versions 4.4/5.0/5.1/6.0/7.0/7.1/8.0/8.1. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
Camera Connect^^^
Canon's Camera Connect^^^ app uses the EOS R camera's built-in Wi-Fi® and Bluetooth® compatibility to connect a compatible mobile device. This allows a number of functions from easy image transfer to remote shooting, to adding GPS information to your photos and videos and more.
^^^ Compatible with iOS® versions 9.3/10.3/11.2, Android™ smartphone and tablet versions 4.4/5.0/5.1/6.0/7.0/7.1/8.0/8.1. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
CR3
The EOS R camera can capture photos as Compact Raw, or C-RAW (.CR3) files, saving valuable time and storage space with ease. Smaller than RAW files, C-RAW files can be processed in camera, can render an L-sized JPEG, are compatible with the Digital Lens Optimizer and more.
AF function improvement for EOS R and EOS RP Cameras
A new firmware update for Autofocus (AF) with the EOS R and EOS RP cameras is now available. This exciting new update offers enhanced AF functions to help you better view, track and capture subjects. The three main components are:
- Eye Detection AF will be improved so you can better focus on a moving subject’s eye even if it is far away or when the face appears small in the viewfinder.
- AF frame tracking is improved so there is virtually no delay between the actual focusing and when it’s displayed in the AF frame, helping you continuously track the subject and shoot comfortably.
- The AF function works faster overall so even at a distance, you can capture the subject quickly.
To download the free firmware for the EOS R*, visit usa.canon.com/eosrautofocusfirmware
*This firmware update is for EOS R cameras equipped with older firmware version. If the camera firmware is already the latest version (Version 1.4.0), firmware update is unnecessary.
Specifications
Type
Digital single-lens non-reflex AF/AE camera
Recording Media
SD/SDHC/SDXC memory cards
- SD card speed class-compatible.
- UHS-I and II supported.
- Use of UHS-II microSDHC/SDXC cards with a microSD to SD adapter is not recommended. When using UHS-II supported cards, use SDHC/SDXC cards compatible with UHS-II.
- Eye-Fi cards not supported.Multimedia cards (MMC) cannot be used.
Image Format
Approx. 36.0 x 24.0mm
Compatible Lenses
Canon RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
Lens Mount
Canon RF mount
Type
CMOS sensor (compatible with Dual Pixel CMOS AF)
Effective pixels
Approx. 30.3 Megapixels
Pixel Unit
Approx. 5.36 µm square
Total Pixels
Approx. 31.7 megapixels
Aspect Ratio
3:2 (Horizontal:Vertical)
Color Filter System
RGB primary color filters
Low Pass Filter
Installed in front of the image sensor, non-detachable
Dust Deletion Feature
- Self Cleaning Sensor Unit
- Removes dust adhering to the low-pass filter.
- At power off only / Enable / Disable. Performed automatically (taking about 3.0 sec. as indicated on the screen) or manually (taking about 9.0 sec. as indicated on the screen).
- After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
- When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
- Dust Delete Data acquisition and appending
- The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
- The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
- Not available with EF-S lenses, in cropped shooting or when distortion correction is applied.
- Manual cleaning (by hand)
Recording Format
EXIF 2.3 (DCF2.0)
File Size
3:2 Aspect Ratio
Large/RAW/C-RAW: 6720 x 4480
Medium: 4464 x 2976
Small 1: 3360 x 2240
Small 2: 2400 x 1600
1.6x (Crop)
Large/RAW/C-RAW: 4176 x 2784
Small 2: 2400 x 1600
4:3 Aspect Ratio
Large/RAW/C-RAW: 5952 x 4480*
Medium: 3968 x 2976
Small 1: 2976 x 2240*
Small 2: 2112 x 1600*
16:9 Aspect Ratio*
Large/RAW/C-RAW: 6720 x 3776
Medium: 4464 x 2512
Small 1: 3360 x 1888
Small 2: 2400 x 1344
1:1 Aspect Ratio
Large/RAW/C-RAW: 4480 x 4480
Medium: 2976 x 2976
Small 1: 2240 x 2240
Small 2: 1600 x 1600
- Values for Recording Pixels are rounded to the nearest 100,000 or 10,000.
- For RAW and JPEG images, information outside the cropping area is not retained.
- JPEG images are generated in the set aspect ratio.
- RAW images are generated in [3:2], and the set aspect ratio is appended.
File Numbering
The following file numbers can be set:
- File numbering methods
- Continuous numbering
- The numbering of captured images continues even after you replace the card.
- Auto reset
- When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
- Continuous numbering
- Manual reset
- Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording
Possible
Color Space
Selectable between sRGB and Adobe RGB
Picture Style
- Auto
- Standard
- Portrait
- Landscape
- Fine Detail
- Neutral
- Faithful
- Monochrome
- User Defined 1-3
- In Scene Intelligent Auto, [Auto] will be set automatically.
- [Standard] is the default setting for [User Def. 1-3].
Settings
- Auto
- Day Light
- Shade
- Cloudy*
- Tungsten light
- White fluorescent light
- Flash
- Custom (Custom WB)
- Color temperature
Auto White Balance
Option between ambience priority and white priority settings.
Color Temperature Compensation
Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
Corrected in reference to the current WB mode's color temperature.
Type
OLED color electronic viewfinder
Coverage
Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).
Coverage
At approx. 23mm eyepoint
Magnification
Approx. 0.76 (with 50mm lens at infinity, -1 m-1)
Eye Point
Approx. 23mm (at -1 m-1 from the eyepiece lens end)
Viewfinder Information
- AF point information
- Number of remaining multiple exposures
- HDR shooting
- Multiple-exposure shooting
- Dual Pixel RAW shooting
- Multi Shot Noise Reduction
- Digital Lens Optimizer
- AF method
- AF operation
- Drive mode
- Metering mode
- Anti-flicker shooting
- Shooting mode
- Scene icons
- AE lock
- Flash-ready
- Flash off
- FE lock
- High-speed sync
- Shutter speed
- Multi-function lock warning
- Aperture
- Lens information
- Exposure level indicator
- Exposure compensation
- Highlight tone priority
- ISO speed
- Possible shots
- Number of self-timer shooting
- Maximum burst
- Battery level
- Exposure simulation
- AEB
- FEB
- Still photo cropping
- Aspect ratio
- Auto Lighting Optimizer
- Picture Style
- White balance
- White balance correction
- Image Quality
- Bluetooth® function
- Wi-Fi® function
- Histogram
- Electronic level
Type
Phase-difference detection system with image sensor (Dual Pixel CMOS AF)
AF Points
Max. 5,655
When selected with cross keys.
AF Working Range
EV -6 to 18 (f/1.2, at 73°F/23°C, ISO 100, One-Shot AF)
Focusing Modes
- One-Shot AF
- Servo AF
- Manual (Manual focus)
AF Point Selection
AF Point Selection and AF Operation
AF Assist Beam
- Enable
- Disable
- LED AF assist beam only
- Focus range with the AF-assist beam is generally no more than 13.1 ft. / 4m (at f/5.6).
Metering Modes
- Evaluative metering (AF point-linked)
- Partial metering (approx. 6.1% of the area at the center of the screen)
- Spot metering (approx. 2.7% of the area at the center of the screen)
- AF point-linked spot metering not provided.
- Center-weighted average metering
Metering Range
EV -3 - 20 (at 73°F/23°C, ISO 100)
Exposure Control Systems
- Scene Intelligent Auto
- Flexible-priority AE
- Program AE (shiftable)
- Shutter-priority AE (Safety shift possible)
- Aperture-priority AE (Safety shift possible)
- Manual exposure
- Bulb
- Custom shooting mode C1, C2, C3
ISO Speed Range
Manual Setting
| Normal | ISO 10040000 (in 1/3-stop or whole-stop increments) |
| Expanded | L: equivalent to ISO 50, H1: 51200, H2: 102400 |
- For [Highlight tone priority], the minimum ISO speed limit will be ISO 200 to 40000.
- ISO speed safety shift possible with Custom Function.
- All the expanded ISO speeds including those for movies are only “equivalent speeds.”
Auto
| Shooting Mode | ISO Settings | |
| No Flash | With Flash | |
| Scene Intelligent Auto | ISO 10012800 | ISO 1001600 |
| Fv/P/Tv/Av/M | ISO 10040000*1 | ISO 1001600*1 |
| B | ISO 400 fixed | ISO 400 fixed |
*1 Depending on [Minimum] and [Maximum] of [ISO speed settings] or [Range for stills].
Exposure Compensation
Exposure Compensation
AE Lock
- Auto AE lock
- The metering mode for AE lock after focus can be customized.
- Manual AE lock
- In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
- Enabled in all metering modes.
Type
Electronically controlled focal-plane shutter
- Electronic first curtain, mechanical second curtain
- Electronic shutter (slit rolling read out)
- Mechanical first and second curtain
Shutter Speeds
1/8000 to 30 sec., bulb (total range of all shooting modes)
Shutter Release
Soft-touch electromagnetic release
Self Timer
10-sec. delay, 2-sec. delay
Shutter Lag Time
Shutter Lag Time
Flash Metering System
E-TTL II autoflash
Flash Exposure Compensation
±3 stops in 1/3- or 1/2-stop increments
FE Lock
Provided
External Flash Settings
The camera can set the following with EX series Speedlites:
- External flash control
- Flash firing, E-TTL II Flash metering, Slow synchro, Safety FE, Flash mode, Wireless function, Flash zoom, Shutter synchronization and Flash exposure compensation
- Flash Custom Function setting
- The setting options for both (1) and (2) will differ depending on the Speedlite used.
Drive Modes
- Single shooting
- High-speed continuous shooting
- Max. approx. 8.0 fps
- The conditions are attaining the maximum continuous shooting speed are as follows:
- Shooting with a fully charged battery in One-Shot AF mode at a 1/1000 sec. or faster shutter speed and maximum aperture (depending on the lens), at room temperature (73°F/23°C), with flicker reduction, Dual Pixel RAW shooting and Digital Lens Optimizer disabled.
- In One-Shot AF mode with Image Stabilizer off when using these lenses: EF 300mm f/4L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM.
- The continuous shooting speed for high-speed continuous shooting may be lower, depending on conditions such as these: battery level, temperature, flicker reduction, Dual Pixel RAW shooting, shutter speed, aperture, subject conditions, brightness, AF operation, type of lens, use of flash and shooting settings.
- The maximum continuous shooting speed may be lower when using a cold battery in cold environments or when the battery level is low, at approx. 6.0 shots/sec.
- Max. approx. 8.0 fps
- With Servo AF: Max. approx. 5.0 fps (shooting speed priority) [Silent LV shooting: Mode 1]
- With Servo AF, the maximum continuous shooting speed may become slower depending on subject conditions or the lens used. Also, the maximum continuous shooting speed will become slower when setting the [LV silent shooting] to [Disable].
- Low-speed continuous shooting (Tracking priority)
- Max. approx. 3.0 fps
- With Dual Pixel RAW: Max. approx. 2.2 fps
- High-speed continuous shooting not possible.
- Self-timer: 10 sec./remote control
- Self-timer: 2 sec./remote control
Shooting Modes
Still photo shooting and video shooting
Focusing
- Dual Pixel CMOS AF
- Manual focus
- Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
Metering Modes
- Center-weighted average metering
- Metering brightness range: EV -1 - 20 (at 73°F/23°C, ISO 100)
- AF point-linked evaluative metering
- For face detection with Face detection + Tracking AF.
Metering Range
EV -4 - 18 (at 73°F/23°C, ISO 100, One-Shot AF, with 29.97 fps)
Grid Display
- Off
- 3x3
- 6x4
- 3x3+diag
File Format
MP4
Video: MPEG-4 AVC / H.264
- Variable (averaged) bit rate
ALL-I: Linear PCM*
IPB: AAC
*4K All-I recording requires an SD Memory card with a minimum write speed of 60MB/s.
| Movie-recording Quality | SD Card | ||
| 4K (UHD) 3840 x 2160 | 29.97 fps 25.00 fps 24.00 fps, 23.93 fps | ALL-I | UHS-II, Video Speed Class 60* or higher |
| IPB | UHS-I, UHS Speed Class 3 or higher | ||
| Full HD 1920 x 1080 | 59.94 fps, 50.00 fps | ALL-I | UHS-I, UHS Speed Class 3 or higher |
| IPB | SD Speed Class 10 or higher | ||
| 29.97 fps, 25.00 fps 24.00 fps, 23.98 fps HDR movies | ALL-I | UHS-I, UHS Speed Class 3 or higher | |
| IPB | SD Speed Class 4 or higher | ||
| 29.97 fps, 25.00 fps | IPB Light | SD Speed Class 4 or higher | |
| HD 1280 x 720 | 119.9 fps, 100.0 fps | ALL-I | UHS-I, UHS Speed Class 3 or higher |
| 59.94 fps, 50.00 fps | ALL-I | Speed Class 10 or higher | |
| IPB | SD Speed Class 4 or higher | ||
| 29.97 fps, 25.00 fps HDR movies | IPB | Speed Class 4 or higher | |
* With Movie crop set to [Disable]. Movie digital IS set to [Disable].
Focusing
- Dual Pixel CMOS AF
- Manual focus
- Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
Range
Full range (0 to 255)
Exposure Control
Exposure control
Shutter Speed
ISO Speed (Recommended Exposure Index)
Exposure Compensation
±3 stops in 1/3- or 1/2-stop increments
Type
TFT color, liquid-crystal monitor
Monitor Size
3.15-inch (screen aspect ratio of 3:2)
3.15 in./8.01cm diagonal (2.63 in./6.67cm width, 1.75 in./4.44cm height)
Pixels
Approx. 2.10 million dots
Coverage
Approx. 100% vertically/horizontally
Brightness Control
Manually adjustable to one of seven brightness levels
Coating
Clear View LCD II
- Anti-smudge coating provided.
- Anti-reflection coating not provided.
Interface Languages
29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)
Display Format
- Single image display
- No information display
- Basic information display
- Detailed shooting information display
- Detailed information
- Lens/Histogram information
- White balance information
- Picture Style information 1
- Picture Style information 2
- Color space/Noise reduction information
- Lens aberration correction information 1
- Lens aberration correction information 2
- Record of sent images
- GPS information
- IPTC information
- Index display
- 4-image index
- 9-image index
- 36-image index
- 100-image index
Display selection is available for Basic information display and Shooting information display.
Highlight Alert
The white areas with no image data will blink.
Protection
- Single image (select image)
- Select range
- All images in folder
- All images on card
- Image browsing and image search can be based on ratings.
- Ratings-based image selections also possible with DPP.
- All found images (only during image search)
Erase
Except protected images
- Select images to erase
- Select range
- All images in folder
- All images on card
- All found images (only during image search)
Compatible Printers
Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed.
DPOF
Compliant to DPOF Version 1.1
Custom Controls
Customizable Buttons
| Still Photo Shooting | Movie Shooting |
| Shutter button | Multi-function button |
| Movie button | LCD panel illumination button |
| Multi-function button | MODE button |
| LCD panel illumination button | AF-ON button |
| MODE button | AE lock button |
| AF-ON button | AF point selection button |
| AE lock button | Lens AF stop button |
| AF point selection button | Up key (cross keys) |
| Lens AF stop button | Left key |
| Up key (cross keys) | Right key |
| Left key | Down key |
| Right key | SET button |
| Down key | |
| SET button |
Customizable Dials
| Main dial |
| Wuick control dial |
| Control ring |
Customizable Buttons
| Functions that Can be Assigned (Shooting) | Functions that Can be Assigned (Playback) |
| ISO speed | Function shortcut |
| White balance | Jump display |
| Check focus/Display info. | |
| Movie shooting | |
| Flexible-priority AE | |
| AF | |
| User customization |
USB Terminal
Equivalent to SuperSpeed USB (USB 3.1 Gen 1)
- For PC communication
- For WFT-E7 (Ver. 2) connection
- Shared with terminal for in-camera charging with the USB Power Adapter PD-E1.
- In-camera charging: although it is compatible with USB Type-C (5V/1.5A) equivalent, do not charge the camera other than with the USB Power Adapter PD-E1.
Video Out Terminal
Type C (Resolution switches automatically) / CEC not compatible
- Images can be displayed through the HDMI output and on screen at the same time.
- Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
Extension System Terminal
3.5mm diameter stereo mini jack
Battery
Battery Pack LP-E6N (or LP-E6) x 1
- With the AC Adapter + DC Coupler, AC power is possible.
- When the Battery Grip BG-E22 is used, two battery packs (LP-E6N or LP-E6) can be installed.
- With the USB Power Adapter PD-E1, in-camera charging of LP-E6N is possible but LP-E6 cannot be charged. The USB Power Adapter PD-E1 is not compatible with powering the camera.
Battery Check
Automatic battery check when the power switch is turned ON.
Displayed in 6 levels. Battery level displayed on the LCD panel and in the viewfinder.
One of six levels displayed for LP-E6N and LP-E6.
The display for other power sources is different.
Power Saving
Power turns off after the set time of non-operation elapses.Display off
Available time options: 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min.
Auto power off
Available time options: 30 sec. / 1 min. / 3 min. / 5 min. / 10 min.
Disable
Viewfinder off
Available time options: 1 min. / 3 min. / Disable
At least approx. 6 min. until auto power off while the [Date/Time/Zone] screen is displayed.
Date/Time Battery
Built-in secondary battery
When fully-charged, the date/time can be maintained for approx. 3 months.
Recharge time: approx. 8 hrs.
The recharge time required to provide the above number of months with no battery pack installed.
Start-up Time
Approx. 0.9 sec.
- Based on CIPA standards.
Dimensions (W x H x D)
Approx. 5.35 x 3.87 x 3.32 in. / 135.8 x 98.3 x 84.4mm
Approx. 5.35 x 3.87 x 2.67 in. / 135.8 x 98.3 x 67.7mm (from grip to monitor)
Weight
Approx. 1.46 lbs. / 660g (including battery, SD memory card; without body cap)
Approx. 1.28 lbs. / 580g (body only; without battery, card or body cap)
Working Temperature Range
32-104° F / 0-40° C
Working Humidity
85° or less
EOS R
Compatible Supplies & Accessories
Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you EOS R that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store
AC Adapter AC-E6N
An AC adapter for use with DC coupler DR-E6 when using household outlets to power the EOS 80D Digital SLR.
MSRP: 110.0
AC Adapter Kit ACK-E6
Provides AC power to the camera.
MSRP: 180.0
Battery Charger LC-E6
Battery Charger for NP-E6 Li-ion Batteries.
MSRP: 80.0
Battery Grip BG-E22
This large capacity battery grip is powered by two Battery Pack LP-E6N/LP-E6 batteries. It features a variety of operating controls, and is ideal for high volume and vertical shooting.
MSRP: 490.0
Battery Pack LP-E6N
Rechargeable lithium-ion battery. Compatible with Canon LC-E6 and Canon LC-E6E battery chargers.
MSRP: 100.0
Car Battery Charger CBC-E6
Car battery charger for Canon 5D Mark II Digital SLR LP-E6 battery.
MSRP: 270.0
DC Coupler DR-E6
When shooting indoors, in a studio or on a tabletop, use this DC coupler to provide uninterrupted power to your Canon 5D Mark II Digital SLR.
MSRP: 70.0
GPS Receiver GP-E2
Rugged and lightweight design Records location as EXIF information to images when shooting Can act as a stand-alone GPS logger Camera time can be synched by the built-in atomic clock
MSRP: 390.0
HTC-100
Mini-HDMI Cable: connects Canon HD Camcorders/select PowerShot Cameras to HDMI compatible TV.
MSRP: 80.0
Hand Strap E2
The Canon Hand Strap E2 is designed to add support and comfort to hand-holding a Canon SLR camera. The strap attaches to the eyelets at the sides of the camera.
MSRP: 60.0
Interface Cable IFC-100U
USB interface cable to connect to a computer or other USB device. Approx. 3.3 ft.
Interface Cable IFC-150AB III
USB interface cable for connecting to the WFT-E7. Approx. 4.9 ft.
Interface Cable IFC-400U
USB interface cable to connect to a computer or other USB device. Approx. 13.1 ft.
Interface Cable IFC-40AB III
USB interface cable for connecting to the WFT-E7. Approx. 1.3 ft.
Remote Controller Adapter RA-E3
A conversion adapter that is used with the Timer Remote Controller TC-80N3. For use with cameras with a remote control terminal which is other than N3 type, such as EOS70D.The adapter allows use of Canon Timer Remote Controller TC80-N3.
MSRP: 45.0
Sling Backpack EDC-10
The Sling Backpack EDC-10 is a rugged, all-purpose bag designed to hold a combination of cameras, lenses and accessories for your needs.
MSRP: 39.99
Timer Remote Controller TC-80N3
Remote switch for EOS cameras with the N3-type socket. This remote switch has a self-timer, interval timer, long exposure timer and exposure-count setting feature. The timer can be set from 1 second to 99 hours. A new dial enables you to easily enter the numeric settings with a single thumb. It has an illuminated LCD panel and a 2.6ft/80cm cord.
MSRP: 210.0
USB Cable IFC-500U
The Canon IFC-500U USB Interface Cable enables you to transfer your camera pictures to a computer fast. The cable connects to your camera and to the USB port on your PC or MAC Computer. Please see Compatibility tab for compatible models.
MSRP: 50.0
USB Power Adapter PD-E1
Wireless Transmitter WFT-E7A (VER.2)
MSRP: 849.99
Brochures
Resources
White Papers
Software Development Kit (SDK)
The Canon EOS Digital Camera Software Development Kit (EDSDK) enables developers to integrate select Canon cameras directly into their software application solutions, giving them access to remote camera control and communication functionality of the camera. There are two versions of the EDSDK compatible with Windows or Macintosh.
The Software Developer Kit is provided free of charge and can be found at DeveloperCommunity.usa.canon.com.
To learn more please visit the Canon Developer Community site and register to download Canon’s SDKs.
Videos
Reimagine Optical Excellence
See how Canon’s newDiscovering Canon’s new EOS R System
Get to know Canon’s new Introducing Canon’s RF Lenses
Discover Canon’s new RF lenses and EOS R camera’s features that help to deliver incredible possibilities.Canon EOS R System Operability
Watch how Canon’s new Canon EOS R Dual Pixel CMOS AF
See how Canon’sCanon EOS R Sample Video-Lake Natron
Watch and discover why the newDiscover the New Canon EOS R System with Rudy Winston
Find out all the great benefits and future possibilities the World's Longest Slip and Slide out of a Cargo Airplane!
Watch an epic video of skydiving slip and sliders filmed by Devin Graham and crew using the new Canon EOS R.EOS R Documentary: Walking The Rift
Join Cinematographer Hiro Matsuzaki as he documents his experience using Canon’s newStepping up to a Canon Full-frame Camera
A full-frame camera - whether DSLR or Mirrorless - provides many advantages over cameras and smartphones with smaller sensors. Learn more including some Canon full-frame camera options that will deliver the high-level performance you're looking for.
DISCLAIMERS
* Available AF points may decrease when shooting with AF cropping or in movie mode, or depending on camera settings or lens attached.
† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
