EOS RP RF 24-240mm F4-6.3 IS USM Lens Kit

Mirrorless

Item Code: 3380C032AA
Be the Revolution - EOS R System

The EOS R System expands the EOS lineup with full-frame mirrorless cameras, the RF lens series, optional mount adapters for compatibility with EF/EF-S lenses, and a game-changing RF lens mount at the heart of it all. Learn more.

Features

Compact, Lightweight 10x Zoom RF Lens

With a high-magnification of 10x optical zoom and offering coverage from 24mm wide-angle to 240mm telephoto, the RF 24–240mm F4-6.3 IS USM is a perfect all-in-one travel lens that can be used for any number of shooting scenarios. From landscapes to snapshots and videos, and anything else that catches your eye, the RF 24–240mm F4-6.3 IS USM range is highly adaptable.

High Image Quality and Bright f/4-6.3 Lens Aperture

With an incredibly bright focal length lens, the RF 24-240mm F4-6.3 IS USM distinguishes itself by maintaining incredibly high image quality, edge to edge, even wide open at its f/6.3 maximum aperture. With 21 elements in 15 groups and a 7-blade aperture system, it can deliver sharp and detailed images with gorgeous background blur and remarkable consistency.

Optical Image Stabilization with up to 5 Stops* of Shake Correction

The RF 24–240mm F4-6.3 IS USM lens is designed to work in conjunction with the EOS R series cameras, with both the camera and the lens sharing data to dramatically reduce camera-shake blur, regardless of the situation, whether shooting video or stills. With up to 5 stops* of stabilization, it delivers impressively clear results.

* Based on CIPA (Camera & Imaging Products Association) standards. Testing performed using the EOS R mirrorless camera at a focal length of 240mm. The number of stops may vary based on the camera model used.

High Speed, Smooth and Quiet Auto Focus with Nano USM

The RF 24-240mm F4-6.3 IS USM uses Canon's NANO USM system which combines conventional ring USM AF, and features a diminutive chip-shaped ultrasonic motor that's engineered to help deliver high-speed, smooth, precise and near-silent operation, plus full time manual focus (when using One-shot AF).

First Canon Lens with Dynamic IS for Full-frame Cameras**

Helping to deliver a wide range of image stabilization correction, the RF 24-240mm F4-6.3 IS USM lens is the first Canon lens that features Dynamic IS for full-frame cameras**. The built-in Image Stabilization helps enhance performance, even in low-light situations, and is especially effective when recording videos.

**This function is effective during Movie Mode.

Minimum Focusing Distance of 1.64 ft./0.50m (Wide), 2.56 ft./0.78m (Tele.)

Featuring a minimum focusing distance of 1.64 ft./0.50m (Wide) and 2.56 ft./0.78m (Telephoto) with a maximum magnification of approx. 0.26x*, the RF 24-240mm F4-6.3 IS USM is capable of capturing sharp and detailed images from nearly any distance. Whether you’re shooting videos, still images of landscapes, close ups, or a range of scenes while traveling, the RF 24-240mm F4-6.3 IS USM can easily provide sharp images with minimal distortion.

*at 240mm

Control Ring for Direct Setting Changes***

The RF 24-240mm F4-6.3 IS USM lens incorporates a control/focus ring*** on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, exposure compensation and more. Located towards the end of the lens, the control/focus ring has a tactile, easily distinguished surface and provides tangible feedback for confident use while looking through the viewfinder. The RF 24-240mm F4-6.3 IS USM lens does not have the clicking mechanism as the previous RF lenses have, providing smooth focusing and exposure control while recording videos.

*** The Control ring is the same as the Focusing ring.

High-speed Communication with the Camera

Designed to quickly process data, the RF 24-240mm F4-6.3 IS USM features a 12 pin communication system that is the fastest yet for a Canon lens/camera combination. This accelerates AF, Image Stabilization, the Digital Lens Optimizer and more, helping to simplify complex operations and provide a quick and reliable user experience.

Lens Information Display

Another helpful feature, the EOS R series cameras can display lens information right in the viewfinder, making it easy to confirm the lens’s focal length without looking away from the subject at hand.

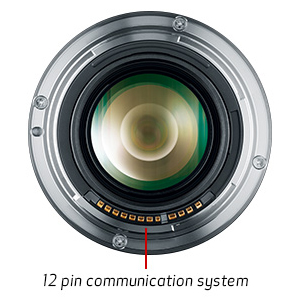

In-camera Digital Lens Optimizer

The EOS R system’s 12 pin communication system enables the Digital Lens Optimizer, which works in-camera to combat aberrations and image deterioration, especially in the edges of the image frame when shooting at a large aperture. Data from the RF 24-240mm F4-6.3 IS USM lens is transferred automatically to the camera body, facilitating near immediate correction for clear, detailed images.

Specifications

Type


Digital single-lens non-reflex AF/AE camera

Recording Media


SD/SDHC/SDXC memory cards
  • SD card speed class-compatible.
  • UHS-I and II supported.
  • Use of UHS-II microSDHC/SDXC cards with a microSD to SD adapter is not recommended. When using UHS-II supported cards, use SDHC/SDXC cards compatible with UHS-II.
  • Eye-Fi cards not supported.
  • Multimedia cards (MMC) cannot be used.

Image Format


Approx. 35.9 x 24.0mm

Compatible Lenses


Canon RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Lens Mount


Canon RF mount

Type


CMOS sensor (compatible with Dual Pixel CMOS AF)

Pixels


Approx. 26.2 megapixels

Pixel Unit


Approx. 5.76 µm square

Total Pixels


Approx. 27.1 megapixels

Aspect Ratio


3:2 (Horizontal:Vertical)

Color Filter System


RGB primary color filters

Low Pass Filter


Installed in front of the image sensor, non-detachable

Dust Deletion Feature


  1. Self Cleaning Sensor Unit
    • Removes dust adhering to the low-pass filter.
    • At power off only / Enable / Disable. Performed automatically (taking about 3.3 sec. as indicated on the screen) or manually (taking about 12.2 sec. as indicated on the screen).
    • After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
    • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.

  2. Dust Delete Data acquisition and appending
    • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
    • The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
    • Not available with EF-S lenses, in cropped shooting or when distortion correction is applied.

  3. Manual cleaning (by hand)

Recording Format


Compliant to Design rule for Camera File system 2.0 and Exif 2.3.
Supports time difference information in Exif 2.31.

File Size


3:2 Aspect Ratio
Large/RAW/C-RAW: 6240 x 4160
Medium: 4160 x 2768
Small 1: 3120 x 2080
Small 2: 2400 x 1600


1.6x (Crop)
Large/RAW/C-RAW: 3888 x 2592
Small 2: 2400 x 1600

4:3 Aspect Ratio
Large/RAW/C-RAW: 5536 4160
Medium: 3680 x 2768
Small 1: 2768 x 2080*
Small 2: 2112 x 1600*

16:9 Aspect Ratio*
Large/RAW/C-RAW: 6240 x 3504
Medium: 4160 x 2336
Small 1: 3120 x 1752
Small 2: 2400 x 1344

1:1 Aspect Ratio
Large/RAW/C-RAW: 4160 x 4160
Medium: 2768 x 2768
Small 1: 2080 x 2080
Small 2: 1600 x 1600
  • Values for Recording Pixels are rounded to the nearest 100,000 or 10,000.
  • For RAW and JPEG images, information outside the cropping area is not retained.
  • JPEG images are generated in the set aspect ratio.
  • RAW images are generated in [3:2], and the set aspect ratio is appended.
* Indicate an inexact proportion.

File Numbering


  1. File numbering methods
    1. Continuous numbering
      1. The numbering of captured images continues even after you replace the card.
    2. Auto reset
      1. When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.

  2. Manual reset
    1. Resets the file number to 0001, and creates a new folder automatically.

RAW + JPEG Simultaneous Recording


Possible

Color Space


Selectable between sRGB and Adobe RGB

Picture Style


  1. Auto
  2. Standard
  3. Portrait
  4. Landscape
  5. Fine Detail
  6. Neutral
  7. Faithful
  8. Monochrome
  9. User Defined 1–3
    • In Scene Intelligent Auto, [Auto] will be set automatically.
    • [Standard] is the default setting for [User Def. 1–3].

Settings


  1. Auto (Ambience priority/White priority)
  2. Daylight
  3. Shade
  4. Cloudy*
  5. Tungsten light
  6. White fluorescent light
  7. Flash
  8. Custom (Custom WB)
  9. Color temperature
* Effective also in twilight and sunset.

Auto White Balance


Option between ambience priority and white priority settings.

Color Temperature Compensation


Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
Corrected in reference to the current WB mode's color temperature.

Type


OLED color electronic viewfinder

Coverage


Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).

Magnification


Approx. 0.70 (with 50mm lens at infinity, -1 m-1)

Eye Point


Approx. 22mm (at -1 m-1 from the eyepiece lens end)

Viewfinder Information


  1. Movie recording time
  2. Maximum burst
  3. Possible shots/Sec. until self-timer shoots
  4. Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
  5. Touch Shutter
  6. AF method
  7. AF operation
  8. Drive mode
  9. Metering mode
  10. Anti-flicker shooting
  11. Shooting mode/Scene icon
  12. AE lock
  13. Flash-ready/FE lock/High-speed sync
  14. Shutter speed/Multi-function lock warning
  15. Aperture
  16. AF point (1-point AF
  17. Exposure level indicator
  18. Exposure compensation
  19. Highlight tone priority
  20. ISO speed
  21. Create folder
  22. Movie recording size
  23. No. of shots left for focus bracketing/multiple exposures/interval timer
  24. Temperature warning
  25. Battery level
  26. Exposure simulation
  27. AEB/FEB
  28. Magnify button
  29. Still photo cropping
  30. Aspect ratio
  31. Auto Lighting Optimizer
  32. Picture Style
  33. White balance/White balance correction
  34. Quick Control button
  35. Image Quality
  36. Bluetooth®/Wi-Fi® function
  37. Wi-Fi® signal strength
  38. Histogram
  39. Electronic level
  40. GPS acquisition status
  41. Flash exposure compensation
  42. Focus distance display

Type


Phase-difference detection system with image sensor (Dual Pixel CMOS AF)

AF Points


Max. 4,779
When selected with cross keys.

AF Working Range


EV -5 to 18 (f/1.2, at 73°F/23°C, ISO 100, One-Shot AF)

Focusing Modes


One-Shot AFServo AFManual (Manual focus)

AF Point Selection


AF Method AF Point Selection AF Operation
Face+Tracking AF Automatic selection (auto detection), or AF points can be set manually and freely in the AF area. AF prioritizing subjects targeted by Face+Tracking. If no Face+Tracking subject is detected, the entire AF area is used for auto selection AF.
Spot AF* Autofocuses targeting any specified AF points.
1-point AF AF points can be set manually and freely in the AF area. AF targeting specified AF points. (If there are faces in the area, they take precedence.)
Expand AF Area (Above, below, left and right/Around) AF points can be set manually and freely in the AF area. AF prioritizing specified AF points, supplemented by AF points above, below, left and right or around in the expansion area. (If there are faces in the center frame area, they take precedence.)
Zone AF Large Zone AF (Vertical/Horizontal) Zones covering specific areas can be set manually and freely in the AF area. Automatic AF point selection in the specified zone. (Prioritizes subjects at close range, but any faces in the area take precedence.)
AF points can be moved by touching the screen or using the Main Dial, Quick Control Dial or cross keys.
* Not available in 4K movie recording

AF Assist Beam


  1. Enable
  2. Disable
  3. LED AF assist beam only
    • Focus range with the AF-assist beam is generally no more than 13.1 ft. / 4m (at f/5.6).
    • Options restricted to [Enable] / [Disable in Basic Zone modes.
    • [AF- assist beam firing] is set to [Disable] in Landscape, Panning, Kids, and Sports modes.

Metering Modes


Real-time metering with image sensor (384 [24x16])

  1. Evaluative metering (AF point-linked)
  2. Partial metering (approx. 5.5% of the area at the center of the screen)
  3. Spot metering (approx. 2.7% of the area at the center of the screen)
    • AF point-linked spot metering not provided.
  4. Center-weighted average metering

Metering Range


EV -3 - 20 (at 73°F/23°C, ISO 100)

Exposure Control Systems


  1. Scene Intelligent Auto
  2. Flexible-priority AE (Fv)
  3. Program AE (P)
  4. Shutter-priority AE (Safety shift possible) (Tv)
  5. Aperture-priority AE (Safety shift possible) (Av)
  6. Manual exposure (M)
  7. Bulb
  8. Custom shooting mode C1, C2, C3

ISO Speed Range

Manual Setting

Normal ISO 100-40000 (in 1/3-stop or whole-stop increments)
Expanded L: equivalent to ISO 50, H1: 51200, H2: 102400
  • For [Highlight tone priority], the minimum ISO speed limit will be ISO 200 to 40000.
  • ISO speed safety shift possible with Custom Function.
  • All the expanded ISO speeds including those for movies are only “equivalent speeds.”


Auto

Shooting Mode ISO Settings
No Flash With Flash
Scene Intelligent Auto ISO 100–12800 ISO 100–1600
Fv/P/Tv/Av/M ISO 100–40000*1 ISO 100–1600*1
Silent Mode ISO 100-12800 -(Except with AF-assist beam)
B ISO 400 fixed*1*2 ISO 400 fixed

*1 Depending on [Minimum] and [Maximum] of [ISO speed settings] or [Range for stills].
*2 If outside the range set for ISO Auto, the value nearest ISO 400 is used.



Exposure Compensation


Manual ±3 stops in 1/3- or 1/2-stop increments
AEB ±3 stops in 1/3- or 1/2-stop increments

AE Lock


  1. Auto AE lock
    • The metering mode for AE lock after focus can be customized.

  2. Manual AE lock
    • In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
    • Enabled in all metering modes.

Type


Electronically controlled focal-plane shutter
  1. Electronic first curtain, mechanical second curtain
  2. Electronic shutter (slit rolling read out)

Shutter Speeds


1/4000 to 30 sec., bulb (total range of all shooting modes)
X-sync at 1/180 sec.

Shutter Release


Soft-touch electromagnetic release

Self Timer


10-sec. delay, 2-sec. delay, Continuous shooting

Shutter Lag Time


Shutter Lag Time

Flash Metering System


E-TTL II autoflash

Flash Exposure Compensation


±3 stops in 1/3- or 1/2-stop increments

FE Lock


Provided

External Flash Settings


The camera can set the following with EL and EX series Speedlites:

  1. External flash control
    • Flash firing, E-TTL II Flash metering, Slow synchro, Safety FE, Flash mode, Wireless function, Flash zoom, Shutter synchronization and Flash exposure compensation

  2. Flash Custom Function setting
    • The setting options for both (1) and (2) will differ depending on the Speedlite used.

Drive Modes


  1. Single shooting
  2. High-speed continuous shooting
    • Max. approx. 5.0 fps
      • The conditions are attaining the maximum continuous shooting speed are as follows:
      • Shooting with a fully charged battery in One-Shot AF mode at a 1/500 sec. or faster shutter speed and maximum aperture (depending on the lens), at room temperature (73°F/23°C), without flicker reduction, or image stabilization (depending on the lens).
      • The continuous shooting speed for high-speed continuous shooting may be lower, depending on conditions such as these: battery level, temperature, flicker reduction, shutter speed, aperture, subject conditions, brightness, AF operation, type of lens, use of flash and shooting settings.
      • With Servo AF: Max. approx. 4.0 fps (shooting speed priority)
      • When set to reduce flicker: Max. approx. 4.0 fps
      • In flash photography: Max. approx. 2.3 fps

  3. Low-speed continuous shooting (Tracking priority)
    • Max. approx. 2.6 fps

  4. Self-timer: 10 sec./remote control
  5. Self-timer: 2 sec./remote control
  6. Self-timer: Continuous Shooting

Maximum Burst


Image Quality Image File Size
(approx. MB)
Possible Shots
(approx.)
Maximum Burst (approx.)
Standard High-speed (UHS-II)
Large (Fine) 9.1 3320 Full Full
Large (Normal) 4.9 6060 Full Full
Medium (Fine) 5.1 5820 Full Full
Medium (Normal) 2.9 10280 Full Full
Small 1 (Fine) 3.4 8750 Full Full
Small 1 (Normal)
2.0
14620
Full Full
Small 2
1.9 15760 Full Full
RAW
29.1
1040
50 Full
C-RAW
17.1
1780
130 Full
RAW + Large (Fine) 29.1 + 9.1
790
42 98
C-RAW + Large (Fine)
17.1 + 9.1
1160
66 170
  • The number of possible shots and maximum burst (standard) apply to a 32GB card based on Canon's testing standards. The maximum burst (High-speed) apply to a 32GB card based on Canon's testing standards.
  • The file size, number of possible shots and maximum burst vary depending on shooting conditions (aspect ratio of 3:2, subject, memory card brand, ISO speed, Picture Style, etc.)
  • “Full” indicates that shooting is possible until the card becomes full.

Shooting Modes


Still photo shooting and video shooting

Focusing


  • Dual Pixel CMOS AF
  • Contrast AF (When recording 4K movies)
  • Manual focus
    • Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
    • With Contrast AF as used when recording 4K movies, focusing may take longer than when recording Full HD or HD movies, and focusing with certain lenses may be difficult.

Metering Modes


  • Center-weighted average metering
    • Metering brightness range: EV -1 – 20 (at 73°F/23°C, ISO 100) (Video)

  • AF point-linked evaluative metering
    • For face detection with Face detection + Tracking AF.

Metering Range


EV -2.5 - 18 (at 73°F/23°C, ISO 100, One-Shot AF, with 29.97 fps)

Grid Display


  1. 3x3
  2. 6x4
  3. 3x3+diag

File Format


MP4
Video: MPEG-4 AVC / H.264
Variable (averaged) bit rate

Audio:
ALL-I: Linear PCM
IPB: AAC

Video Recording Size and Frame Rates


NTSC
4K (UHD)
3840 x 2160


23.98 fps IPB
Full HD
1920 x 1080


59.94 fps IPB
29.97 fps IPB
HD
1280 x 720


59.94 fps IPB
29.97 fps IPB
  • Full HD not available with EF-S lenses or with movie cropping.
  • Outputted in 4K (UHD) resolution through image processing.

Continuous Shooting Time


Video Recording Size Total Recording Time on Card (approx.) Bit Rate/File Size (approx.)
8GB 32GB 128GB
4K (UHD)
3840 x 2160
23.98 fps
25.00 fps
IPB 8 min. 35 min. 2 hr. 20 min.

120 Mbps
869 MB/min.

Full HD
1920 x 1080
59.94 fps
50.00 fps
IPB 17 min. 1 hr. 09 min. 4 hr. 37 min.

60 Mbps
440 MB/min.

29.97 fps
25.00 fps
HDR Movies
IPB 33 min. 2 hr. 15 min. 9 hr. 01 min.

30 Mbps
225 MB/min.

29.97 fps
25.00 fps
IPB 1 hr. 26 min. 5 hr. 47 min. 23 hr. 11 min.

12 Mbps
87 MB/min.

HD
1280 x 720
59.94 fps
50.00 fps
IPB 38 min. 2 hr. 34 min. 10 hr. 19 min.

26 Mbps
196 MB/min.

29.97 fps
25.00 fps
HDR Movies
IPB 1 hr. 13 min. 4 hr. 53 min. 19 hr. 34 min.

13 Mbps
103 MB/min.

  • Bit rate indicates video output only; audio is not included.
  • Video recording is interrupted if the maximum recording time per movie, 29 min. 59 sec., is exceeded.
  • When movie crop shooting is set to [Disable] or movie digital IS is set to [Disable].
  • There is no restriction to automatically stop movie shooting even when the file size reaches 4GB.
  • Sound is not recorded for approx. the last two frames when the compression method for movie recording quality is IPB or IPB Light (audio: AAC) and [C .Fn III-9: Audio compression] is set to [Enable]).
  • When you play back movies on Windows, movie images and sound may become slightly out of synchronization.

Focusing


  1. Dual Pixel CMOS AF
  2. Contrast AF (When recording 4K movies)
  3. Manual focus
    • Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
    • With Contrast AF as used when recording 4K movies, focusing may take longer than when recording Full HD or HD movies, and focusing with certain lenses may be difficult.

Range


Full range (0 to 255)

Exposure Control


Shooting Mode Shutter Speed (sec.) Aperture
Auto Setting Manual Setting Auto Manual
Movie auto exposure Yes Yes
Movie manual exposure Yes - Yes

Exposure Compensation


±3 stops in 1/3- or 1/2-stop increments

Type


TFT color, liquid-crystal monitor

Monitor Size


3.0-inch (screen aspect ratio of 3:2)
2.95 in./7.50cm diagonal (2.46 in./6.24cm width, 1.64 in./4.16cm height)

Pixels


Approx. 1.04 million dots

Coverage


Approx. 100% vertically/horizontally

Brightness Control


Manually adjustable to one of seven brightness levels

Coating


Clear View LCD II
  • Anti-smudge coating provided.
  • Anti-reflection coating not provided.

Interface Languages


29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Display Format


  1. Single image display
    • No information display
    • Basic information display
    • Detailed shooting information display
      • Detailed information
      • Lens/Histogram information
      • White balance information
      • Picture Style information 1
      • Picture Style information 2
      • Color space/Noise reduction information
      • Lens aberration correction information 1
      • Lens aberration correction information 2
      • Record of sent images
      • GPS information

    Display selection is available for Basic information display and Shooting information display.

  2. Index display
    • 4-image index
    • 9-image index
    • 36-image index
    • 100-image index

Highlight Alert


The white areas with no image data will blink.

Protection


  1. Single image (select image)
  2. Select range
  3. All images in folder
  4. All images on card
    • Image browsing and image search can be based on ratings.
    • Ratings-based image selections also possible with DPP.

  5. All found images (only during image search)

Erase


  1. Select images to erase
  2. Select range
  3. All images in folder
  4. All images on card
  5. All found images (only during image search)

Compatible Printers


Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed.

DPOF


Compliant to DPOF Version 1.1

Custom Controls


Customizable Buttons

Still Photo Shooting Movie Shooting
Shutter button -
Movie button -
Multi-function button Multi-function button
AF-ON button AF-ON button
AE lock button AE lock button
AF point selection button AF point selection button
Lens AF stop button Lens AF stop button
Up key (cross keys) Up key (cross keys)
Left key Left key
Right key Right key
Down key Down key
SET button SET button


Customizable Dials

Main dial
Quick control dial
Control ring


My Menu Registration


My Menu Registration
  • Up to six top-tier menu items and Custom Functions can be registered.
  • Up to five My Menu tabs can be added.

USB Terminal


Equivalent to Hi-Speed USB (USB 2.0)
  • For PC communication
  • Shared with terminal for in-camera charging with the USB Power Adapter PD-E1.
  • In-camera charging: although it is compatible with USB Type-C (5V/1.5A) equivalent, do not charge the camera other than with the USB Power Adapter PD-E1.

Video Out Terminal


Type C (Resolution switches automatically) / CEC not compatible
  • Images can be displayed through the HDMI output and on screen at the same time.
  • Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.

Extension System Terminal


3.5mm diameter stereo mini jack

Battery


Battery Pack LP-E17 x 1With the AC Adapter + DC Coupler, AC power is possible. With the USB Power Adapter PD-E1, in-camera charging of LP-E6N is possible but LP-E6 cannot be charged. The USB Power Adapter PD-E1 is not compatible with powering the camera.

Battery Check


Automatic battery check when the power switch is turned ON.
Displayed in 4 levels.
  • Battery level displayed on the LCD panel and in the viewfinder.
  • Remaining capacity (3 level battery capacity indicator)
  • Recharge performance

Power Saving


Power turns off after the set time of non-operation elapses.

Display off
Available time options: 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min.

Auto power off
Available time options: 30 sec. / 1 min. / 3 min. / 5 min. / 10 min.

Disable
Viewfinder off
Available time options: 1 min. / 3 min. / Disable
  • At least approx. 6 min. until auto power off while the [Date/Time/Zone] screen is displayed.

Date/Time Battery


Built-in secondary battery
When fully-charged, the date/time can be maintained for approx. 3 months.

Recharge time: approx. 8 hrs. The recharge time required to provide the above number of months with no battery pack installed.

Start-up Time


Approx. 0.82 sec.
  • Based on CIPA testing standards.

Dimensions (W x H x D)


Approx. 5.22 x 3.35 x 2.76 in. / 132.5 x 85.0 x 70.0 mm
(Depth from tip of grip to LCD screen surface: Approx. 2.34 in / 59.4mm)

Weight


Approx. 1.07 lbs. / 485g (including battery, SD memory card; without body cap)
Approx. 1.0 lbs. / 440g (body only; without battery, card or body cap)

Working Humidity Range


32-104° F / 0-40° C

Working Temperature Range


85° or less

EOS RP RF 24-240mm F4-6.3 IS USM Lens Kit

EOS RP RF 24-240mm F4-6.3 IS USM Lens Kit EOS RP Body Camera Cover R-F-5 Strap ER-EOSRP Battery Charger LC-E17 Battery Pack LP-E17 Battery Pack Cover RF24-240mm F4-6.3 IS USM Lens Cap E-72 II Lens Dust Cap RF

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you EOS RP RF 24-240mm F4-6.3 IS USM Lens Kit that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Brochures

Loading...

Sample Images

More Details

More Details

More Details


*ISO speed is based on recommended exposure index.


This is to make Misc appear on the page when needed.

Videos


Capture It All with the RF 24-240mm F4-6.3 IS USM Lens

Whether you need a lens for macro shots, portraits, landscapes or anything in-between, the wide-ranging RF 24-240mm F4-6.3 IS USM lens is the perfect complement to your Canon R Series camera for inspiring results.

Canon RF 24-240mm F4-6.3 IS USM Lens Announcement Video with Rudy Winston

Learn all about the powerful, 10x zoom lens that’s perfect for EOS R and RP owners looking to capture impressive images - from macro to telephoto - as Canon’s Rudy Winston discusses the RF 24-240mm F4-6.3 IS USM lens.

This is to make Misc appear on the page when needed.

DISCLAIMERS


* Based on CIPA (Camera & Imaging Products Association) standards. Testing performed using the EOS R mirrorless camera at a focal length of 240mm. The number of stops may vary based on the camera model used.

** This function is effective during Movie Mode.

*** The Control ring is the same as the Focusing ring.

† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.

 Return to Top
