imageRUNNER 1435i

Black and White

imageRUNNER ADVANCE Configurator. Build your model, and customize configurations based on specific needs.

Solutions to help increase office efficiencies and productivity

Advanced Solutions for your industry


  • A compact MFP supporting up to legal-size paper, the imageRUNNER 1435i features a smart, comfortable design that can easily fit on a desktop or in a centralized area with optional paper cassette or cabinet for walk-up convenience cassette or cabinet for walk-up convenience.

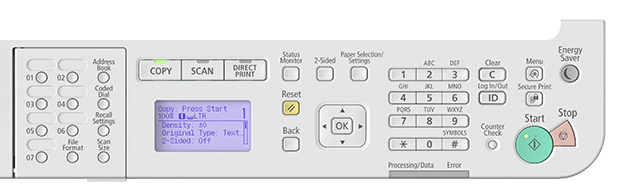

  • The highly-visible 5-Line LCD, and logical button layout simplifies device use.

  • The imageRUNNER 1435i employs Canon's imageCHIP Lite platform, providing efficient performance to speed up concurrent print, copy, scan and send jobs. Built-in Ethernet, dual USB 2.0 ports and ample memory enhances the device's productivity.

  • Operating at print/copy speeds of 37ppm, the imageRUNNER 1435i delivers superior quality output. With a print a resolution of 600x600 dpi (1200x600 dpi equivalent), users will benefit from faithful reproduction and clarity of their documents.

  • With a standard 600-Sheet paper capacity and a maximum paper capacity of 1,100 sheets, the imageRUNER 1435i enables offices to be more productive.

  • Canon's innovative UFR II LT print language is standard on the imageRUNNER 1435i. UFR II LT is optimized to produce high-speed output by automatically sharing processing tasks between the desktop computer and the device. The imageRUNNER 1435i also has optional PCL 5e/6 and Adobe PostScript 3, ideal for printing business documents.

  • Help secure your office with the standard User Authentication for Send Operations (AuSend). AuSend prompts users for their credentials before accessing the Send screen, and also allows for Send restrictions, such as Email to Self only.

  • Easily copy both sides of an ID Card onto a single page with ID Card Copy.

  • Browse the corporate address book for easy scan-and-send operations with LDAP Address Support.

  • IT Managers can take control and reduce costs of operations with a variety of tools such as Remote User Interface, imageWARE Enterprise Management Console and plug-ins, and embedded uniFLOW support.

  • Conveniently scan to/print from a USB memory stick with the front mounted USB port.

This is to make Misc appear on the page when needed.



Digital Multifunction Imaging System


Copy, Print, Scan, Send

Operation Panel

5-line LCD

Image Server Memory

RAM 512 MB; Standard USB Port

Network Interface Connection

Standard: 1000Base-T, 100Base-TX, 10Base-T
Other: USB2.0 x1 (Host), USB1.1 x1(Host), USB (Device)

Scan Specifications

Network TWAIN Scan


Network Scan Utility

ScanGear MF

Scanning Resolution

Up to 600 x 600 dpi

Printing Resolution

600 x 600 dpi; 1200 x 600 dpi (Enhanced)

First Copy Time

As fast as 6.9 Seconds

First-Print-Out-Time (Letter)
As fast as 5.0 Seconds

Multiple Copies

1 to 999

Copy Exposure

Automatic or Manual (17 Levels)


25% - 400% (1% Increments) from Platen Glass

Preset Reductions

25%, 50%, 64%, 78%

Preset Enlargements

129%, 200%, 400%

Standard Paper Capacity

500-sheet Cassette


500-sheet Cassette

Manual Bypass

100-sheet Bypass

Maximum Paper Capacity

1,100 Sheets

Output Paper Capacity

(20 lb. Bond)
Maximum: 100 Sheets

Output Sizes


Letter, Legal


Letter, Legal, Statement, Executive, Custom Size (3 x 5 to 8-1/2 x 14), Envelope (C5/DL/ COM-10/Monarch)

Warm Up Time

From Power On: 20 Seconds or Less
From Sleep: 7.8 Seconds or Less

Power Requirements

120-127 V AC, 60 Hz, 7.8 A

Power Consumption

Maximum: 1,500 W
Sleep Mode: 2.0 W or Less


NEMA 5-15P


(H x W x D)
18-3/4 x 21-1/2 x 18
(475.3 mm x 545 mm x 457 mm)

Installation Space

(W x D)
30-3/8 x 1 8 (772.1 mm x 457 mm)
(when the Multi-purpose Tray is extended)


Approx. 52.3 lb. (23.74 kg)

Duplexing Automatic Document Feeder

Paper Sizes: 5-1/2 x 5 to 8-1/2 x 14

Paper Weights:
Simplex: 13 lb. to 28 lb. Bond (50 to 105 g/m2)
Duplex: 17 lb. to 28 lb. Bond (64 to 105 g/m2)

Scan Method: Duplexing Automatic Document Feeder

Scanning Speed: Simplex: Up to 29 ipm (BW)/10 ipm (Color)
Duplex: Up to 10 ipm (BW)/6 ipm (Color)

Capacity: Up to 50 Sheets (20 lb. Bond)

Special Media Support:
Standard: USB Memory

Image Reader

Scan Resolution

Up to 600 x 600 dpi

Acceptable Originals

Sheet, Book, 3-Dimensional objects up to 4.4 lb. (2 kg)

Maximum Original Size

Up to 8-1/2 x 14

Basic Copy Features

Preset R/E Ratios by Area, Two-Sided, Exposure Adjustment, Original Type Selection, Setting Confirmation/Cancel, Standard Keys, Reset, ID Management, Counter Check

Special Copy Features

ID Card Copy, Frame Erase, Mode Memory, Sharpness, Image Combination, Different Size Original

Security Features


Department ID Management, IPv6, Restricting Features (Restricting New Addresses on Address Book, Allow Fax Driver TX, Restrict Recall, Confirm Entered Fax Numbers, Restrict Sequential Broadcast, Restrict USB Interface), Memory Lock, MAC/IP Address Filtering, SMTP Authentication POP Authentication before SMTP, IEEE802.1x, Authentication Feature for Send Operation (AuSend), Secured Print, SNMP v1/v3, SSL Encrypted Communication, Fax Forwarding, Fax Destination Confirmation, USB Block, TLS Support for E-mail , Fax TX Archive


Encrypted PDF, Device Signature PDF, uniFLOW

Environmental Features

ENERGY STAR® Qualified Rated EPEAT® Silver EU RoHS Compliant* Blue Angel* WEEE Directive*

Estimated Toner Yield

17,600 Copies/Bottle (Estimated Yield @ 6% Coverage)

Paper Supply Options


Cassette Module - AC1

Paper Capacity

500-Sheet Cassette [20 lb. Bond (80 g/m2)]

Paper Size

Legal, Letter

Paper Weight

17 lb. Bond to 24 lb. Bond (64 to 90 g/m2)

Power Source

From the Main Unit

Power Consumption

Approximately 3.6 W


6-1/8 x 20-1/2 x 17-3/4
(54.8 mm x 520 mm x 450.8 mm)


Approximately 11 lb. (5 kg)


Cabinet Type - K


21-7/8 x 20-1/2 x 17-1/4
(554 mm x 520 mm x 439 mm)


40 lb. (18.14 kg)


FL Cassette - AW1

Paper Capacity

500-Sheet Cassette [20 lb. Bond (80 g/m2)]

Paper Size

Legal, Letter

Paper Weight

17 lb. Bond to 24 lb. Bond (64 to 90 g/m2)

Output Options

Print Board


Print Specifications


Canon Dual Custom Processor (Shared)

Engine Resolution

600 x 600 dpi; 1200 x 600 dpi (Enhanced)

PDL Support

Standard: UFR II LT
Optional: Barcode Printing Kit, PCL 5e/6, and Adobe PS 3

Other Features

Print Driver Supported OS
UFR II LT, PCL 5e/6 (optional), Adobe PS 3 (optional), Windows® (XP/Windows Vista®/7/8/8.1), Windows Server (2003/2003R2/2008 /2008 R2/ 2012/2012 R2), Windows Terminal Server (2003/2003R2/2008/2008 R2/2012/2012 R2), Microsoft Clustering Server 2003/2003R2/2008/ 2008 R2/2012/2012 R2),Microsoft App-V, Citrix (Presentation Server 4.5, XenApp 5.0/6.0/6.5/7.5, XenDesktop 4.0/5.0/5.5/5.6/7.0/7.1/7.5), VMware (vSphere 4/5/5.1), SAP (PS3, PCL), Macintosh® (OS X 10.5.8 or later) (UFR II LT, PS 3)

Direct Print Support
Standard: TIFF, JPEG
Optional: PDF (with optional USB Direct Print Kit or PS Printer Kit), PCL 5e/6, Adobe PS 3

Print Features

Secured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Printing on Transparencies, Front/ Back Covers, Objective, Toner Reduction, Poster Printing

Universal Send Specs


Universal Send

Sending Method

E-mail, USB, File Server (FTP, SMB)

Color Mode

Color, BW

Scan Resolution

Color: 300 dpi, 200 dpi, 150 dpi
BW: 300 dpi, 150dpi

Address Book Capacity

Max. 300 Destinations (Incl. 19 One-Touch Buttons)

Communication Protocol

E-mail: SMTP, POP3

File Format

Standard: TIFF, JPEG, PDF, PDF (Compact), PDF (Compact/OCR), PDF (OCR)
Optional: Encrypted PDF, Digital Signature PDF

Universal Send Features
Two Sided Original, Original Type Selection, Density Adjustment, Sharpness, Subject/Message, Reply-to, E-mail Priority, Senders Name

Other Optional Accessories
USB Keyboard Copy Card Reader - F1 Copy Card Reader Attachment - E1 Convenience Stapler - B1 Barcode Printing Kit - D1 Copy Control Interface Kit - C1 ADF Access Handle - A1 Braille Label Kit - F1 Universal Key Board Stand - A1 Card Reader Assembly for Universal Key Board Stand PS Printer Kit - BA1 PCL Printer Kit - BA1 USB Direct Print Kit - D1 Send PDF Security Feature Set - E1


GPR-54 Toner
Color: Black
Item Code: 9436B003AA
Estimated Toner Yield: 17,600 copies/case (Estimated @ 6% Coverage)


Hardware Accessories

  • Cassette Module-AC1
  • Cabinet Type-K
  • USB Keyboard (Cherry)
  • Copy Card Reader-F1
  • Copy Card Reader Attachment-E1
  • ADF Access Handle-A1
  • Braille Label Kit-F1
  • Copy Control Interface Kit-C1
  • Convenience Stapler-B1
  • Universal Keyboard Stand-A1
  • Card Reader Assembly for Universal Keyboard Stand

System Connectivity Accessories

  • Barcode Printing Kit-D1
  • Send PDF Security


  • Canon GPR-54 Toner Black (Item # 9436B003AA)
