imageRUNNER 1435P


imageRUNNER ADVANCE Configurator. Build your model, and customize configurations based on specific needs.

Solutions to help increase office efficiencies and productivity

Advanced Solutions for your industry

  • A compact single-function printer supporting up to legal-size paper, the imageRUNNER 1435P features a smart, comfortable design that can easily fit on a desktop or in a centralized area with optional paper cassette or cabinet for walk-up convenience.

  • The highly-visible 5-Line LCD, and logical button layout simplifies device use.

  • The imageRUNNER 1435P employs Canon's imageCHIP Lite platform, providing efficient performance to speed up concurrent print jobs. Built-in Ethernet, dual USB 2.0 ports and ample memory enhances the device's productivity.

  • With a standard 600-Sheet paper capacity and a maximum paper capacity of 1,100 sheets, the imageRUNER 1435P enables offices to be more productive.

  • The imageRUNNER 1435P includes PCL 5e/6 and Adobe PostScript 3 as standard, ideal for printing business documents. Canon's innovative UFR II LT print language is also standard on the imageRUNNER 1435P. UFR II LT is optimized to produce high-speed output by automatically sharing processing tasks between the desktop computer and the device.

  • Operating at print speeds of 37ppm, the imageRUNNER 1435P delivers superior quality output. With a print a resolution of 600x600 dpi (1200x600 dpi equivalent), users will benefit from faithful reproduction and clarity of their documents.

  • IT Managers can take control and reduce costs of operations with a variety of tools such as Remote User Interface, imageWARE Enterprise Management Console and plug-ins, and embedded uniFLOW support.

  • Conveniently print from a USB memory stick with the front mounted USB port.

This is to make Misc appear on the page when needed.



Digital Laser Printer

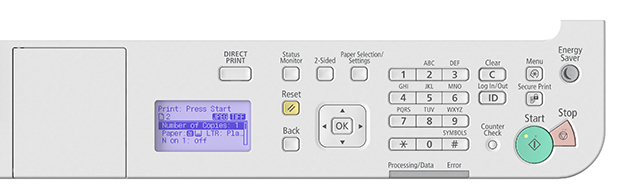

Operation Panel

5-line LCD

Image Server Memory

RAM 512 MB; Standard USB Port

Network Interface Connection

Standard: 1000Base-T, 100Base-TX, 10Base-T
Other: USB2.0 x1 (Host), USB1.1 x1(Host), USB (Device)

Printing Resolution

600 x 600 dpi; 1200 x 600 dpi (Enhanced)

First-Print-Out-Time (Letter)
As fast as 5.0 Seconds

Standard Paper Capacity

500-sheet Cassette


500-sheet Cassette

Manual Bypass

100-sheet Bypass

Maximum Paper Capacity

1,100 Sheets

Output Paper Capacity

(20 lb. Bond)
Maximum: 100 Sheets

Output Sizes


Letter, Legal


Letter, Legal, Statement, Executive, Custom Size (3 x 5 to 8-1/2 x 14), Envelope (C5/DL/ COM-10/Monarch)

Warm Up Time

From Power On: 20 Seconds or Less
From Sleep: 7.8 Seconds or Less

Power Requirements

120-127 V AC, 60 Hz, 7.8 A

Power Consumption

Maximum: 1,500 W
Sleep Mode: 2.0 W or Less


NEMA 5-15P


(H x W x D)
15-1/8 x 21-1/2 x 18
(382.5 mm x 545 mm x 457 mm)

Installation Space

(W x D)
30-3/8 x 1 8 (772.1 mm x 457 mm)
(when the Multi-purpose Tray is extended)


Approx. 47.3 lb. (21.44 kg)

Special Media Support:
Standard: USB Memory

Security Features


Department ID Management, IPv6, Restricting Features (Restricting New Addresses on Address Book, Restrict Recall, Restrict Sequential Broadcast, Restrict USB Interface), Memory Lock, MAC/IP Address Filtering, SMTP Authentication POP Authentication before SMTP, IEEE802.1x, Secured Print, SNMP v1/v3, SSL Encrypted Communication, USB Block, TLS Support for E-mail


Encrypted PDF, Device Signature PDF, uniFLOW

Environmental Features

ENERGY STAR® Qualified Rated EPEAT® Silver EU RoHS Compliant* Blue Angel* WEEE Directive*

Estimated Toner Yield

17,600 Copies/Bottle (Estimated Yield @ 6% Coverage)

Paper Supply Options


Cassette Module - AC1

Paper Capacity

500-Sheet Cassette [20 lb. Bond (80 g/m2)]

Paper Size

Legal, Letter

Paper Weight

17 lb. Bond to 24 lb. Bond (64 to 90 g/m2)

Power Source

From the Main Unit

Power Consumption

Approximately 3.6 W


6-1/8 x 20-1/2 x 17-3/4
(54.8 mm x 520 mm x 450.8 mm)


Approximately 11 lb. (5 kg)


Cabinet Type - K


21-7/8 x 20-1/2 x 17-1/4
(554 mm x 520 mm x 439 mm)


40 lb. (18.14 kg)


FL Cassette - AW1

Paper Capacity

500-Sheet Cassette [20 lb. Bond (80 g/m2)]

Paper Size

Legal, Letter

Paper Weight

17 lb. Bond to 24 lb. Bond (64 to 90 g/m2)

Output Options

Print Board


Print Specifications


Canon Dual Custom Processor (Shared)

Engine Resolution

600 x 600 dpi; 1200 x 600 dpi (Enhanced)

PDL Support

Standard: UFR II LT, PCL 5e/6, and Adobe PS 3
Optional: Barcode Printing Kit

Other Features

Print Driver Supported OS
UFR II LT, PCL 5e/6, Adobe PS 3, Windows® (XP/Windows Vista®/7/8/8.1), Windows Server (2003/2003R2/2008 /2008 R2/ 2012/2012 R2), Windows Terminal Server (2003/2003R2/2008/2008 R2/2012/2012 R2), Microsoft Clustering Server 2003/2003R2/2008/ 2008 R2/2012/2012 R2),Microsoft App-V, Citrix (Presentation Server 4.5, XenApp 5.0/6.0/6.5/7.5, XenDesktop 4.0/5.0/5.5/5.6/7.0/7.1/7.5), VMware (vSphere 4/5/5.1), SAP (PS3, PCL), Macintosh® (OS X 10.5.8 or later) (UFR II LT, PS 3)

Direct Print Support
Standard: TIFF, JPEG, PDF

Print Features

Secured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Printing on Transparencies, Front/ Back Covers, Objective, Toner Reduction, Poster Printing


GPR-54 Toner
Color: Black
Item Code: 9436B003AA
Estimated Toner Yield: 17,600 copies/case (Estimated @ 6% Coverage)


Hardware Accessories

  • Cassette Module-AC1
  • Cabinet Type-K
  • USB Keyboard (Cherry)
  • Copy Card Reader-F1
  • Copy Card Reader Attachment-E1
  • Braille Label Kit-F1
  • Copy Control Interface Kit-C1
  • Convenience Stapler-B1
  • Universal Keyboard Stand-A1
  • Card Reader Assembly for Universal Keyboard Stand

System Connectivity Accessories

  • Barcode Printing Kit-D1
  • Send PDF Security


  • Canon GPR-54 Toner Black (Item # 9436B003AA)
