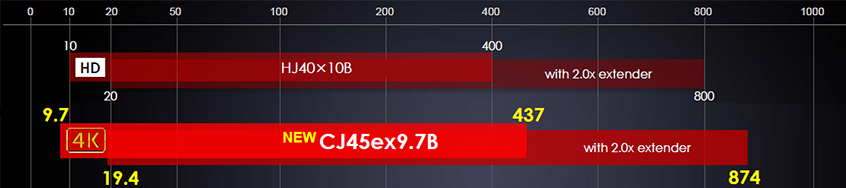

The CJ45ex9.7B lens features an ultra-high zoom ratio of 45× and telephoto end focal length of 437mm (874mm when using the built-in 2x extender), making it ideal for shooting live sports, nature, concerts, live events and other applications where focal length on the telephoto end is prioritized. Offering a wide angle focal length of 9.7mm, the extensive focal range allows you to cover a wide range of shooting needs with a single lens, making it particularly useful for mid-sized broadcasting vans, horse racing tracks, and monitoring applications. High optical performance is maintained throughout the entire zoom range, even when the 2x extender is used.
New Integrated Multi-Group Movable Zoom for Outstanding Zoom Control

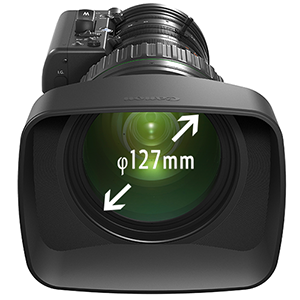

The lens features a new integrated multi-group movable zoom system, compared to the conventional two-group movable zoom system found in most broadcast lenses. This system helps provide superb zoom control, working to maintain optical performance throughout the entire zoom range from the center of the image to the edges. Integration of a multi-group movable zoom system also offers wider angle while reducing the φ127mm diameter of the front lens element that is equal to conventional HD lenses.
Wide Focus Rotation Angle

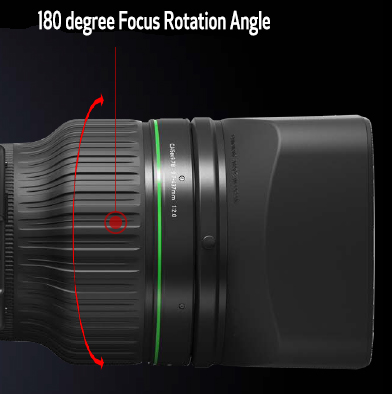

A rotation angle of 180 degrees (compared to 110 degree rotation angle of our HJ40x lenses) facilitates tight control for 4K UHD cameras , helping improve focus operation, even at long focal lengths where focusing can be difficult.

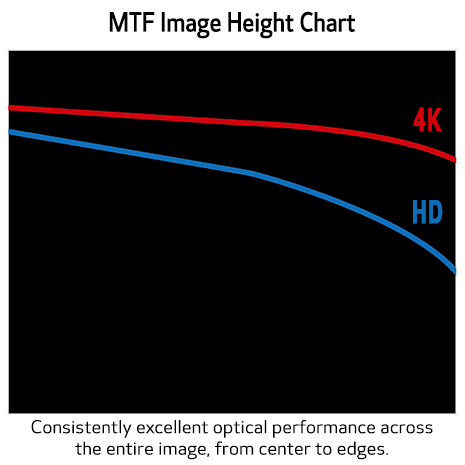

The CJ45ex9.7B lens features a combination of specialized materials, contemporary optical design and multi-layer coatings to produce outstanding 4K imagery, effectively deriving the potential of 4K cameras and expanding possibilities for image expression. In addition, lens element surface accuracy has been improved significantly over HDTV lenses, contributing to the enhanced Modulation Transfer Function (MTF) performance required of 4K imagery.
New Integrated Multi-Group Movable Zoom System and Floating Focus System

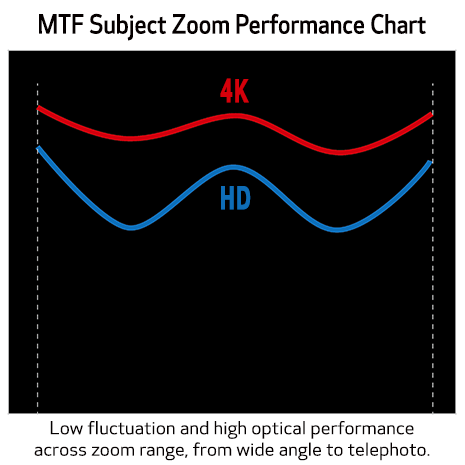

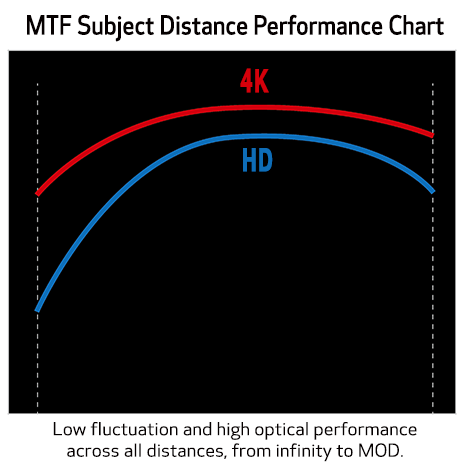

A new integrated multi-group movable zoom system can control at points with major fluctuations in optical performance during zooming (wide middle, tele middle), working to maintain optical performance throughout the entire zoom range from the center of the image to the edges. In addition, a new integrated floating focus system helps reduce changes in aberrations when focusing to different object distances, while maintaining 4K optical performance in color reproduction over the entire focus range, especially on the telephoto side.
Minimized Chromatic Aberration
Fluorite and UD glass have been generously utilized and optimally arranged for better correction of chromatic aberrations. This helps produce beautiful images with less color bleeding or coloring around the outlines, achieving superb color reproduction to the edges of the images. In addition, the BT.2020 compatible correction data enhances the magnification chromatic aberration correction level of the total camera system.
The lens coating helps to control the reflection on the lens barrel’s inner surface, helping suppress ghosting and flaring, resulting in HDR-compatible high-contrast images.
HDR images offer excellent gradation representation and enhanced realism and dimension including texture for image representation close to the real thing. However, there can be noticeable color bleeding and flare, so HDR shooting requires high optical performance. The CJ45ex9.7B lens delivers the advanced optical performance that Canon considers essential for a HDR system, enabling shooting of more realistic images.

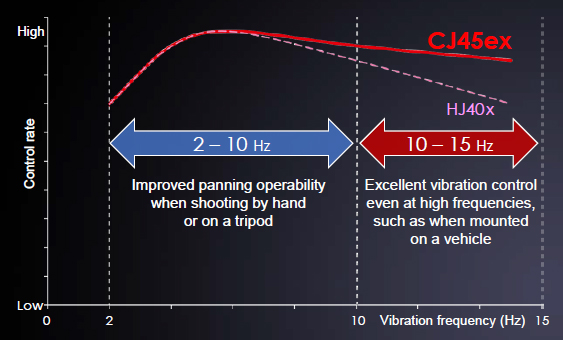

The CJ45ex9.7B lens features built-in image stabilization – a newly designed system compared to that in the HJ40x generation lenses. The improvement is significant in the all-important higher vibration frequency range that is typically stimulated when shooting within helicopters, boats, and motor vehicles.

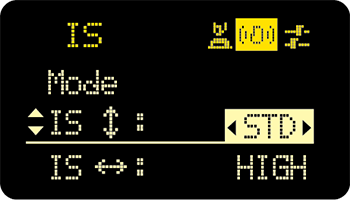

Image stabilization mode settings are enabled from the digital information display on the digital servo drive unit.
Motorized Mechanical Lock Release Mechanism
A motorized mechanical lock release mechanism improves operability by enabling easy release in situations when the lever is hard to reach, such as when mounted on a tripod.
The CJ45ex9.7B lens features a high performance digital drive unit that improves servo performance compared to our HJ40x lenses, and an advanced 16-bit absolute value encoder that supports communication with compatible 2/3" 4K UHD cameras.
Quick Startup and Easy Calibration
The drive unit of the CJ45ex9.7B lens can output accurate lens position data from the moment the power is turned on and does not require initialization, contributing to the quick start when shooting. Eliminating initialization of the encoder at power-on simplifies calibration when composing virtual and live-action images, and helps to create more accurate composites.
Fast Servo Operation

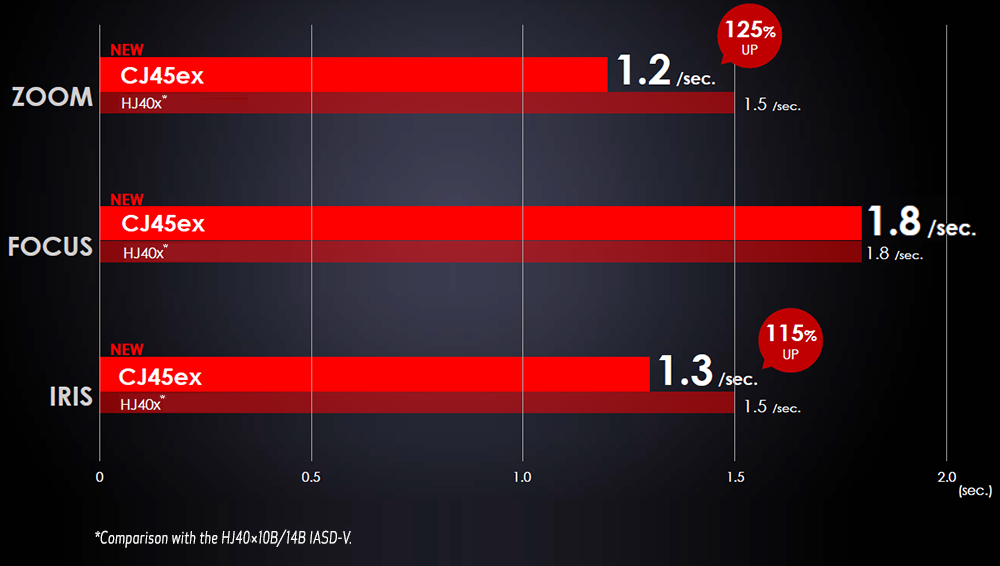

The servo operates faster than our HJ40x generation lenses, and can achieve the full focal range zoom in 1.2 seconds. The focus control has a wide 180 degree manual rotation angle, and when servo driven it can drive focus control over its full range in 1.8 seconds. The iris can be driven over its full aperture range in 1.3 seconds.
Advanced Virtual Operability

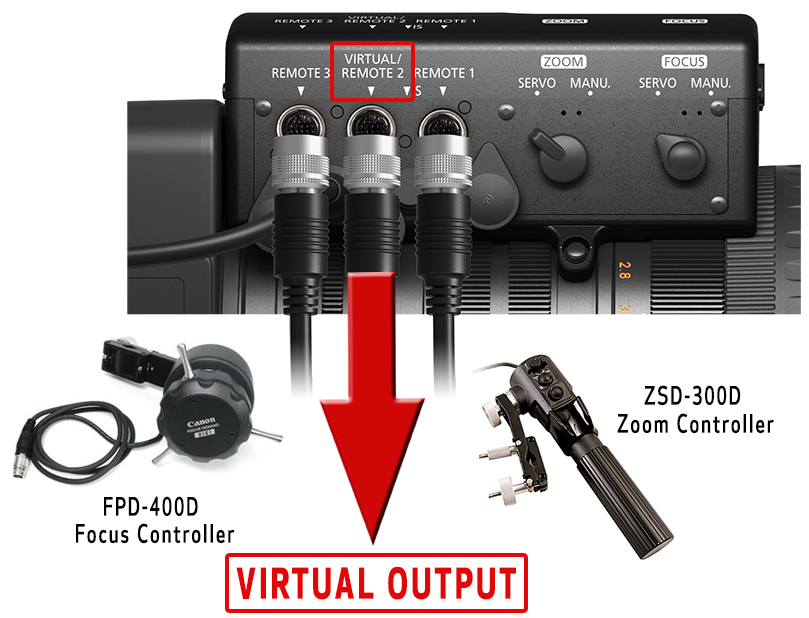

The drive unit of the CJ45ex9.7B lens uses three 20-pin connectors. This enables virtual system output and users can access the virtual terminal. One of these connectors outputs lens positional data, allowing for output even while the zoom and focus servo controllers are in use.
Simple Display Operations

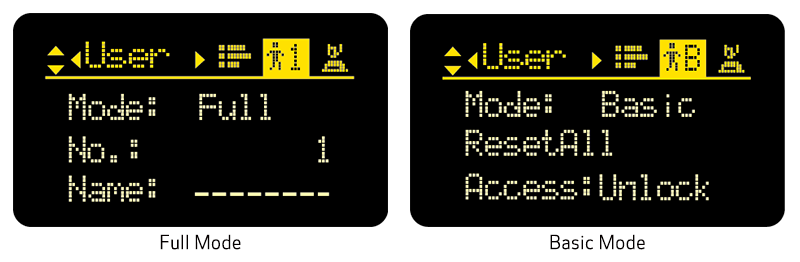

An on-board information display is included on the servo drive unit that supports a range of operational settings. The digital display makes it easy to set, review and display a variety of operational functions. Full Mode can be selected, along with a simplified mode (Basic Mode) that limits options to most frequently used settings, making for easier operation.
HD Demand Compatibility
This feature allows for compatibility with a broadcast-use HD demand. It enables the use of the zoom and focus electrical drive system accessories (such as the ZSD-300D and FPD-400D) which are currently used by HD equipment.
The Canon drive unit integrates a variety of operations, stored digitally, that can be manipulated using the display.
By memorizing any two focal lengths, the Canon drive unit can automatically "shuttle" between two points, moving in either direction. As an example, this function is effective for shots in which an operator wants to start from a wide angle and then zoom in rapidly on to an object.
An angle of view can be preset in either of two memories and the lens will zoom at the highest speed, or in a preset zoom speed, to the pre-set position with the push of a simple button. As an example, this function can be effective for situations such as interview programs, where it is necessary to switch between bust shot and wide shot.
A specific zoom speed can be preset in memory making it possible to repeat the zoom speed as often as you like with the push of a simple button. Using a preset speed when zooming in and zooming out contributes to help create stable images, particularly with slow zooms.
Weighing only 12.3 lbs. and measuring 6.8" (W) x 5.8" (H) x 13.3" (L), the portable CJ45ex9.7B lens is similar in size to conventional 2/3" HD lenses, while delivering high level 4K optical performance, 45x high zoom ratio and faster servo operation. The lens is designed to satisfy professionals with its high-level combination of excellent specifications, enhanced optical performance, and outstanding usability.
Object Image Format
Focal Length Range
Focal Length Range with 2X Extender
Angular Field of View
1.26° x 0.71° at 437mm
Angular Field of View with 2x Extender
0.63° x 0.35° at 874mm
Maximum Relative Aperture (F-Number)
1:3.9 at 437mm
Maximum Relative Aperture (F-Number) with 2x Extender
1:7.8 at 874mm
MOD From Front of Lens
Scene Object Dimensions at MOD
5.8 x 3.3cm at 437mm
Scene Object Dimensions at MOD with 2x Extender
2.9 x 1.7cm at 874mm
Canon Broadcast LensesLearn about Canon's lineup of Broadcast lenses.
Introducing the Canon CJ45ex9.7B and CJ45ex13.6B Broadcast Lenses (long version)Watch to learn about the new 4K UHD Portable Zoom Broadcast Lenses. Designed to meet the high demands of field production applications, the CJ45ex9.7B and CJ45ex13.6B 4K UHD portable EFP lenses are ideal for sports, documentaries, nature, wildlife, music stage, helicopter/aerial and other challenging location productions that seek superb image capture over considerable distances.
Introducing the Canon CJ45ex9.7B and CJ45ex13.6B Broadcast Lenses (short version)Watch to learn about the new 4K UHD Portable Zoom Broadcast Lenses. Designed to meet the high demands of field production applications, the CJ45ex9.7B and CJ45ex13.6B 4K UHD portable EFP lenses are ideal for sports, documentaries, nature, wildlife, music stage, helicopter/aerial and other challenging location productions that seek superb image capture over considerable distances.
Canon and Esports Stadium Arlington TestimonialThe largest dedicated Esports facility in North America, Esports Stadium Arlington is a 100,000 square foot facility built for the unique needs and demands of the esports community. To help capture the action, they’ve outfitted the stadium with Canon’s UHD-DIGISUPER 66 4K Broadcast Lenses.
Now a new era of 4K UHD has arrived. Paralleling this is a veritable explosion in video content and distribution over many platforms. Both large format Super 35mm and small 2/3-inch image format lens cameras are in high demand. Having met the initial thrust of 4K UHD into worldwide sports coverage with large box field lenses, Canon more recently turned its focus to extending the capabilities of portable field production. To grasp the challenges posed to developing portable long zoom 2/3-inch lenses for 4K UHD it is helpful to first benchmark the pioneering development of such extended focal range lenses for HDTV.
This paper is intended to provide a background to the emergence of 2/3-inch lens-camera systems for 4K UHD production and the optical performance expectations of associated 4K lenses. The paper will review Canon’s involvement in the development of those lenses and will describe our initial 4K UHD lens family and the associated design strategies to achieve this impressive level of optical performance. The paper will explain the unprecedented strategy of introducing two categories within this new 4K UHD lens family – namely, 4K and 4K PREMIUM. The distinct performance difference between the two reflects Canon’s recognition that different 4K program genres will require different levels of overall cost / performance.
It was probably inevitable that broadcasters would begin to explore the possibilities of 4K UHD for the globally popular world of outside broadcast sports coverage; and indeed, recent years have seen a great deal of related experimental projects. The 4K UHD lens issue soon surfaced as the limitations of presently available Super 35mm zoom lenses quickly became apparent.
