COMPACT-SERVO 18-80mm T4.4 EF

COMPACT-SERVO

Tech Explained: Learn The Science Behind 4K Optics.

0% Financing Available

0% Financing for 24 months with the purchase of any Cinema EOS product. Restrictions apply.

Discover our new Compact-Servo family of lenses to learn about their compact size, high level 4K performance, and much more to help you get the best out of your video productions.

Features

Different aspects of lens performance are emphasized when shooting video as opposed to still images. A zoom range through commonly used focal lengths, high level 4K optical performance and a smooth aperture iris designed for motion picture capture all demonstrate the COMPACT-SERVO 18-80mm T4.4 EF lens’s optimization for video.


Zoom that Covers the Commonly-Used Focal Length of 18mm-80mm
A zoom can be useful in narrative or documentary video production for capturing wide to medium fields of view.


Parfocal Operation – Precise Focus Through the Entire Zoom Range
The 18-80mm T4.4 EF lens is parfocal in both manual and autofocus modes. The lens employs a special compensating lens group that moves to maintain precise focus while a separate lens group performs the zooming action. Maintaining focus while changing focal length allows the lens to be used in video production where zooming while recording is required.


Consistent Brightness Throughout the Entire Zoom Range
The 18-80mm T4.4 EF lens maintains a wide aperture of T4.4 (F4.0) throughout their zoom range. This allows zooming while at maximum aperture without any dimming of the image.


High Level 4K Optical Performance
The 4K optical performance of the 18-80mm T4.4 EF lens produces a significantly sharper image than 2K/HD. The various advanced design strategies used help to ensure over 4K resolution at picture center and a careful control of falloff of image sharpness at picture extremities.

The excellent contrast range associated with High Dynamic Range (HDR) imaging helps ensure both deep black reproduction and the excellent handling of scene specular highlights. HDR image capture significantly enhances both the contrast and the richness of colors in a scene, but it also poses a potential challenge in exacerbating the visibility of any lens chromatic aberrations. The 18-80mm T4.4 EF lens was designed to help minimize such aberrations.

Color Consistency with Canon Cinema Lenses
Canon’s color science has become highly refined over generations of lens designs, paying the closest attention to a pleasing skin tone reproduction. The 18-80mm T4.4 EF lens can be used interchangeably with other Canon Cinema lenses during the same production since both have the same warm, cine-look color characteristics — making it easier to maintain consistent color when multiple lenses are used.

Image is simulated

Iris Mechanism for Motion Picture
The 18-80mm T4.4 EF lens can smoothly adjust between open and closed for precise exposure control and live in-shot changes. The 9-blade iris creates a rounded aperture so out-of-focus highlights appear circular. An odd number of iris blades also help create a less distracting flare. The iris on the lens can also be completely closed, which is useful when adjusting black balance.

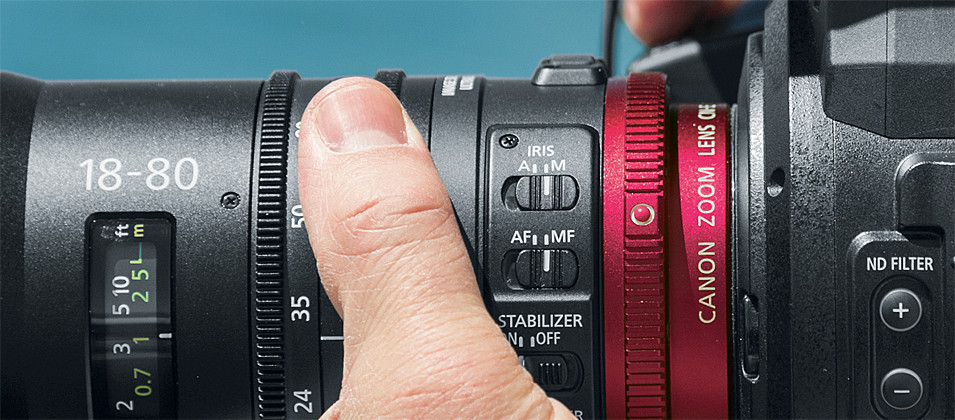

Continuous Iris Control Capability with Iris Ring
A cinema lens requires an iris that can be smoothly adjusted between wide open and closed. Continuous adjustment allows not only for precise exposure control, but also smooth adjustment live in shot while recording. This can be useful to help compensate for change in exposure due to spotty clouds or moving between indoor and outdoor light levels within a shot.

9-Blade Iris
More iris blades create a rounder aperture, resulting in out-of-focus highlights that appear more circular. An odd number of iris blades means that there will be a larger number of small radiating points on a flare, helping to prevent distracting artifact.


Iris Closing
The aperture on the 18-80mm T4.4 EF lens can close completely, allowing no light to pass through. This is useful in black balancing a camera.


Auto Iris Available
The auto exposure system in the 18-80mm T4.4 EF lens capitalizes on Canon’s Electromagnetic Diaphragm (EMD) technology that has been highly refined over many years in the EF lens series. This technology integrates the lens iris assembly and a miniature stepping motor in a single unit. Electronic pulses from the camera controls the motor to map numerous steps across the full range of the iris mechanism. This AE control loop is fast and silent. An AE Shift mode allows a small manual override for fine adjustments to exposure.


Flange Back Adjustment
A flange back adjustment mechanism is built-in allowing you to adjust on site which helps to provide even greater optical performance among various cameras.

The COMPACT-SERVO 18-80mm T4.4 EF lens includes the functionality of professional broadcast and cinema lenses along with compatibility with professional lens accessories. It fits these features in Canon’s unique design that allows it to remain compact and lightweight. This best-of-both-worlds approach allows the versatility to shoot with the lens in a wide range of productions.


Servo Zoom Drive Unit
The 18-80mm T4.4 EF lens incorporates a servo drive unit directly in the body of the lens. The servo drive unit allows electronic control over zoom, and provides an option to be disengaged for direct manual control. The integrated design can power the servo drive through the lens mount on appropriate cameras, or power can be input through a separate port as in traditional lens servo systems. The servo control is compatible with Canon’s ZSG-C10 Zoom Servo Grip which can be mounted directly onto the 18-80mmT4.4 EF lens, as well as standard broadcast style controllers (including Canon’s FPD-400D and ZSD-300D) for remote operation.

Servo Control Capability for Zoom Function
The integrated servo drive allows for electronic control over the zoom. The control is electromechanical, rotating the actual geared rings on the lens housing via servo motors. These motors can also be disengaged, allowing for full manual control. The zoom servo can be remotely controlled or operated using a rocker switch on the side of the lens.


Power Provided via Camera Mount
On select Cinema EOS cameras, the EF lens mounts electrical contacts provide the necessary power to operate the servos on the 18-80mmT4.4 EF lens. This helps eliminates cabling and possible mounting issues. The lens can also be powered remotely through an accessory power port.


Compatible with Broadcast Style Servo Lens Controllers
The 18-80mm T4.4 EF lens’s Servo Control can be operated remotely for tripod or other non-handheld use. Canon’s FPD-400D Digital Focus Servo Demand for Canon Lens Control Kits can be used for remote focus control and the ZSD-300D Digital Zoom Servo Demand for digital ENG/EFP lenses used for remote zoom control. For use in studio configurations, an optional Zacuto® Z-CNYC Y-cable can be used to connect zoom and focus controllers to each lens. This configuration allows for simultaneous zoom and focus operation with Compact-Servo lenses.


Optional ZSG-C10 Zoom Servo Grip
For handheld operation, the 18-80mm T4.4 EF lens incorporates a rosette mounting point for the optional ZSG-C10 Zoom Servo Grip. This handgrip features a rocker control for the zoom servo, a button to engage One-Shot Autofocus. It can be rotated on the mounting rosette and adjusted for comfort. Accessory mounting is available for use on camera front rods.

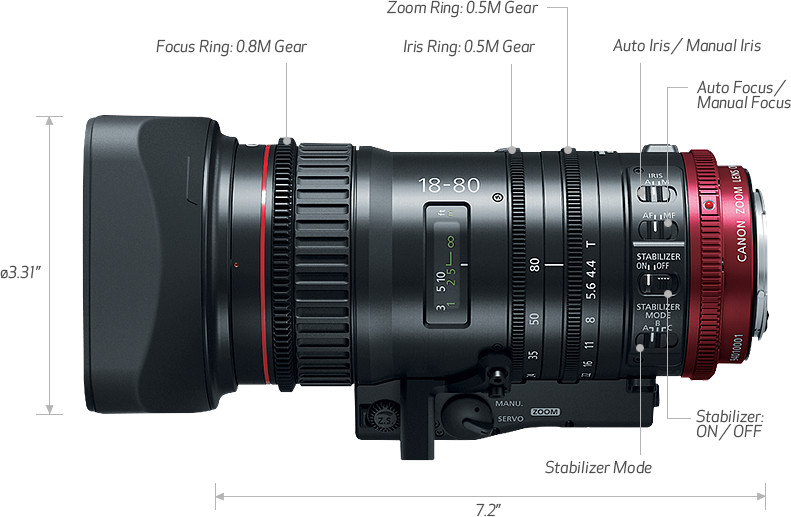

Compact (7.2 in. in length) and Lightweight (2.65 lbs.) for Increased Mobility and Versatility
The 18-80mm T4.4 EF lens borrows from Canon’s experience in EF lenses to make a compact and lightweight design while retaining performance and functionality. This allows the lens to be used handheld and in various conditions, providing a high amount of mobility and versatility. The 18-80mm T4.4 EF lens is the same size and nearly the same weight as its sister lens, the COMPACT-SERVO 70-200mm T4.4 EF lens.


Supports a Wide Range of Optional Accessories
The 18-80mm T4.4 EF lens is built to be compact and fully compatible with a variety of professional lens accessories. The front diameter is 84mm for mattebox mounting, with a removable sunshade included. The front ring’s inner diameter is threaded for use with 77mm screw-in filters. An integrated support foot can be used to stabilize the lens on standard camera bracketry, and the zoom, focus and iris rings are geared for use with follow focus and other traditional mechanical and electronic controllers.

Canon has designed the COMPACT-SERVO 18-80mm T4.4 EF lens specifically to work with compatible Cinema EOS cameras, resulting in a complete kit that adds enhanced functionality. Integrated autofocus, smooth image stabilization, connected control and metadata information as well as lateral chromatic aberration correction are all available when using the lens on compatible Cinema EOS cameras.


Autofocus Function
Canon cameras feature advanced autofocus functions. The 18-80mm T4.4 EF lens is designed to work with select Cinema EOS cameras to offer fast and accurate autofocus control. All autofocus controls can be switched off to allow manual focus.

Continuous AF
Different Canon cameras offer various types of continuous autofocus functionality. The fast servo response of the 18-80mm T4.4 EF lens allows for continuous smooth autofocus as with select Cinema EOS cameras. All electrical control of the lens is done directly through the EF-mount.

One-Shot AF
One-Shot Autofocus is a quick reference setting of focus using the autofocus servo system. The camera sets focus of the image the moment the AF button is pushed. Once the control is released, the focus will remain set to that distance. This temporary engagement of autofocus can be useful for selective artistic focus control.

Focus Guide
Select Cinema EOS cameras can use autofocus technology even with the servo control on the 18-80mm T4.4 EF lens disabled. Even with the lens in manual mode, the camera will detect its focus setting and can indicate suggestions in the viewfinder on adjustments for focus in the image.


Image Stabilization (IS)
The 18-80mm T4.4 EF lens is a medium to telephoto zoom. The longer the focal length the more sensitive it is to any shake in the movement. The lens offers three levels of Image Stabilization, including the standard mode for handheld operation, a maximum mode for high-frequency movement and a smooth mode intended for tripod-based operating. The IS function can also be switched off entirely.


EF Communication Functions
There are a host of functions designed to help maximize the integration of the 18-80mm T4.4 EF lens with select Cinema EOS cameras. Integrated autofocus, smooth image stabilization, connected control and metadata information, and lateral chromatic aberration correction are all included when using the lens on compatible Canon Cinema cameras.

Remote Control of Zoom, Focus and Iris via Camera
Select Cinema EOS cameras can power and control the servo drive of the 18-80mm T4.4 EF lens by electrical connection through the EF-mount. A zoom control on the camera body can alter focal length, the autofocus modes of the camera can directly engage the lens focus servo, and the auto exposure camera functions can operate the lens iris to adjust light transmission. Integrating these controls allows easier single-person camera operation, and the 18-80mm T4.4 EF lens can be switched into a partial or fully manual mode if desired.


REC Start/Stop from ZSG-C10 Zoom Servo Grip
Through the EF-mount, the ZSG-C10 Zoom Servo Grip that mounts to the 18-80mm T4.4 EF lens can control record triggering on select Cinema EOS cameras. The optional handgrip also features a zoom servo rocker control and an autofocus engage button.


Peripheral Illumination Correction
Select Cinema EOS cameras can communicate with the 18-80mm T4.4 EF lens to profile its illumination characteristics, and electronically compensate for image brightness dimming in the edges of the frame.


Lateral Chromatic Aberration Correction
The 18-80mm T4.4 EF lens was designed to help minimize lateral chromatic aberration for Super 35mm sensors. Any remaining minimal lateral chromatic aberration is mathematically mapped so that the lens can communicate with select Cinema EOS cameras, which then in turn electronically correct for the artifact.


Lens Meta Data Record
The 18-80mm T4.4 EF lens sends reference information constantly to the camera, noting precise settings for focus, iris and zoom. Data is also transmitted about the lens model itself, and on select Cinema EOS cameras. This information can be recorded for use in post processing. This is useful when matching cameras as well as in VFX work. Some of this data can also be displayed in the camera viewfinder.


T Number/F Number Display Select
The 18-80mm T4.4 EF lens sends metadata information of the iris position through the EF-mount to the camera. On select Cinema EOS cameras, this information can be displayed as a T-stop, which indicates the amount of transmitted light through the aperture. It can also be displayed as an F-stop.

Specifications

Model Name


CN-E18-80mm T4.4 L IS KAS S

Mount


EF

Image Coverage


Super 35

Zoom Ratio


4.4x

Maximum Relative Aperture


T4.4 (F4) at 18-80mm

Iris Blades


9

Angular Field of View


Aspect Ratio 1.78:1, Dimensions 24.6 x 13.8mm
68.7° x 41.9° at 18mm / 17.5° x 9.9° at 80mm

Aspect Ratio 1.9:1, Dimensions 26.2 x 13.8mm
72.1° x 41.9° at 18mm / 18.6° x 9.9° at 80mm

Minimum Object Distance from Image Sensor


0.5m (1.7 ft.)

Object Dimensions at M.O.D.


Aspect Ratio 1.78:1, Dimensions 24.6 x 13.8mm
43.4 × 24.3cm at 18mm / 9.5 × 5.3cm at 80mm

Aspect Ratio 1.9:1, Dimensions 26.2 x 13.8mm
46.2 × 24.3cm at 18mm / 10.1 × 5.3cm at 80mm

Front Diameter


Φ84mm

Filter Size


Φ77mm

Approx. Dimensions (W x H x L)


93.4 x 107.2 x 182.3mm

Approx. Weight


1.2kg (2.65 lbs.)

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you COMPACT-SERVO 18-80mm T4.4 EF that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Brochures

Loading...

White Papers

What Constitutes a High Performance 4K Lens?
A 4K lens must anticipated a wide range of productions – including theatrical motion pictures, major television dramas and episodics, commercials, and a diverse range of non-entertainment origination. So what are the performance parameters that collectively define 4K optical performance? The following paper will enumerate these parameters and discuss user expectations.
Personality of the Canon Cinema EOS Lens: Design Strategies
The newer generation of Cinema EOS lenses came from multiple optical design resources within Canon, such as our EF Lens and Broadcast Lens designs.
Personality of the Canon Cinema EOS Lens: Image Sharpness
A design goal with the Cinema zoom lenses was to achieve an overall optical performance that would equate with the best of contemporary prime lenses over their respective focal lengths. Learn more about how these Cinema zoom lenses maintain their sharpness in a close-up or while zoomed out.
Personality of the Canon Cinema EOS Lens: Color Reproduction
The new generation of Canon Cinema lenses paid high attention to optimizing color reproduction of the lens-camera system, such as how it reproduces skin tones of various ethnicities.
Personality of the Canon Cinema EOS Lens: Contrast
Achieving a high contrast ratio is universally sought by cinematographers and is always a central design goal for the optical designers. Learn about the different designs that help achieve high contrast ratios.
The Promise of 4K
The advent of 4K cinema brings about changes to cameras, lenses, post-production and the home viewing experience. Explore each implication in-depth and see what this digital image format offers.

This is to make Misc appear on the page when needed.

COMPACT-SERVO Lenses Comparison Chart

Download and view this comparison chart to see a side-by-side comparison of our COMPACT-SERVO cinema lenses.


This is to make Misc appear on the page when needed.

ZSG-C10 Zoom Servo Grip



Exclusively designed for the COMPACT-SERVO lens, the optional ZSG-C10 grip makes it easier to operate the lens, helping to support a wider range of shooting styles. Featuring an ergonomic form factor to help maximize comfort, the angle of the grip can be adjusted to help ensure a proper fit, and it can even be attached to the end of a shoulder rig.
Without ZSC-C10 Grip vs With ZSC-C10 Grip
Attaching the grip will allow the cinematographer to access a wide range of functions, including a button for one shot auto focus and to start/stop recording. An easily accessible rocker seesaw switch allows you to quickly zoom in or out on a subject. The grip can be also used even when detached from the lens, as long as the grip unit cable is attached to the lens drive unit. The new grip is sure to satisfy professionals with its high-level combination of functionality* and improved usability.


ZSG-C10 Grip attached to COMPACT-SERVO 18-80mm T4.4

Mounting Angle of Grip Adjustable


Note: The ZSG-C10 is available as an optional accessory, and is not included with the COMPACT-SERVO 18-80mm lens. Items included with the grip body are a support post, storage bag (for grip and support post), bracket, hex key and a user’s guide.
*When using the ZSG-C10 grip, demand operations and zoom servo operations performed using the switches on the lens body will no longer work, because priority is given to the Grip Unit operations.
