    EF-M 28mm f/3.5 Macro IS STM

    Macro

    Item Code: 1362C002AA
    Write a review Read all reviews

    Experience how changing your lens can unlock a world of possibilities, and see beyond what meets the eye. Start Exploring!

    See the possibilities provided by the EOS M Series of digital cameras and EF-M Lenses.

    EOS M Series

    Overview

    The dew on a flower. The color of a cat's eye. The facets and sparkle of a diamond ring. Some ultra-close-up photos are difficult to capture with a standard lens. The compact EF-M 28mm f/3.5 Macro IS STM for EOS M series digital cameras is the world's lightest* autofocus lens and the world's first macro lens with a built-in Macro Lite**, designed to help new and more advanced users close in to capture these incredible details. The built-in, forward-facing Macro Lite helps illuminate hard-to-capture subjects for bright, vibrant photos showing off big, bold details. The world's first autofocus lens capable of focusing to infinity*** in normal shooting and Super Macro Mode provides magnification up to 1.2x, allowing for incredible close-up photography. While you're focusing that close, the Hybrid IS image stabilization helps keep the image sharp by helping to reduce blur due to camera shake. A lead screw-type STM stepping motor means the lens is smooth and quiet during operation. The EF-M 28mm f/3.5 Macro IS STM opens up a whole new world of the macro for beginner and advanced users.




    Features

    Expand All

    World's Lightest Macro Lens*

    The EF-M 28mm f/3.5 Macro IS STM is the world's lightest macro lens*, featuring a total length that's less than 2.0 inches so you can take it just about anywhere with its easy portability. To help ensure pictures with minimal blur while capturing details and small objects, the EF-M 28mm f/3.5 Macro IS STM also features advanced Hybrid IS image stabilization technology.


    * Among macro lenses for interchangeable lens cameras. As of May 11, 2016, based on Canon's research.

    World's First Lens with a Built-in Macro Lite**

    Lighting extreme close-up macro shots can be tricky. The built-in Macro Lite helps make this easier with LEDs that are integrated into the front of the lens, which allow a range of illuminating possibilities. Setting both sides of the light to maximum brightness can reveal previously hidden details and add sparkle to shiny subjects like jewelry or watches. Setting only the left or right side to either bright or dim settings can help create a better sense of depth and give dramatic dimension to minute details.


    ** Among autofocus lenses for interchangeable lens cameras. As of May 11, 2016, based on Canon’s research.

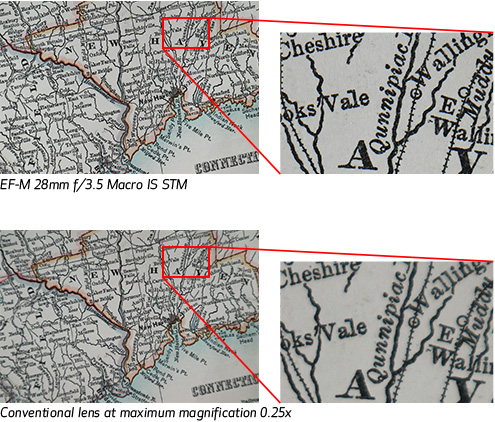

    World's First Autofocus Lens Capable of Focusing at Infinity***

    The excitement of macro photography is being able to show something small in a big way. The EF-M 28mm f/3.5 Macro IS STM's Super Macro Mode lets you get in even closer at up to 0.305 ft./0.093m from your subject. This allows you to see even more detail, fill more of the frame with what you want to highlight and keep unwanted background to a minimum. When using the EF-M 28mm f/3.5 Macro IS STM for non-macro “normal” photography, it's capable of focusing all the way out to infinity just like a standard lens. This is this first time this has been possible in an autofocus lens***.


    *** Among lenses for interchangeable lens cameras. As of May 11, 2016, based on Canon's research.

    Hybrid IS Helps Recude Camera Shake

    Image stabilization helps minimize blurring in an image due to the small movements common when taking handheld photos. The Hybrid IS system on the EF-M 28mm f/3.5 Macro IS STM is the same system used in several of Canon's most advanced EF lenses, and is able to minimize the effects of shakes in the vertical plane (up and down), as well as tilting or at an angle.

    Stepping Motor Helps Provide Smooth and Quiet Operation

    Whether you're taking a close-up photo of a ladybug on a flower or a video of a dog's cheerful face, you don't want noise that startles your subject. The EF-M 28mm f/3.5 Macro IS STM uses a lead screw-type stepping motor (STM), which helps ensure fast autofocusing and near-silent operation while recording videos.

    One UD Lens and Two Aspherical Lenses†

    The EF-M 28mm f/3.5 Macro IS STM uses advanced Canon optics to help provide high amounts of detail and contrast while keeping unwanted chromatic aberrations, lens flare and ghosting to a minimum. One UD lens element and two aspherical lens elements† all work in concert to help provide a sharp, rich image in a stylishly compact size.


    † Including one double-sided aspheric lens.

    Equivalent to a 45mm Standard Lens

    The EF-M 28mm f/3.5 Macro IS STM isn't just a macro lens. It's also great as an everyday walk-around lens for a wide variety of subjects. With a 35mm camera equivalent to a 45mm lens, the EF-M 28mm f/3.5 Macro IS STM is close to the human field of view, and can capture images that appear similar to how you see them normally. This means you can go from a macro photo of a flower's petal, to a headshot of a friend, to a landscape of a sunset, all without changing the lens.

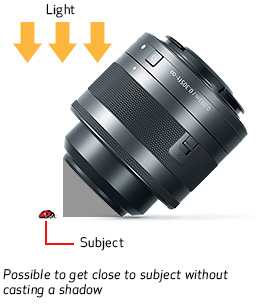

    Acute Lens Top Shape Helps Provide Accurate Image Capture

    The acute lens top shape on the EF-M 28mm f/3.5 Macro IS STM is specially designed for close-in image capture. The center assembly of the lens is smaller than the main body, allowing the front lens element to get extremely close to your subject. At the same time, the main body is set back so it doesn't cast a shadow onto what you're photographing, or bump against the shooting surface as you get in for that detailed macro image. Combined, these features provide easy, convenient photography that's virtually unhindered by unwanted shadows from your equipment.

    Specifications

    View Full Specifications

    Expand All

    Focal Length & Maximum Aperture

    28mm f/3.5

    Lens Construction

    11 elements in 10 groups

    Diagonal Angle of View

    51°55'

    Focus Adjustment

    AF with full-time manual

    Closest Focusing Distance

    Normal Mode: 0.318 ft./0.097m
    Super Macro Mode: 0.305 ft./0.093m

    Filter Size

    Compatible only when hood attached
    Φ43mm (attaches to hood)

    Max. Diameter x Length, Weight

    2.4 x 1.8 in. (lens retracted), approx. 4.6 oz.
    60.9 x 45.5mm (lens retracted), approx. 130g

    Compatible Supplies & Accessories

    Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you EF-M 28mm f/3.5 Macro IS STM that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





    Expand All

    Brochures

    Loading...

    Resources

    MTF Charts

    A Modulation Transfer Function (MTF) chart measures a lens’ expected optical performance at the center of the picture area and measures repeatedly along the diagonal line, further and further toward the corners of the image. The higher a curve is shown on the chart, the better the lens is performing in the area the chart is measuring. As a curve moves from left to right, it displays the lens' results from center towards the corners.

    For more information on understanding how to read Canon Lens MTF charts, please click here.


    This is to make Misc appear on the page when needed.

    Videos


    Canon EF-M 28mm Macro IS STM: The Day a New Lens Arrived

    Watch how the compact EF M 28mm Macro IS STM Lens allows you to close in to capture incredible details. The built-in forward-facing Macro Lite helps illuminate hard-to-capture subjects for bright, vibrant photos showing off big, bold details.

    Canon EF-M 28mm Macro STM Sample Movie

    Watch this sample video captured with the amazing and compact EF-M 28mm f/3.5 Macro IS STM Lens. This remarkable little lens opens up a whole new world or macro for beginner and advanced users.

    Canon EF 101: A Beginner's Guide

    Canon offers a wide range of EF lenses and lens accessories. In this 9 part video series you'll learn all about lens basics and the various lenses available from your host, Canon expert Jon Lorentz.

    Canon EF 101: Lens Basics

    Take a quick and informative first step into the world of lenses with Canon expert Jon Lorentz, providing insight into the type of lenses available, helpful tips and more.

    Canon EF 101: STM Lenses

    Canon STM lenses have stepping motors that allow you to focus quietly and follow your subject smoothly. Canon expert Jon Lorentz demonstrates the quiet smoothness of Canon's STM technology.

    Canon EF 101: Lens Accessories

    Canon expert Jon Lorentz takes a look at some lens accessories including lens hoods, filters, extenders and more and how to care for them.

    This is to make Misc appear on the page when needed.

    DISCLAIMERS


    * Among macro lenses for interchangeable lens cameras. As of May 11, 2016, based on Canon's research.
    ** Among autofocus lenses for interchangeable lens cameras. As of May 11, 2016, based on Canon's research.
    *** Among lenses for interchangeable lens cameras. As of May 11, 2016, based on Canon's research.
    † Including one double-sided aspheric lens.

    † Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
