RF 35mm F1.8 Macro IS STM

Macro

Item Code: 2973C002AA
Be the Revolution - EOS R System

The EOS R System expands the EOS lineup with a full-frame mirrorless camera, new RF lenses, optional mount adapters for compatibility with EF/EF-S lenses, and a game-changing RF lens mount at the heart of it all. Learn more.

Features

2.47 in. Length, Approx. 10.8 oz. Weight

At just 2.47 inches long and approx. 10.8 oz., the RF 35mm F1.8 Macro IS STM makes for a lightweight and comfortable, all-day lens. It's ideal for capturing a variety of subjects and is an excellent complement to the EOS R camera.

Maximum Magnification Ratio of 0.5x

With its maximum magnification ratio of 0.5x, the RF 35mm F1.8 Macro IS STM is remarkably versatile in operation. Whether shooting landscapes, the details of a painting or anything in between, the RF 35mm F1.8 Macro IS STM is both an able walk-around lens and a highly effective lens for macro photography.

A close focusing distance of 0.56 ft./0.17m opens up a world of possibilities for creative expression. Whether capturing flowers, insects or closing in on the details of an object, the RF 35mm F1.8 Macro IS STM lens provides incredible versatility. Combined with 5 stops* of Image Stabilization, the RF 35mm F1.8 Macro IS STM offers admirable performance whether you're shooting handheld or on a tripod.

* Based on CIPA (Camera & Imaging Products Association) standards. Testing performed at a focal length of 35mm using the EOS R camera.

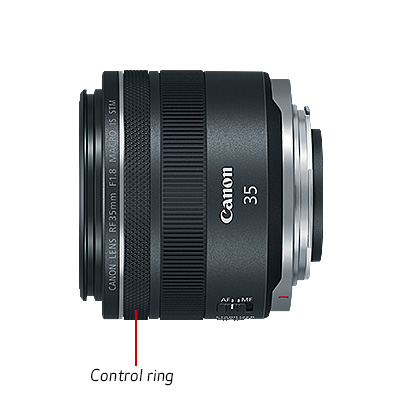

The RF 35mm F1.8 Macro IS STM lens incorporates a control ring on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, exposure compensation and more. Located towards the front of the lens and effectively adding a third dial to the EOS R camera's main dial and quick control dial, the control ring has a tactile, easily distinguished surface and features a clicking mechanism that provides tangible feedback for confident use while looking through the viewfinder. For photographers and moviemakers who would prefer a silent control ring, the clicking mechanism can be removed by a Canon service provider for a fee.

The RF 35mm F1.8 Macro IS STM lens is designed to work in conjunction with the EOS R camera, with both the camera and the lens sharing data to dramatically reduce camera-shake blur, regardless of the situation, whether shooting video or stills. With up to 5 stops* of stabilization, it delivers impressively clear results.

* Based on CIPA (Camera & Imaging Products Association) standards. Testing performed at a focal length of 35mm using the EOS R camera.

High-speed Communication with the Camera

Designed to quickly process data, the RF 35mm F1.8 Macro IS STM features a 12 pin communication system that is the fastest yet for a Canon lens/camera combination. This accelerates AF, Image Stabilization, the Digital Lens Optimizer and more, helping to simplify complex operations and provide a quick and reliable user experience.

Lens Information Display

Another helpful feature, the EOS R camera can display lens information right in the viewfinder, making it easy to confirm the lens's focal length without looking away from the subject at hand.

In-camera Digital Lens Optimizer

The EOS R system's 12 pin communication system enables the Digital Lens Optimizer, which works in-camera to combat aberrations and image deterioration, especially in the edges of the image frame when shooting at a large aperture. Data from the RF 35mm F1.8 Macro IS STM lens is transferred automatically to the camera body, facilitating near immediate correction for clear, detailed images.

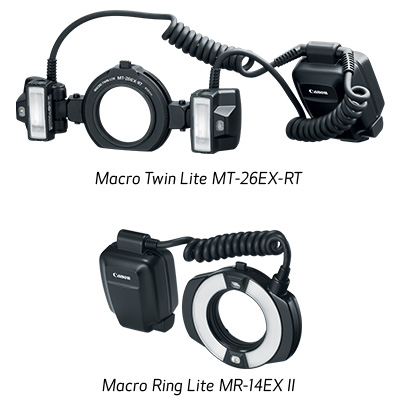

For brilliant close-up photography, the RF 35mm F1.8 Macro IS STM is compatible with Canon's Macro range of Speedlite flashes, including Macro Twin Lites and Macro Ring Lites, for studio-quality, controlled close-up lighting in various situations.

Specifications

Focal Length & Maximum Aperture

35mm f/1.8

Lens Construction

11 elements in 9 groups

Diagonal Angle of View

63°00'

Focus Adjustment

AF with full-time manual

Closest Focusing Distance

0.56 ft. / 0.17m

Filter Size

52mm

Max. Diameter x Length, Weight

Φ2.93 x 2.47 in., approx. 10.8 oz. / Φ74.4 x 62.8mm, approx. 305g

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you RF 35mm F1.8 Macro IS STM that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Brochures

Loading...

White Papers

EOS R System White Paper
Read this informative white paper for a technical view on the new EOS R System and all it has to offer.

This is to make Misc appear on the page when needed.

MTF Charts

A Modulation Transfer Function (MTF) chart measures a lens’ expected optical performance at the center of the picture area and measures repeatedly along the diagonal line, further and further toward the corners of the image. The higher a curve is shown on the chart, the better the lens is performing in the area the chart is measuring. As a curve moves from left to right, it displays the lens' results from center towards the corners. For more information on understanding how to read Canon Lens MTF charts, please click here.

RF 35mm f/1.8L Macro IS STM MTF Chart


This is to make Misc appear on the page when needed.

Videos

Reimagine Optical Excellence

See how Canon’s new EOS R System can help reimagine optical excellence and help capture the beautyof the world.

Discovering Canon’s new EOS R System

Get to know Canon’s new EOS R System that enables maximum optical performance and opens up an exciting possibility to anyone wanting to capture creative images.

Introducing Canon’s RF Lenses

Discover Canon’s new RF lenses and EOS R camera’s features that help to deliver incredible possibilities.

Canon EOS R System Operability

Watch how Canon’s new EOS R system operations provide a high level of customization options for fast, intuitive shooting.

Canon EOS R Sample Video-Lake Natron

Watch and discover why the new EOS R System is set to make an impression on photographers and storytellers today and far into the future.

Discover the New Canon EOS R System with Rudy Winston

Find out all the great benefits and future possibilities the EOS R System has to offer with this insightful video hosted by Canon U.S.A. Technical Advisor, Rudy Winston.


This is to make Misc appear on the page when needed.

Sample Images

Shooting Mode Manual Exposure
Shutter Speed (Tv) 1/125
Aperture (Av) 4.0
ISO Speed 100
Lens RF 35mm F1.8 Macro IS STM
White Balance Color Temperature (5000K)
Picture Style Fine Detail
ISO speed is based on recommended exposure index.
Shooting Mode Manual Exposure
Shutter Speed (Tv) 1/125
Aperture (Av) 8.0
ISO Speed 100
Lens RF 35mm F1.8 Macro IS STM
White Balance Color Temperature (4500K)
Picture Style Fine Detail
ISO speed is based on recommended exposure index.

This is to make Misc appear on the page when needed.

DISCLAIMERS


* Based on CIPA (Camera & Imaging Products Association) standards. Testing performed at a focal length of 35mm using the EOS R camera.

† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
