RF 24-240mm F4-6.3 IS USM

Standard Zoom

Item Code: 3684C002AA

Features

Compact, Lightweight 10x Zoom RF Lens

With a high-magnification of 10x optical zoom and offering coverage from 24mm wide-angle to 240mm telephoto, the RF 24–240mm F4-6.3 IS USM is a perfect all-in-one travel lens that can be used for any number of shooting scenarios. From landscapes to snapshots and videos, and anything else that catches your eye, the RF 24–240mm F4-6.3 IS USM range is highly adaptable.

High Image Quality and Bright f/4-6.3 Lens Aperture

With an incredibly bright focal length lens, the RF 24-240mm F4-6.3 IS USM distinguishes itself by maintaining incredibly high image quality, edge to edge, even wide open at its f/6.3 maximum aperture. With 21 elements in 15 groups and a 7-blade aperture system, it can deliver sharp and detailed images with gorgeous background blur and remarkable consistency.

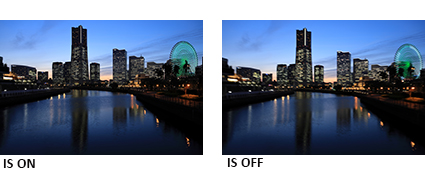

Optical Image Stabilization with up to 5 Stops* of Shake Correction

The RF 24–240mm F4-6.3 IS USM lens is designed to work in conjunction with the EOS R series cameras, with both the camera and the lens sharing data to dramatically reduce camera-shake blur, regardless of the situation, whether shooting video or stills. With up to 5 stops* of stabilization, it delivers impressively clear results.

* Based on CIPA (Camera & Imaging Products Association) standards. Testing performed using the EOS R mirrorless camera at a focal length of 240mm. The number of stops may vary based on the camera model used.

High Speed, Smooth and Quiet Auto Focus with Nano USM

The RF 24-240mm F4-6.3 IS USM uses Canon's NANO USM system which combines conventional ring USM AF, and features a diminutive chip-shaped ultrasonic motor that's engineered to help deliver high-speed, smooth, precise and near-silent operation, plus full time manual focus (when using One-shot AF).

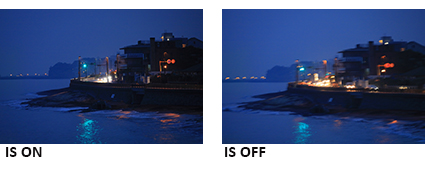

First Canon Lens with Dynamic IS for Full-frame Cameras**

Helping to deliver a wide range of image stabilization correction, the RF 24-240mm F4-6.3 IS USM lens is the first Canon lens that features Dynamic IS for full-frame cameras**. The built-in Image Stabilization helps enhance performance, even in low-light situations, and is especially effective when recording videos.

**This function is effective during Movie Mode.

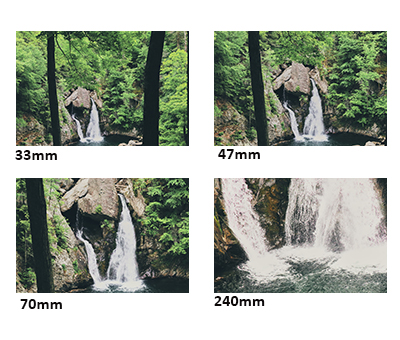

Minimum Focusing Distance of 1.64 ft./0.50m (Wide), 2.56 ft./0.78m (Tele.)

Featuring a minimum focusing distance of 1.64 ft./0.50m (Wide) and 2.56 ft./0.78m (Telephoto) with a maximum magnification of approx. 0.26x*, the RF 24-240mm F4-6.3 IS USM is capable of capturing sharp and detailed images from nearly any distance. Whether you’re shooting videos, still images of landscapes, close ups, or a range of scenes while traveling, the RF 24-240mm F4-6.3 IS USM can easily provide sharp images with minimal distortion.

*at 240mm

Control Ring for Direct Setting Changes***

The RF 24-240mm F4-6.3 IS USM lens incorporates a control/focus ring*** on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, exposure compensation and more. Located towards the end of the lens, the control/focus ring has a tactile, easily distinguished surface and provides tangible feedback for confident use while looking through the viewfinder. The RF 24-240mm F4-6.3 IS USM lens does not have the clicking mechanism as the previous RF lenses have, providing smooth focusing and exposure control while recording videos.

*** The Control ring is the same as the Focusing ring.

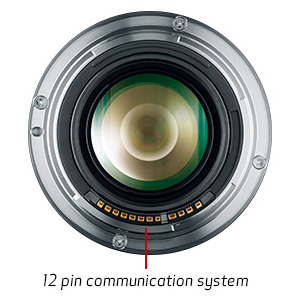

High-speed Communication with the Camera

Designed to quickly process data, the RF 24-240mm F4-6.3 IS USM features a 12 pin communication system that is the fastest yet for a Canon lens/camera combination. This accelerates AF, Image Stabilization, the Digital Lens Optimizer and more, helping to simplify complex operations and provide a quick and reliable user experience.

Lens Information Display

Another helpful feature, the EOS R series cameras can display lens information right in the viewfinder, making it easy to confirm the lens’s focal length without looking away from the subject at hand.

In-camera Digital Lens Optimizer

The EOS R system’s 12 pin communication system enables the Digital Lens Optimizer, which works in-camera to combat aberrations and image deterioration, especially in the edges of the image frame when shooting at a large aperture. Data from the RF 24-240mm F4-6.3 IS USM lens is transferred automatically to the camera body, facilitating near immediate correction for clear, detailed images.

Specifications

Focal Length & Maximum Aperture

24-240mm f/4-6.3

Minimum Focusing Distance

Wide: 1.64 ft./0.50 m
Telephoto: 2.56 ft./0.78 m

Maximum Magnification

0.26x (at 240mm)

Lens Construction

21 elements in 15 groups

Special Elements

1 Aspherical lens, 2 UD lenses

Filter Size Diameter

Φ72 mm

Aperture Blades

7 (circular)

IS (CIPA Standard Correction Effect)

5 stops

Dynamic IS

Provided

Focus Drive System

Nano USM

Minimum Overall Length

4.82 in. / 122.5 mm

Maximum Diameter

Φ3.17 in. / Φ80.4 mm

Weight

Approx. 1.65 lbs. / 750g

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you RF 24-240mm F4-6.3 IS USM that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Brochures

Loading...

Sample Images

More Details

More Details

More Details


*ISO speed is based on recommended exposure index.


This is to make Misc appear on the page when needed.

Videos


Capture It All with the RF 24-240mm F4-6.3 IS USM Lens

Whether you need a lens for macro shots, portraits, landscapes or anything in-between, the wide-ranging RF 24-240mm F4-6.3 IS USM lens is the perfect complement to your Canon R Series camera for inspiring results.

Canon RF 24-240mm F4-6.3 IS USM Lens Announcement Video with Rudy Winston

Learn all about the powerful, 10x zoom lens that’s perfect for EOS R and RP owners looking to capture impressive images - from macro to telephoto - as Canon’s Rudy Winston discusses the RF 24-240mm F4-6.3 IS USM lens.

This is to make Misc appear on the page when needed.

DISCLAIMERS


* Based on CIPA (Camera & Imaging Products Association) standards. Testing performed using the EOS R mirrorless camera at a focal length of 240mm. The number of stops may vary based on the camera model used.

** This function is effective during Movie Mode.

*** The Control ring is the same as the Focusing ring.

^Lens Hood EW-78F is not included with this lens.

1. In order to use this lens with the EOS R or EOS RP, a compatible version of firmware is required. Download the latest camera firmware from the Canon web site and install it on your camera.

2. In order to display image information, please download the latest Digital Photo Professional and Picture Style Editor from the Canon website, or download Digital Photo Professional Express from the App Store.

3. Due to the specifications of this lens, multiple exposure shooting is not supported. Also, it is not possible to shoot multiple exposures with another lens using images shot with this lens.

4. When the aperture is changed from the maximum aperture by an amount equivalent to one click only, the display of the aperture value may not change in some cases. This phenomenon is due to restrictions related to the display of the aperture values, but the actual exposure control is being performed properly.

† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
