RF 24-240mm F4-6.3 IS USM

Standard Zoom

Item Code: 3684C002AA
Be the Revolution - EOS R System

The EOS R System expands the EOS lineup with full-frame mirrorless cameras, the RF lens series, optional mount adapters for compatibility with EF/EF-S lenses, and a game-changing RF lens mount at the heart of it all. Learn more.

Features

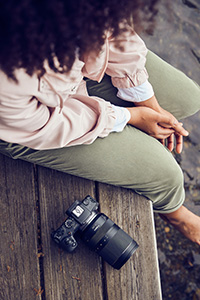

Compact, Lightweight 10x Zoom RF Lens

With a high-magnification of 10x optical zoom and offering coverage from 24mm wide-angle to 240mm telephoto, the RF 24–240mm F4-6.3 IS USM is a perfect all-in-one travel lens that can be used for any number of shooting scenarios. From landscapes to snapshots and videos, and anything else that catches your eye, the RF 24–240mm F4-6.3 IS USM range is highly adaptable.

High Image Quality and Bright f/4-6.3 Lens Aperture

With an incredibly bright focal length lens, the RF 24-240mm F4-6.3 IS USM distinguishes itself by maintaining incredibly high image quality, edge to edge, even wide open at its f/6.3 maximum aperture. With 21 elements in 15 groups and a 7-blade aperture system, it can deliver sharp and detailed images with gorgeous background blur and remarkable consistency.

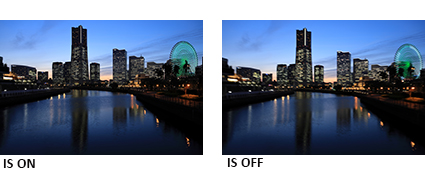

Optical Image Stabilization with up to 5 Stops* of Shake Correction

The RF 24–240mm F4-6.3 IS USM lens is designed to work in conjunction with the EOS R series cameras, with both the camera and the lens sharing data to dramatically reduce camera-shake blur, regardless of the situation, whether shooting video or stills. With up to 5 stops* of stabilization, it delivers impressively clear results.

* Based on CIPA (Camera & Imaging Products Association) standards. Testing performed using the EOS R mirrorless camera at a focal length of 240mm. The number of stops may vary based on the camera model used.

High Speed, Smooth and Quiet Auto Focus with Nano USM

The RF 24-240mm F4-6.3 IS USM uses Canon's NANO USM system which combines conventional ring USM AF, and features a diminutive chip-shaped ultrasonic motor that's engineered to help deliver high-speed, smooth, precise and near-silent operation, plus full time manual focus (when using One-shot AF).

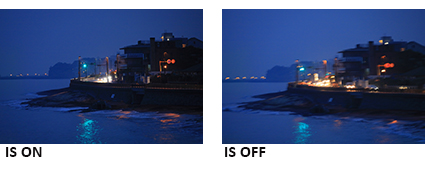

First Canon Lens with Dynamic IS for Full-frame Cameras**

Helping to deliver a wide range of image stabilization correction, the RF 24-240mm F4-6.3 IS USM lens is the first Canon lens that features Dynamic IS for full-frame cameras**. The built-in Image Stabilization helps enhance performance, even in low-light situations, and is especially effective when recording videos.

**This function is effective during Movie Mode.

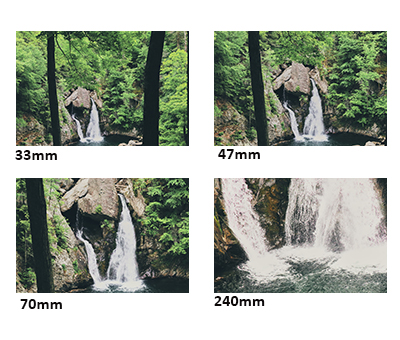

Minimum Focusing Distance of 1.64 ft./0.50m (Wide), 2.56 ft./0.78m (Tele.)

Featuring a minimum focusing distance of 1.64 ft./0.50m (Wide) and 2.56 ft./0.78m (Telephoto) with a maximum magnification of approx. 0.26x*, the RF 24-240mm F4-6.3 IS USM is capable of capturing sharp and detailed images from nearly any distance. Whether you’re shooting videos, still images of landscapes, close ups, or a range of scenes while traveling, the RF 24-240mm F4-6.3 IS USM can easily provide sharp images with minimal distortion.

*at 240mm

Control Ring for Direct Setting Changes***

The RF 24-240mm F4-6.3 IS USM lens incorporates a control/focus ring*** on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, exposure compensation and more. Located towards the end of the lens, the control/focus ring has a tactile, easily distinguished surface and provides tangible feedback for confident use while looking through the viewfinder. The RF 24-240mm F4-6.3 IS USM lens does not have the clicking mechanism as the previous RF lenses have, providing smooth focusing and exposure control while recording videos.

*** The Control ring is the same as the Focusing ring.

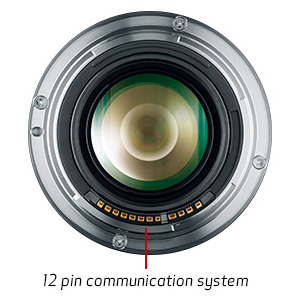

High-speed Communication with the Camera

Designed to quickly process data, the RF 24-240mm F4-6.3 IS USM features a 12 pin communication system that is the fastest yet for a Canon lens/camera combination. This accelerates AF, Image Stabilization, the Digital Lens Optimizer and more, helping to simplify complex operations and provide a quick and reliable user experience.

Lens Information Display

Another helpful feature, the EOS R series cameras can display lens information right in the viewfinder, making it easy to confirm the lens’s focal length without looking away from the subject at hand.

In-camera Digital Lens Optimizer

The EOS R system’s 12 pin communication system enables the Digital Lens Optimizer, which works in-camera to combat aberrations and image deterioration, especially in the edges of the image frame when shooting at a large aperture. Data from the RF 24-240mm F4-6.3 IS USM lens is transferred automatically to the camera body, facilitating near immediate correction for clear, detailed images.

Specifications

Focal Length & Maximum Aperture

24-240mm f/4-6.3

Minimum Focusing Distance

Wide: 1.64 ft./0.50 m
Telephoto: 2.56 ft./0.78 m

Maximum Magnification

0.26x (at 240mm)

Lens Construction

21 elements in 15 groups

Special Elements

1 Aspherical lens, 2 UD lenses

Filter Size Diameter

Φ72 mm

Aperture Blades

7 (circular)

IS (CIPA Standard Correction Effect)

5 stops

Dynamic IS

Provided

Focus Drive System

Nano USM

Minimum Overall Length

4.82 in. / 122.5 mm

Maximum Diameter

Φ3.17 in. / Φ80.4 mm

Weight

Approx. 1.65 lbs. / 750g

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you RF 24-240mm F4-6.3 IS USM that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Brochures

Loading...

Sample Images

More Details

More Details

More Details


*ISO speed is based on recommended exposure index.


This is to make Misc appear on the page when needed.

Videos


Capture It All with the RF 24-240mm F4-6.3 IS USM Lens

Whether you need a lens for macro shots, portraits, landscapes or anything in-between, the wide-ranging RF 24-240mm F4-6.3 IS USM lens is the perfect complement to your Canon R Series camera for inspiring results.

Canon RF 24-240mm F4-6.3 IS USM Lens Announcement Video with Rudy Winston

Learn all about the powerful, 10x zoom lens that’s perfect for EOS R and RP owners looking to capture impressive images - from macro to telephoto - as Canon’s Rudy Winston discusses the RF 24-240mm F4-6.3 IS USM lens.

This is to make Misc appear on the page when needed.

DISCLAIMERS


* Based on CIPA (Camera & Imaging Products Association) standards. Testing performed using the EOS R mirrorless camera at a focal length of 240mm. The number of stops may vary based on the camera model used.

** This function is effective during Movie Mode.

*** The Control ring is the same as the Focusing ring.

^Lens Hood EW-78F is not included with this lens.

† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
