RF 28-70mm F2 L USM

Standard Zoom

Item Code: 2965C002AA
Be the Revolution - EOS R System

The EOS R System expands the EOS lineup with a full-frame mirrorless camera, new RF lenses, optional mount adapters for compatibility with EF/EF-S lenses, and a game-changing RF lens mount at the heart of it all. Learn more.

Features

For a stunningly bright f/2 aperture throughout the zoom range, look no further than the amazing RF 28–70mm F2 L USM. It is the world's first autofocus zoom lens compatible with 35mm full frame sensors to have a maximum f/2 aperture*. Thanks to the large-diameter RF mount and short back focus design, the RF 28–70mm F2 L USM also features a balanced and comfortable size for unfettered operation, amazing performance in low-light areas and sharp images with gorgeous background blur at various focal lengths.

* As of September 5, 2018, based on Canon's research.

High Image Quality at f/2 that Rivals the EF 24–70mm f/2.8 at f/2.8

Thanks to an optical design made possible by the RF mount, the RF 28–70mm F2 L USM lens is able to render image quality at f/2 that rivals that of the EF 24–70mm f/2.8 at f/2.8. With an extra stop of light, this means faster shutter speeds or lower ISOs for enhanced image quality, and marvelous performance when shooting movies.


High Precision and Flexibility to Match Fixed Focal Length Lenses

With a brilliant optical design and speedy performance, the RF 28–70mm F2 L USM lens delivers the flexibility, performance and image quality of 28mm, 35mm, 50mm and 70mm fixed focal length lenses in one discreet package. Combining the outstanding performance, brightness and versatility of several focal lengths into one lens, the RF 28–70mm F2 L USM lens performs with reassuring consistency, especially in high-pressure situations where quality matters and there's no time for lens changes.

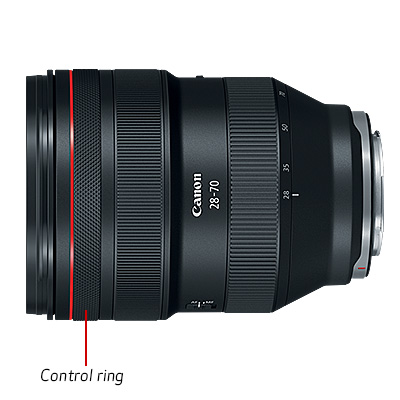

The RF 28–70mm F2 L USM lens incorporates a control ring on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, exposure compensation and more. Located towards the front of the lens and effectively adding a third dial to the EOS R camera's main dial and quick control dial, the control ring has a tactile, easily distinguished surface and features a clicking mechanism that provides tangible feedback for confident use while looking through the viewfinder. For photographers and moviemakers who would prefer a silent control ring, the clicking mechanism can be removed by a Canon service provider for a fee.

High Reliability and Durability for Professional Use

Like all L series lenses, the RF 28–70mm F2 L USM lens is built to endure the rigors of professional use. Constructed to be rugged, refined and precise, it can be operated intuitively so concentration can remain on the subject at hand.

Vibration Shock Resistance

Engineered to accommodate its optical system, the RF 28–70mm F2 L USM lens features L series level vibration shock resistance in the lens barrel, helping to maintain focus and settings even in turbulent situations.

Dust- and Water-resistant

For reliable performance even when weather conditions get difficult, the RF 28–70mm F2 L USM lens features dust- and water-resistant construction in the lens mount, switch panel and all rings.

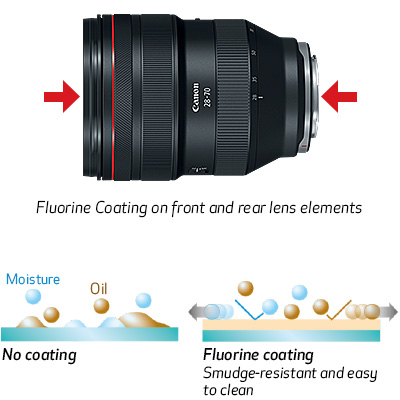

Fluorine Coating

The RF 28–70mm F2 L USM lens features fluorine coatings on the front and rearmost surfaces to help prevent dirt and dust from sticking to the lens, making it easy to clean smudges and fingerprints off.

High-speed Communication with the EOS R Camera

Designed to quickly process data, the RF 28–70mm F2 L USM features a 12 pin communication system that is the fastest yet for a Canon lens/camera combination. This accelerates AF, Image Stabilization, the Digital Lens Optimizer and more, helping to simplify complex operations and provide a quick and reliable user experience.

Lens Information Display

Another helpful feature, the EOS R camera can display lens information right in the viewfinder, making it easy to confirm the lens's focal length without looking away from the subject at hand.

In-camera Digital Lens Optimizer

The EOS R system's 12 pin communication system enables the Digital Lens Optimizer, which works in-camera to combat aberrations and image deterioration, especially in the edges of the image frame when shooting at a large aperture. Data from the RF 28–70mm F2 L USM lens is transferred automatically to the camera body, facilitating near immediate correction for clear, detailed images.

The RF 28–70mm F2 L USM features an all-new optical design built specifically for the RF mount. This includes four aspheric lenses that correct for aberrations, distortions and astigmatism, plus two UD elements and one Super UD element to reduce chromatic aberration and achieve high image quality across the board. Strategically placed coatings and a 9-blade aperture help ensure superlative quality images with sharp detail, gorgeous color and minimized distortion throughout the zoom range.

The RF 28–70mm F2 L USM lens features Canon's Air Sphere Coating (ASC), which significantly reduces the occurrence of lens flare and ghosting regardless of focal length or the angle of light. This helps provide clean results with minimal distractions and aberrations.

Specifications

Focal Length & Maximum Aperture

28-70mm f/2

Lens Construction

19 elements in 13 groups

Diagonal Angle of View

75°00'-34°00'

Focus Adjustment

AF with full-time manual

Closest Focusing Distance

1.28 ft. / 0.39m

Filter Size

95mm

Max. Diameter x Length, Weight

Φ4.09 x 5.50 in., approx. 3.15 lbs. / Φ103.8 x 139.8mm, approx. 1430g

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you RF 28-70mm F2 L USM that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Brochures

Loading...

White Papers

EOS R System White Paper
Read this informative white paper for a technical view on the new EOS R System and all it has to offer.

This is to make Misc appear on the page when needed.

MTF Charts

A Modulation Transfer Function (MTF) chart measures a lens’ expected optical performance at the center of the picture area and measures repeatedly along the diagonal line, further and further toward the corners of the image. The higher a curve is shown on the chart, the better the lens is performing in the area the chart is measuring. As a curve moves from left to right, it displays the lens' results from center towards the corners. For more information on understanding how to read Canon Lens MTF charts, please click here.

RF 24-105mm f/4L IS USM Tele MTF Chart


This is to make Misc appear on the page when needed.

Videos

Reimagine Optical Excellence

See how Canon’s new EOS R System can help reimagine optical excellence and help capture the beautyof the world.

Discovering Canon’s new EOS R System

Get to know Canon’s new EOS R System that enables maximum optical performance and opens up an exciting possibility to anyone wanting to capture creative images.

Introducing Canon’s RF Lenses

Discover Canon’s new RF lenses and EOS R camera’s features that help to deliver incredible possibilities.

Canon EOS R System Operability

Watch how Canon’s new EOS R system operations provide a high level of customization options for fast, intuitive shooting.

Canon EOS R Sample Video-Lake Natron

Watch and discover why the new EOS R System is set to make an impression on photographers and storytellers today and far into the future.

Discover the New Canon EOS R System with Rudy Winston

Find out all the great benefits and future possibilities the EOS R System has to offer with this insightful video hosted by Canon U.S.A. Technical Advisor, Rudy Winston.


This is to make Misc appear on the page when needed.

Sample Images

Shooting Mode Manual Exposure
Shutter Speed (Tv) 1/200
Aperture (Av) 8.0
ISO Speed 100
Lens RF 28–70mm F2 L USM
White Balance Cloudy
Picture Style Standard
ISO speed is based on recommended exposure index.
Shooting Mode Aperture-Priority AE
Shutter Speed (Tv) 1/500
Aperture (Av) 8.0
ISO Speed 100
Lens RF 28–70mm F2 L USM
White Balance Daylight
Picture Style Landscape
ISO speed is based on recommended exposure index.

This is to make Misc appear on the page when needed.
