RF24-105mm F4-7.1 IS STM

Standard Zoom

Item Code: 4111C002AA
Be the Revolution - EOS R System

The EOS R System expands the EOS lineup with full-frame mirrorless cameras, the RF lens series, optional mount adapters for compatibility with EF/EF-S lenses, and a game-changing RF lens mount at the heart of it all. Learn more.

CarePAK PLUS offers protection from accidental damage such as drops, spills, power surges, and more.

Features

Compact and Lightweight

A dramatically compact lens, the RF24-105mm F4-7.1 IS STM packs a broad zoom range and a bright maximum aperture into a well-balanced, refined design that balances comfortably on EOS R series cameras. The RF24-105mm F4-7.1 IS STM lens makes for a lightweight and comfortable, all-day lens.


Ideal Zoom Range for All-day Photography

With a zoom range covering macro-like, wide angle, normal and telephoto, the RF24-105mm F4-7.1 IS STM excels in a variety of shooting situations, offering amazing versatility with the turn of a zoom ring. For example, with the RF24-105mm F4-7.1 IS STM, the EOS R series cameras can go from shooting landscapes to portraits without a single lens change.

Maximum Magnification of 0.4x and Minimum Focusing Distance of 0.66 ft. in Auto Focus

With a minimum focusing distance of 0.66 ft./0.20m and a maximum magnification of approx. 0.4x, the RF24-105mm F4-7.1 IS STM lens is capable of capturing detailed images from various distances. Whether you're shooting portraits or still-life, the RF24-105mm F4-7.1 IS STM lens can easily provide sharp images with minimal distortion.

Maximum Magnification of 0.5x and Minimum Focusing Distance of 0.43 ft. when using Center Focus Macro

The RF24-105mm F4-7.1 IS STM lens is ideal for capturing a variety of subjects at a close ratio. With its maximum magnification ratio of 0.5x - using Center Macro Focus. Simply switch the focus mode to "MF" (Manual Focus) on any EOS R series camera, set the focus/control ring switch to "FOCUS" and enjoy snapping shots from as close as one inch away.

Optical Image Stabilization at up to 5 Stops** of Shake Correction

The RF24-105mm F4-7.1 IS STM lens is designed to work in conjunction with EOS R series cameras, with both the camera and the lens sharing data to dramatically reduce camera-shake blur, regardless of the situation, whether shooting video or stills. With up to 5 stops** of stabilization, it delivers impressively clear results.

Leadscrew-type STM enables Smooth Autofocusing for Still-image and Video Shooting

Capture fast-moving subjects without missing a moment by combining the leadscrew-type STM with the EOS R series' Dual Pixel autofocus system to achieve high-speed, high-precision focus.

Control Ring for Direct Setting Changes***

The RF24-105mm F4-7.1 IS STM lens incorporates a control ring on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, exposure compensation and more. Located towards the front of the lens, the control ring has a tactile, easily distinguished surface that provides tangible feedback for confident use while looking through the viewfinder.

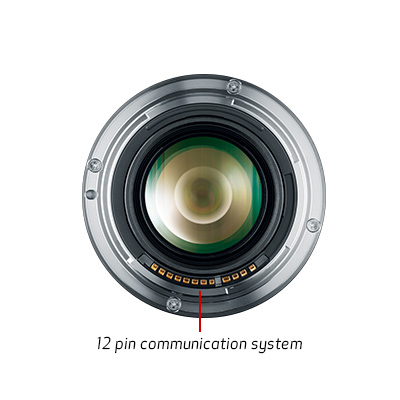

High-speed Communication with an EOS R Series Camera

Designed to quickly process data, the RF24-105mm F4-7.1 IS STM features a 12 pin communication system that is the fastest yet for a Canon lens/camera combination. This accelerates AF, Image Stabilization, the Digital Lens Optimizer and more, helping to simplify complex operations and provide a quick and reliable user experience.

Lens Information Display

Another helpful feature, the EOS R series cameras can display lens information right in the viewfinder, making it easy to confirm the lens's focal length without looking away from the subject at hand.

In-camera Digital Lens Optimizer

The EOS R system's 12 pin communication system enables the Digital Lens Optimizer, which works in-camera to combat aberrations and image deterioration, especially in the edges of the image frame when shooting at a large aperture. Data from the RF24-105mm F4-7.1 IS STM lens is transferred automatically to the camera body, facilitating near immediate correction for clear, detailed images.

Specifications

Focal Length & Maximum Aperture

24-105mm, f/4-7.1

Minimum Focusing Distance

During AF: 0.7 - 1.12 ft./ 0.2 - 0.34m
During MF: 0.43 - 1.12 ft./ 0.13 - 0.34m

Maximum Magnification

During AF: 0.4x (105mm)
During MF: 0.5x (24mm)

Lens Construction

13 elements in 11 groups

Special Lenses

One aspherical lens

Filter Size

Ø67mm

Aperture Blades

7 (circular)

IS (CIPA Standard Correction Effect)

5 stops (When using the EOS R with a 105mm focal length.)

Focus Drive System

STM + lead screw

Minimum Overall Length

Approx. 3.50 in. / 88.8mm

Maximum Diameter

Approx. Ø3.02 in. / Ø76.6mm

Weight

Approx. 0.87 lbs. / 395g

RF24-105mm F4-7.1 IS STM

RF24-105mm F4-7.1 IS STM RF24-105mm F4-7.1 IS STM Lens Cap E-6711 Lens Dust Cap RF

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you RF24-105mm F4-7.1 IS STM that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Brochures

Loading...

Sample Images

More Details

More Details

More Details


*ISO speed is based on recommended exposure index.


This is to make Misc appear on the page when needed.

Videos


Explore the New RF24-105mm F4-7.1 IS STM Lens with Jon Lorentz

Add versatility to your gear bag with the new RF24-105mm F4-7.1 IS STM lens. Designed for EOS R series cameras, this compact and lightweight lens offers a flexible zoom range, excellent close-up focusing – including 0.5x maximum magnification – and smooth autofocusing, thanks to a leadscrew-type STM motor. Explore these key features and more with Canon USA's Technical Advisor, Jon Lorentz.

This is to make Misc appear on the page when needed.

DISCLAIMERS


* In order to use this lens with the EOS R or EOS RP, you must download and install the latest camera firmware from the Canon website.

** Based on CIPA (Camera & Imaging Products Association) standards. Testing performed at a focal length of 105mm using the EOS R camera.

*** The Control ring is the same as the Focusing ring.

† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
