RF1200mm F8 L IS USM Lens

Super Telephoto

Item Code: 5056C002AA

Features

Outstanding Image Quality, 1200mm Super-telephoto Fixed Focal Length Lens Expands the EOS R System.

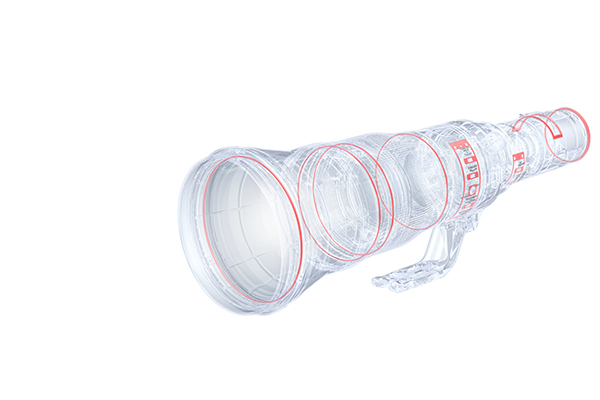

Optimized magnification optics increase the focal length while retaining nearly the same light weight, portability and high levels of image quality achieved in the RF600mm F4 L IS USM lens. A combination of two large-diameter Fluorite elements, one Super UD (Ultra-low Dispersion) and one UD-glass element provides outstanding sharpness and contrast, even at maximum aperture. A UD lens element positioned in the rear section of the lens provides excellent correction of the increased chromatic aberration generated by the magnification optics. This results in tack-sharp images with minimal color fringing in any shooting condition.

Photo by Peter Read Miller, using the Canon EOS R3 and RF1200mm F8 L IS USM lens.

Impressively Light at 7.4 lbs., While Retaining High Levels of Image Quality

Numerous optical and mechanical steps combine to make the RF1200mm F8 L IS USM supremely light weight for its focal length, transforming it into a lens that's equally at home in situations requiring mobility and portability such as when shooting motorsports and wildlife, or if used with a tripod to keep it fixed on a subject such as home plate if shooting at a baseball game. Since it uses the same front-section optical design as the EF version III and RF600mm F4 L-series lenses, similar superb image quality can be expected, delivering visual impact with its amazing telephoto power.

Photo by Peter Read Miller, using the Canon EOS R3 and RF1200mm F8 L IS USM lens.

Minimum Focusing Distance of Approx. 14.1 ft. / 4.3 m.

With a minimum focusing distance of approx. 14.1 ft./4.3 m., the RF1200mm F8 L IS USM lens helps you get close to your subjects. At its closest focus distance, users can fill the frame with a subject smaller than a regulation, pro-sized US football.

Optical Image Stabilization with up to 4 Stops* of Shake Correction

The RF1200mm F8 L IS USM features an Optical Image Stabilizer system that provides up to 4 stops* of shake correction, delivering consistent and sharp results. This helps provide reliable monopod-mounted - or even hand-held, for some users -performance and clear image detail in low-light situations or at lower ISOs. This applies when capturing both stills and video, for stable shooting, and sharp final imagery.

Three IS Operation Modes

Three image stabilization modes provide shake-correction for outstanding results in a wide range of shooting situations. These include traditional stabilization, with the correction visible any time IS is active in the camera's viewfinder (IS Mode 1); helping to correct camera shake when intentionally panning horizontally (or vertically), providing shake-correction perpendicular to the photographer's panning movement (IS Mode 2); and stabilization that instantly goes into effect only when the shutter is released - no correction visible between shots, in the camera's viewfinder (IS Mode 3).

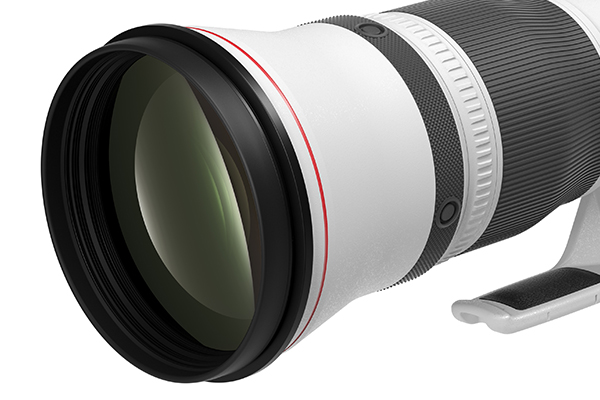

Super Spectra Coating (SSC) and Air Sphere Coating (ASC) Helps Minimize Ghosting and Flare

The RF1200mm F8 L IS USM lens features Canon's Super Spectra Coating (SSC) that helps maintain overall image quality and color fidelity, as well as Air Sphere Coating (ASC), which significantly helps to reduce the occurrence of lens flare and ghosting. This helps provide clean results with minimal flare and loss of contrast, especially in heavily back-lit situations.

Compatible with Canon RF1.4x and RF2x Extenders

To help get you even closer to the subject, attach either the optional Canon Extender RF1.4x or Extender RF2x to the RF1200mm F8 L IS USM. Expand effective telephoto power to 1680mm at f/11 with the Extender RF1.4x, or to effective 2400mm at f/16 using the Extender RF2x. Canon RF tele extenders transform the lens into an incredibly powerful telephoto combination for wildlife or sports photography and more.

Customizable Electronic Focus Ring, with Manual Focus Capability during SERVO AF

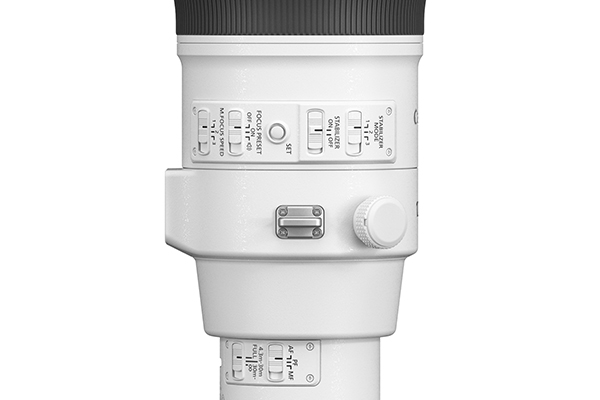

Featuring a customizable electronic manual focus ring on the lens barrel, the RF1200mm F8 L IS USM allows you to select from three different speed levels to adjust manual focus to your desired preference. Adjusted with a 3-position, Manual Focus Speed switch on the lens barrel, Mode 1 provides the “fastest” setting - minimal rotation of the manual focus ring results in significant shifts in actual focus. The Mode 2 and 3 settings add sensitivity, allowing finer focus control as the ring is rotated. The RF1200mm F8 L IS USM therefore allows the user to select a preference for quick, rapid manual focus changes, or fine manual focus adjustments. Additionally, manual focus is still possible while autofocus is engaged, letting you fine tune focus adjustments to suit your shooting preferences.

Two Focus Presets Available - Instantly Return to One or Two Memorized Focus Distances

Quickly select between one or two memorized focus distances, with focus presets. Especially useful for fixed-position sports photography, you can focus upon and memorize two separate focus distances. Then, with a simple twist of the playback ring, immediately jump back to one or the other. A sports photographer, for example, could easily pre-focus on the midfield line and the goal with the ability to rapidly move focus back to either position with a slight turn of the playback ring on the lens barrel.

Photo by Peter Read Miller, using the Canon EOS R3 and RF1200mm F8 L IS USM lens.

9-blade Circular Aperture for Beautiful, Soft Backgrounds

Thanks to its 9-blade, circular aperture, the RF1200mm F8 L IS USM is capable of gorgeous bokeh, achieving evocative out-of-focus areas and soft backgrounds. Delivering more rounded background blur, the 9-blade circular aperture helps create intimacy and intensity in background and foreground bokeh for both photos and videos.

Photo by Peter Read Miller, using the Canon EOS R3 and RF1200mm F8 L IS USM lens.

Durable L-series Construction with Dust- and Water-resistant Design, Fluorine Coating on Front Element for Easy Cleaning

Built to L series lens specifications, the RF1200mm F8 L IS USM features a highly durable design for excellent performance even in inclement weather conditions. It delivers a dust- and water-resistant construction with seals around the mount, switches, rings and more. To help maintain a clean lens, even after multiple lens changes in sub-optimal conditions, the RF1200mm F8 L IS USM has a specially designed fluorine coating on its front and rear surfaces. The coating helps to prevent water, oil, and other surface residue like fingerprints from sticking to the lens, which facilitates quick and easy wiping, without the use of solvents.

Specifications

Focal Length

1200mm

Maximum and Minimum Aperture

f/8 - f/64

Lens Mount Type

RF Mount, metal

Compatible Cameras

Canon EOS R-series

Minimum Focusing Distance

4.3 m / 14.1 ft.

Maximum Magnification

0.29x

Field of View, at Minimum Focus Distance

Approx. 241 mm × 161 mm / 9.5 x 6.3 in.

Angle of View (Diagonal)

02° 05'

Canon RF Extender 1.4x/2x

Compatible

Equivalent Focal Length / Maximum Aperture

RF1.4x - 1680mm f/11
RF2x - 2400mm f/16

Maximum close-focusing magnification

RF1.4x - 0.41x
RF2x - 0.60x

Autofocus with EOS R-series cameras* * (as of 2/2022)

Possible with either extender

Image Stabilizer with EOS R-series cameras* * (as of 2/2022)

Possible with either extender

Lens Construction

26 elements in 18 groups

Special Elements

(2) Fluorite, (1) Super UD Lenses, (1) UD (Ultra-low Dispersion)

Lens Coating

Super Spectra Coating, Fluorine Coating, ASC

Filter Size Diameter

ο52 mm

Aperture Blades

9, circular shape

Image Stabilization

4 stops correction with In-lens Optical Image Stabilization

Focusing Drive System

Canon USM low-speed drive (Ring USM)

Full-time Manual Focusing

Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)

Manual Focus Speed Selection

Yes (1, 2, and 3 settings, via switch on lens)
• 1= fastest MF; 3= slowest MF rotation

Focus Distance Range Selection

Yes (3 positions, via switch on lens)
• FULL — 4.3m/14.1 feet – infinity
• 4.3m/14.1 feet – 30m/98.4 feet
• 30m/98.4 feet – infinity

Dual Pixel CMOS AF Coverage (Horizontal x Vertical)

EOS R5/R6 - approx. 100% x 100%
EOS R - approx. 88% x 100%

With Extender RF1.4x

EOS R5/R6 - approx. 80% x 80%
EOS R - approx. 80% x 80%

With Extender RF2x

EOS R5/R6 - approx. 40% x 60%
EOS R - approx. 40% x 60%

Power Focus

Yes, via rotation of Playback Ring
• Lens Focus Preset switch set to OFF; Focus Mode switch set to PF
• Two focus speeds, based on ring rotation angle

IS On-Off

Image Stabilizer switch, on lens barrel

Optical Image Stabilization

Provided
• 4 stops correction (CIPA standard) with both EOS R and R5

IS Mode Selection

IS Modes 1, 2 and 3 (via switch on lens barrel)
• Mode 1 - general shake correction
• Mode 2 - correction during panning
• Mode 3 - correction only during exposure

Panning Mode Support (SCN Mode)

Supported

Control Ring

Dual-function Manual focus ring / Control Ring (selected using camera menu)

Manual Focus Ring

Electronic ring system
• Full-time Manual focus possible
• No physical limit to ring rotational angle

AF/MF Switch

YES - AF/PF/MF Switch

MF/Control Ring Switch

None - must be selected in camera menu

Distance Scale

None
• Distance scale available in EVF or Live View LCD screen of compatible EOS R-series cameras

Distance Limiter Switch

FULL (2.6 m to infinity) / 2.6 m to 20 m / 20 m to infinity

Focus Pre-set Function

Yes, via Playback Ring on lens barrel
• Off - On - On with beep tone, via lens switch
• Distance memorized via Focus Preset button
• Two distances can be memorized; immediate return to either via direction of Playback Ring

Lens Function Buttons (AF-Stop Buttons)

Yes; four positioned on lens barrel

Dust / Weather Resistant Construction

Yes - rubber ring on lens mount

Maximum Outer Diameter x Length

Approx. ο6.6 in. x 21.1 in. (ο168.0mm x 537mm)

Weight

Approx. 117.8 oz. / 7.4 lb. / 3340g

Lens Hood

Canon Lens Hood (long) ET-160 (Bundled)
Canon Lens Hood (short) ET-160B (Sold Separately)

Lens Cap

Canon E-185C (Bundled)

Dust Cap

Canon Lens Dust Cap RF (Bundled)

Lens Case

Canon Lens Soft Case LS1200 (Bundled)

Extension Tubes

None (No Canon RF mount extension tubes)

Close-up Lenses 250D / 500D

Not compatible

Drop-in Filters

Compatible - 52mm Drop-in Filter Holder 52 (WIII) Included
• Accepts 52mm screw-in filters
• Canon 52mm clear Protect Filter included

RF1200mm F8 L IS USM

RF1200mm F8 L IS USM
  • RF1200mm F8 L IS USM
  • Lens Cap E-185C
  • Lens Dust Cap RF
  • Drop-in Screw Filter Holder 52(WIII) with 52mm Protect Filter
  • Lens Hood ET-160(WIII)
  • Lens Soft Case LS1200
  • Lens Wide Strap B

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you RF1200mm F8 L IS USM Lens that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Sample Images

More Details

More Details

More Details

More Details

More Details

More Details



*ISO speed is based on recommended exposure index.


This is to make Misc appear on the page when needed.

Videos



Introduction to the Canon RF1200mm F8 L IS USM Lens



Watch along as Canon Expert Rudy Winston takes you on a tour of the features and performance of the RF1200mm F8 L IS USM Lens.



Introducing the Canon RF1200mm F8 L IS USM with Peter Read Miller



Watch as Canon Legend Peter Read Miller describes his experience with the RF1200mm F8 L IS USM and why it is an ideal lens for him as a professional sports photographer.

This is to make Misc appear on the page when needed.

MTF Charts

A Modulation Transfer Function (MTF) chart measures a lens’ expected optical performance at the center of the picture area and measures repeatedly along the diagonal line, further and further toward the corners of the image. The higher a curve is shown on the chart, the better the lens is performing in the area the chart is measuring. As a curve moves from left to right, it displays the lens' results from center towards the corners.

For more information on understanding how to read Canon Lens MTF charts, please click here.



This is to make Misc appear on the page when needed.

DISCLAIMERS


*Based on CIPA (Camera & Imaging Products Association) standards. Testing performed using the EOS R, R5, and R3 cameras.
** As of February 2022.
