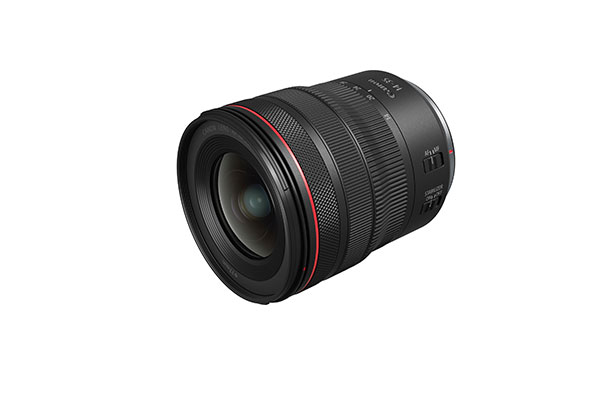

RF14-35mm F4 L IS USM

Ultra-Wide Zoom

Item Code: 4857C002AA

Features

Dramatic, creative possibilities with 14mm ultra wide-angle coverage

Ultra wide-angle coverage changes the way you see the world — whether you shoot video, landscapes, interiors, travel, or simply creative images that leverage lens effects. The combination of 14mm coverage, with a full-frame camera, is a direct line to making the ordinary visually extraordinary.

Covers entire wide-angle zoom range, from exceptionally wide 14mm through 35mm



One lens for all wide-angle needs — for everything from street shooting or group photos to dramatic, ultra-wide architectural images. This lens is one-stop shopping for anyone who enjoys the possibilities of wide-angle imagery. And, vital to landscape shooters, this lens accepts standard 77mm screw-in filters — an incredible feature on a lens as wide as 14mm.

Bright, constant f/4 zoom lens with L-series optical construction

Superb optics, as you’d expect from a Canon L-series lens, for truly professional-level image and video quality. And with its constant f/4 maximum aperture, there’s no worry about exposure adjustments as you zoom.

Subwavelength Structure Coating (SWC) and Air Sphere Coating (ASC) help to significantly reduce flare and ghosting

The RF14-35mm F4 L IS USM lens features our Subwavelength Structure Coating (SWC) and Air Sphere Coating (ASC), which helps to reduce the occurrence of lens flare and ghosting. This helps provide clean results with minimal distractions and aberrations

Compact design — Approx. 1.2 lbs. weight, similar to RF85mm F2 IS STM lens

Its strong, pro-level build quality belies this lens’s delightfully compact size and weight. Significantly lighter than comparable f/2.8 ultra-wide zooms, it’s tremendously appealing for its portability and easy handling — making it perfect for travel.

Close-focusing down to 7.9 inches at all focal lengths, and maximum magnification of 0.38x, at 35mm zoom setting

Combining the visual power of wide-angle coverage with excellent close-focusing opens up a whole new way of seeing small, nearby subjects. It’s yet another way to add drama to your video and still images.

Optical Image Stabilizer with up to 5.5 stops* of shake correction

Built-in, optical Image Stabilization means steadier, sharper video and still images, enhancing the possibilities in dim lighting, and at slower shutter speeds. On cameras without In-Body Image Stabilization, up to 5.5 stops* of still-image shake correction is possible.

Up to 7 stops** of shake correction when paired with EOS R-series cameras featuring In-Body Image Stabilizer (IBIS)



When used with Canon EOS R-series cameras that have In-Body Image Stabilization (IBIS), Coordinated IS means you get the shake-correction of both the lens IS and the camera’s IBIS. With this lens, safe hand-holding is possible at shutter speeds up to 7 stops** slower than you could achieve without stabilization.

High speed, smooth and quiet autofocus with Nano USM

With any Canon EOS R-series camera, expect swift and positive autofocus. The Nano USM focus system is especially advantageous to video users, because of its combination of quiet operation and outstanding smoothness of focus changes during actual recording.

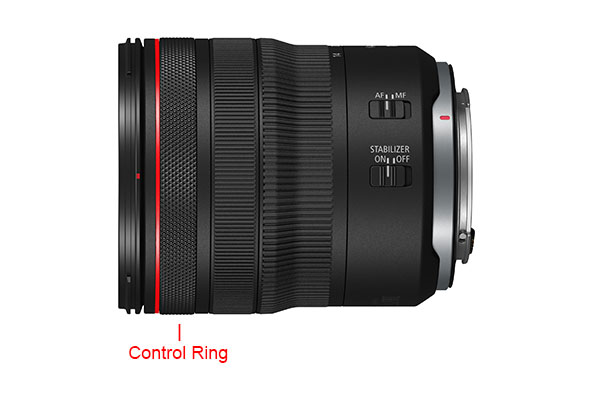

Control Ring for direct settings changes

A customizable, click-stopped Control Ring is at the front of the RF14–35mm F4 L IS USM lens, giving yet another control input option for quick adjustments to exposure and other settings. Click-stopped operation gives positive tactile feedback, as you make adjustments. For photographers and moviemakers who would prefer a silent control ring, the clicking mechanism can be removed at a Canon Factory Service Center location for a fee.

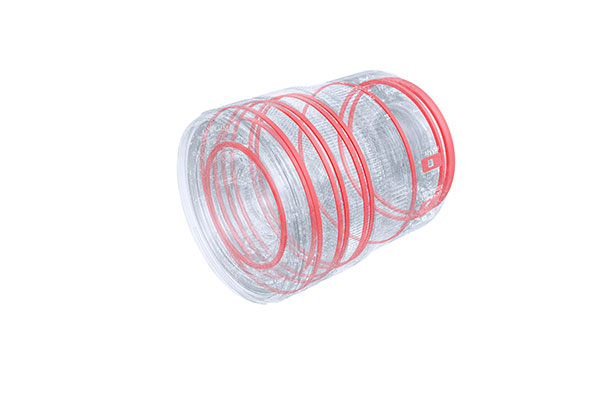

Dust- and weather-resistant construction

Canon L-series lenses are designed for tough, professional use — and this lens is no exception. It's highlighted by weather-resistant gaskets and seals at all switches and rotating rings, as well as at the lens mount, so it continues to shine even when the sun doesn't.

Specifications

Focal Length

14-35mm

Maximum and Minimum Aperture

F4-F22 (at all zoom settings)

Lens Mount Type

RF Mount; Metal Mount

Minimum Focusing Distance

7.9 in. (0.2m), at all zoom settings

Maximum Magnification

0.38x, at 35mm zoom setting
• Fill frame with subject approx. 3.7 x 2.5 inches / 94 x 63mm in size, at 35mm zoom position

Angle of View (Diagonal)

114°00' – 63°00'

Lens Construction

16 elements in 12 groups

Special Elements

Three UD-glass elements, three Aspherical elements
• Includes one UD Aspherical lens element

Lens Coating




• Canon SSC (Super Spectra Coating)
• Canon SWC (Sub-wavelength Structure Coating)
• Canon ASC (Air Sphere Coating)
• Fluorine coating on front surface of front element

Filter Size Diameter

Ø77mm

Aperture Blades

9; circular shape

Lens Switches

AF/MF switch, Stabilizer ON/OFF switch

Dust/Water Resistance

Weather-resistant seals at lens mount, switches, zoom ring, focus ring, and Control Ring

Focusing System

Nano USM; rear focusing system

Dual Pixel CMOS AF Coverage



EOS R, RP - approx. 88% (horizontal) x 100% (vertical)

EOS R5, R6
Approx. 100% horizontal and vertical
Face Detect + Tracking - approx. 100% x 100%





Full-time Manual Focusing


Yes (One-Shot AF only)

Control Ring


Yes
• Click-stops provided (60 clicks/full revolution)
• Click stops can be removed by Canon service facility, for a service fee.

IS Mode Selection

None (automatic panning detection provided)

Optical Image Stabilization


Provided
• 5.5 stops optical IS correction with EOS R and RP
• Conforms to CIPA test standards, using EOS R


Coordinated IS (with EOS R5, R6)


Up to 7 stops Coordinated IS correction
• Conforms to CIPA test standards, using EOS R5

Maximum Outer Diameter x Length


Approx. Φ3.3 in. x 3.9 in. (approx. Φ84.1mm x 99.8mm)
• Minimum length at approx. 22mm zoom position
• Maximum length at 35mm zoom position - approx. 4.25 in. / 107.9mm


Weight

Approx. 1.2 lb. (approx. 19.0 oz. / 540g)

Lens hood

Canon EW-83P (Bayonet-mount with lock, petal type) (Bundled)

Lens Cap

Canon E-77 II (center pinch-type) (Bundled)

Dust Cap

Canon Lens Dust Cap RF (Bundled)

Lens Case

Canon Lens Case LP1219 (Bundled)

RF Tele Extenders

Not compatible

EF Extension Tubes

Not compatible

Close-up Lenses

Canon 250D - not compatible (no 77mm size)
Canon 500D - 77mm compatible
• Close-up magnification range 0.07x–0.41x

Canon Gelatin Filter Holder IV

Compatible (77mm adapter required)
• Usable number of hoods - 1

RF14-35mm F4 L IS USM

RF14-35mm F4 L IS USM
  • RF14-35mm F4 L IS USM
  • Lens cap E-77II
  • Lens hood EW-83P
  • Lens pouch LP1219

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you RF14-35mm F4 L IS USM that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

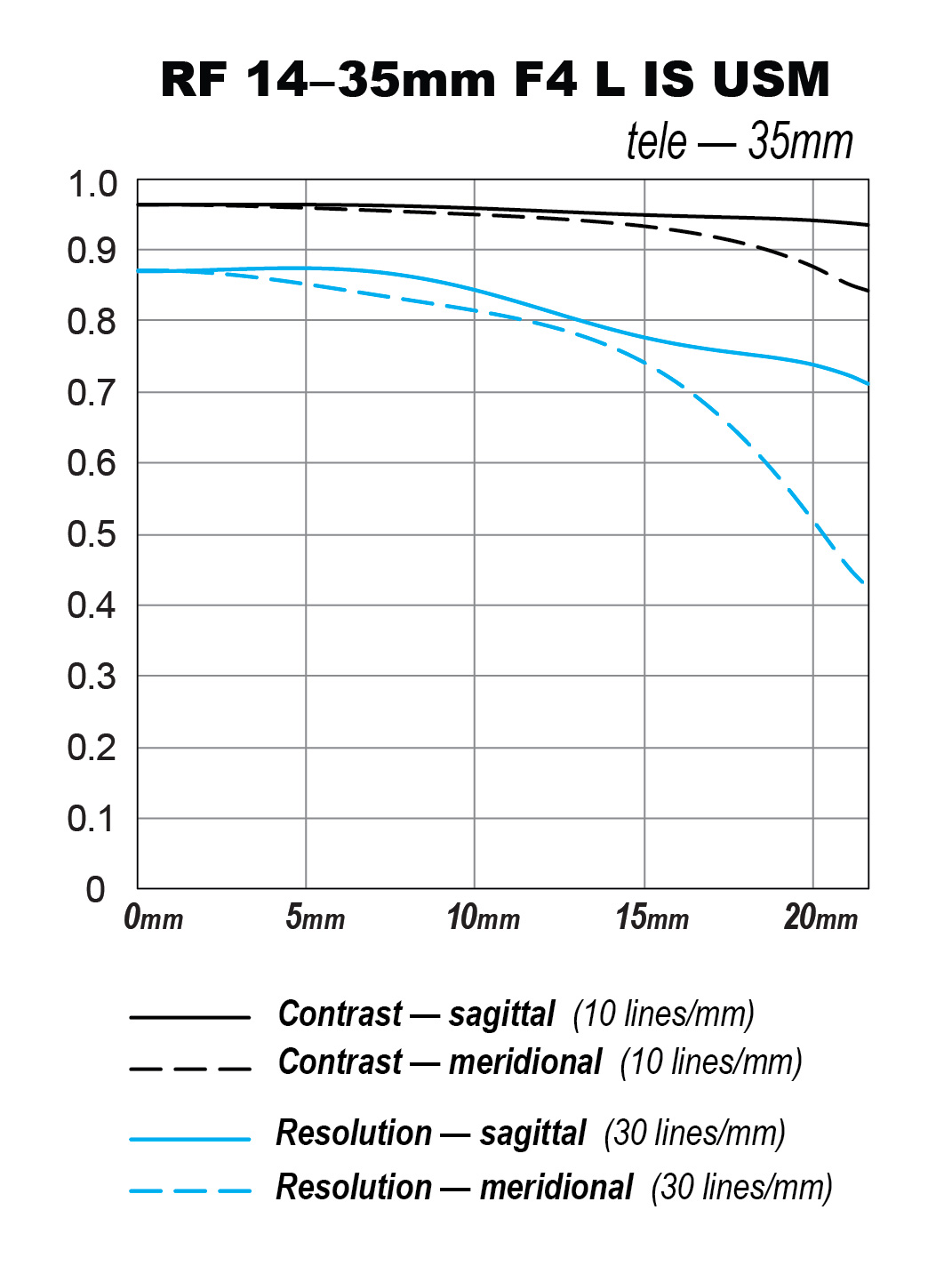

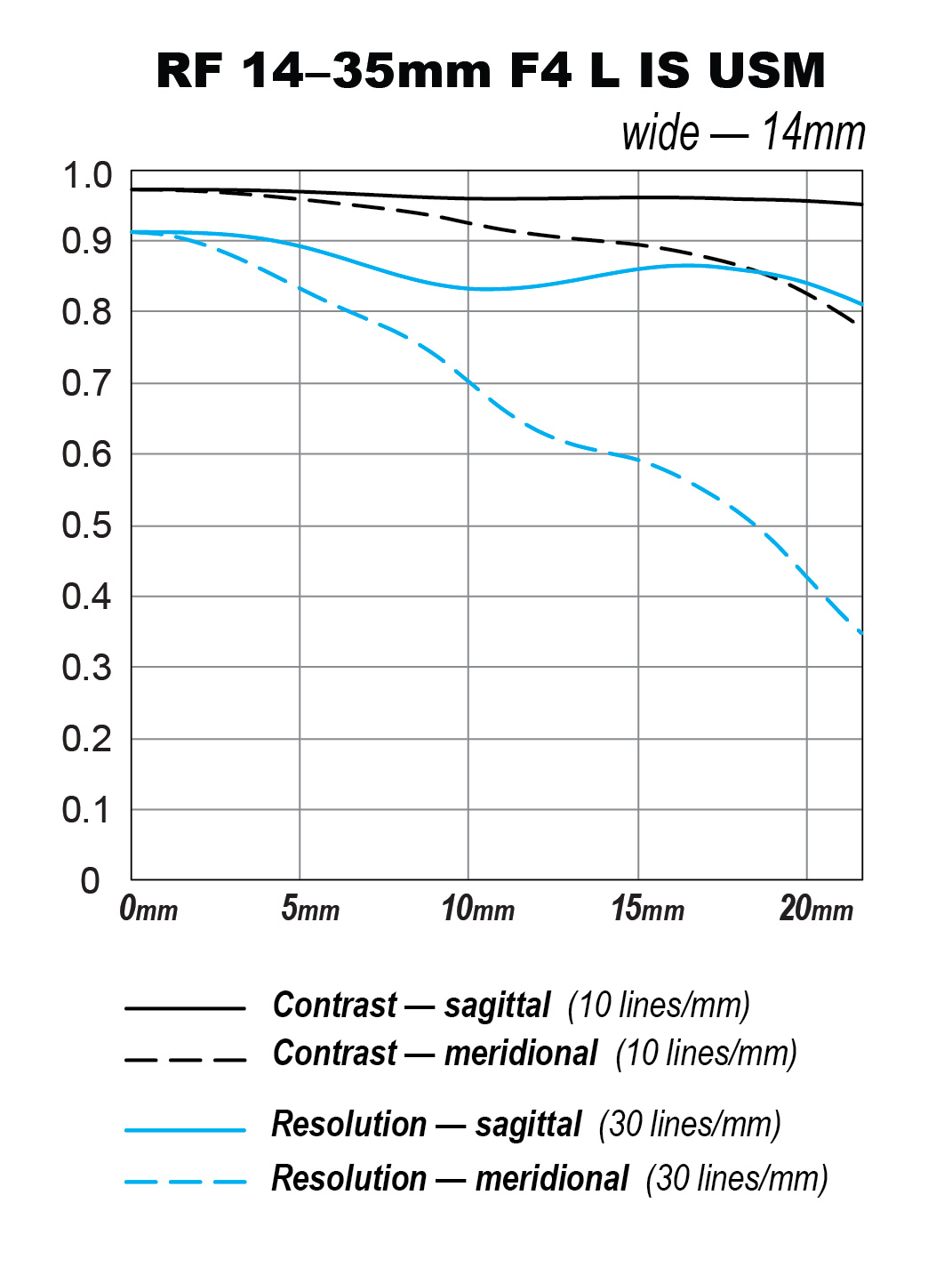

A Modulation Transfer Function (MTF) chart measures a lens’ expected optical performance at the center of the picture area and measures repeatedly along the diagonal line, further and further toward the corners of the image. The higher a curve is shown on the chart, the better the lens is performing in the area the chart is measuring. As a curve moves from left to right, it displays the lens' results from center towards the corners.

For more information on understanding how to read Canon Lens MTF charts, please click here.

This is to make Misc appear on the page when needed.

Sample Images

More Details

More Details

More Details

More Details


*ISO speed is based on recommended exposure index.


This is to make Misc appear on the page when needed.

Videos



Introducing the Canon RF14-35mm F4 L IS USM Lens



From dramatic landscapes to architecture and interiors, the new RF14-35mm F4 L IS USM lens provides photographers with a broader range of wide-angle possibilities. Featuring a fast aperture and ultra wide-angle zoom, this compact and lightweight L-series lens offers excellent close-up focusing - up to 0.38x maximum magnification - and smooth autofocusing, thanks to Canon’s Nano USM.

This is to make Misc appear on the page when needed.

DISCLAIMERS


*  Based on CIPA (Camera & Imaging Products Associations) standards. Testing performed at focal length of 35mm, using the EOS R camera.
** Based on CIPA (Camera & Imaging Products Associations) standards. Testing performed at focal length of 35mm, using the EOS R5 camera.
