RF15-30mm F4.5-6.3 IS STM

Ultra-Wide Zoom

Item Code: 5775C002AA

Features

RF ultra wide-angle zoom lens for EOS R series cameras

Ultra wide-angle coverage changes the way you see the world — whether you shoot video, landscapes, interiors, travel, or simply creative images that leverage lens effects. The combination of 15mm coverage, with a full-frame camera, is a direct line to making the ordinary visually extraordinary, and on an APS-C size image sensor camera you get an focal length equivalent to approx. 24-48mm coverage for a very useful wide to standard-angle range.

Excellent image quality

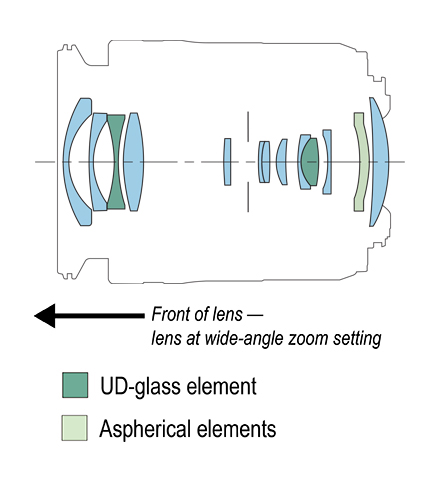

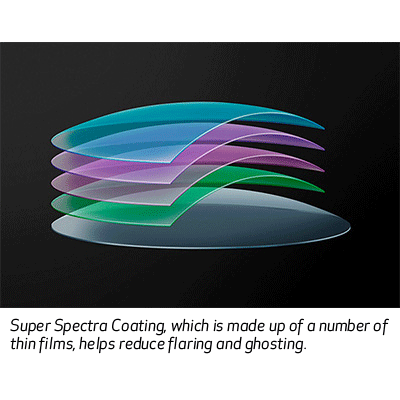

Highlights include two UD (Ultra-low Dispersion) glass elements, one aspheric element, and Canon SSC (Super Spectra Coating) to minimize ghosting and flare.

Optical image stabilization - up to 5.0 stops* of shake correction



Optical image stabilization - up to 5.0 stops* of shake correction. Up to 7.0 stops of shake correction when paired with EOS R series cameras featuring In-Body Image Stabilizer (IBIS).

Get in close

With a Minimum focus distance of approx. 11 In./0.28m (5.1 In./0.13m in manual focus at 15mm zoom position.) You can combine the visual power of wide-angle coverage with excellent close-focusing and open up a whole new way of seeing small, nearby subjects. It's yet another way to add drama to your video and still images.

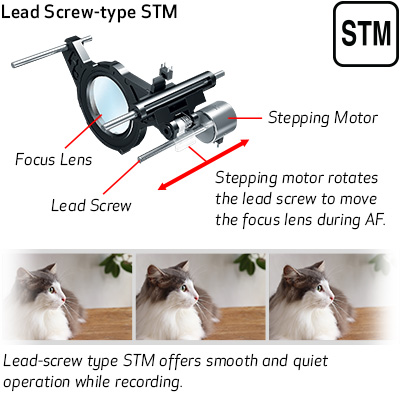

Lead Screw-type STM

Canon's stepping motor (STM) technology is especially effective at producing smooth, quiet autofocus during video recording, even in low light. This lens is a perfect choice for multi-media content creation with quiet autofocus. And, STM focus drive provides responsive, quick - and exceptionally quiet - AF during still-image shooting, as well.

Impressively compact and light

Coming in under one pound (approx. 0.9 lbs./390g.) you can certainly carry this versatile zoom lens almost anywhere, and at only about 3.5 inches long, it is easy to stand or sit in front of this lens while holding it with one hand for selfies, vlogging, and so much more.

Specifications

Focal Length

15-30mm

Maximum and Minimum Aperture

f/4.5 - F22 (at 15mm zoom position)
f/6.3 - F32 (at 30mm zoom position)

Lens Mount Type

RF Mount

Compatible Cameras

Canon EOS R-series, full-frame and APS-C

Minimum Focusing Distance

0.28m (11.0in) throughout zoom range, using AF
0.13m (5.1in) manual focus at 15mm zoom position

Maximum Magnification

0.16x (at 30mm zoom position)
0.52x (manual focus at 15mm zoom position)

Field of View, at Minimum Focus Distance

At 15mm - Approx. 421 x 281mm (16.5 x 11.0”)
At 30mm - Approx. 229 x 153 mm (9.0” x 6.0”)

Angle of View (Diagonal)

Approx. 110° 30'(15mm)
Approx. 71° 35'(30mm)

Lens Construction

13 elements in 11 groups

Special Elements

(Two) UD-glass elements, (One) Aspherical element

Lens Coating

Canon SSC (Super Spectra Coating)

Filter Size Diameter

ø67mm

Aperture Blades

7

Image Stabilization

5.0 stops correction with In-lens Optical Image Stabilization (7.0 stops correction with EOS R3/R5 in-body coordinated Image stabilization)

Focusing Drive System

Canon STM (Leadscrew type STM)

Full-time Manual Focusing

Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)

Dual Pixel CMOS AF Coverage (Horizontal x Vertical)

EOS R/RP - Approx. 100% x 88%
EOS R5/R6 - Approx. 100% x 100%
EOS R7/R10 - Approx. 100% x 100%

Control Ring

Combination Control Ring/Manual Focus Ring
Selectable via switch on lens barrel
No clicks, when used as Control Ring Manual

Manual Focus Ring

Combined MF/Control Ring on lens

AF/MF Switch

None - selected via camera menu, or AF/MF switch on compatible EOS R-series cameras

MF/Control Ring Switch

Yes, on lens barrel

Distance Scale

Yes
Available in EVF or Live View LCD screen of compatible EOS R-series cameras

Distance Limiter Switch

None

Dust / Weather Resistant Construction

None

Maximum Outer Diameter x Length

Approx. ø3.0 in. x 3.5 in. (ø76.6mm x 88.4mm)

Weight

Approx. 13.6 oz. / 0.9 lb. / 390g

Lens hood

Canon EW-73E
Bayonet-mount, petal-shaped hood
Optional accessory, sold separately

Lens Cap

(Front) Canon E-67 II (Bundled)

Dust Cap

(Rear) Canon Lens Dust Cap RF (Bundled)

Lens Case

Canon Lens Case LP1116
Optional accessory, sold separately

Extension Tubes

None (No Canon RF mount extension tubes)

Close-up Lenses 250D / 500D

Not Compatible (ø67mm size close-up lenses)

Canon RF Extender 1.4x/2x

Not compatible

RF15-30mm F4.5-6.3 IS STM Lens

RF15-30mm F4.5-6.3 IS STM Lens
  • RF15-30mm F4.5-6.3 IS STM Lens
  • LENS CAP E-67II
  • Lens Dust Cap RF

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you RF15-30mm F4.5-6.3 IS STM that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Sample Images

More Details

More Details

More Details


*ISO speed is based on recommended exposure index.


This is to make Misc appear on the page when needed.

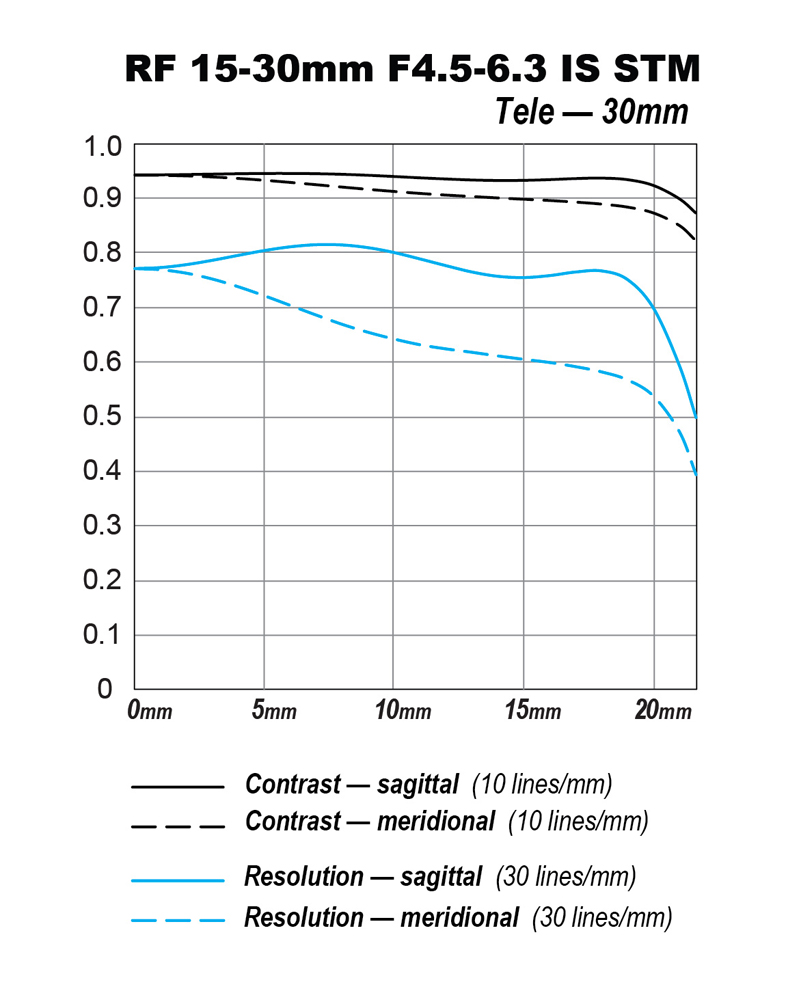

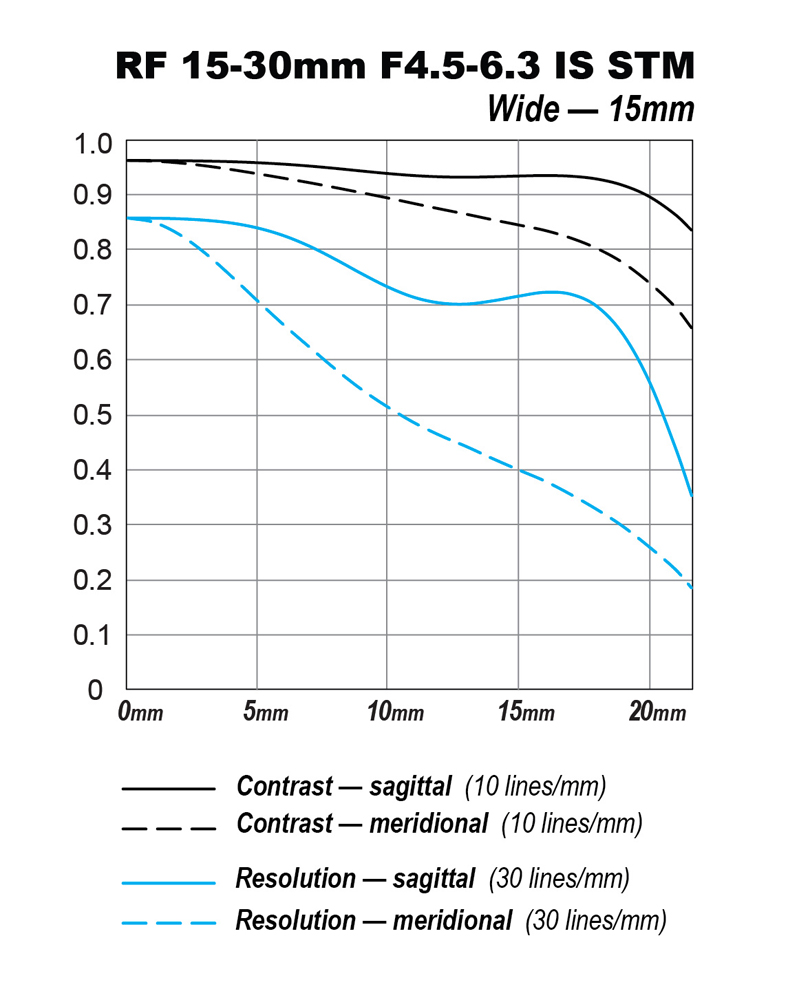

MTF Charts

A Modulation Transfer Function (MTF) chart measures a lens’ expected optical performance at the center of the picture area and measures repeatedly along the diagonal line, further and further toward the corners of the image. The higher a curve is shown on the chart, the better the lens is performing in the area the chart is measuring. As a curve moves from left to right, it displays the lens' results from center towards the corners.

For more information on understanding how to read Canon Lens MTF charts, please click here.



This is to make Misc appear on the page when needed.

Videos



Introducing the Canon RF15-30mm F4.5-6.3 IS STM with Rudy Winston


Introducing the Canon RF15-30mm F4.5-6.3 IS STM with Rudy Winston


Paul Seibert Takes on the Canon RF15-30mm F4.5-6.3 IS STM Lens


Join Paul Seibert as he takes the RF15-30mm F4.5-6.3 IS STM lens into the wild.


Juliana Broste with the Canon RF15-30mm F4.5-6.3 IS STM Lens


Join Juliana Broste as she travels around Colorado to take the RF15-30mm F4.5-6.3 IS STM lens through its paces.

This is to make Misc appear on the page when needed.

DISCLAIMERS


*Based on CIPA (Camera & Imaging Products Association) standards. Testing performed using the EOS R, R5, and R3 cameras.
