RF24mm F1.8 MACRO IS STM

Wide-Angle

Item Code: 5668C002AA

Features

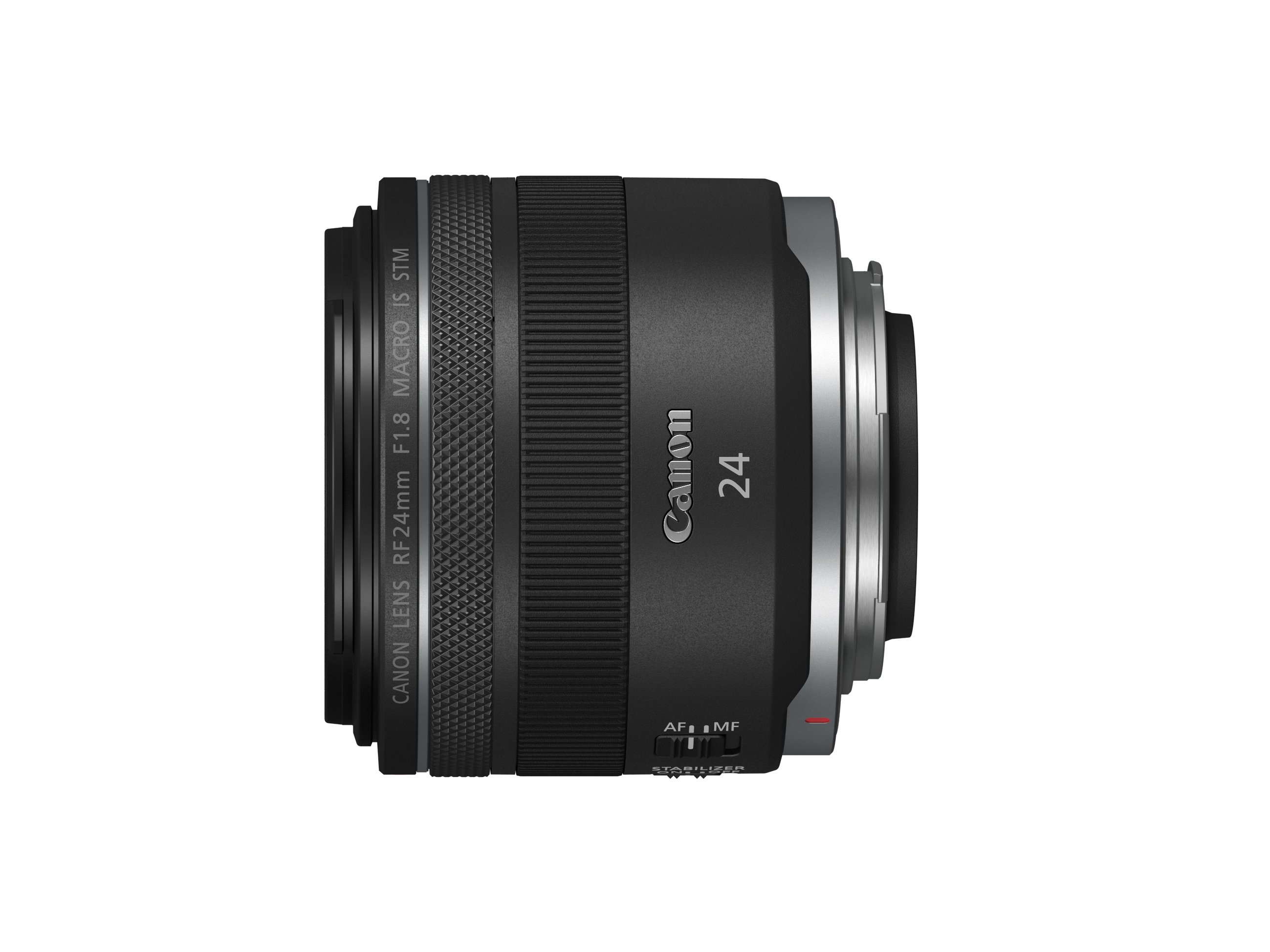

A well balanced wide-angle, fixed focal length lens



The RF24mm F1.8 MACRO IS STM makes for a lightweight and comfortable, all-day lens. It's ideal for capturing a variety of subjects and is a powerful lens that affordably expands the EOS R system.

Fast and bright

A bright f/1.8 maximum aperture allows for great control over depth of field and bokeh, low-light shooting and video recording, with fast and reliable autofocus.

Excellent image quality

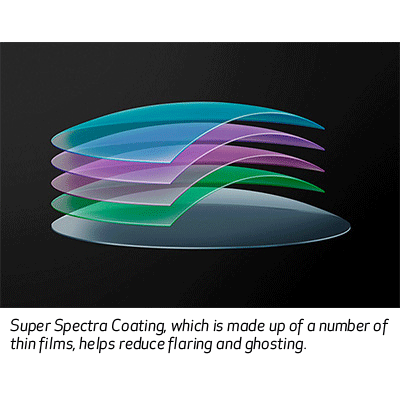

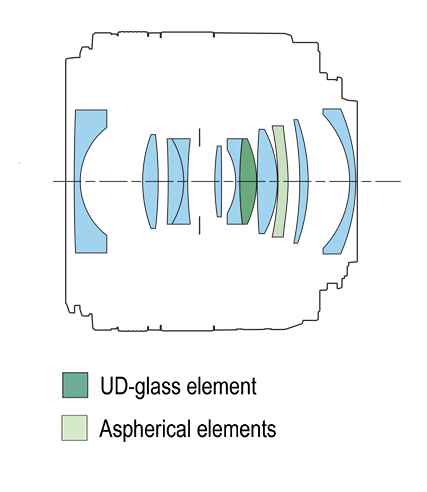

Taking advantage of the Canon RF lens mount, the RF24mm F1.8 MACRO IS STM lens offers great optical quality. Its optical design includes an aspheric element, and an Ultra-low Dispersion (UD) glass element for high image quality from center to corner, and Canon Super Spectra Coating to minimize ghosting and flare

Minimum focus distance of approx. 5.5 In. and close-up magnification 0.5x



With its impressive 5.5 In. minimum focusing distance, the RF24mm F1.8 IS STM lens is designed for working up-close and personal with subjects to document even the most minute of details. And because it has a maximum magnification of 0.5x, you can even experience close-up 1:2 half life-size macro photography so you can capture a variety of macro subjects with stunning results.

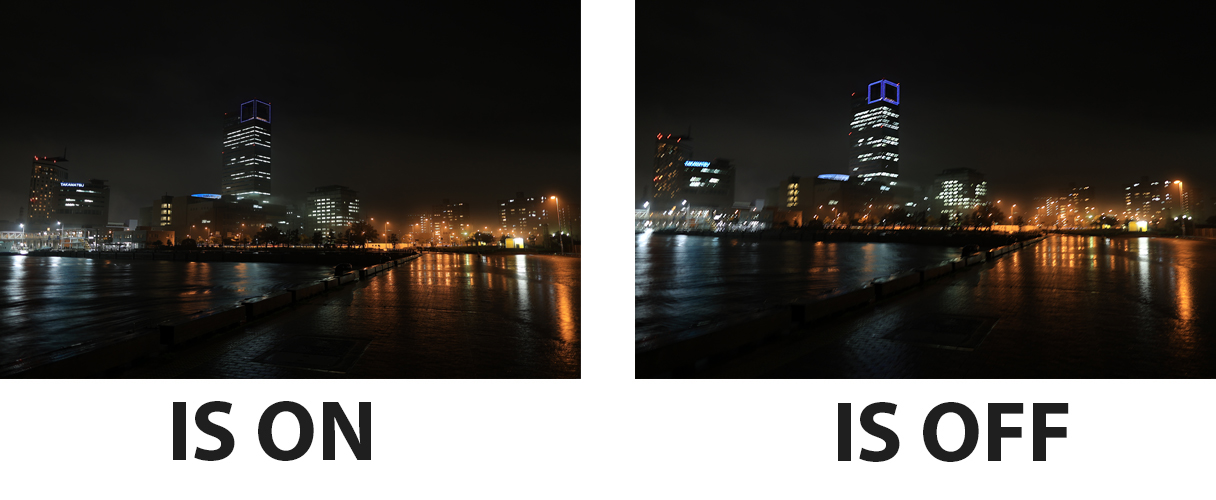

Optical image stabilization - up to 5.5 stops* of shake correction

For consistently sharp results, the RF24mm F1.8 MACRO IS STM features built-in optical Image Stabilization, providing enhanced shake reduction for up to 5.5 stops* of shake correction. When paired with an EOS R-series camera that has In Body Image Stabilization (IBIS), the Coordinated IS allows for up to 6.5 stops of correction. This means more reliable handheld performance and clearer detail in low-light situations, without having to increase the ISO or decrease the shutter speed. Because of its enhanced stabilization, the RF24mm F1.8 MACRO IS STM can also help minimize the need for a tripod.

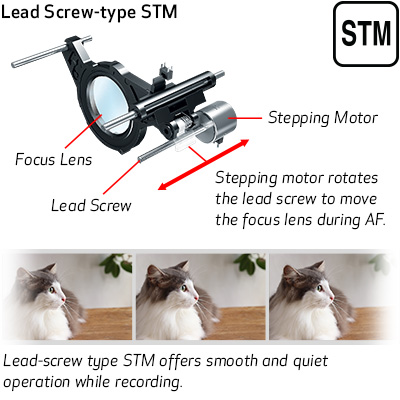

Lead Screw-type STM

Canon's stepping motor (STM) technology is especially effective at producing smooth, quiet autofocus during video recording, even in low light. This lens is a perfect choice for multi-media content creation with quiet autofocus. And, STM focus drive provides responsive, quick - and exceptionally quiet - AF during still-image shooting, as well.

Control Ring for Direct Setting Changes

The RF24mm F1.8 MACRO IS STM lens incorporates a control ring on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, exposure compensation and more. Located towards the front of the lens and effectively adding a third dial to the EOS R camera's main dial and quick control dial, the control ring has a tactile, easily distinguished surface and features a clicking mechanism that provides tangible feedback for confident use while looking through the viewfinder. For photographers and moviemakers who would prefer a silent control ring, the clicking mechanism can be removed by a Canon service provider for a fee.

Impressively compact and light at only 0.6 lbs/270g.

The compact size and light weight of the lens makes it an ideal companion on long hikes and excursions. It is also handy for a day out in the city and when you want to be creative with multiple prime lenses.

Circular 9-blade aperture for beautiful, soft backgrounds

You'll have no problem when shooting close-up images in getting that creative, fun and pleasantly smooth out-of-focus background blur we all love with the circular 9-blade aperture. Subjects will stand out, and the background provides a beautiful backdrop that's visually appealing in itself.

Specifications

Focal Length

24mm

Maximum and Minimum Aperture

f/1.8 - F22

Lens Mount Type

RF Mount

Compatible Cameras

Canon EOS R-series, full-frame and APS-C

Minimum Focusing Distance

0.14m (5.5in)

Maximum Magnification

0.5x (half life size)

Field of View

Approx. 72mm x 48mm (2.8 x 1.8)

Angle of View (Diagonal)

Approx. 84° 00'

Lens Construction

11 elements in 9 groups

Special Elements

(One) UD Lens, (One) Aspherical Lenses

Lens Coating

Canon SSC (Super Spectra Coating)

Filter Size Diameter

ø52mm

Aperture Blades

9

Image Stabilization

5.5 stops correction with In-lens Optical Image Stabilization (6.5 stops correction with EOS R3/R5 in-body coordinated Image stabilization)

Focusing Drive System

Canon STM (Leadscrew type STM)

Full-time Manual Focusing

Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)

Dual Pixel CMOS AF Coverage (Horizontal x Vertical)

EOS R/RP - Approx. 100% x 88%
EOS R5/R6 - Approx. 100% x 90%
EOS R5/R6 with Face+Tracking Priority AF: Approx. 100% x 100%)
EOS R3 - Approx. 100% x 100%


Control Ring

Programmable Control Ring (selected using camera menu) 54 clicks per revolution. Clicking mechanism can be removed by Canon service department, for a fee.

Manual Focus Ring

Yes

AF/MF Switch

Yes (On lens barrel)

MF/Control Ring Switch

None - separate MF and Control Rings on lens

Distance Scale

Yes
Available in EVF or Live View LCD screen of compatible EOS R-series cameras

Distance Limiter Switch

None

Dust / Weather Resistant Construction

None

Maximum Outer Diameter x Length

Approx. ø2.9 in. x 2.5 in. (ø74.4mm x 63.1mm)

Weight

Approx. 9.5 oz. / 0.6 lb. / 270g

Lens hood

Canon EW-65B
Bayonet-mount, petal-shaped hood
Optional accessory, sold separately

Lens Cap

(Front) Canon E-52II (Bundled)

Dust Cap

(Rear) Canon Lens Dust Cap RF (Bundled)

Lens Case

Canon Lens Case LP1016
Optional accessory, sold separately

Extension Tubes

None (No Canon RF mount extension tubes)

Close-up Lenses 250D / 500D

Compatible (ø52mm size)

Canon RF Extender 1.4x/2x

Not compatible

RF24mm F1.8 IS STM Lens

RF24mm F1.8 IS STM Lens
  • RF24mm F1.8 MACRO IS STM Lens
  • LENS CAP E-52II
  • Lens Dust Cap RF

Compatible Supplies & Accessories

Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you RF24mm F1.8 MACRO IS STM that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store





Expand All

Sample Images

More Details

More Details

More Details


*ISO speed is based on recommended exposure index.


This is to make Misc appear on the page when needed.

MTF Charts

A Modulation Transfer Function (MTF) chart measures a lens' expected optical performance at the center of the picture area and measures repeatedly along the diagonal line, further and further toward the corners of the image. The higher a curve is shown on the chart, the better the lens is performing in the area the chart is measuring. As a curve moves from left to right, it displays the lens' results from center towards the corners.

For more information on understanding how to read Canon Lens MTF charts, please click here.



This is to make Misc appear on the page when needed.

Videos



Introducing the Canon RF24mm F1.8 MACRO IS STM with Rudy Winston


Join Rudy Winston from Canon USA to learn about the design, performance, and features that make the RF24mm F1.8 MACRO IS STM lens a worthy addition to your camera bag.


Andy To and the Canon RF24mm F1.8 MACRO IS STM Lens


Join Andy To as he takes this lens around New York City.


Will Cadena and the Canon RF24mm F1.8 MACRO IS STM Lens


Join photographer Will Cadena as he gets a first look at the Canon RF24mm F1.8 MACRO IS lens and shows off what he can do with it

This is to make Misc appear on the page when needed.

DISCLAIMERS


*Based on CIPA (Camera & Imaging Products Association) standards. Testing performed using the EOS R, R5, and R3 cameras.
