VB-H610VE
All Network Cameras
Canon Store: $

Learn about our Network Video Solutions Software Developers Kit (API).

Find out which technology partners integrate with Canon Network Cameras.
VB-H610VE
The VB-H610VE Full HD Vandal Resistant Fixed Dome IP Security Camera combines outstanding durability and capability, advanced control capability, and superb image quality with Canon's DIGIC DV III image processor. A wide variety of applications are suited for employing the VB-H610VE, with financial, utility, military, government, airport, retail and casino gaming operations particularly well-matched. ONVIF Profile S conformant, the VB-H610VE is designed to triumph over the challenges of both the elements and adversaries in equal measure, thanks to its IP66 outdoor rating and vandal resistant dome.
Adding to the appeal of this camera is its ease in installation and exceptional low light performance. The VB-H610VE is equipped with Canon's Remote Adjustment Function which allows the Pan/ Tilt/ Rotation/ Zoom and Focus to be set from a remote location after installation. The 111 degree wide angle lens on the VB-H610VE was designed to maximize the camera's low light performance, allowing it to provide color video down to 0.3 lux* and black/white video down to 0.015 lux*. It also offers an impressive range of sophisticated On-board Video Analytics, with a number of set triggers, including Moving, Removed and Abandoned Object Detection and Passing Detection.
With the VB-H610VE you may choose up to 20 digital preset camera positions and combine them as you wish to create a custom tour. The camera's 2.1 Megapixel CMOS sensor provides images with far greater detail than those of a VGA security camera. Still, it can be streamed with low bandwidth utilization and disk space usage thanks to the H.264 Codec, which allows video to be streamed at eight different rates, 1/2/3/5/6/10/15/ or 30/fps.
*Ratings based on F1.2, 1/30 second and Smart Shade Control off. "ONVIF" and are trademarks of ONVIF Inc.
Features

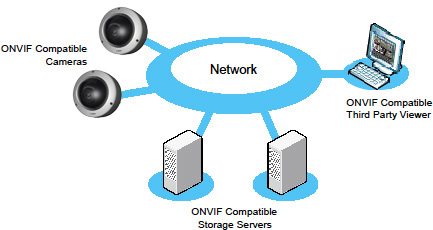

In addition to Canon's WebView network camera protocol, the VB-H610VE is easily adaptable to third party integration thanks to being ONVIF version 2.2 conformant. The Profile S standard included in this compatibility gives you more interoperability than found in previous network cameras. You will find it easier than ever to create a system which best meets your needs, working with compliant equipment from different manufacturers and third party recording software systems. The ONVIF Profile S allows for easy identification of supported features without the need to know the compatibility of different versions of ONVIF. Profile S includes specific features such as audio streaming and relay outputs.

"ONVIF" and are trademarks of ONVIF Inc.

For surveillance situations in which the camera is exposed to potential damage through vandalism, the VB-H610VE is an ideal choice. Its IP66 rated enclosure protects the camera from dust and powerful water jets. In addition, the VB-H610VE has a damper mechanism allowing the lens to move 15mm inside the camera body. This combines with the shock resistant exterior to protect the camera from damage from impact due to accidents or vandalism.
The VB-H610VE can be equipped for another environmental challenge through the purchase of an optional heater. This will allow the camera to be used in temperatures as low as -22°F.

The VB-H610VE's high sensitivity sensor is combined with a bright lens and exceptional video quality optimization to acquire exceptional color video down to 0.05 Lux* and black & white video down to 0.002 Lux*. For challenging poorly lit areas or vital nighttime surveillance, this capability is a great advantage.
* Ratings based on F1.2, 1/8 second and Smart Shade Control on.

The Megapixel CMOS Sensor of the VB-H610VE ensures maximum image quality, a hallmark of Canon products. Its approximately 2.1 million pixels deliver incredibly sharp, high resolution video with far greater detail than that of a VGA resolution camera. The result is clearer, more useful video monitoring.
Canon's well known excellence in lens technology is responsible for the superb visual quality and image consistency of the VB-H610VE's 111.0° wide angle, 3x Optical Zoom lens. The broad range delivered by this lens gives a wide angle of view of your location and its superb optical quality gives you a clear and sharp image through the entire field of view. |
![]() |
Even the most challenging and difficult installation locations become far more manageable with the Remote Adjustment Function of the Canon VB-H610D. After the camera is mounted, it's simple to get the exact lens position for your needs thanks to built-in motors that allow you to change the pan, tilt, rotation, zoom, and focus from the comfort of a remote location after the camera is installed.

The VB-H610VE is packed with features which enhance its functionality and usability. Among the most useful are its sophisticated On-board Video Analytics, enabling the camera to detect Moving, Abandoned, or Removed Objects in its range of vision, and also detect attempts at Camera Tampering and changes in Sound Levels. In addition, Passing Detection has been added to the list to enhance the monitoring capabilities of the VB-H610VE. It allows you to trigger an alert when a set line has been passed in a defined direction.
For increased control in monitoring sensitive areas, the VB-H610VE also offers a Privacy Mask function. With it, you can block specific sections of the camera's field of view, to avoid intrusions of privacy, or password theft.
Thanks to the VB-H610VE's impressive algorithm, highly precise detection is achieved using polygonal and rectangular shapes to specify up to 15 areas of detection. Adding polygonal to rectangular shapes allows for increased flexibility in detection areas. An additional benefit comes from the provision for notification of a detection through the network from the camera using a number of functions. They include automatic recording, e-mail transmission, and uploading videos and images to a specified target server. It is also possible to combine a number of detection functions for simultaneous notification.
Moving Object Detection

Removed Object Detection

Abandoned Object Detection

Camera Tampering Detection

Sound Level Detection

Passing Detection

Privacy Mask Function

"ONVIF" and are trademarks of ONVIF Inc.

The usefulness of the VB-H610VE is considerably enhanced with the On-screen Display feature. This allows the camera to support an on-screen display that can contain time, date and a text field to further define the monitored location, making it easier to identify.
The high-quality images captured by the VB-H610VE are due in no small part to Canon's proprietary processing technologies. One is the latest version of our hardware-based compression engine, DIGIC NET II. This powerful processor allows the VB-H610VE to simultaneously deliver both H.264 and JPEG video in high resolution 1920 x 1080 at the maximum frame rate of 30fps – with no loss in frame rate, unlike many competing models. The other is Canon's powerful image DIGIC DV III processor. As employed in our class-leading video camcorders and unlike most security cameras, DIGIC DV III provides superior image quality with lifelike colors, tonal accuracy and reduced image noise - all with lower power consumption.

Video Compression | Image Sizes |
---|---|
H.264 | 1920 x 1080, 960 x 540, 470 x 270 |
JPEG | 1920 x 1080, 960 x 540, 470 x 270, 320 x 240 |
Smart Shade Control, or SSC, is an exclusive Canon technology that automatically adjusts images which may have a bright background by adjusting the gain of the underexposed areas without affecting the exposure of the properly exposed areas. This feature helps to make backlit images easier to see and vital areas of interest easier to monitor.


As the available light changes, the Auto Day/Night feature allows this camera to automatically adjust to maintain optimal image quality. A removable IR cut filter and optimized IR light reflection suppression coating allow for exceptional low light visibility with minimal ghosting.

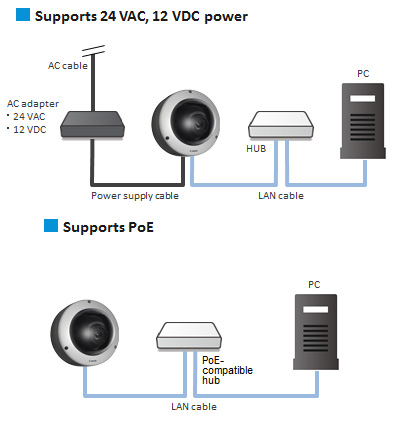

The VB-H610D continues to demonstrate versatility by accepting a variety of power options. Choose between 12vDC, 24vAC or PoE. Power over Ethernet (IEEE 802.3af) - allows the use of a single LAN cable to both power the camera and transfer video and audio data when connected to a Power over Ethernet switch or PoE injector. This eliminates the need to run AC connections to the installation sites of the cameras, which can help to keep installation costs to a minimum.

With the VB-H610VE, you can have two-way mono audio communication between the remote monitoring center and the surveillance location. The Mic/Line In, Line Out jack offers echo cancellation. This feature allows the camera to serve as an even more powerful component of your security infrastructure.


The VB-H610VE has a built-in SD Memory Card slot which supports SD, SDHC and SDXC memory cards. It allows streamed images from the camera to be saved to an SD card, giving reliable backup in the event of network power failures or outages. In addition, when issues occur, system logs are also created and stored on the SD card for future troubleshooting.
An administrative tool, Recorded Video Tool allows you to search, download and view the recorded video.


The VB Admin Tools come resident on the VB-H610VE's webserver and do not require client software installation. This saves time and makes it easier to configure the camera for use.

The VB-H610VE supports the receiving of IPv6 network configuration information from DHCPv6 servers. Adoption of this latest protocol makes this camera an integral part of any system which will see development or expansion going forward as IPv4 will eventually be replaced with IPv6

The VB Admin Tools come resident on the VB-H610VE's webserver and do not require client software installation. This saves time and makes it easier to configure the camera for use.
Canon's proprietary recording software is included at no cost with the purchase of the VB-H610VE. A limited function version of the RM-9/25/64 recording software, which is available for purchase, RM-Lite 2.0 allows for the monitoring of JPEG and H.264 video and the recording and playback of the JPEG video from up to four cameras. This complimentary software is well suited for small systems and eliminates the need to purchase software separately.

CAMERA
0.02 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE)
0.008 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE)
0.001 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE)
0.0005 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE)
Night Mode: 1.0m (3.3 ft.) - infinity
Auto: 3 Levels
Manual: 7 Levels
- When the Camera Angle Setting Tool is used
SERVER
H.264: 1/2/3/5/6/10/15/30 fps
- H.264: Max. 10 Clients
Max. 50 user names and passwords registered for authorized users.
Restrictions (IPv4,IPv6)
Number of mask colors: 1 (select from 9 colors)
Temporary storage memory in camera: Max. approx. 5 MB Frame Rate: Max. 10 fps
Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72/640 x 480/512 x 384/384 x 288/256 x 192/128 x 962
INTERFACE
- Connect via an audio interface cable (included)
Switch LINE IN/MIC IN in the setting page.
LINE IN x 1 (connect to an amplifier microphone) or
MIC IN x 1 (connect to a microphone w/o amplifier)
- Connect via an audio interface cable (included)
LINE OUT x 1 (connect to an amplifier speaker)
Frame Rate: Max. 1 fps (JPEG), Max. 30fps (H.264)
OPERATING ENVIRONMENT
*Temperature: -30°C - +50°C (-22°F - +122°F)
* Equipped with separately sold Heater Unit HU600-VB
POWER SUPPLY
- Heater Unit HU600-VB (sold separately): 24 V AC only
POWER CONSUMPTION
Max. approx.18.7 W*
* when separately sold Heater Unit HU600-VB installed
OTHER
VB-H610VE
Compatible Supplies & Accessories
Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you VB-H610VE that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store

A-BK3(OW)
Pole Mount Adapter and 59" length Non-Tool Aluminum Clamp (Minimum Pole Diameter 4")

A-BK3(OW)
Pole Mount Adapter and 59" length Non-Tool Aluminum Clamp (Minimum Pole Diameter 4")

A-BK3S POLE MOUNT ADAPTER

A-BK3S POLE MOUNT ADAPTER

A-CM3 CORNER MOUNT ADAPTER

A-CM3 CORNER MOUNT ADAPTER

A-SWD5ZWB-2
Attachment Plate for A-SWD5ZWB (Required if installing VB-M600)

A-SWD5ZWB-2
Attachment Plate for A-SWD5ZWB (Required if installing VB-M600)

A-SWD5ZWB600

A-SWD5ZWB600

HU600-VB Heater Unit
Must be powered via a 24VAC source.

HU600-VB Heater Unit
Must be powered via a 24VAC source.

PA-V17 AC Adapter
The PA-V17 is an optional power adapter used when a PoE HUB or external power supply is not used.

PS600-VB Junction Box Mounting Kit

PS600-VB Junction Box Mounting Kit

Pendant Mounting Kit PC600-VB
Ceiling installation pendant mount for 1.5" NPS. Allows for manual rotation adjustment during setup.

Pendant Mounting Kit PC600-VB
Ceiling installation pendant mount for 1.5" NPS. Allows for manual rotation adjustment during setup.

RM-Lite-V Network Video Monitoring and Recording Software
One (1) viewer license for RM-Lite Network Video Monitoring and Recording Software. (License only, no software included)

SR600-VB Recess Mounting Kit
Mounting Kit

SR600-VB Recess Mounting Kit
Mounting Kit
