VB-H710F

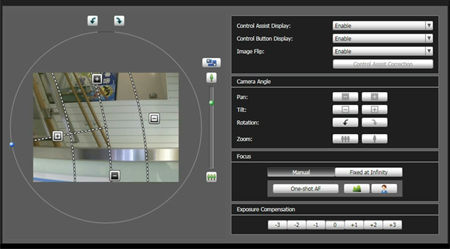

The VB-H710F Fixed Full HD Network Camera is a fixed box security camera that offers easy installation and superior image quality, with Canon's DIGIC DV III image processor. Its motorized zoom and focus allows you to view adjustments after installation. The 112.6 degree wide angle lens on the VB-H710F was designed to maximize the camera's low light performance, allowing it to provide color video down to 0.3 lux* and black & white video down to 0.015 lux*. Nine levels of exposure compensation add to the image capture range.
This ONVIF Profile S conformant product offers an impressive assortment of sophisticated On-board Video Analytics, including Moving Object Detection, Removed Object Detection, Abandoned Object Detection and Passing Detection. You will also be able to program the VB-H710F with up to 20 digital preset positions and have the ability to create a custom tour if desired.
The VB-H710F's powerful 2.1 Megapixel CMOS sensor provides images with vastly more detail than can be achieved by a VGA security camera, yet its sharper images can be streamed with the low bandwidth utilization and disk space usage thanks to the H.264 Codec, which allows video to be streamed at eight different rates, 1/2/3/5/6/10/15/ or 30/fps.
SDXC Memory Card compatible, the VB-H710F will hold an impressive amount of recorded video in card memory. This 'plug and play' capability ensures that integrating a VB-H710F into your existing network takes very little time.
*Ratings based on F1.2, 1/30 second and Smart Shade Control off. "ONVIF" and are trademarks of ONVIF Inc.
Features

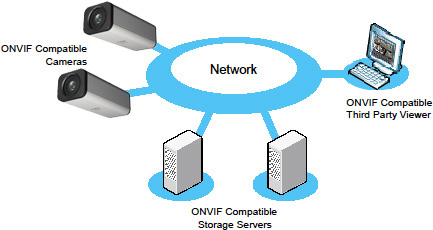

In addition to Canon's WebView network camera protocol, the VB-H710F is easily adaptable to third party integration thanks to being ONVIF version 2.2 conformant. The Profile S standard included in this compatibility gives you more interoperability than found in previous network cameras. It will be easier than ever to create a system which best meets your needs, working with compliant equipment from different manufacturers and third party recording software systems. The ONVIF Profile S allows for easy identification of supported features without needing to know the compatibility of the different versions of ONVIF and includes specific features such as audio streaming and relay outputs.



The VB-H710F's high sensitivity sensor is combined with a bright lens and exceptional video quality optimization to acquire exceptional color video down to 0.05 Lux* and black & white video down to 0.002 Lux*. For challenging poorly lit areas or vital nighttime surveillance, this capability is a great advantage.
* Ratings based on F1.2, 1/8 second and Smart Shade Control on.

The Megapixel CMOS Sensor of the VB-H710F ensures maximum image quality, a hallmark of Canon products. Its approximately 2.1 million pixels deliver incredibly sharp, high resolution video with far greater detail than that of a VGA resolution camera. The result is clearer, more accurate and useful video monitoring.

Canon's well known excellence in lens technology is responsible for the superb visual quality and image consistency of the VB-H710F's 112.6° wide angle, 3x Optical Zoom lens. The broad range delivered by this lens gives a wide angle of view of your location and its superb optical quality gives you a clear and sharp image through the entire field of view.

The VB-H710F is packed with features which enhance its functionality and usability. Among the most useful are its sophisticated On-board Video Analytics, enabling the camera to detect Moving, Abandoned, or Removed Objects in its range of vision, and also detect attempts at Camera Tampering and changes in Sound Levels. In addition, Passing Detection has been added to the list to enhance the monitoring capabilities of the VB-H710F, allowing you to define a line which triggers an alert when it is crossed in a defined direction.

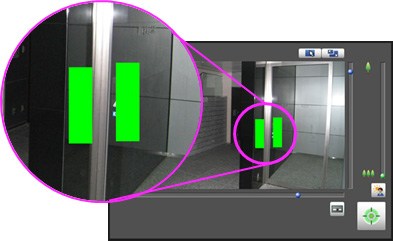

For increased control in monitoring sensitive areas, the VB-H710F also offers a Privacy Mask function. With it, you can block specific sections of the camera's field of view, to avoid intrusions of privacy, or password theft.
Thanks to the VB-H710F's impressive algorithm, highly precise detection is achieved using polygonal and rectangular shapes to specify up to 15 areas of detection. Adding polygonal to rectangular shapes allows for increased flexibility in detection areas. An additional benefit comes from the provision for notification of a detection through the network from the camera using a number of functions. They include automatic recording, e-mail transmission, and uploading videos and images to a specified target server. It is also possible to combine a number of detection functions for simultaneous notification.

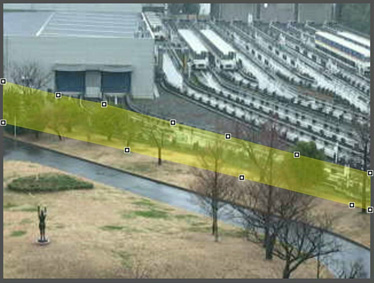

Moving Object Detection

Removed Object Detection

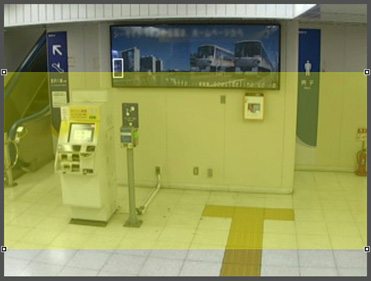

Abandoned Object Detection

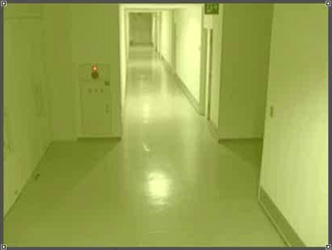

Camera Tampering Detection

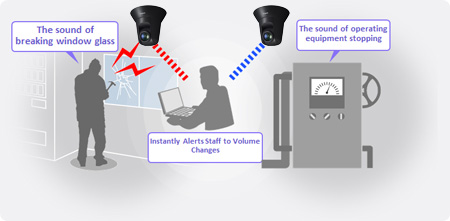

Sound Level Detection

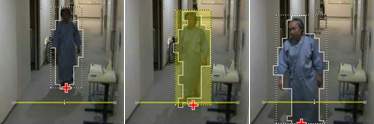

Passing Detection

Privacy Mask Function

"ONVIF" and are trademarks of ONVIF Inc.

The usefulness of the VB-H710F is considerably enhanced with the On-Screen Display feature. This allows the camera to support an on-screen display that can contain time, date and a text field to further identify the monitored location, making it easier to identify.

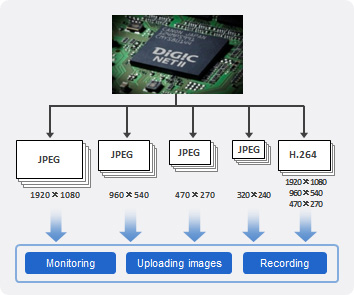

The high-quality images captured by the VB-H710F are due in no small part to Canon's proprietary processing technologies. One is the latest version of our hardware-based compression engine, DIGIC NET II. This powerful processor allows the VB-H710F to simultaneously deliver both H.264 and JPEG video in high resolution 1920 x 1080 at the maximum frame rate of 30fps – with no loss in frame rate, unlike many competing models. The other is Canon's powerful DIGIC DV III image processor. As employed in our class-leading video camcorders and unlike most security cameras, DIGIC DV III provides superior image quality with lifelike colors, tonal accuracy and reduced image noise - all with lower power consumption.

The H.264 Codec, with the flexibility of adjustable I-frame, gives the VB-H710F superb image compression. It delivers high resolution images combined with small data size, giving you the benefit of low bandwidth and storage utilization. The cost savings to infrastructure and overhead are considerable, with the added plus of reduced data storage capability needs.
Video Compression | Image Sizes |
---|---|
H.264 | 1920 x 1080, 960 x 540, 470 x 270 |
JPEG | 1920 x 1080, 960 x 540, 470 x 270, 320 x 240 |

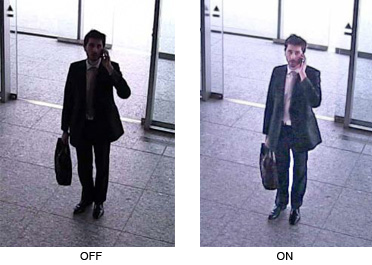

Smart Shade Control, or SSC, is an exclusive Canon technology that automatically adjusts images which may have a bright background by adjusting the gain of the underexposed areas without affecting the exposure of the properly exposed areas. This feature helps to make backlit images easier to see and vital areas of interest easier to monitor.


As the available light changes, the Auto Day/Night feature allows this camera to automatically adjust to maintain optimal image quality. A removable IR cut filter and optimized IR light reflection suppression coating allow for exceptional low light visibility with minimal ghosting.

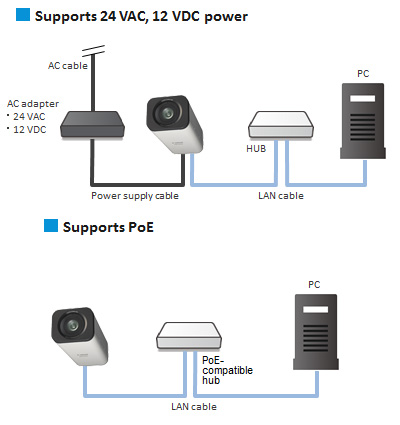

The VB-H710F continues to demonstrate versatility by accepting a variety of power options. Choose between 12vDC, 24vAC or PoE. Power over Ethernet (IEEE 802.3af) - allows the use of a single LAN cable to both power the camera and transfer video and audio data when connected to a Power over Ethernet switch or PoE injector, thereby eliminating the need to run AC connections to the installation sites of the cameras. This can help reduce installation costs.

With the VB-H710F, you can have two-way mono audio communication between the remote monitoring center and the surveillance location. The Mic/Line In, Line Out jack offers echo cancellation. This feature allows the camera to serve as an even more powerful component of your security infrastructure.

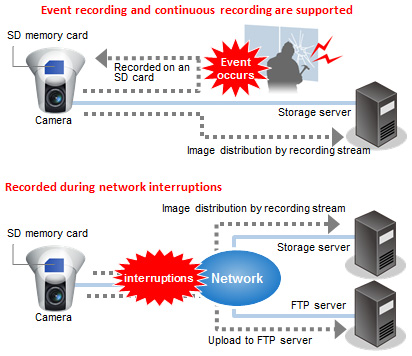

The VB-H710F has a built-in SD Memory Card slot which supports SD, SDHC and SDXC memory cards. It allows streamed images from the camera to be saved to an SD card, giving reliable backup in the event of network power failures or outages. In addition, when issues occur, system logs are also created and stored on the SD card for future troubleshooting.
An administrative tool, Recorded Video Tool allows you to search, download and view the recorded video.


The VB Admin Tools come resident on the VB-H710F's webserver and do not require client software installation. This saves time and makes it easier to configure the camera for use.

The VB-H710F supports the receiving of IPv6 network configuration information from DHCPv6 servers. Adoption of this latest protocol makes this camera an integral part of any system which will see development or expansion going forward as IPv4 will eventually be replaced with IPv6.

For security in network communication, the VB-H710F supports HTTP over SSL (HTTPS). It will support both self-signed security certificates as well as certificates issued by a Certificate Authority.

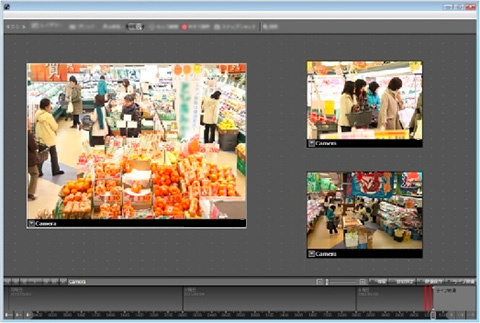

Canon's proprietary recording software is included at no cost with the purchase of the VB-H710F. A limited function version of the RM-9/25/64 recording software, which is available for purchase, RM-Lite 2.0 allows for the monitoring of JPEG and H.264 video and the recording and playback of the JPEG video from up to four cameras. This complimentary software is well suited for small systems and eliminates the need to purchase software separately.

CAMERA
0.02 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE)
0.008 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE)
0.001 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE)
0.0005 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE)
Night Mode: 1.0m (3.3 ft.) - infinity
SERVER
H.264: 1/2/3/5/6/10/15/30 fps
Max. 50 user names and passwords registered for authorized users.
Number of mask colors: 1 (select from 9 colors)
Temporary storage memory in camera: Max. approx. 5 MB
Frame Rate: Max. 10 fps (JPEG)
Max. 30 fps (H.264)
INTERFACE
- Connect via an audio interface cable (included)
Switch LINE IN/MIC IN in the setting page.
LINE IN x 1 (connect to an amplifier microphone) or
MIC IN x 1 (connect to a microphone w/o amplifier)
- Connect via an audio interface cable (included)
LINE OUT x 1 (connect to an amplifier speaker)
Frame Rate: Max. 1 fps
OPERATING ENVIRONMENT
POWER SUPPLY
- Heater Unit HU600-VB (sold separately): 24 V AC only
POWER CONSUMPTION
OTHER
VB-H710F
