VB-S30D
All Network Cameras
Canon Store: $
Learn about our Network Video Solutions Software Developers Kit (API).
Find out which technology partners integrate with Canon Network Cameras.
VB-S30D
The VB-S30D PTZ Micro Dome Full HD Network Camera is very compact – only 4.72" in diameter and 2.13" thick - and very capable. Leveraging Canon’s famous prowess in optical technology, the 3.5x, F1.4 Auto Focus Zoom lens has an impressive 77.7° angle of view. To the outstanding image quality delivered by the Aspherical lens elements and the powerful Canon DIGIC DV III image processor, the VB-S30D also adds class-leading low light performance and the DIGIC NET II Processor allows the Full HD images captured to be streamed in your choice of Full HD (1920 x 1080) up to 30fps in MJPEG, or using the low bandwidth H.264 codec.
That's just the beginning of the appeal of this brilliant camera. For financial institutions and commercial offices, the Privacy Mask feature is especially useful in providing detailed coverage without compromising door code security while the viewing range of the Wide Angle Lens helps make it a compelling choice in Casino & Gaming, Educational and Airport & Transportation applications. Users can benefit from the superb flexibility in installation which comes from the light weight and diminutive dimensions of the VB-S30D. This is a camera that can be placed in more of the places where you need it to be to help provide the coverage you require.
You will appreciate the impressive low light performance, which allows it to provide quality color video in a range from .95 lux down to .025 lux* and black / white video from .05 lux to .015 lux**. An impressive array of On-board Video Analytics, with set triggers including Moving, Removed and Abandoned Object Detection and Passing Detection are included to provide a wide range of options to help tailor this camera to your specific needs. With the VB-S30D you may also use the Preset Setting Tool to create up to 20 preset positions, allowing you to further customize this camera to the application/environment it is being used in.
The VB-S30D is IEEE802.1x Client Authentication protocol compliant, giving additional network security through port based access control – vital in high security areas. Further security is provided by the support of HTTPS. ONVIF Profile S conformant as well, you will be able to integrate the VB-S30D into a network system with ease when working with compliant equipment from different manufacturers and third party recording software systems.
Class-leading compact size, light weight, Full HD video performance and outstanding analytical capabilities combine in the VB-S30D to help make it a perfect choice for a wide array of demanding surveillance situations.
*Ratings based on F1.4, 1/30 second and Smart Shade Control off (.95 lux), F.1.4, ½ second and Smart Shade Control on (.025 lux).
**Ratings based on F1.4, 1/30 second and Smart Shade Control off (.05 lux), F.1.4, ½ second and Smart Shade Control on (.015 lux).
**Ratings based on F1.4, 1/30 second and Smart Shade Control off (.05 lux), F.1.4, ½ second and Smart Shade Control on (.015 lux).
Features
As one of the smallest Full HD PTZ fixed dome cameras on the market today, the VB-S30D has been designed with components maximized to save space yet provide high quality video at the same time. To accomplish this, smaller circuit boards are combined with meticulous layout planning. The lens has been designed with aspherical elements and a high refractive index. This allows for a much more compact lens assembly as well as superb image capture capability, so the Full HD Video is clear and crisp. The VB-S30D is smaller and lighter than many other cameras of its type, increasing the options available when mounting in tight spaces. It is even light enough to allow installation without hardware.

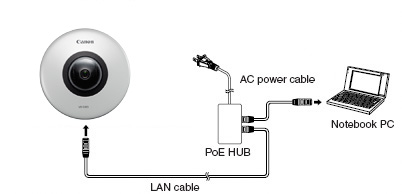

Power over Ethernet
A key component in the compact size of the VB-S30D is the sole use of Power over Ethernet as the method of power, with a maximum usage of 7.8 watts.
A key component in the compact size of the VB-S30D is the sole use of Power over Ethernet as the method of power, with a maximum usage of 7.8 watts.
Genuine Canon 77.5° Angle of View Lens
Canon's world-wide fame in optical technology means that this same expertise is seen in the superb lens fitted to the VB-S30D. Thanks to the impressive 77.5° viewing angle and 3.5x optical zoom, this lens delivers excellent image quality while possessing the smallest form factor in its class, all in a compact size.
Canon's world-wide fame in optical technology means that this same expertise is seen in the superb lens fitted to the VB-S30D. Thanks to the impressive 77.5° viewing angle and 3.5x optical zoom, this lens delivers excellent image quality while possessing the smallest form factor in its class, all in a compact size.
Class Leading Low-Light Performance
Frequently, challenging low-light situations are found in surveillance locations. The ability of a security camera to capture the highest quality video possible in such conditions is very important. The VB-S30D combines a high sensitivity sensor, bright lens, enhanced noise reduction, and video quality optimization to deliver Full HD video with low-light performance at the top of the compact HD class in Canon testing. What this means is color video from .95 lux down to .025 lux* and black/white video from .05 lux to .015 lux.** These impressive numbers translate into higher quality video from VB-S30D cameras mounted in the most demanding locations.
Frequently, challenging low-light situations are found in surveillance locations. The ability of a security camera to capture the highest quality video possible in such conditions is very important. The VB-S30D combines a high sensitivity sensor, bright lens, enhanced noise reduction, and video quality optimization to deliver Full HD video with low-light performance at the top of the compact HD class in Canon testing. What this means is color video from .95 lux down to .025 lux* and black/white video from .05 lux to .015 lux.** These impressive numbers translate into higher quality video from VB-S30D cameras mounted in the most demanding locations.
* Ratings based on F1.4, 1/30 second and Smart Shade Control off (.95 lux), F.1.4, ½ second and Smart Shade Control on (.025 lux).
** Ratings based on F1.4, 1/30 second and Smart Shade Control off (.05 lux), F.1.4, ½ second and Smart Shade Control on (.015 lux).

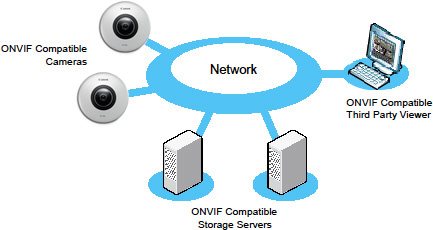

Ease in system integration is important to ensure that users can create a network which best meets their specific requirements. The VB-S30D makes this possible with ONVIF version 2.2 protocol compatibility, including the Profile S standard which includes greater interoperability than found in previous network cameras. It is simpler to integrate the VB-S30D with other ONVIF compliant 3rd party products and it is backwards compatible with earlier versions of the ONVIF protocol.
2.1 Megapixel CMOS Sensor
The Megapixel CMOS Sensor of the VB-S30D ensures maximum image quality, a hallmark of Canon products. Its approximately 2.1 million pixels deliver incredibly sharp, high resolution video, with detail that ensures clearer, more effective video monitoring.
The Megapixel CMOS Sensor of the VB-S30D ensures maximum image quality, a hallmark of Canon products. Its approximately 2.1 million pixels deliver incredibly sharp, high resolution video, with detail that ensures clearer, more effective video monitoring.

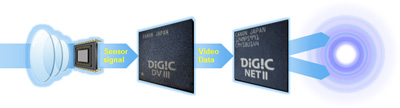

DIGIC DV III
The VB-S30D has at its core Canon's powerful and highly regarded DIGIC DV III Image Processor. It's known for providing superior image quality through more life-like colors, tonal accuracy and reduced noise. This comes with the additional benefit of low power consumption.
The VB-S30D has at its core Canon's powerful and highly regarded DIGIC DV III Image Processor. It's known for providing superior image quality through more life-like colors, tonal accuracy and reduced noise. This comes with the additional benefit of low power consumption.
DIGIC NET II
Working in tandem with DIGIC DV III is DIGIC NET II. It is a sophisticated, efficient compression, encryption and transmission processor, which allows high quality Full HD (1920 x 1080) video at 30fps in both MJPEG and high quality, low bandwidth H.264 Codec. Users have the flexibility of multiple sizes of MJPEG streaming from which to choose and the VB-S30D will also allow 2 different sizes of H.264 which can be streamed simultaneously.
Working in tandem with DIGIC DV III is DIGIC NET II. It is a sophisticated, efficient compression, encryption and transmission processor, which allows high quality Full HD (1920 x 1080) video at 30fps in both MJPEG and high quality, low bandwidth H.264 Codec. Users have the flexibility of multiple sizes of MJPEG streaming from which to choose and the VB-S30D will also allow 2 different sizes of H.264 which can be streamed simultaneously.
H.264 Codec
The H.264 Codec has adjustable I-frames and, by combining both high quality video and high compression rates, it gives the user the considerable benefits of low bandwidth utilization and low disk space usage with video of the quality demanded. The addition of support of the display of H.264 in the Admin Viewer now allows the viewing of this high quality, low bandwidth video directly from the camera's webpage without the need to install additional software.
The H.264 Codec has adjustable I-frames and, by combining both high quality video and high compression rates, it gives the user the considerable benefits of low bandwidth utilization and low disk space usage with video of the quality demanded. The addition of support of the display of H.264 in the Admin Viewer now allows the viewing of this high quality, low bandwidth video directly from the camera's webpage without the need to install additional software.
IEEE802.1x Support
The IEEE802.1x Client Authentication Support of the VB-S30D helps to enhance the security of the user's network with port based access control. It is possible for the camera to be installed in the most sensitive high security areas, as the Client Authentication Support ensures that only client authorized devices are connected to the network.
The IEEE802.1x Client Authentication Support of the VB-S30D helps to enhance the security of the user's network with port based access control. It is possible for the camera to be installed in the most sensitive high security areas, as the Client Authentication Support ensures that only client authorized devices are connected to the network.
SSL Support
With the HTTP over SSL (HTTPS) support of the VB-S30D, both self-signed and Certificate Authority issued certificates can be recognized in order to ensure that communication between the camera and the client is secure, preserving the integrity of your data.
With the HTTP over SSL (HTTPS) support of the VB-S30D, both self-signed and Certificate Authority issued certificates can be recognized in order to ensure that communication between the camera and the client is secure, preserving the integrity of your data.
Auto IP Feature
The VB-S30D will assign itself a private IP address on startup. Designed for small implementations or demonstrations, this will allow for quick setup and viewing immediately on installation without the need to configure each camera's IP address individually.
The VB-S30D will assign itself a private IP address on startup. Designed for small implementations or demonstrations, this will allow for quick setup and viewing immediately on installation without the need to configure each camera's IP address individually.
On-board Video Analytics
The capability of the VB-S30D is greatly enhanced by the range of Video Analytics available to the user. They include:
In each of these analytics, the user can customize the behavior of the VB-S30D by precisely tuning the camera's event detection triggers. These include the detection area, sensitivity and duration. When an event occurs, advanced event notification tools can alert the selected personnel, maximizing response time. Now users will also have a Quick Setting in the Removed Object Detection analytic, which when triggered, rapidly identifies objects in the camera's field of view and places a visual 'box' around the object automatically. This can significantly reduce the time required to configure and identify the location of removed objects.
The Privacy Mask Function works by blocking pre-defined areas of the camera view. Such areas might include details such as door entries, ATM keypads, computer monitors or office or apartment windows which should not be seen or recorded in an area which nevertheless requires surveillance. Full range of camera motion is preserved while still protecting the security of targeted areas or items.
The capability of the VB-S30D is greatly enhanced by the range of Video Analytics available to the user. They include:
- Moving Object Detection
- Removed Object Detection
- Abandoned Object Detection
- Sound Level Detection
- Camera Tampering Detection
- Passing Detection
Preset Setting Tool
Another feature of the VB-S30D is the Preset Setting Tool which allows the end-user to customize the camera by creating up to 20 presets, thus allowing critical areas to be effectively monitored.
Another feature of the VB-S30D is the Preset Setting Tool which allows the end-user to customize the camera by creating up to 20 presets, thus allowing critical areas to be effectively monitored.

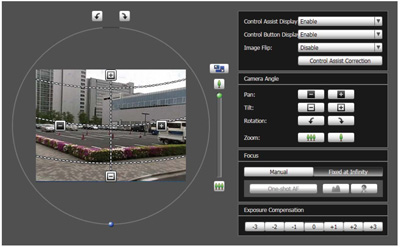

Digital & Viewer PTZ
With the VB-S30D's ability to allow the user to digitally pan, tilt and zoom in the incoming video stream, details in the camera's field of view can be investigated without the need to physically reposition the camera.
With the VB-S30D's ability to allow the user to digitally pan, tilt and zoom in the incoming video stream, details in the camera's field of view can be investigated without the need to physically reposition the camera.
Joystick Support
The VB-S30D supports Joysticks for controlling Pan/Tilt/Zoom and Presets from remote locations.
The VB-S30D supports Joysticks for controlling Pan/Tilt/Zoom and Presets from remote locations.
Scheduled Custom Video Settings
For maximum user flexibility in tailoring the settings of the video capture, the VB-S30D allows for customization of the video settings when switching from day to night mode, as well as setting a daily schedule. These settings can be pre-programmed to ensure that the image quality is optimized throughout the day for ambient light conditions.
For maximum user flexibility in tailoring the settings of the video capture, the VB-S30D allows for customization of the video settings when switching from day to night mode, as well as setting a daily schedule. These settings can be pre-programmed to ensure that the image quality is optimized throughout the day for ambient light conditions.

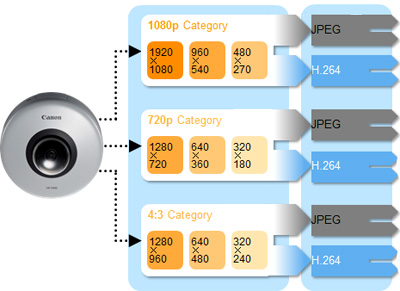

Flexibility in Video Size Choices
Flexibility is a hallmark of the VB-S30D and that extends to choices in the size of live and recorded video streams to select those best suited to their specific requirements. The user may choose between the 16:9 sizes of Full HD, and HD video sizes such as 720p as well as additional 4:3 aspect ratio video sizes.
Flexibility is a hallmark of the VB-S30D and that extends to choices in the size of live and recorded video streams to select those best suited to their specific requirements. The user may choose between the 16:9 sizes of Full HD, and HD video sizes such as 720p as well as additional 4:3 aspect ratio video sizes.
On-screen Display
The VB-S30D supports an on-screen display which can be customized to contain time & date and also has a text field in which the camera location can be identified for easier analysis.
The VB-S30D supports an on-screen display which can be customized to contain time & date and also has a text field in which the camera location can be identified for easier analysis.
Live images and H.264 video can be saved to a memory card with the VB-S30D's built-in microSD Memory Card slot. The use of microSD, microSDHC, and microSDXC cards allows the user to save events which occurred during live network outages, event triggers and scheduled times, as well as events that were manually recorded, for future review and analysis.
Additionally, system logs are created when incidents occur on the SD card for future troubleshooting. The playback of JPEG and H.264 video within the monitoring browser is also supported, eliminating the need for prior download to a PC.

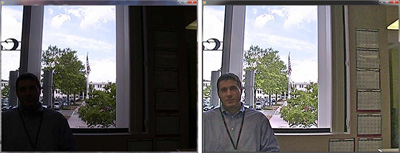

Auto Smart Shade Control
The image quality of the VB-S30D is enhanced by Smart Shade Control. It brightens the underexposed areas of the image, while leaving the properly exposed areas alone. This gives the user an image which is evenly exposed. Those details which might otherwise be hidden in underexposed areas can now be easily identified, without compromising the overall image.
The image quality of the VB-S30D is enhanced by Smart Shade Control. It brightens the underexposed areas of the image, while leaving the properly exposed areas alone. This gives the user an image which is evenly exposed. Those details which might otherwise be hidden in underexposed areas can now be easily identified, without compromising the overall image.
Auto Gain Control
The user of the VB-S30D can adjust the maximum amount of digital gain used in the Full HD image when auto exposure is selected in low-light environments. This ensures that the user retains control over the quantity of digital gain 'noise' that is introduced into the image.
The user of the VB-S30D can adjust the maximum amount of digital gain used in the Full HD image when auto exposure is selected in low-light environments. This ensures that the user retains control over the quantity of digital gain 'noise' that is introduced into the image.
Admin Viewer H.264 Support
The user can view high quality, low bandwidth video directly from the webpage of the VB-S30D without installing any software. This greatly simplifies small system setup and monitoring.
Control for Admin Panel Customization
To allow for greater customization of the Admin Panel, the VB-S30D supports the reorganization of the panel display in order to display those administrative functions most used, for quick access.
The user can view high quality, low bandwidth video directly from the webpage of the VB-S30D without installing any software. This greatly simplifies small system setup and monitoring.
To allow for greater customization of the Admin Panel, the VB-S30D supports the reorganization of the panel display in order to display those administrative functions most used, for quick access.
The RM-Lite recording software is included at no cost with the purchase of the VB-S30D. A Canon proprietary product, it is a limited function version of the RM-9/25/64 recording software available for purchase. RM-Lite can view live H.264 /JPEG streams from the VB-S30D and can record the JPEG stream from up to 4 cameras. This software is well suited for small systems and eliminates the need to purchase software separately.
VB-S30D Network Camera
Compatible Supplies & Accessories
Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you VB-S30D that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store
Junction Box Mounting PS30-VB
Ceiling installation pendant mount for 1.5" NPS. Allows for manual rotation adjustment during setup.
Junction Box Mounting PS30-VB
Ceiling installation pendant mount for 1.5" NPS. Allows for manual rotation adjustment during setup.
Pendant Mounting Kit PC30-VB
Ceiling installation pendant mount for 1.5" NPS. Allows for manual rotation adjustment during setup.
Pendant Mounting Kit PC30-VB
Ceiling installation pendant mount for 1.5" NPS. Allows for manual rotation adjustment during setup.
RM-25 V3.0
The Canon RM-25 network video Recording Software supports the full range of Canon's network video cameras, allowing access and control of PTZ cameras through a full range of motion, modes and two-way audio capabilities. allows the user to record and access stored video taken from up to 25 security cameras on your network.
RM-64 V3.0
The Canon RM-64 network video Recording Software supports the full range of Canon's network video cameras, allowing access and control of PTZ cameras through a full range of motion, modes and two-way audio capabilities. allows the user to record and access stored video taken from up to 64 security cameras on your network.
RM-9 V3.0
The Canon RM-9 network video Recording Software supports the full range of Canon's network video cameras, allowing access and control of PTZ cameras through a full range of motion, modes and two-way audio capabilities. The software allows the user to record and access stored video taken from up to 9 security cameras on your network.
RM-V V3.0
One (1) viewer license for RM-Lite Network Video Monitoring and Recording Software. (License only, no software included)
RM-V V4.0
One (1) viewer license for RM-Lite Network Video Monitoring and Recording Software (License only, no software included).
Recording Software RM-25 V4.0
The Canon RM-25 network video Recording Software supports the full range of Canon's network video cameras, allowing access and control of PTZ cameras through a full range of motion, modes and two-way audio capabilities. allows the user to record and
Recording Software RM-64 V4.0
The Canon RM-64 network video Recording Software supports the full range of Canon's network video cameras, allowing access and control of PTZ cameras through a full range of motion, modes and two-way audio capabilities. allows the user to record and
Recording Software RM-9 V4.0
The Canon RM-9 network video Recording Software supports the full range of Canon's network video cameras, allowing access and control of PTZ cameras through a full range of motion, modes and two-way audio capabilities. The software allows the user to
SR30-P-VB
Surface Mounting Spacer SS30-VB
Spacer for surface mounting. The Micro SD card slot can still be accessed.
Surface Mounting Spacer SS30-VB
Spacer for surface mounting. The Micro SD card slot can still be accessed.
A&E System Design Tools
Drawings / 3D CAD
Angle of View Calculator
Choose the camera with the required distances, scene sizes and focal lengths. Learn more.
Note: For best results, please view the Calculator on either a desktop or laptop screen.
Required Disc Storage Calculator
Determine your surveillance system's hard drive storage space needs. Learn more.
Note: For best results, please view the Calculator on either a desktop or laptop screen.
CAMERA
IMAGE SENSOR
1/4.85 type CMOS (primary color filter)
NUMBER OF EFFECTIVE PIXELS
Approx. 2.1 million pixels
ANALOG VIDEO RESOLUTION
N/A
ANALOG VIDEO STANDARD
N/A
ANALOG S/N RATIO
N/A
SCANNING METHOD
Progressive
LENS
3.5x optical (4x digital) zoom lens with auto focus
FOCAL LENGTH
2.25 (W) - 7.88mm (T)
F-NUMBER
F1.4 (W) - F2.6 (T)
HORIZONTAL VIEWING ANGLE
77.7° (W) - 20.7° (T)
VERTICAL VIEWING ANGLE
40.4° (W) - 11.6° (T)
DAY/NIGHT SWITCH
Auto/Manual
I/R CUT FILTER
Fixed
MIN. SUBJECT ILLUMINATION - DAY (COLOR)
0.95 lux (F1.4, shutter speed 1/30 sec., smart shade control is off, 50IRE) 0.07 lux (F1.4, shutter speed 1/2 sec., smart shade control is off, 50IRE) 0.025 lux (F1.4, shutter speed 1/2 sec., smart shade control is on, 50IRE)
MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME)
0.5 lux (F1.4, shutter speed 1/30 sec., smart shade control is off, 50IRE) 0.04 lux (F1.4, shutter speed 1/2 sec., smart shade control is off, 50IRE) 0.015 lux (F1.4, shutter speed 1/2 sec., smart shade control is on, 50IRE)
FOCUS
Auto/One-shot AF/Manual/Fixed at infinity
SHOOTING DISTANCE
0.3m (12 in.) - infinity (W)
SHUTTER SPEED
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 sec.
EXPOSURE
Auto/ Auto (Flickerless)/ Auto (shutter-priority AE)/ Manual (Shutter Speed, Gain)
WHITE BALANCE
Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm
Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/ Manual
(One-shot WB / R Gain/ B Gain)
METERING MODE
Center-Weighted/Average/Spot
EXPOSURE COMPENSATION
9 levels
SMART SHADE CONTROL
Auto / Manual / Disable
Auto: 3 Levels
Manual: 7 Levels
Auto: 3 Levels
Manual: 7 Levels
AGC LIMIT
5 levels
IMAGE STABILIZER
N/A
PAN ANGLE RANGE
350° (&Plusmn;175°)
TILT ANGLE RANGE
90° (ceiling-mounted position: -90° - 0°)
ROTATION ANGLE RANGE
N/A
MOVING SPEED
Pan: Max. 120°/sec., Tilt: Max. 120°/sec.
SERVER
VIDEO COMPRESSION METHOD
JPEG, H.264
VIDEO SIZE
JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270
1280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
VIDEO QUALITY
JPEG, H.264: 5 levels
FRAME RATE
JPEG: 0.1 - 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
H.264: 1/2/3/5/6/10/15/30 fps
MAXIMUM FRAME RATE
JPEG, H.264 (1920 x 1080): 30fps
I-FRAME INTERVAL
0.5/1/1.5/2/3/4/5 sec.
SIMULTANIOUS CLIENT ACCESS
Max. 30 Clients + 1 Admin Client
- H.264: Max. 10 Clients
CAMERA CONTROL
Administrator, Authorized user, Guest user
Max. 50 user names and passwords registered for authorized users.
ACCESS CONTROL
User authority (user name and password), Host Access Restrictions (IPv4,
IPv6)
ENCRYPTED COMMUNICATIONS
User authority (user name and password), Host Access Restrictions (IPv4,
IPv6)
IEEE 802.1X
EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
ONVIF Version
ONVIF Ver. 2.4 / Profile S
IPv4 PROTOCOL
TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client),
DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP
(Canon proprietary), ONVIF
IPv6 PROTOCOL
TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client),
ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon
Proprietary), ONVIF
AUTO IP
Available
AUDIO COMPRESSION METHOD
G.711 μ-law (64 kbps)
AUDIO COMMUNICATION METHOD
Sound Transfer Protocol by Canon
AUDIO FILE PLAYBACK
N/A
PRIVACY MASK
Number of registration: Max. 8 places,
Number of mask colors: 1 (select from 9 colors)
VIEW RESTRICTION
Available
PRESETS
Max. 20 positions
INTELLIGENT FUNCTION - VIDEO
Moving object detection, abandoned object detection, removed object
detection, camera tampering detection, and passing detection
INTELLIGENT FUNCTION - DETECTION SETTINGS
Max. 15
INTELLIGENT FUNCTION - VOLUME
Volume Detection
EVENT TRIGGER TYPE
External Device Input, Timer, Intelligent Function (Video),
Intelligent Function (Volume)
IMAGE UPLOAD
FTP/HTTP/SMTP (e-mail)
Temporary storage memory in camera: Max. approx. 5 MB
Frame Rate: Max. 10 fps (JPEG)
Max. 30 fps (H.264)
EVENT NOTIFICATION
HTTP/SMTP (e-mail)
ON-SCREEN DISPLAY
Available
IMAGE CROPPING FUNCTION
N/A
DAYLIGHT SAVING TIME
Available
CUSTOM SETTINGS
Number of Registers: 4
Items to Register: Pan/Tilt/Zoom, Exposure, Smart Shade Control, Focus,
White Balance, Image Quality Adjustment, Day/Night
INTERFACE
NETWORK TERMINAL
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
AUDIO INPUT TERMINAL
Φ3.5mm (Φ0.14 in.) mini-jack connector (monaural)
Switch LINE IN/MIC IN in the setting page.
LINE IN x 1 (connect to an amplifier microphone) or
MIC IN x 1 (connect to a microphone w/o amplifier)
AUDIO OUTPUT TERMINAL
N/A
EXTERNAL DEVICE I/O TERMINAL
Input x 1, Output x 1
ANALOG VIDEO OUT
N/A
MEMORY CARD
MicroSD Memory Card, MicroSDHC Memory Card, MicroSDXC Memory
Card Compatible.
Frame Rate: Max. 1 fps (JPEG)
Max. 30 fps (H.264)
OPERATING ENVIRONMENT
TEMPERATURE
Temperature: -10°C - +50°C (+14°F - +122°F)
HUMIDITY
Humidity: 5% - 85% (without condensation)
POWER SUPPLY
PoE
PoE: PoE power supply via LAN connector (IEEE802.3af compliant)
AC ADAPTER
N/A
EXTERNAL POWER SOURCE
N/A
POWER CONSUMPTION
WITH PoE
Max. approx. 7.8 W
WITH AC ADAPTER
N/A
WITH 12VDC
N/A
WITH 24VAC
N/A
OTHER
DIMENSIONS
(Φ x H) Φ120 x 54mm (Φ4.72 x 2.13 in.)
MOUNTING POSITION
Horizontal
HEATER
N/A
WEIGHT
OUTDOOR READY
No
IP RATING
N/A
VANDAL RESISTANT
No
IMPACT RESISTANCE
N/A
Brochures
Loading...
DISCLAIMERS
©2016 Canon U.S.A., Inc. All rights reserved. Canon and DIGIC are registered trademarks of Canon Inc. in the United States and may also be trademarks or registered trademarks in other countries. “ONVIF” and
are trademarks of ONVIF Inc.. Some of the images and effects are simulated. Not responsible for typographical errors.
† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
Complementary Content
- ${title}${badge}
${loading}
