LV-X300ST

All Projectors

PROJECTORS.USA.CANON.COM is our website dedicated solely to Canon Projectors.

Calculate projection distance and screen size using the on-screen icons or entering numerical values.

Speed. Quality. Excellence. Learn about our award-winning Service & Support.

See the contact information for the Canon Projector Account Manager that covers your state.

Features

The native XGA (1024 X 768) resolution of the Canon LV-X300ST projector delivers sharp video, diagrams and text in a native 4:3 aspect ratio. For a presenter showing panoramic images, spreadsheets, or material from a laptop, high definition sources or the output of interactive white boards, XGA resolution offers a level of detail above that found in a standard SVGA resolution projector.

In some cases, the 4:3 aspect ratio will also simplify the use for instances where the source and/or screen is in the 4:3 ratio as well.



The Canon LV-X300ST has been designed to deliver its superb images in tight spaces, thanks to the short throw lens. Whether in a small classroom, working with the output of an interactive whiteboard or showing a presentation, you'll be able to project a high quality large image from a relatively short distance from the projection surface. The LV-X300ST's throw ratio of 0.61:1 enables the projection of a 5½ foot wide screen from just under 3½ feet away. You'll have flexibility in placement options without having to compromise on image quality.



The new color processing algorithm and 6-color wheel of the BrilliantColor™ Technology system bring an enhanced level of color realism and richness to your presentations. The reproduction of high-resolution graphics will be natural and lifelike, thanks to the addition of Cyan and Yellow, when compared to a 4-color wheel palette. This has the effect of increasing the saturation of colors, without adding white. The balance of colors displayed will be truer to the original.





Delivering impactful presentations in challenging environments is among the highest of priorities for users. The Canon LV-X300ST meets that challenge head-on with the brilliance of 3000 Lumens. This projector will deliver exceptionally bright, clear, rich images in many applications. The projector's impressive 2300:1 contrast ratio contributes to the projection of images with deep, crisp blacks.



For projecting in multi-purpose rooms such as classrooms or offices, this versatility in performance will be invaluable.

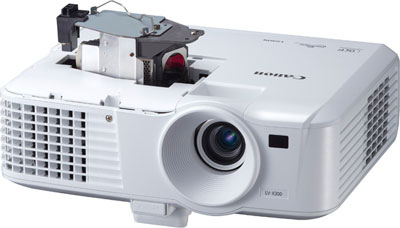

Maintenance of the LV-X300ST is simple with the combination of a filter-free design and an extended-life lamp. In Eco (Economy) Mode, the lamp life is up to 6,000 hours. These features, among the many others, make this projector easy to keep running.





Eco Mode also comes with the bonus of reduced power consumption, as much as approximately 20% from standard mode, along with a reduction in fan noise lowered to 29 dB, helping to reduce the total cost of ownership and making it quieter as well.

Multiple Image Modes

To best tailor the LV-X300ST to the type of presentation materials you are displaying, a selection of image modes may be chosen to optimize the image quality.

  • Presentation Mode is the choice for projecting primarily text

  • Standard Mode is best for projecting colorful images, videos or computer screens

  • sRGB Mode complies with the sRGB standards and is intended to optimize the projection of photographs from sRGB compatible digital cameras

  • Movie Mode is intended for richly colorful videos or images

  • User1/User2 Mode (two user defined modes) makes it simple for users to customize and store up to two unique image modes. This allows multiple presenters to share the projector while keeping the image settings optimized for diverse subject matters or sources. In this mode, you may also make advanced color adjustments through the management of the six colors (R/G/B/C/M/Y) on the color wheel.



Screen Color Correction Mode

When projecting to a non‐white, colored surface, colors of the projected image may appear different from the original image. The Screen Color feature helps to correctly match the colors of projected images to the color of many projected surfaces.



The HDMI input on the LV-X300ST allows projection of engaging high definition signals from various sources such as computers, Blu-ray players and cable boxes.



You will also find 2 Analog PC inputs, 1 Video input, 2 Mini Jacks (audio input and output), 1 Mini DIN4(S-Video) and a USB type B service port.


The Canon LV-X300ST also supports PJLink™, allowing the projector to be controlled and monitored over a network. The administrator may remotely observe lamp hours, usage and more. Additional control options are possible thanks to the RS-232 input and the projector's Creston Connectivity.



A host of easy to use features are packed into the Canon LV-X300ST, making it a capable partner in delivering presentations with great impact.


Direct Power Off

The Direct Power Off feature of the LV-X300ST allows for quick shut off once a presentation is complete and the projector must be removed right away. Simply unplug the projector and go - there's no need to hit the power button on the remote or operational panel, or wait for them to cool off.*



* Before actually using this product, be sure to read the precautions in the instruction manual.

Presentation Timer

An elapsed time can be viewed on the projected image to help manage time during a presentation. This is especially useful for programs with multiple presenters where constraints demand close watch of running time.



Closed Caption Mode

When you are presenting in a venue with a high level of ambient noise or to a hearing impaired audience, the LV-X300ST can deliver closed captioning to make any difficult to understand dialogue perfectly clear.

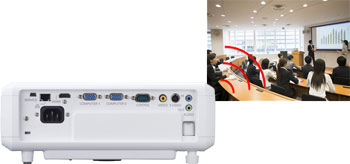

Built-in 10W Speaker

Even without an external sound system, your presentation can sound as good as it looks with the 10W high output speaker of the LV-X300ST. If there is an existing sound system, the LV-X300ST gives you the option to connect to that system as well.



If 3D content is on your program plan, the LV-X300ST can handle it with ease. Capable of projecting 3D utilizing the DLP-Link System, the LV-X300ST only requires a 3D Blu-ray player as a source and DLP Link 3D glasses for your audience.



A key part of the appeal of a portable projector is convenient size and weight. The Canon LV-X300ST is small and light, but still packed with features, and it delivers brilliant images. It's been designed with a small, compact body - 11.1" x 4.64" x 10.53" and lightweight - only 6.17 lbs, light enough and small enough to make it easy to carry with you wherever you need to go.



Canon USA Projector and Lamp Limited Warranty

The LV-X300ST projector is backed by Canon USA's Projector and Lamp Limited Warranty, which guarantees that it will be free from defects in workmanship and materials for 3 years from the date of original purchase. The Lamp is guaranteed for 120 days from the date of original purchase.



Projector Protection Program ("Triple P")

Canon's Projector Protection Program (Triple P) is a FREE service program that provides a loaner projector of equal or greater value in the event that a qualifying unit is in need of repair. Triple P is available on all Canon projector models.




Main Unit Spec

Projector Specifications

Imaging Device
0.55" DMD x1
Aspect Ratio
4:3
Native Resolution
XGA (1024 x 768)
Brightness
3000 Lumens (Normal) / 2100 Lumens* (Eco)
*Brightness in Eco Mode is only a calculated value, and is not guaranteed as specification.
Uniformity
80%
Contrast Ratio
2300:1
Digital Keystone (Vertical)
V -18° / +12°

Optics

Projection Lens
f=6.9mm, F2.60
Zoom
Fixed
Focus
Manual
Screen Size
60" - 120"
*images with the same aspect ratio as the Digital Micromirror Device
Throw Distance
29.1" - 58.2" (0.74 - 1.48m)
Throw Ratio at 100"
0:61:1

Image Adjustments

Image Mode
Presentation, Standard, sRGB, Movie, User 1, User 2
Color Adjust
Yes
Wall Correction
Light Yellow, Pink, Light Green, Blue, Blackboard
Mounting
Front Table, Rear Table, Front Ceiling, Rear Ceiling
Tilt Angle
Front: 1 Rear: 1 (the angle of elevation of up to 6°)

Input Signals

Scanning Frequency
V:15.73 ~ 120kHz, H:24 ~ 101.563Hz
Analog PC Input
UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA / MAC
Digital PC Input
UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA
Analog Video Input
NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N / PAL-60
Component Input
1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Digital Video Input
1080p / 1080i / 720p / 576p / 480p
Dot Clock
3.58 ~ 162MHz

Terminals

Mini Dsub 15 x2
Analog PC / Component video input
HDMI
Digital PC / Digital Video Input
Mini DIN4
S-Video Input
RCA
Video Input
Mini Jack x2
Audio Input x1, Audio Output x1
Dsub9
RS-232C Connection
RJ-45
Network Connection (100BASE-TX / 10BASE-T)
USB type B
Service Port

Remote Control

Wireless Remote
Infrared

Built-In Sound

Internal Amplifier
10W, Mono

Lamp

Type
Super-high Pressure Mercury Lamp
Life
4000 Hours (Normal) / 6000 Hours (Eco)
Power
210W (Normal) / 170W (Eco)

Ratings

Fan Noise
36db (Normal) / 29dB (Eco)
Power Consumption
330W (Normal) / 270W (Eco)
Standby Power
3.0W / 0.5W *Standby LAN function is on/off
Power Voltage
AC 100 ~ 240V, 50/60 Hz
Operating Temperature
32°F - 104°F (0°C - 40°C)
Storage Temperature
-4°F - 140°F (-20°C - 60°C)
Dimensions (W x H x D)
W: 11.10"(282 mm), H: 4.5"(114.5 mm), D: 9.13"(232 mm) (including protrusion)
Weight
6.2 lbs
Projector Warranty
3 Years parts and labor
Lamp Warranty
120 Days

This is to make Misc appear on the page when needed.

LV-X300 ST Kit Contents

LV-X300 ST Kit Contents Projector with Lens Cap Power Cord Computer Cable (Mini Dsub 15-Mini Dsub 15) Projector Remote Control LV-RC08 (includes battery) Quick Start Guide (book) User's Manual (CD-ROM) Warranty Card
