REALiS WUX5000 D Pro AV

All Projectors

PROJECTORS.USA.CANON.COM is our website dedicated solely to Canon Projectors.

Calculate projection distance and screen size using the on-screen icons or entering numerical values.

Speed. Quality. Excellence. Learn about our award-winning Service & Support.

See the contact information for the Canon Projector Account Manager that covers your state.

Features

Canon's REALiS WUX5000 D brings true widescreen content to your large room installation in high resolution WUXGA. The fine detail delivers clarity to the furthest seat in a boardroom, conference room or lecture hall. Every element of an X-ray, CAT scan or MRI displayed can be viewed with precise detail. Compared to XGA projectors, the REALiS WUX5000 D's WUXGA resolution shows a significantly larger display area, delivering razor-sharp precision in projected images. This model allows the display of true widescreen screen 1080p content without compression, showing the true proportions of the source image on the screen just as it appears on your computer monitor.



Canon's renowned optical prowess combines the latest generation of our AISYS (Aspectual Illumination System) Optical System with LCOS technology in the REALiS WUX5000 D. They come together to deliver brilliant, ultra-sharp images in almost any environment.


LCOS Technology

LCOS (Liquid Crystal On Silicon) has taken projectors to a whole new level. This technology means higher resolution images, seamless images with no flickering or "screen door" effect, quick image response for better looking moving images, smooth rendition of fine lines, seamless photo reproduction, sharp display of small text, and crisp blacks.



LCD
Circuitry around pixels obstructs some light.


Single Chip DLP
Shading represents tilting of mirrors.


LCOS
Circuitry behind panels makes pixels appear closer.


AISYS Optical Engine

Canon takes the capability of LCOS technology to the next level by combining it with our proprietary and enhanced 4th generation AISYS Optical Engine. Covered by a Canon patent, this optical light engine achieves brightness and high contrast. AISYS has three components: the illumination system; the color separation and combination system; and the LCOS panels. Only Canon's innovative, breakthrough AISYS technology achieves the right balance of contrast, brightness and compact size to maximize the performance of LCOS.



LCD
Grid-like pixel pattern known as the "Screen Door Effect".


LCOS
Lattice-free, seamless image when LCOS is combined with AISYS.



Single Chip DLP
Color breakup or the "rainbow effect" may appear in fast moving video.


LCOS
Color appears crisp and sharp.


Brighter, truer color comes from the AC lamp system of the REALiS WUX5000 D and the AISYS Optical Engine. The colors on the screen have a more life-like depth thanks to the purity of red and green when compared with conventional DC lamps. In addition, this lamp system boasts an extended operating life, up to 3,000 hours.



LCOS technology combined with Canon's exclusive AISYS Optical Engine, the AC lamp system, and 5000 lumens make the REALiS WUX5000 D a superb high-performance installation projector like no other.


The new REALiS WUX5000 D features a DICOM Simulation image mode setting that allows the projector to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function for display of grayscale images. Images such as X-rays, CAT scans, and MRIs that are typically displayed on DICOM compliant monitors can now be simulated via large projected images by the REALiS WUX5000 D. This new feature is recommended for use in medical schools for training and educational use only.



Project x-rays and other monochrome images with precise detail and clarity.

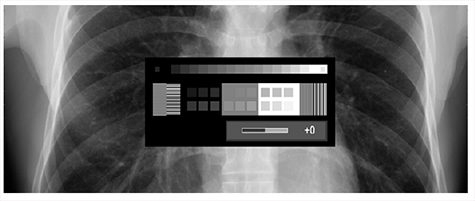

A built-in, easy to use calibration tool allows you to configure the projector to match the brightness of the environment in which the image is being displayed. With 21 steps of preset gamma adjustments, the new REALiS WUX5000 D gives you greater flexibility when calibrating the projector in the variable lighting conditions of your conference or classroom setting.



Built-in calibration tool has 21 steps of preset gamma adjustments.


The REALiS WUX5000 D projects an impressive 5000 lumens, delivering incredible image quality and brightness. The 1000:1 contrast ratio ensures deep blacks and bright whites. Pure, high contrast color reproduction creates images with crisp depth and dimension, ideally suited for conveying texture and materials. Color remains crisp, with superior color balance, perfect for presenting high quality visuals.



REALiS WUX5000 D Projector
Reproduces fine details and precise colors thanks to high brightness and high contrast.


The REALiS WUX5000 D projector gives you the choice of five new interchangeable Genuine Canon lenses. Canon is renowned for our expertise and achievement in lens design and construction - in fact the optical technology developed for our acclaimed EOS series of SLR cameras is reflected in the development of our projection lenses. The 1.5x Zoom Lens (RS-IL01ST), Long Focus Zoom Lens (RS-IL02LZ), Ultra Wide Angle Lens (RS-IL03WF), Ultra Long Focus Zoom Lens (RS-IL04UL), and the Short Focus Zoom Lens (RS-IL05WZ) can be attached to the REALiS WUX5000 D depending on the application.



A standout feature of these Genuine Canon lenses is their lack of brightness loss compared to lenses fitted to competitor's products. Why is that important? Because you will no longer need to 'over specify' brightness in order to compensate for loss, which is common with wide or long throw lenses. That can have a real impact on the price you pay for your installation projector.

All five lenses share the benefits of specifically designed aspherical lenses to minimize their total length. In fact, all five lenses are similar in size and fit in the same space on the projector. For temporary installations, such as those carried out by staging and or rental companies, the projector can be shipped in the same box with the lens already assembled.

The lens shift capability of all three lenses ably assists in allowing maximum flexibility for a wide variety of installation situations. The range of adjustment for the lenses is as follows:

  • 1.5x Zoom Lens (RS-IL01ST): Down 15% - Up 55%, Left 10% - Right 10%

  • Long Focus Zoom Lens (RS-IL02LZ): Down 15% - Up 55%, Left 10% - Right 10%

  • Ultra Wide Angle Lens (RS-IL03WF): Down 5% - Up 5%, Left 2% - Right 2%


You can be virtually assured that the REALiS WUX5000 D can be optimally placed, and since lens shift doesn't degrade the image the way digital keystone correction can, the extraordinary quality of your projected images is not compromised.



With dimensions of 15.0" W x 6.7" H x 16.9" D and a weight of 18.7 lbs, the REALiS WUX5000 D makes installation easy in a wide variety of applications.



The design of the location of the consumable parts enhances both flexibility in mounting and ease of maintenance. The projector's lamp and filter can be replaced from the back/side, and the PS optical filter element can be replaced through the top of the projector.



Like all REALiS Projectors, the REALiS WUX5000 D includes Canon's high-accuracy Color Management System which ensures accurate color reproduction for an extended color space and compensates for color variances due to lighting differences. Precise control prevents the excess leakage of light, producing rich, detailed gradations even in the shadowed portions of images - recreating depth and dimension with stunning drama and realism.

The REALiS WUX5000 D features a color processing algorithm, along with a highly accurate 3D LUT (Look Up Table). Conventional systems shift neighboring colors along with the selected color, often resulting in an imbalance in the image. The WUX5000 allows for the correction of a single color without affecting the others.



With conventional systems, neighboring colors change when a specific color is being changed

3D-LUT with the color processing algorithm only changes the specific color selected


3D LUT improves color reproduction in all image modes under any ambient light condition


6-Axis Color Adjustment

Your projection screen is your canvas with the REALiS WUX5000 D's unparalleled color control. An easy-to-use Graphical User Interface lets you adjust your palette of colors to paint the picture you want for your audience. The WUX5000's 6-Axis Color Adjustment lets you fine-tune the hue, saturation and brightness of each of the primary and secondary colors. This high degree of control makes each projected image a masterpiece.



The REALiS WUX5000 D features the ability to process RGB and component signals, from input to display, in 10-bit resolution for higher-quality images.



The REALiS WUX5000 D gives you an impressive range of input options, allowing you to connect to a variety of devices, including laptop and desktop computers, Blu-Ray players, digital cameras and camcorders.


HDMI

The REALiS WUX5000 D is equipped with an HDMI terminal (version 1.3 deep color), supporting full HD 1080p signals provided by HDTV capable satellite and cable boxes, as well as Blu-Ray players. Connect an HD capable satellite and cable box, digital camcorder or Blu-Ray player to the HDMI terminal for instant display of high-definition video. With single-link bandwidth to 340 MHz (10.2 gbps) it is ready to support the demands of future HD display devices as well.



Network-Ready RJ-45 Port

The REALiS WUX5000 features a built-in network interface (RJ-45), enabling centralized control and monitoring of multiple projector units from a networked PC. This makes it simple for an A/V team to operate ceiling mounted or remotely installed projectors from a PC screen, allowing fewer personnel to cover a larger service area. The REALiS WUX5000 D can also be locally operated through its RS-232 port.

The REALiS WUX5000 D is compatible with industry-standard AMX, Crestron, and Extron controllers, making it possible to construct a sophisticated AV system. In addition, email alerts can be sent to the central PC to give notification of any malfunctions or service issues which may arise in a projector.



With dimensions of 15.0" W x 6.7" H x 16.9" D and a weight of 18.7 lbs, the REALiS WUX5000 D makes installation easy in a wide variety of applications. The design of the location of the consumable parts enhances both flexibility in mounting and ease of maintenance. The projector's lamp and filter can be replaced from the back/side, and the PS element may be replaced through the top of the projector.

An array of advanced and well-designed features makes the REALiS WUX5000 D extremely easy to use:


User-Friendly Menu System

Once it's set up, operating your projector is easy with the help of Guidance Functions that display operating instructions in an on-screen window. A Graphical User Interface makes for easy operation, with five menus for quick access to Display settings, Image adjustments System settings, Network settings and Information. You're never more than a few steps away from any adjustment you need to make! Plus, front and rear infrared sensors let you control your REALiS WUX5000 D with a wireless remote from in front of or behind the projector.


User Memory

Allows the user to set up 10 different settings based on the content being shown. Five user memory settings for PC sources such as DVI-D, Analog PC, and HDMI. The other five settings are for video sources such as Component and HDMI.



Minimal Noise

While presenting you can be sure your audience isn't distracted by fan noise. Tthe REALiS WUX5000 D runs at 40dB.



Selectable Image Modes

To optimize the image quality of your projected content, the REALiS WUX5000 D offers the choice of up to eight Image Modes, selectable dependant on the type of input signal either from a PC or Component Video source.

  • Standard
    Emphasizes white tones and is best suited for text-based computer screens or moving images projected in a bright room. (PC / Component Video)

  • Presentation
    Works well for PowerPoint and similar slide presentations in a bright room. (PC)

  • Dynamic
    Can be chosen for moving images in a bright room. (Component Video)

  • Vivid Photo
    Best for situations in which color and sharpness are the priority, in a somewhat darker room. (PC)

  • Photo/sRGB
    Conforms to sRBG standards and will accurately project images shot by an sRGB-compatible digital camera. (PC / Component Video)

  • Video
    Selected when viewing video in a somewhat darker room. (Component Video)

  • Cinema
    Allows the optimum presentation of moving images in a dim room, 'movie theater' atmosphere. (Component Video)


User settings are up to five user-selected combinations which can be stored in memory and which can be chosen as image modes. (PC / Component Video) In addition, users can utilize a new Noise Reduction feature that allows the reduction of visual image noise to Off, Weak, Middle or Strong.


Selectable Aspect Ratios

In order to best reproduce images, you can select the proper aspect ratio to project. Choose either the native 16:10, 16:9 or 4:3 to exactly match the content format.



Security

When you're finished using your REALiS WUX5000 D, you can use the Pin Code Lock and Function Key Lock to control its use.


The REALiS WUX5000 projector allows for a variety of advance image quality adjustments.


Screen Color Correction

You can fine tune the colors of the image based on a variation of screen color- adjustments can be made from Normal, Non-white board and Adjust. Non-white board is your choice for Greenboard and other dark surfaces, while Adjust will allow the user to make detailed RGB adjustments in the projected image as desired on any surface.


Dynamic Gamma

When you are projecting moving images with low contrast, the REALiS WUX5000 D can employ a Dynamic Gamma function to heighten contrasts. It automatically brings up the bright areas and pushes down the dark so the video can be seen more clearly. This function operates at your choice, so if the original image is acceptable, there is no need to employ Dynamic Gamma.


Memory Color Correction

This function emphasizes skin tones and blues in order to better match most viewers memory of these shades. It works by shifting colors in the skin-tone range and boosts the blue component. The degree of brightness in R, G, B as well as C, M, Y can be adjusted as set between low, medium and high.


Ambient Light Function

An advanced function which can be used to compensate for lighting conditions for both the type of lighting (Tungsten, Fluorescent and Fluorescent H) and intensity (Low, Medium or High), the ambient light function is ideal for users displaying content and cannot control the lighting conditions. This is useful for educators speaking in classrooms or photographers showing their work in an art museum/gallery or at a seminar.





Keystone Correction

A considerable range of adjustment is possible in the Keystone Correction settings. They range in the vertical from ±20 degrees for the Standard/ Telephoto lenses to ±13 degrees for the Wide-Angle lens. Horizontally, -11 to +20 degrees are available for the Standard lens and ±20 degrees for Telephoto/ Wide-Angle lenses.

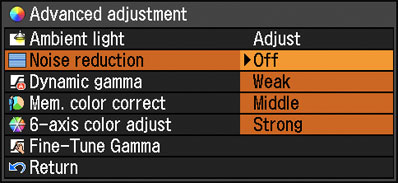

Noise Reduction

In addition, users can utilize a new Noise Reduction feature that allows the reduction of image noise to Off, Weak, Middle or Strong.



The REALiS WUX5000 D makes your life easier as its backed by Canon USA's Projector and Lamp Limited Warranty, which guarantees that the projector will be free from defects in workmanship and materials for 3 years from the date of original purchase, and the Lamp for 120 days from the date of original purchase.

This new model is also backed by Canon USA's Projector Protection Program* ("Triple P"). Triple P is a FREE service program that provides a loaner projector of equal or greater value in the event that a qualifying unit is in need of repair. Triple P is available on all Canon projector models during the Canon USA Projector and Lamp Limited Warranty.


* Loaner units based on availability. Program subject to change at any time without given notice. Contact the Canon Customer Support Center at 1.800.828.4040 for complete details.


Specifications

Projector Specifications

Imaging Device

0.7 Reflective LCD Panels (LCOS) x 3

Aspect Ratio

16:10

Native Resolution

WUXGA (1920 x 1200)

Brightness

5000 Lumens

Uniformity

88%

Contrast Ratio

1000:1

Digital Keystone (Vertical)

-11 to +20 degrees for Standard Lens
±20 degrees for Telephoto Lens
±13 degrees for Fixed Short Focus Lens

Digital Keystone (Horizontal)

±20 degrees for Standard Lens
±20 degrees for Telephoto Lens
±20 degrees for Fixed Short Focus Lens

Optics

Projection Lens

Projector does not ship with lens. 4 optional interchangeable lenses are available (see Optics listed below).

Image Adjustments

Color Adjust

Levels / Balance / Temperature / RGB Gain / RGB Offset / 6-Axis Color Adjustment / Memory Color Correction

Wall Correction

Greenboard

Mounting

Ceiling / Rear / Rear-Ceiling / Upward / Downward

Tilt Angle

Adjustable feet up to 6 degrees

Input Signals

Scanning Frequency

H: 15~75 kHz, V: 50~85 Hz; 162 MHz or less

Analog PC Input

WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA

Digital PC Input

WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA

Component Input

1080p / 1080i / 720p / 576p / 480p / 480i

Digital Video Input

1080p / 1080i / 720p / 576p / 480p

Terminals

(Input) RJ-45

Yes

(Input) Stereo Mini Jack

Audio Input x2

(Output) Stereo Mini Jack

Audio Output x1

Built-in Speaker

5W (Mono)

Control Terminal

D-sub 9pin: RS-232C
Network: RJ-45 (100BASE-TX / 10BASE-T)

Lamp

Lamp Type

330W NSH (AC)

Lamp Life

3000 hours

Remote Control

Sensor

Wireless Infrared (Front / Back)

Ratings

Fan Noise (Quiet/Normal)

40dB

Power Consumption (Normal/Quiet/Stand-By)

450W (Normal) / 1.7W (Standby) / 0.35W (Standby with LAN off)

Power Voltage

AC 100 ~ 240V, 50/60Hz

Temperature Operating

41° to 95° F (5° to 35° C)

Temperature Storage

14° to 140° F (-10° to 60° C)

Dimension (WxHxD)

15.0 x 6.7 x 16.9 in. (without lens, including protruding parts)

Weight

18.7 lbs. without lens

Warranty

3 years parts and labor, 120 day lamp

Image Mode

PC: Standard/Presentation, Vivid Photo, User (1-5)
Video: Dynamic, Photo/sRGB/Video, Cinema, User (1-5)
DICOM Simulation Mode

(Input) HDMI

Digital RGB Input

(Input) DVI-D 29pin

Digital RGB / Digital Video Input (supports Deep Color)

(Input) Mini D-Sub 15pin

Analog RGB / Component Video Input

Power

336W

Throw Ratio

1.5:1 - 2.25:1

Focal Length

23.0 - 34.5 mm, 1.5x Optical Zoom

F-Number

1.89 - 2.65

Projection Distances

4.26 - 95.14 ft. (1.3 - 29 m)

Lens Shift (Vertical)

Down 15% - Up 55%

Lens Shift (Horizontal)

Left 10% - Right 10%

Screen Sizes

40 - 600

Throw Ratio

2.2:1 - 3.75:1

Focal Length

34.0 - 57.7 mm, 1.7x Optical Zoom

F-Number

2.0 - 2.8

Projection Distances

6.23 - 159.12 ft. (1.9 - 48.5 m)

Lens Shift (Vertical)

Down 15% - Up 55%

Lens Shift (Horizontal)

Left 10% - Right 10%

Screen Sizes

40 - 600

Throw Ratio

0.8:1

Focal Length

12.8 mm

F-Number

2.0

Projection Distances

2.29 - 17.06 ft. (0.7 - 5.2 m)

Lens Shift (Vertical)

Down 5% - Up 5%

Lens Shift (Horizontal)

Left 2% - Right 2%

Screen Sizes

40 - 300

Throw Ratio

3.7 ∼ 7.3:1

Focal Length

53.6 - 105.6mm

F-Number

2.34 - 2.81

Projection Distances

15.1 ∼ 290.7 ft.

Lens Shift (Vertical)

-15% ∼ 55%

Lens Shift (Horizontal)

±10%

Screen Sizes

60 - 600

Throw Ratio

1.00:1 - 1.50:1

Focal Length

15.56 - 23.34mm

F-Number

2.09 - 2.34

Projection Distances

2.95-63.97 Feet (0.9 - 19.5m)

Lens Shift (Vertical)

Down 15% - Up 55%

Lens Shift (Horizontal)

Left 10% - Right 10%

Screen Sizes

40 - 600
