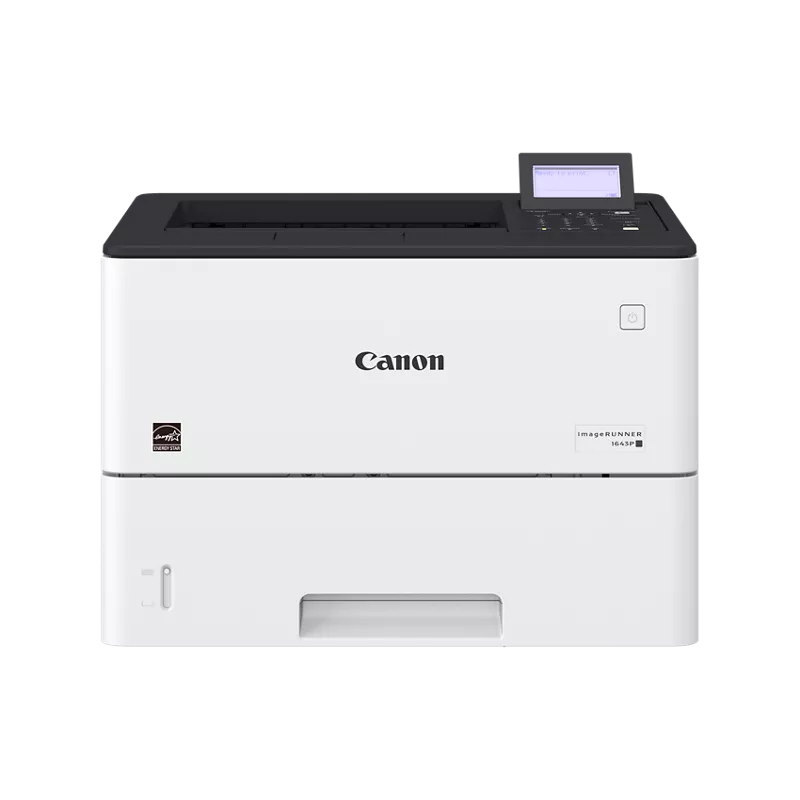

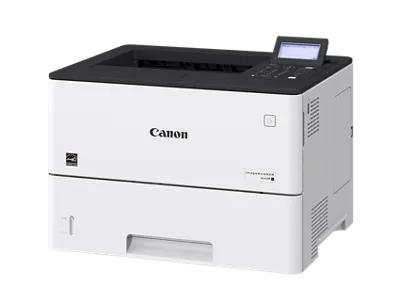

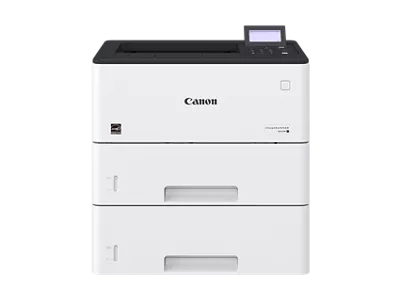

imageRUNNER 1643P

SKU
IR1643P 120V
As low as $0.00
Out Of Stock
  • Print up to 45 ppm (BW)
  • Print up to 8-1/2” x 14”
  • 2,300-sheet maximum paper capacity
  • Black-and-White
  • Compact
  • User-Friendly
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Enterprise Multifunction Printers

From small workgroups and offices to large departments, the imageRUNNER, imageRUNNER ADVANCE DX and imagePRESS Lite platform offers a wide range of models and integrated solutions with proven technology to help address the document workflow challenges of evolving work environments.

Alt text

Simplify, Control, Evolve

imageRUNNER and imageRUNNER ADVANCE DX can help Simplify the end-user experience and management of technology, better Control sensitive information and print-related costs, and help ensure that technology investments proactively Evolve with changing needs.

alt text

Security

The imageRUNNER, imageRUNNER ADVANCE DX and imagePRESS Lite platforms offers a range of security capabilities to help facilitate the confidentiality, accessibility and availability of your data. For added peace of mind, imageRUNNER, imageRUNNER ADVANCE DX and imagePRESS Lite models support McAfee Embedded Control.

Alt text

Awards

Canon's imageRUNNER and imageRUNNER ADVANCE DX platform has earned numerous awards and recognition from leading industry analysts for its innovation, design, and environmental features.

Uniflow printers with Trellix logo

Technical Specifications

imageRUNNER 1643 Series Brochure

imageRUNNER 1643P

MAIN UNIT

TYPE
Monochrome Laser Printer
CORE FUNCTIONS
Print
PROCESSOR
Canon Dual Custom Processor2 (Shared)
OPERATION PANEL

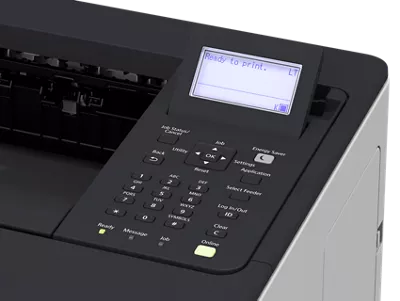

5-Line LCD Panel
MEMORY
1.0 GB RAM
INTERFACE CONNECTION2
1000Base-T/100Base-TX/10-Base-T
Others (Standard): USB 2.0 (Host) x3, USB 2.0 (Device) x1
PAPER SOURCES (LETTER, 20 LB. BOND)
Standard: 550-sheet Paper Cassette, 100-sheet Stack Bypass

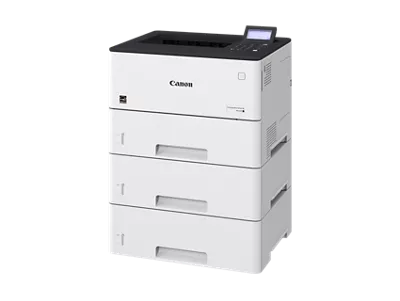

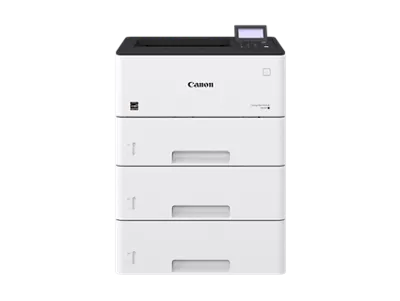

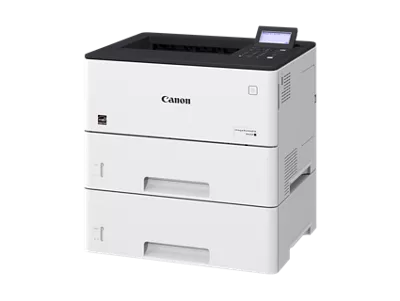

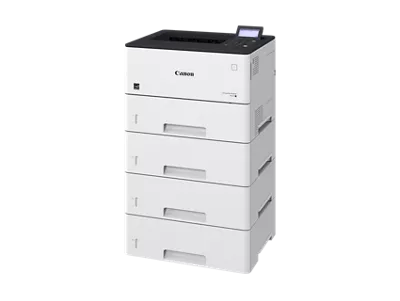

Optional: 550-sheet PAPER FEEDER PF-C1 (up to 3) Maximum: 2,300 Sheets
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)
Maximum: 150 Sheets

SUPPORTED MEDIA SIZES

Cassette: Letter, Legal, Statement, Executive Bypass: Letter, Legal, Statement, Executive, Custom size
(3" x 5" to 8-1/2" x 14"), Envelope (C5/DL/ COM-10/Monarch)
SUPPORTED MEDIA WEIGHTS
Cassette: 16 lb. Bond to 32 lb. Bond (60 to 120 g/m2)
Bypass: 16 lb. Bond to 73 lb. Cover (60 to 199 g/m2)
PRINT SPEED (BW AND COLOR)
Up to 45 ppm (Letter); Up to 36 ppm (Legal)
WARM-UP TIME
From Power On: 30 Seconds or Less3
From Sleep Mode: 3 Seconds or Less
DIMENSIONS (W x D x H)
16-1/8” x 14-13/16” x 10-13/16” (409 mm x 376 mm x 275 mm)
INSTALLATION SPACE (W x D x H)
24-5/16” x 43-7/16” (617 mm x 1104 mm)
WEIGHT4
Approx. 25.3 lb. (11.5 kg)

PRINT SPECIFICATIONS

FIRST-PRINT-OUT TIME (LTR)
Approx. 5.7 Seconds
PRINT RESOLUTION (dpi)
600 × 600
STANDARD PAGE DESCRIPTION LANGUAGES
UFR II LT, PCL®5e/6, Adobe® PS® 3 (Standard on 1643iF/1643P, optional on 1643i) Optional: Barcode Printing Kit
DIRECT PRINT
Supported File Types:
TIFF, JPEG, PDF and XPS (only LPR) Available from USB memory, LPR
OPERATING SYSTEM
Windows 10/8.1/7 (32/64 bit), Windows Server (2019/2016/2012 R2 (64 bit)/2012 (64 bit)/ 2008 R2 (64 bit) /2008 (32/64 bit), Mac® (OS X 10.6 and later => 10.9 ~ 10/14) Linux (Web Distribution)
PRINT FEATURES
Suspend Job Timeout, Profile Settings, Secure Print, Header/ Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Front/ Back Covers, Toner Reduction, Poster Printing

STORE SPECIFICATIONS

MEMORY MEDIA
Standard: USB

SECURITY SPECIFICATIONS

AUTHENTICATION
Standard: Department ID
Optional: uniFLOW and uniFLOW Online
NETWORK
Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6
DOCUMENT
Standard: Secure Print

ENVIRONMENTAL SPECIFICATIONS

POWER REQUIREMENTS
120-127 V, 60 Hz, 7.1 A
PLUG (MAIN UNIT)
NEMA 5-15P
POWER CONSUMPTION
Maximum: Approx. 1370W
Sleep Mode: 1.9 W5
Typical Electricity Consumption (TEC) Rating6 0.50 kWh
STANDARDS
ENERGY STAR® Certified
Rated EPEAT® Silver1

CONSUMABLES

TONER
Toner T06 Black
TONER YIELD (ESTIMATED @ 5% COVERAGE)
20,500 Images (Estimated Yield @ ISO 19752 Coverage)

FOOTNOTES

  1. For current EPEAT rating (Gold/Silver/Bronze), please visit www.epeat.net.
  2. imageRUNNER 1643P model does not have direct connection capabilities, and does not come standard with Wi-Fi.
  3. Time from device power-on until copy ready (not print reservation).
  4. Includes consumables.
  5. 1.9 W Sleep mode not available in all circumstances due to certain settings.
  6. Based on ENERGY STAR Product Specification for Imaging Equipment Version 3.0.
NOTE: Check for availability and details for uniFLOW solutions.
