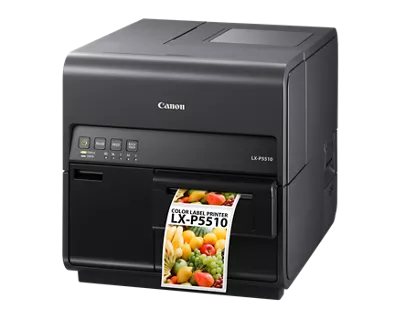

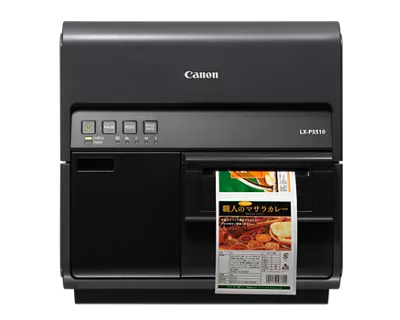

LX-P5510 Pigment Inkjet Label Printer

SKU
LX-P5510
As low as $9,999.00
Out Of Stock
  • Pigment-based ink for colorful and vivid graphics
  • Prints up to 4" wide on roll or fan folded media
  • Optional Rewinder and Auto Cutter accessories available
  • Fast print speed: Up to 11.8 inches per second
  • Print resolution up to 1200 dpi
  • Roll capacity up to 200mm
  • USB and ethernet connectivity
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

OVERVIEW

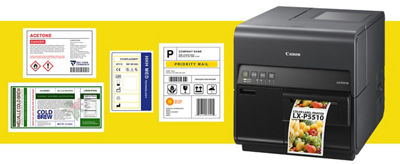

The Canon LX-P5510 label printer is designed to be reliable and flexible, delivering high-resolution, full color labels. By utilizing pigment-based ink for moisture resistance and durability, the LX-P5510 helps improve efficiency and productivity by creating long lasting labels as needed.

LX-P5510

ABOUT THE LX-P5510 PIGMENT-BASED INKJET LABEL PRINTER

WIDE VARIETY OF USES

The LX-P5510 printer is designed to print vibrant, high-quality, long lasting labels on-demand. With high-performance pigment inks that are formulated to withstand water, abrasion, harsh chemicals, and UV or sunlight exposure, the LX-P5510 printer can be used in a variety of sectors and applications. From transportation and warehousing (shipping and inventory), to manufacturing (food & beverage, chemical), retail (pharmacy, grocery), agriculture (crop production), and wholesale general packaging and labels, the LX-P5510 printer can help save on storage space and costs by printing labels on-demand rather than printing large volumes in advance. Other uses for the LX-P5510 include printing items such as tickets, temporary ID tags or badges, decals, stickers, and more.


DURABLE, HIGH-QUALITY IMAGES

With 1200 x 1200 dpi output, the LX-P5510 printer’s pigment inks are formulated not to run, smudge or fade away when used with inkjet compatible matte or gloss media. The sharp imagery of fine details, including but not limited to small text and barcodes, are reproduced with clarity and accuracy which helps aid in capturing a customer’s attention and helps products stand out.



FLEXIBLE AND POWERFUL PERFORMANCE

The LX-P5510 printer is capable of fast print speeds up to 300 mm / 11.8 inches per second. The printer can print labels on media up to four inches wide, and has an estimated output per ink cartridge set of approximately 34,000 sheets2. Additionally, on-demand, short-run printing allows for quick implementation of changes made to label graphics or text when needed.


OPTIONAL REWINDER AND AUTO CUTTER

The optional Rewinder accessory allows users to rewind printed labels output from the LX-P5510 printer for later use, and is ideal for higher-volume production label printing environments. The optional Auto Cutter is designed to automatically separate labels at your desired interval upon printout. These items are sold separately.



ENVIRONMENT IN MIND

The LX-P5510 printer complies with both the EU RoHS and WEEE directives for the reduction of hazardous substances and waste products. In addition, on-demand label printing can assist with sustainability efforts since it helps to eliminate the overprint of excess labels that may become obsolete and need to be disposed of.



LABEL PRINT LANGUAGE EMULATOR

The Canon Label Print Language Emulator is designed to enhance the compatibility and integration of Canon label printers. This downloadable software enables Canon label printers to support existing ZPL®7 applications seamlessly. The Canon Label Print Language Emulator also enables users to register color background images and use them behind the rendered image from ZPL commands. This free software is available via download from www.usa.canon.com/support.



CUSTOMER CARE

For investment protection, eCarePAK extended service plan5 options are available beyond the initial one-year on-site limited warranty period. An eCarePAK can help save on costs associated with post-purchase maintenance and can help maximize uptime throughout the product life.



BarTender
image icon
Download Your 30-Day Free Trial
TEKLYNX
image icon
Download Your 30-Day Free Trial

Technical Specifications

Main Unit Spec

Printer

Printing Method
Pigment-based Inkjet
Ink Cartridges
4 (1 x Black, 1 x Cyan, 1 x Magenta, 1 x Yellow)

Shop Compatible Ink
Print Resolution
1200x1200 dpi
Max Print Speed
First Print Out Time: 4" x 3" Label: 10 seconds or less
Default Print Speed: 300 mm/second (11.8 inches/second)
Range: 50 - 300 mm/s
Preset Options: 300 mm/s, 200 mm/s, 150 mm/s, 120 mm/s, 100 mm/s, 90 mm/s, 80 mm/s, 70 mm/s, 60 mm/s, 50 mm/s1
Supported Media Types
Label Roll Media (with Roll Holder) & Label Fanfold Media (IJ Coated: Matte Paper, Matte Synthetic, Gloss Paper)
Media Capacity
Roll Media: Outer Diameter: Up to 200 mm
Core/Inner Diameter: Up to 76.2 mm
Fanfold Media: Media Height: Up to 850 mm
Media Size & Thickness
Media Size: Width: 25.4 - 120.0 mm (Including Liner)
Length: 6.0 - 500.0 mm
Media Thickness: 0.145 - 0.255 mm
Maximum Printable Area
Width: Up to 105.9 mm (with AIS “On”)
Length: 3.0 - 497 mm
Minimum Margin
Top/Bottom: 1.5 mm
Left/Right: 2.7 mm (including Liner, with AIS “On”)
Product Life
Approx. 6 Million Sheets / 5 Years2

General

Output per Cartridge Set
Approx. 34,000 Sheets2
Cartridge Fill Volume
Black / Cyan / Magenta / Yellow: 240 ml
Maintenance Cartridge
WT-X401 Maintenance Cartridge
Approx. 100,000 Sheets
Operational Method
LCD: No
Buttons/LEDs: 4 Buttons / 8 LEDs
Connectivity
USB 2.0, Ethernet (10/100/1000 Base-T), RS- 232C (For External Devices)
OS Compatibility
Windows 11 (64bit), Windows 10 (64/32 bit)3
Operating Environment
Temperature: 41° - 95°F (5° - 35°C)
Humidity: 10 - 90% RH (Non-Condensing)
Options
CU-L02 Auto Cutter Unit Module
RH-L03 Roll Holder Module
Rewinder
Power Consumption (approx.)
Maximum: Approx. 268 W
Operating: Approx. 29 W
Electrical
AC 100-240V, 50/60Hz
Acoustic Information
Operating Noise (Max.): 55dB or less
Standby Noise: 35dB or less4
Warranty
One-Year On-Site Limited Warranty5
Dimension (W x D x H)
15.2” (W) x 22.4” (D) x 15.5” (H)
Weight
55.1 lbs.6

Brochures

File Name

Canon LX-P5510 Label Printer Brochure

Date

04.26.23

File Size

0.5 MB

File Name

Canon LX-P5510 Inkjet Label Printer Consumables And Accessories Brochure

Date

04.26.23

File Size

0.1 MB

File Name

Canon LX-P5510 Service & Support Brochure

Date

03.06.24

File Size

3.6 MB

Product Disclaimer

  1. Print speeds based on 4 x 3 inkjet coated label and may vary depending on system confi guration, interface, software, print complexity, print mode, paper coverage, type of paper used, etc.
  2. Based upon standard print conditions and print size of 4”x3” inkjet coated matte label, 7.5% Duty/Color, 100 labels x 50 jobs/day, excluding manual cleaning and printhead.
  3. Operation can only be guaranteed on a PC with pre-installed Windows 11 (64bit), Windows® 10 (64/32-bit)
  4. Acoustic noise is based off the measurement following ISO7779, and the display number shall follow ISO9296.
  5. Warranty and Support programs are subject to certain conditions and restrictions. See usa.canon.com/support for details.
  6. Printer weight measured excluding print head or ink cartridges installed.
  7. ZPL is a trademark of Zebra Technologies Corp., registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners.
