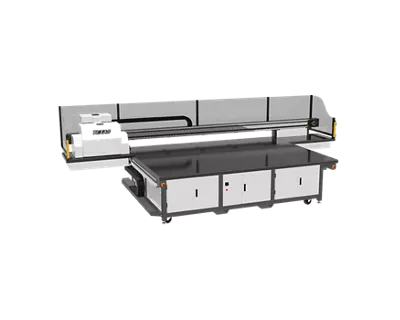

Texas LT3 Series
- Durable, large format UV printer
- Linear drive systems and embedded encoders on carriage and bridge for maintenance free, precision movement.
- X axis accurate across the bridge to 1 micron, Y axis is accurate to 1 micron on both sides of the gantry.
- TruFire PPS to give the operator complete control.
- Software aided print head alignment process for easy, accurate alignment.
Overview
High Productivity, Precision, Quality
The large format UV printing market is continually growing with increasing print volumes but also lower turnaround times and a steadily shrinking workforce that's skilled in large format digital print production. This perfect storm creates a perfect opportunity for print providers to see exceptional value in the Texas LT3 series UV flatbed printers by DigiTech.
The Texas UV flatbed printer series addresses this head-on with a highly productive, stationary flatbed that is capable of up to 7,489 Ft2/hour. The printer can run semi-automated using the auto-unloader feature that transfers the finished print to either a pallet, or onto an integrated conveyor unit feeding to a compatible digital finishing system. Now with just one operator, boards can be loaded on the printer and the finished product quickly and efficiently comes off the cutter ready to be packaged and shipped. Shifting the focus from “boards per hour” to “finished boards per hour.”
Built Smart for Production Environments
DigiTech set out to develop and manufacture a complete print system to be durable and reliable, but also incredibly accurate. The result is the TruFire Precision Print System (PPS) by DigiTech that encompasses a range of design refinements that deliver exceptional dot placement accuracy, reliability and productivity and offers “print on demand” capability all day with minimal maintenance.
Automation-Ready
Fully Automated Print to Cut Production
The Texas LT3 Series now supports a fully automated print-to-cut workflow, boosting productivity by eliminating manual intervention typically required to complete jobs. This streamlined process reduces labor demands while enhancing speed, efficiency, and overall production capabilities.
Key Features of the DigiTech Texas LT3 Series UV Flatbed Printers
- True, stationary flatbed architecture for a wide range of applications
- Print substrates up to 5 feet by 10 feet and up to 6 inches thick
- Auto-unloader transfers printed boards directly to an integrated digital finishing system or pallet’
- Uninterrupted ink system. No dropouts in any print mode.
- 3-level grayscale printing with breathtaking quality and efficiency.
- Efficient, environmentally friendly LED UV lamps and an enhanced ink formulation for expanded color capabilities.
- The LT3/X2 is available in a two-row 8, 10, or 12 printhead configuration, utilizing CMYK with options of Orange, White, Gray and Varnish.
- The LT3/X3 is available in a three-row 18 printhead configuration, utilizing CMYK, Orange with option of White, Gray, or Varnish.
- Hardware and software made in America.
Resources
Brochures
|
File Name Canon DigiTech Texas LT3 Series Brochure |
Date 10.10.25 |
File Size 998 KB |
|
|---|
Technical Specifications
| Rigid Media Size | Zoned for 4' x 8' and 5' x 10' |
| Rigid Media Thickness | Up to 6.0" |
| 3-Level Greyscale Printhead Technology | Staggered, dual-row or three-row Kyocera printheads utilizing 4, 6, 10, and 14 pl drops |
| Maximum Print Speed | 4,376 Ft2/hour (LT3/X2) and 7,489 Ft2 (LT3/X3) |
| Ink Channels | LT3/X2: (2x) CMYK, (2x) CMYK+White or Or, Gray, or Varnish, (2x) CMYK+White and option of Or, Gray, or Varnish LT3/X3 (3x) CMYK+Or, and option of White, Gray, or Varnish. |
