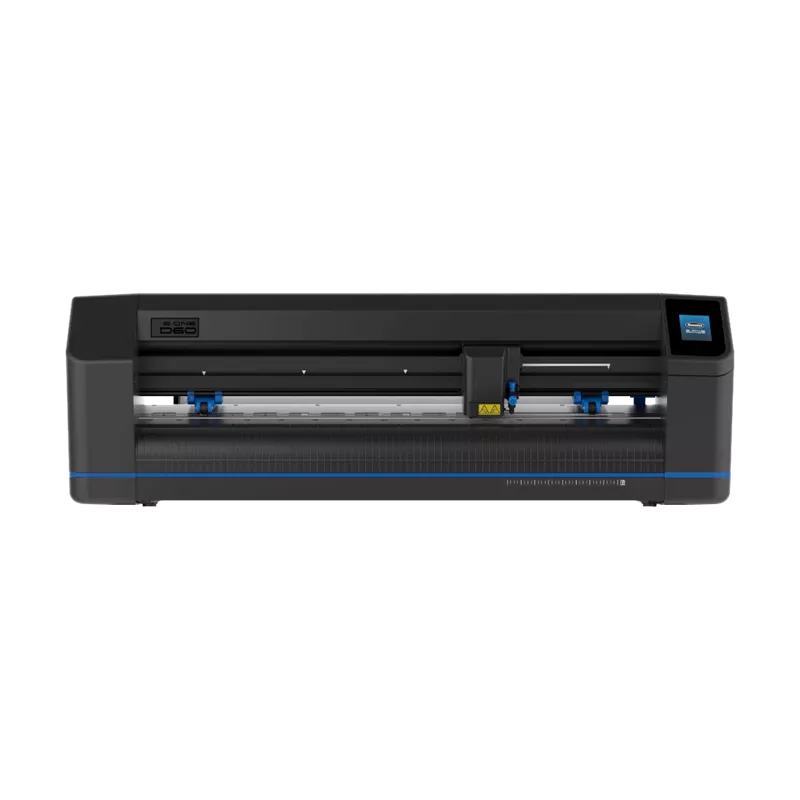

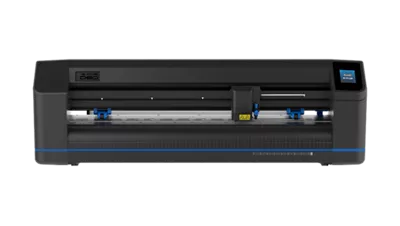

24" Summa S One D60 Cutter and Colorbyte R.E.D. Software

As low as $0.00
Out Of Stock
Estimated ship date
  • 24" Cutter with Drag Knife Cutting Technology
  • Bundled with ImagePrint R.E.D. software by ColorByte and GoSign software by Summa
  • Ideal for low-mid volume cutting environment

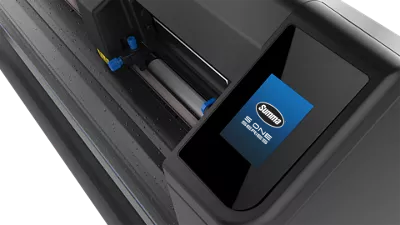

  • Ease of use with integrated intelligent features
  • Supports a variety of media and applications
Show more

In the box

Overview

A GREAT COMPANION TO GROW YOUR BUSINESS

The Summa S One Series roll cutters utilize Drag Knife Technology, the most commonly used in the market. The S One Series are specifically designed for low-mid volume cutting environments and are best to compliment Canon’s imagePROGRAF large-format printers. The 24” S One D60 has an excellent material transport system to process jobs more accurately and continuously. Summa’s Drag Knife Technology is designed to be precise while being efficient and affordable. In addition, enjoy ease of use with integrated intelligent features, such as an intuitive touchscreen and easy connectivity to most environments.

The possibilities of growing your business are endless with the combination of Canon and Summa! With a variety of Canon media, implementing applications are easy! Compatible media include Adhesive Vinyl, Durable Matte Film, Luster, Repositionable Peel n Stick, and more! Execute applications, such as, small decals, stickers, small prints, labels, and more!

With GoSign cutting software from Summa, manage preferred workflows with great flexibility for the S One D60 cutter. Enjoy automated cutting options, custom configurations, easy plug-ins for design programs, and more!

ImagePrint R.E.D by ColorByte is designed to help you reduce time and manual work with intuitive software and precise high-speed cutting with capabilities such as nesting, kiss cutting and more. Canon is offering a creative output solution to work with your imagePROGRAF large format printers. ImagePrint R.E.D comes standard with the Summa S One D60.

Technical Specifications

Main Unit Specs

Model
Drag Knife
Cutting Technology
Drag Knife
Dimensions (W x D x H)
38.2 x 16 x 12 in
Media Width
3.2 to 26 in
Max. Working Width Oversized Mode* (W x L)
23.2 in x 1968 in
25.6 in x 1968 in
"Oversized" mode allows a wider cutting area: +/2.36 in
Pinch Rollers
2
Alignment Type
  • OPOS X - OPOS Xtra
  • Barcode job recognition
  • Up to 2 x 64 marks on the X-line
  • Y-Line compensation
Tracking Performance
26 ft max. within guaranteed specifications for media less than 30 in
13 ft max. within guaranteed specifications for media larger than 30 in
Media Thickness
0.002 in to 0.010 in / 0.010 in with optional sandblast knife (0.0508mm to 0.054mm)
Accuracy
0.2% of move or 0.010 in (0.254mm), whichever is greater
Speed
Up to 44 ips diagonal
Acceleration
Up to 3 G diagonal
Knife Pressure
Up to 600 grams
Other Features
FlexCut (cutting through)
Connectivity
Ethernet, USB, WiFi
Power Requirements
100-240 VAC, 50/60 Hz
* In “Oversized” mode the tracking performance is no longer guaranteed.
