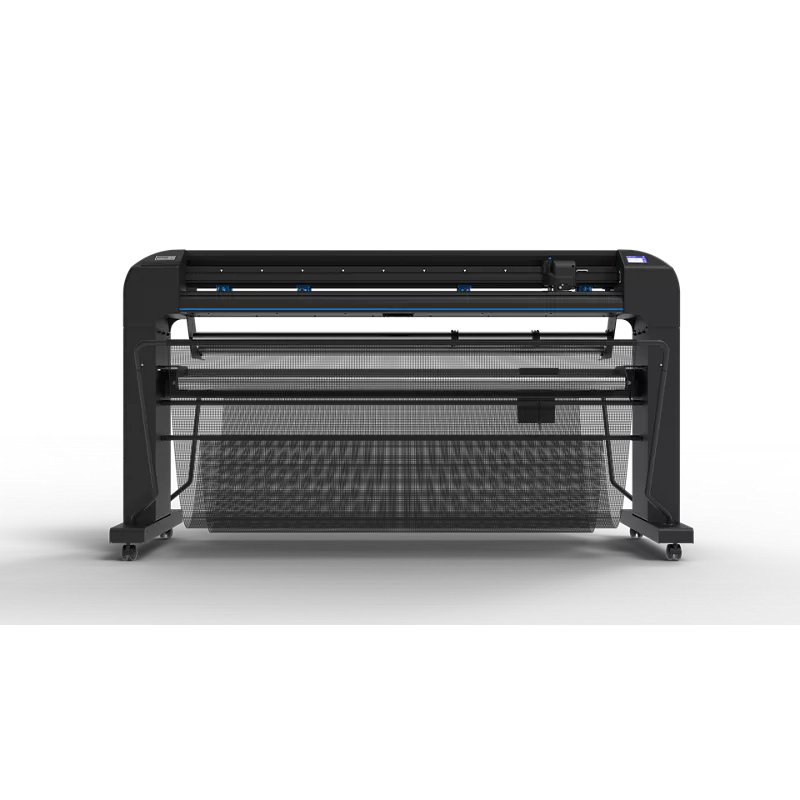

54" Summa S3 T140 Cutter

As low as $0.00
Out Of Stock
Estimated ship date
  • 54" Cutter with Tangential Knife Cutting Technology
  • Seamless workflow with RIP softwares and GoSign software by Summa
  • Ideal for high volume cutting environment
  • Ease of Use with integrated intelligent features
  • Supports a variety of media and applications
Show more

In the box

Overview

TRUE TANGENTIAL CUTTING TECHNOLOGY

The Summa S Class 3 Series roll cutters utilize Tangential Cutting Technology which is specifically designed for high volume cutting environments. The Summa S Class 3 cutter, S3 T140 is best to compliment Canon’s Colorado large-format printers. The S Class 3 Series has a motorized knife, allowing the cutters to accurately cut through thicker substrates while achieving unparalleled accuracy and precision down to the smallest details. In addition, enjoy ease of use with integrated intelligent features, such as an intuitive touchscreen and easy connectivity to most environments, as well as a seamless material transport system.

The possibilities of growing your business are endless with the combination of Canon and Summa! With a variety of Canon media, implementing applications are easy! Compatible media include Adhesive/Repositionable/Matte/Glossy Vinyl, Window/Reflective Film, Floor Graphics, Luster, Glossy/Matte Photo, and more! Execute applications, such as, small decals, stickers, small prints, labels, and more!

Utilize a RIP you have in-house or with GoSign! GoSign is cutting software from Summa, manage preferred workflows with great flexibility for the S One D60 cutter. Enjoy automated cutting options, custom configurations, easy plug-ins for design programs, and more!

Technical Specifications

Main Unit Specs

Model
S3 T140
Cutting Technology
Tangential Knife
Dimensions (W x D x H)
79.6 x 27.2 x 43.7 in
Media Width
6.7 to 57.0 in
Max. Working Width Oversized Mode* (W x L)
53.1 in x 1968in
55 in x 1968in
"Oversized" mode allows a wider cutting area: +/2.38 in
Pinch Rollers
4
Alignment Type
  • OPOS X - OPOS Xtra
  • Barcode job recognition
  • Up to 2 x 64 marks on the X-line
  • Y-Line compensation
Tracking Performance
Within +/- 0.004 in on plots:
- 40 ft max. within guaranteed specifications for media less than 30 in wide*
- 13 ft max. within guaranteed specifications for media larger than 30 in wide*
Media Thickness
Up to 0.047 (1.1938mm) with sandblast tangential knife
Accuracy
0.2% of move or 0.010 in (0.254mm), whichever is greater
Speed
Up to 56 ips diagonal
Acceleration
Up to 4.25 G diagonal
Knife Pressure
Up to 1000 grams
Other Features
FlexCut (cutting through)
Connectivity
Ethernet, USB, WiFi
Power Requirements
100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
* In “Oversized” mode the tracking performance is no longer guaranteed.
