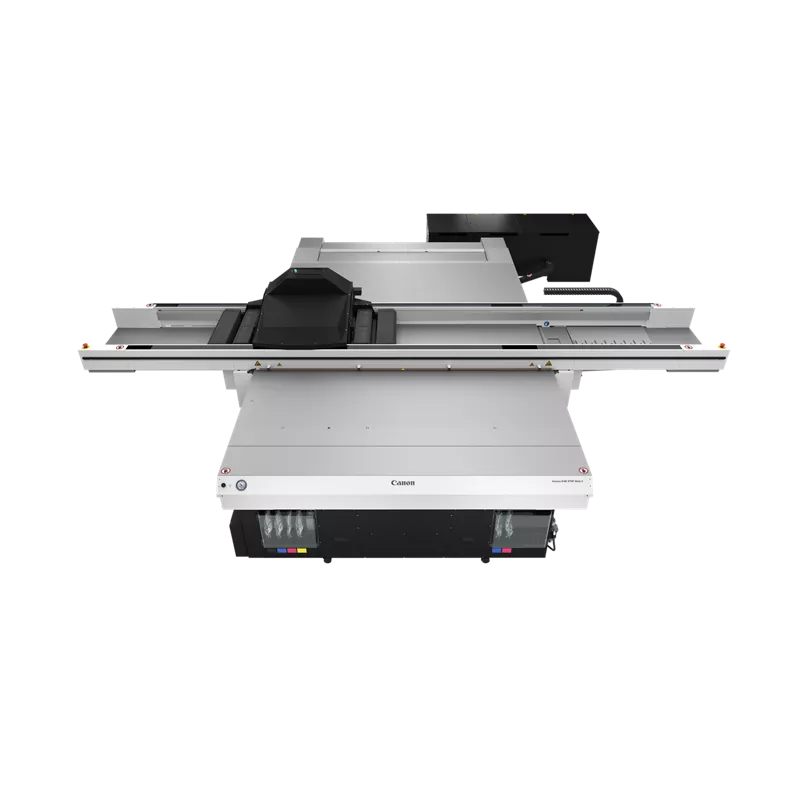

Arizona 6100 XTHF Mark II Series

SKU
AZ6160MKII60
As low as $0.00
Out Of Stock
  • High Flow Vacuum producing up to 15 times the airflow of existing systems
  • Enhanced table with 250,000 air holes for maximum hold down
  • A productive pneumatic pin registration system for quickly and accurately loading boards
  • Oversized 8.1 × 10.5 foot maximum print area
  • Print speeds of up to 2,368 sq. ft. or 41 4' x 8' boards per hour with high print quality and density
  • Automated Printhead Maintenance System for "hands-free" cleaning of printheads
  • VariaDot technology featuring award winning image quality, which is capable of producing sharp image detail and dense uniform solid colors
  • Built-in White Ink printing with the Arizona 6170 XTHV Mark II
  • Standard light magenta and light cyan inks provide optimized print quality at high speeds
  • Support for Arizona Xpert software for quick and easy creation of complex, higher margin jobs
  • Mark II improvements include High Key print mode, ORS (On-remote Service) connectivity, controller enhancements, built-in automation API, increased storage, etc.
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Overview

Flatten Your Boards... Not Your Profits


Arizona 6100 XTHF Series with High Flow Vacuum

Printing on corrugate boards and plywood panels, which are never flat, is challenging. You’ve had two options: tape down boards to avoid damaging print heads or raise the carriage height and sacrifice print quality.

The Arizona 6100 XTHF Series printers, with the innovative High Flow Vacuum, easily pulls down porous, warped substrates in the blink of an eye. Now you can successfully create challenging packaging, display, and interior décor applications like never before.

The Arizona 6100 XTHF Series was developed to streamline production of:

  • Short Run Packaging
  • Package Prototyping
  • Temporary POP Displays
  • Printed Plywood Panels
Hg

LAMP(S) IN THIS PRODUCT CONTAIN MERCURY
DO NOT PLACE IN TRASH. PLEASE RECYCLE OR DISPOSE ACCORDING TO LOCAL STATE OR FEDERAL LAWS.

Technical Specifications

Main Unit Specs

Rigid Media Size
98.4" x 121.3"
Rigid Media Thickness
2.0"
VariaDot printing technology
6 to 42 picoliter droplets, 636 nozzles, six printheads/channel, dual row design
High Key Print Speed
2,368 ft2/hr
Ink Channels
6170 XTS Mark II - 7 ink channels
6160 XTS Mark II - 6 ink channels
(upgradable to 7 channels)
