Out Of Stock

CE7000130+SW

SKU
CE7000130+SW
As low as $0.00
Out Of Stock
  • Datalink Barcode: save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button.
  • Contour & Die Cut: separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
  • Arms 8.0: a new and improved Advanced Registration Mark Sensing System can easily generate barcodes as part of the design, creating a hands-free operation.
  • Network Connection: now possible through a network interface enabling the use of TCP/IP protocols to transfer cut data.

New

Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Add to Wish List

Technical Specifications

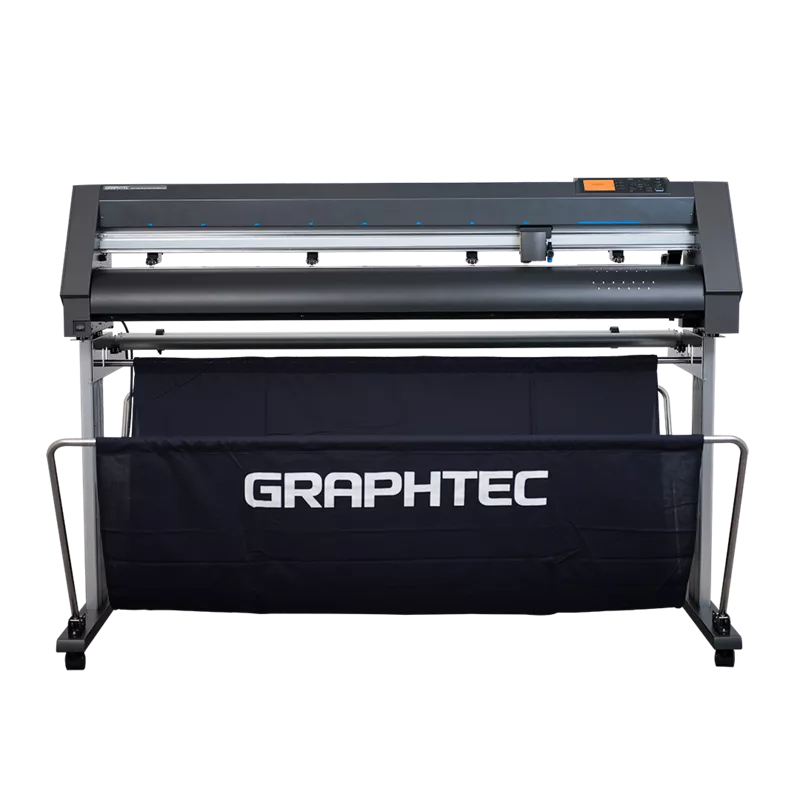

50" Graphtec Cutter and Colorbyte Software Bundle

Blade Types

Graphtec Supersteel

Command sets

GP-GL / HP-GL™ (Set by command or auto-detect)

External dimensions

30.4” x 11.5” x 12.3” (40), 39.6” x 23” x 43” (60), 67” x 32” x 48” (130)

Interface

USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

Max Cutting Length

164"

Max Cutting Width

50"

Max Feed Width

54"

Max Pressure

4.41N (450gf)

Max Speed

39 in/s, at 45 degrees direction

Max Axial Acceleration

69.6’ (40 60), 45.6’ per second (130) at 45° direction

Memory

2MB

Min Character Size

Approx. 5 mm (0.016”) alphanumeric (varies depending on character font and media)

Model Name

CE7000-130

Number of Pinch Rollers

2 (40, 60), 4 (130 model) 5 optional

Power Requirements

100V to 120V AC, 200V to 240V AC, 50/60 Hz

Resolution

0.005 mm

Roller Mechanism

Grit Roller

Voltage

100V to 120V AC

Contour Cutting

Yes - Automatic

OS Compatibility

Windows, Mac OSX

Motor Type

Servo
