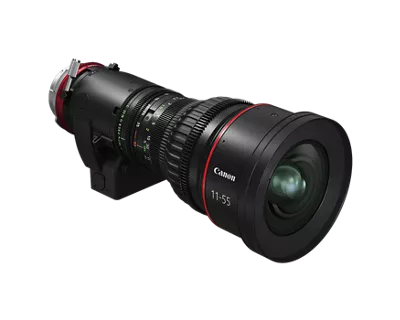

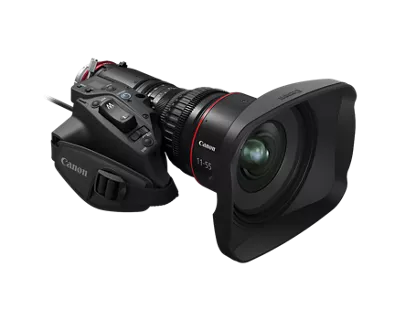

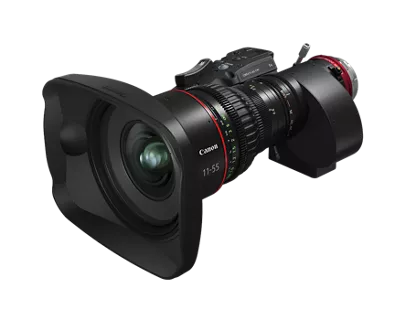

CINE-SERVO 11-55mm T2.95-3.95 PL

As low as $0.00
Out Of Stock
  • With a focal length starting at 11mm, it’s the widest angle and lightest-weight lens in the CINE-SERVO lineup
  • MOD 0.6m (distance from sensor to subject)
  • Built-in 1.5x extender for additional reach and enables support for full-frame sensors
  • Outstanding optical performance which supports 8K cameras
  • Newly developed V Drive unit
  • Supports Cooke /i Technology and ZEISS eXtended Data
  • ARIA and ALAC compatibleFootnote2
  • Features a PL mount (RF mount model also available)
Show more

Overview

The CINE-SERVO 11-55mm T2.95-3.95 PL is a high-performance 8K lens featuring a wide angle of view of 100 degrees. It has Super 35mm sensor coverage, and when its 1.5x extender is engaged, it's able to cover full frame sensors, giving you added versatility.

With an ultra-wide-angle focal length of 11mm and a minimum focus distance of 0.6 meters, this lens is ideal for sports, live events, houses of worship, and more. The drive unit is recently developed and compared to previous iterations, offers faster focus and iris speed, Focus Breathing Compensation and a USB-C connector for saving and loading individual user preferences.

Regardless of where you place the lens, its compact size and light weight will make shooting a breeze.

Even with its ultra-wide focal length and built-in extender, the lens weighs 6.43 lbs. It also assists with Steadicam, wirecam, crane/jib, and other shooting setups where users want to reduce overall system weight.

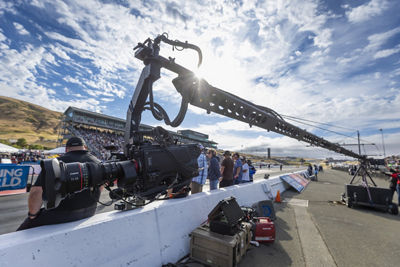

CINE-SERVO 11-55mm on a Cinema Camera to Record a Racecar Race

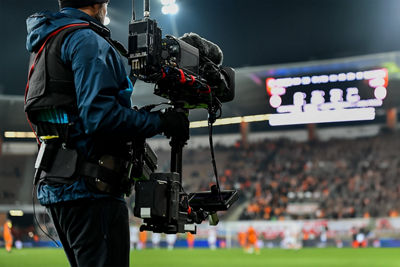

CINE-SERVO 11-55mm on a Cinema Camera to Record a Football Game

Features

Widest Angle 11mm in the CINE-SERVO Lens Lineup

The first CINE-SERVO lens to achieve a focal length of 11mm with Super 35mm sensor coverage and Full Frame 35mm sensor coverage with the built-in 1.5x extender engaged.

Football Team Celebrating

The Lightest Weight in the CINE-SERVO Lens Lineup

Even with its ultra-wide focal length and built-in extender, the lens weighs 6.43 lbs. It also assists with other shooting setups where users want to reduce the overall system weight.

Minimum Object Distance is 0.6m

For lenses, "MOD" means Minimum Object Distance, referring to the shortest distance from the lens to a subject that can still be brought into sharp focus. The MOD on the lens is 0.6m which offers incredible flexibility when filming on jibs, handheld, tripod or Steadicam and is rare for a focal length of 11mm and Super 35 sensor coverage.

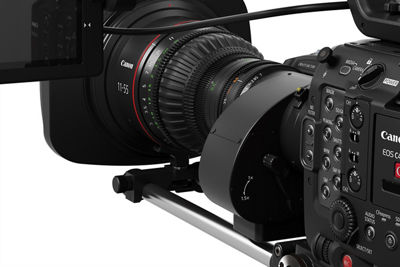

Built-in 1.5x Extender for Additional Reach and Enables Support for Full-Frame Sensors

The built-in 1.5x extender expands the focal range to 82.5mm. In addition, when the extender is engaged, the image circle is increased, and the lens will cover full frame 35mm sensors.

Zoom in of 1.5x Extender

8K Camera Support

A culmination of Canon’s optical technologies including the use of large-diameter aspherical lenses and anomalous dispersion glass provides optical performance to support 8K cameras throughout the zoom range. Aberrations are controlled as much as possible for outstanding performance from the center of the image to the edges.

Comparison of 2K, 4K and 8K

Consistent Color Balance

The Canon Cinema Lens series is designed with a consistently warm color balance that reproduces skin tones more beautifully for better depiction of subject textures. Color reproduction remains stable even after changing lenses, reducing color adjustment with each shot and time and effort for postproduction.

Violin Players Performing

HDR Compatible

HDR images offer expanded tonal gradations and more natural expression, but they also eliminate white and black clipping, making color bleeding, ghosting and flaring more apparent. The chromatic aberration correction supports 8K to reduce color bleeding, while in-barrel light-shielding design and coating optimization reduce ghosting and flaring.

Reduced Focus Breathing

The optical design reduces “focus breathing,” which changes in angle of view due to movement of focus position during focusing, enabling shots with consistent framing.

Focus Comparison Using a White Car
Focus Comparison Using a White Car

Includes Drive Unit with Outstanding Operability and Functionality

This model features a drive unit based on the e-Xs V for broadcast portable zoom lenses. It features focus breathing correction and offers improved servo control performance, enabling shooting of high-quality images. It also includes an info display and USB Type-C terminal for easier setup and maintenance of equipment and improved service. Enhanced operability and functionality go further to meet the demands of professionals.

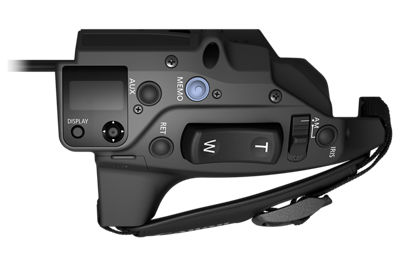

Info Display

Drive Unit - LCD Screen View

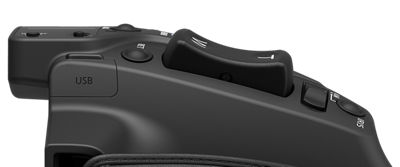

USB Type-C Terminal

Drive Unit - USB Port View

12-Pin Connector Cable Comes Standard

This supplies power to the drive unit and enables iris remote control. It also supports serial communications with the camera via a 12-pin connector.

Virtual Support

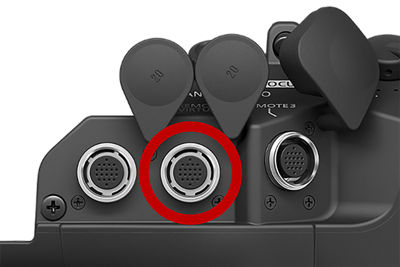

The use of a 16-bit absolute value encoder enables more detailed imaging capabilities. Accurate positional information detection makes calibration easier during CG compositing.

16-bit Enconder Port

Beautiful Bokeh with 11-Blade Iris

The 11-blade iris diaphragm gives natural bokeh that is nearly circular from fully open to minimum aperture.

The odd number of iris blades produce a soft and diffused glow on high-brightness subjects. The odd number of blades means there is no overlap of diffracted light in the opposite direction, giving a soft and diffused glow.

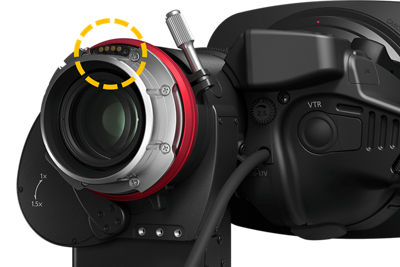

Communications

The lens supports 12-pin serial communication, the communication standard for broadcast cameras systems, with both RF and PL mounts.

And along with Cooke/i® Technology support, the PL mount supports ZEISS eXtended Data for added convenience.

CINE-SERVO 11-55mm - 3 Quarter Back View

ARIA and ALAC Compatible

The lens features ARIA (Automatic Restoration of Illumination Attenuation) and ALAC (Automatic Lens Aberration Compensation) compatibility.

ARIAFootnote1 compatibility enhances illumination performance, and ALACFootnote1 compatibility provides aberration correction with compatible cameras.

Videos

Technical Specifications

View Full Technical Specs PDF

General

Informational Documents

File Name

Broadcast & Cinema Lens Catalog - Spring 2025

Date

04.17.25

File Size

40 MB

CINE-SERVO 11-55mm T2.95-3.95 PL Compatible Products

CINE-SERVO 11-55mm T2.95-3.95 PL Compatible Products
Lens Accessories
CINE-SERVO 11-55mm T2.95-3.95 PL Compatible Products
Lens Accessories

Product Disclaimer

  1. “ARIA” and “ALAC” are both established and the names are determined by Sony.
  2. When used with 1.5x extender
