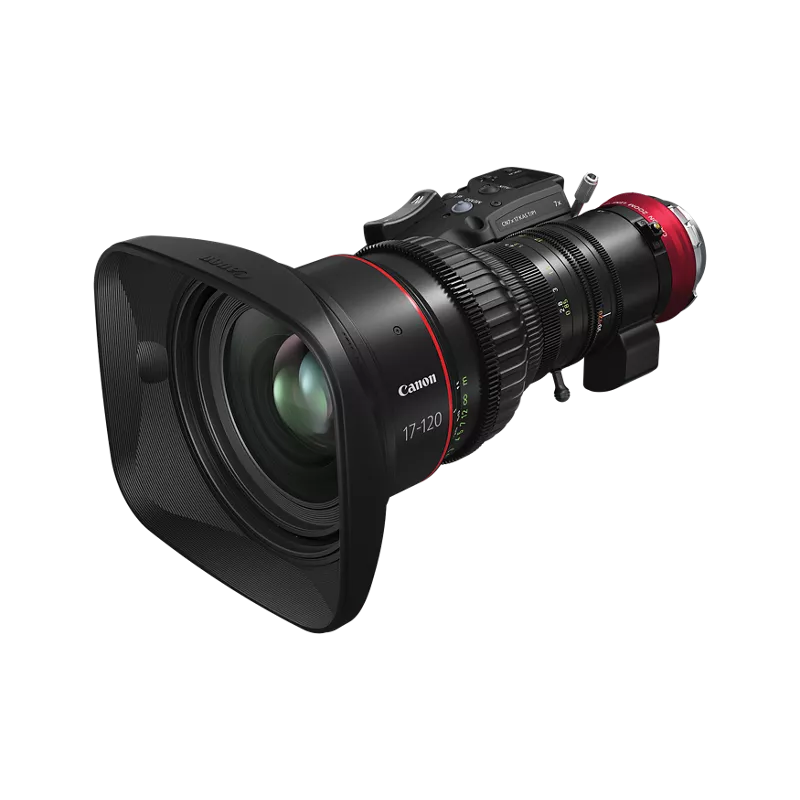

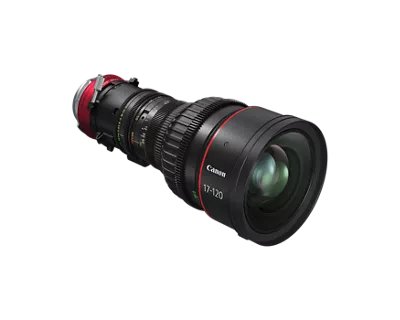

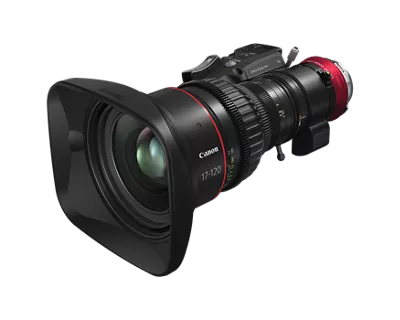

CINE-SERVO 17-120mm T2.95-3.9 PL (with NEW Drive Unit)

As low as $0.00
Out Of Stock
  • Versatile 17-120mm with outstanding optical performance
  • Supports 8K/4K cameras
  • Next-Generation e-Xs V Servo Drive Unit
  • Supports virtual production with ZEISS eXtended Data
  • Supports ARIA* (Automatic Restoration of Illumination Attenuation) with compatible cameras

In the box

Overview

The new CINE-SERVO 17-120mm builds upon the legacy of the company’s CINE-SERVO line, with the added benefits of ZEISS eXtended Data for PL mount. It carries on the previous model's outstanding optical performance and mobility, while the ZEISS eXtended Data communication support distortion and shading data output for virtual production.

The lens is equipped with the e-Xs V servo drive unit, with improving focus and iris speeds, allowing camera operators to shoot just as intended even when capturing rapidly moving subjects such as during sports broadcasts. It also features Focus Breathing Compensation which is linked with the zoom function to automatically make precise corrections. Additionally, the highly versatile USB Type-C terminal makes it possible to export and import lens setting data from a USB memory drive, thereby allowing users to update firmware on their own.  The Drive Unit can also be detached to be used in cinema style.

Features

Versatile 17-120mm with Outstanding Optical Performance

Matches the specification of the popular and award-winning CINE-SERVO 17-120mm.

This lens is designed with a consistently warm color balance that reproduces skin tones and is compatible with HDR. Also, the 11-blade iris  gives natural bokeh that is nearly circular from fully open to minimum aperture.

The odd number of iris blades produce a soft and diffused light beam when shooting bright subjects.

Violin Players

Supports 8K/4K Cameras

Canon’s optical technologies use large-diameter aspherical lenses and anomalous dispersion glass delivering optical performance that supports 8K cameras throughout the zoom range.

Aberrations are controlled as much as possible for outstanding performance from the center of the image to the edges.

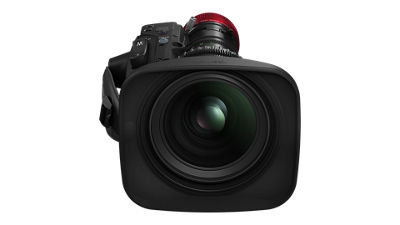

CINE-SERVO 17-120mm T2.95-3.9 PL - Front View

Next-Generation e-Xs V Servo Drive Unit

Canon’s next-generation servo drive unit has the same operability and usability as ENG lenses with faster focus and iris speed, Focus Breathing Compensation, and a USB-C connector. The e-Xs V Drive Unit can also be detached to be used in manual-style cinema configurations.

LIVE (Broadcast Style)

With drive unit attached

CREATIVE (Cinema Style)

With drive unit removed

CINE-SERVO 17-120mm T2.95-3.9 PL - Broadcast vs Cinema Styles

  • Improved Servo Control - Faster focus and iris speed.
  • Focus Breathing Compensation - Minimizes image distortion when racking focus. This setting can easily be turned on or off depending on preference.

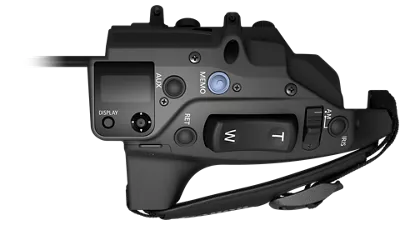

CINE-SERVO 17-120mm T2.95-3.9 PL - Top View

  • New USB-C Port - Allows Drive Unit settings to be saved and loaded into other lenses. Also users can record and save maintenance history.

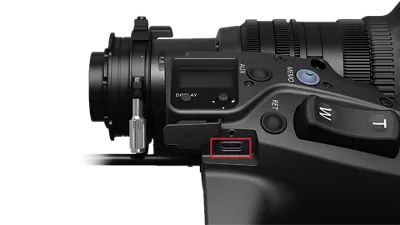

CINE-SERVO 17-120mm T2.95-3.9 PL - USB Port View

Remote and Virtual Support

The high-resolution, 16-bit absolute value encoder enables high-precision location detection, making calibration easier when creating virtual content. The 20-pin connector can be switched to a virtual terminal to output zoom, focus, and iris position information.

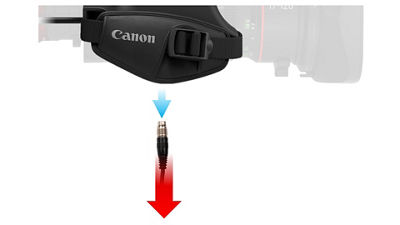

CINE-SERVO 17-120mm T2.95-3.9 PL - Strap View

Virtual Output

Soccer Field

Supports virtual production with distortion and shading data with ZEISS eXtended Data

This PL mount lens supports ZEISS eXtended Data which provides distortion and shading data for virtual production with compatible cameras. In addition to RF mount communication , 12-pin serial communication for standard broadcast camera systems is available.

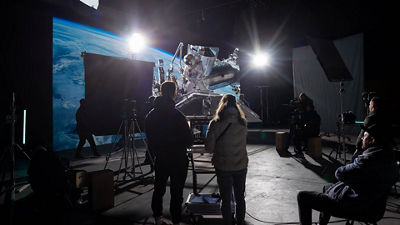

People Filming a Space Film

In-Camera VFX

People Sitting on Stools Playing Guitar

AR / XR

Supports ARIA* Camera Feature

ARIA (Automatic Restoration of Illumination Attenuation) adjusts illumination so that light is more evenly distributed between the wide and the telephoto ends of the lens. First, the Camera-lens communication at initialization identifies the lens attached. When zooming, the camera’s gain is increased starting at the ramping point. Simultaneously, Peripheral Illumination Correction corrects light fall-off from the center of the frame to the periphery, This correction more evenly distributes light throughout the entire image.

Friends on the Back of a Truck

ARIA OFF - Wide End

Friends on the Back of a Truck

ARIA OFF - When zoomed in, the whole image is darker, especially the edges

Friends on the Back of a Truck

ARIA ON - Correction makes light more even throughout image

Technical Specifications

View Full Technical Specs PDF

Main Unit Spec

Informational Documents

File Name

Broadcast & Cinema Lens Catalog - Fall 2024

Date

09.16.24

File Size

85.9 MB

CINE-SERVO 17-120mm T2.95-3.9 PL (with NEW Drive Unit) Compatible Products

Adapters, Chargers & Couplers Stations

CINE-SERVO 17-120mm T2.95-3.9 PL (with NEW Drive Unit) Compatible Products
Adapters, Chargers & Couplers Stations
Lens Accessories

CINE-SERVO 17-120mm T2.95-3.9 PL (with NEW Drive Unit) Compatible Products
Adapters, Chargers & Couplers Stations

Product Disclaimer

*Sony ARIA is a camera function established by Sony, and the ARIA name was determined by Sony.
