CJ45ex13.6B IASE-V H

SKU
CJ45X136IASE
As low as $96,000.00
Out Of Stock
  • 45x Optical Zoom Lens With Max Telephoto Reach of 1224mm (with 2x Extender)
  • Advanced Optical Performance to Support 4K Cameras
  • Ideal for HDR Shooting
  • Outstanding Image Stabilization Performance
  • Full-featured Digital Drive Unit
Have a MyCanon Account? We’ll add registration details for this product. Learn More
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Overview

Designed to meet the high demands of field production applications, the CJ45ex13.6B is a 2/3" 4K UHD portable EFP lens is intended for producers and broadcasters engaged in wildlife, sports, documentary, natural history, music stage, helicopter/aerial and other challenging location productions that seek superb image capture over considerable distances. Featuring advanced optical performance to support 4K cameras, the lens was designed to produce high resolution from center to edges of the image with outstanding luminance gradation, making it ideal for HDR shooting. High contrast is achieved by superb control of black reproduction, and a re-design of the lens optics help to reduce ghosting, flare, veiling glare, chromatic distortions and internal reflections. With its high-grade optical components and precision optomechanical assembly, the lens offers a 45× zoom ratio that can extend to 612mm, and as far as 1224mm with the built-in 2x extender. An improved built-in image stabilization system features higher frequency vibration suppression and panning operability, making it ideal for shooting in dynamic environmental situations such as within helicopters, boats and motor vehicles. A high performance digital drive unit improves servo performance compared to our HJ40x generation lenses, and can achieve the full focal range zoom in 1.2 seconds, aperture range in 1.3 seconds and focus range in 1.8 seconds. The drive unit also supports virtual systems with three 20 pin connectors and includes a digital information display for easier operation. The CJ45ex13.6B lens offers high level 4K optical performance, 45x high zoom ratio and faster servo operation in the size of an HD super telephoto lens, representing an excellent marriage of needs for creative flexibility and mobility, while meeting the demanding performance requirements for 4K image acquisition at a wide range of focal lengths.

45x Optical Zoom Lens
The CJ45ex13.6B lens features an ultra-high zoom ratio of 45× and telephoto end focal length of 612mm (1224mm when using the built-in 2x extender), making it ideal for shooting live sports, nature, concerts, live events and other applications where focal length on the telephoto end is prioritized. Offering a wide angle focal length of 13.6mm, the extensive focal range allows you to cover a wide range of shooting needs with a single lens, making it particularly useful for mid-sized broadcasting vans, horse racing tracks, and monitoring applications. High optical performance is maintained throughout the entire zoom range, even when the 2x extender is used.

Optical Zoom Lens Chart

New Integrated Multi-Group Movable Zoom for Outstanding Zoom Control

The lens features a new integrated multi-group movable zoom system, compared to the conventional two-group movable zoom system found in most broadcast lenses. This system helps provide superb zoom control, working to maintain optical performance throughout the entire zoom range from the center of the image to the edges. Integration of a multi-group movable zoom system also offers wider angle while reducing the φ127mm diameter of the front lens element that is equal to conventional HD lenses.

Muli-Group Moveable Zoom

Wide Focus Rotation Angle
A rotation angle of 180 degrees (compared to 110 degree rotation angle of our HJ40x lenses) facilitates tight control for 4K UHD cameras , helping improve focus operation, even at long focal lengths where focusing can be difficult.

Advanced Optical Performance to Support 4K Cameras
The CJ45ex13.6B lens features a combination of specialized materials, contemporary optical design and multi-layer coatings to produce outstanding 4K imagery, effectively deriving the potential of 4K cameras and expanding possibilities for image expression. In addition, lens element surface accuracy has been improved significantly over HDTV lenses, contributing to the enhanced Modulation Transfer Function (MTF) performance required of 4K imagery.

New Integrated Multi-Group Movable Zoom System and Floating Focus System
A new integrated multi-group movable zoom system can control at points with major fluctuations in optical performance during zooming (wide middle, tele middle), working to maintain  optical performance throughout the entire zoom range from the center of the image to the edges. In addition, a new integrated floating focus system helps reduce changes in aberrations when focusing to different object distances, while maintaining 4K optical performance in color reproduction over the entire focus range, especially on the telephoto side.

MTF Image Height Chart

Consistently excellent optical performance across the entire image, from center to edges.

MTF Subject Zoom Chart

Low fluctuation and high optical performance across zoom range, from wide angle to telephoto.

MTF Subject Distance Chart

Low fluctuation and high optical performance across all distances, from infinity to MOD.

Minimized Chromatic Aberration
Fluorite and UD glass have been generously utilized and optimally arranged for better correction of chromatic aberrations. This helps produce beautiful images with less color bleeding or coloring around the outlines, achieving superb color reproduction to the edges of the images. In addition, the BT.2020 compatible correction data enhances the magnification chromatic aberration correction level of the total camera system.

Reduced Ghosting
The lens coating helps to control the reflection on the lens barrel’s inner surface, helping suppress ghosting and flaring, resulting in HDR-compatible high-contrast images.

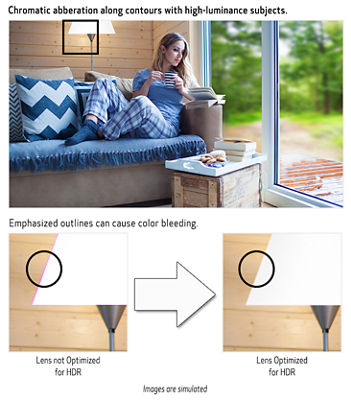

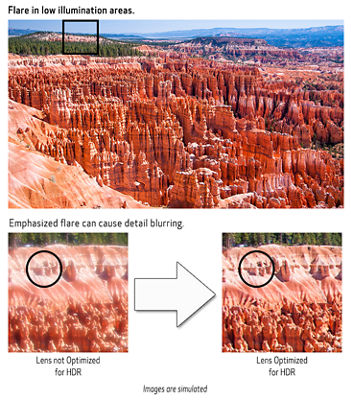

Ideal for HDR Image Capture
HDR images offer excellent gradation representation and enhanced realism and dimension including texture for image representation close to the real thing. However, there can be noticeable color bleeding and flare, so HDR shooting requires high optical performance. The CJ25ex7.6B 4K UHD broadcast lens delivers the advanced optical performance that Canon considers essential for a 4K UHD/HDR system lens, enabling shooting of more realistic images.

Ideal for HDRIdeal for HDR Comparison

Outsanding Image Stabilization Performance
The CJ45ex13.6B lens features built-in image stabilization – a newly designed system compared to that in the HJ40x generation lenses. The improvement is significant in the all-important higher vibration frequency range that is typically stimulated when shooting within helicopters, boats, and motor vehicles.

image stabilization chart



previous image stabilization example of bikernew image stabilization example of biker

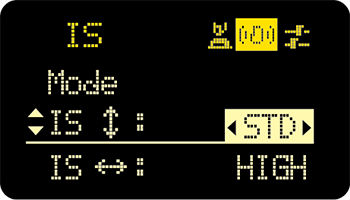

Image stabilization mode settings are enabled from the digital information display on the digital servo drive unit.

image stabilization mode

Motorized Mechanical Lock Release Mechanism

A motorized mechanical lock release mechanism improves operability by enabling easy release in situations when the lever is hard to reach, such as when mounted on a tripod.

Motorized mechanical lock release mechanism

Full Featured Digital Drive Unit
The CJ45ex13.6B lens features a high performance digital drive unit that improves servo performance compared to our HJ40x lenses, and an advanced 16-bit absolute value encoder that supports communication with compatible 2/3" 4K UHD cameras.

Quick Startup and Easy Calibration
The drive unit of the CJ45ex13.6B lens can output accurate lens position data from the moment the power is turned on and does not require initialization, contributing to the quick start when shooting. Eliminating initialization of the encoder at power-on simplifies calibration when composing virtual and live-action images, and helps to create more accurate composites.

Fast Servo Operation

The servo operates faster than our HJ40x generation lenses, and can achieve the full focal range zoom in 1.2 seconds. The focus control has a wide 180 degree manual rotation angle, and when servo driven it can drive focus control over its full range in 1.8 seconds. The iris can be driven over its full aperture range in 1.3 seconds.

fast servo chart

Advanced Virtual Operability

The drive unit of the CJ45ex13.6B lens uses three 20-pin connectors. This enables virtual system output and users can access the virtual terminal. One of these connectors outputs lens positional data, allowing for output even while the zoom and focus servo controllers are in use.

image of all virtual outputs available

Simple Display Operations

An on-board information display is included on the servo drive unit that supports a range of operational settings. The digital display makes it easy to set, review and display a variety of operational functions. Full Mode can be selected, along with a simplified mode (Basic Mode) that limits options to most frequently used settings, making for easier operation.

Information Displays

HD Demand Compatibility

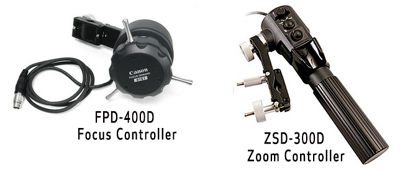

This feature allows for compatibility with a broadcast-use HD demand. It enables the use of the zoom and focus electrical drive system accessories (such as the ZSD-300D and FPD-400D) which are currently used by HD equipment.

HD Demand Zoom Focus Conrollers

Digital Functions
The Canon drive unit integrates a variety of operations, stored digitally, that can be manipulated using the display.

Shuttle Shot
By memorizing any two focal lengths, the Canon drive unit can automatically "shuttle" between two points, moving in either direction. As an example, this function is effective for shots in which an operator wants to start from a wide angle and then zoom in rapidly on to an object.

Frame Preset
An angle of view can be preset in either of two memories and the lens will zoom at the highest speed, or in a preset zoom speed, to the pre-set position with the push of a simple button. As an example, this function can be effective for situations such as interview programs, where it is necessary to switch between bust shot and wide shot.

Speed Preset
A specific zoom speed can be preset in memory making it possible to repeat the zoom speed as often as you like with the push of a simple button. Using a preset speed when zooming in and zooming out contributes to help create stable images, particularly with slow zooms.

Compact, Lightweight Design
Weighing only 12.4 lbs. and measuring 6.8" (W) x 5.8" (H) x 14.0" (L), the portable CJ45ex13.6B lens is similar in size to conventional 2/3" HD lenses, while delivering high level 4K optical performance, 45x high zoom ratio and faster servo operation. The lens is designed to satisfy professionals with its high-level combination of excellent specifications, enhanced optical performance, and outstanding usability.

Technical Specifications

Main Unit Spec
