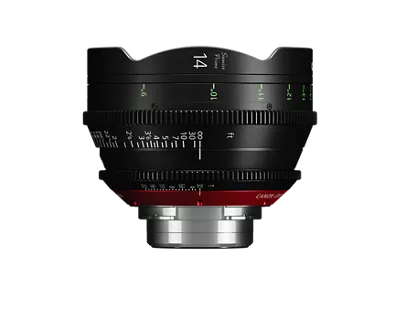

CN-E14mm T3.1 FP X

SKU
CN-E14 PL
As low as $7,410.00
Out Of Stock
  • 11-blade Iris
  • Outstanding Operability and Reliability
  • Support for the latest Full-frame and Super 35mm PL-mount Cameras from leading manufacturers
  • Outstanding Optical Performance to Support 4K Cameras
  • Artistically Pleasing Image Rendering
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Technical Specifications

Specifications


Cinema Prime LensCN-E14mm T3.1 FP XCN-20mm T1.5 FP XCN-E24mm T1.5 FP XCN-E35mm T1.5 FP XCN-E50mm T1.3 FP XCN-E85mm T1.3 FP XCN-E135mm T2.2 FP X
MountPL MountPL MountPL MountPL MountPL MountPL MountPL Mount
Focal Length14mm20mm24mm35mm50mm85mm135mm
Max. Relative Aperture
(T-Number)
T3.1T1.5T1.5T1.5T1.3T1.3T2.2
Iris Blades11111111111111
Angle of View
1.5:1, 36x24mm
104.3° × 81.2°84.0° × 61.9°73.7° x 53.1°54.4° × 37.8°39.6° × 27.0°23.9° × 16.1°15.2° × 10.2°
Angle of View
1.78:1, 24.6x13.8mm
82.6° × 52.5°63.2° × 38.1°54.3° × 32.1°38.7° × 22.3°27.6° × 15.7°16.5° × 9.3°10.4° × 5.9°
M.O.D.
(Minimum Object Distance)
0.20m / 8in.0.3m / 12in.0.30m / 12in.0.30m / 12in.0.45m / 18in.0.95m / 3ft. 2in.1.0m / 3ft. 3in.
Object Dimensions at M.O.D
1.5:1, 36x24mm
24.8 × 16.5cm 33.8 × 22.5cm 28.8 × 19.2cm 20.1 x 13.4cm 24.9 x 16.6cm 34.3 x 22.9cm 21.1 x 14.1cm
Object Dimensions at M.O.D
1.78:1, 24.6x13.8mm
16.9 × 9.5cm23.1 × 13.0cm19.7 x 11.0cm13.7 x 7.7cm17.0 x 9.5cm23.4 x 13.1cm14.4 x 8.1cm
Front Diameter114mm114mm114mm114mm114mm114mm114mm
Filter DiameterN/A105mm105mm105mm105mm105mm105mm
Approx. Size (WxHxL)4.66 x 4.66 x 3.70 in.
(118.4 × 118.4 × 94.0 mm)
4.66 x 4.66 x 4.0 in.
(118.4 × 118.4 × 101.5 mm)
4.66 x 4.66 x 4.0 in.
(118.4 × 118.4 × 101.5 mm)
4.66 x 4.66 x 4.0 in.
(118.4 × 118.4 × 101.5 mm)
4.66 x 4.66 x 4.0 in.
(118.4 × 118.4 × 101.5 mm)
4.66 x 4.66 x 4.0 in.
(118.4 × 118.4 × 101.5 mm)
4.66 x 4.66 x 4.55 in.
(118.4 × 118.4 × 115.6mm)
Approx. Weight2.65 lbs
(1.2kg)
2.43 lbs
(1.2kg)
2.65 lbs
(1.2kg)
2.43 lbs
(1.1kg)
2.43 lbs
(1.1kg)
2.87 lbs
(1.3kg)
3.09 lbs
(1.4kg)
