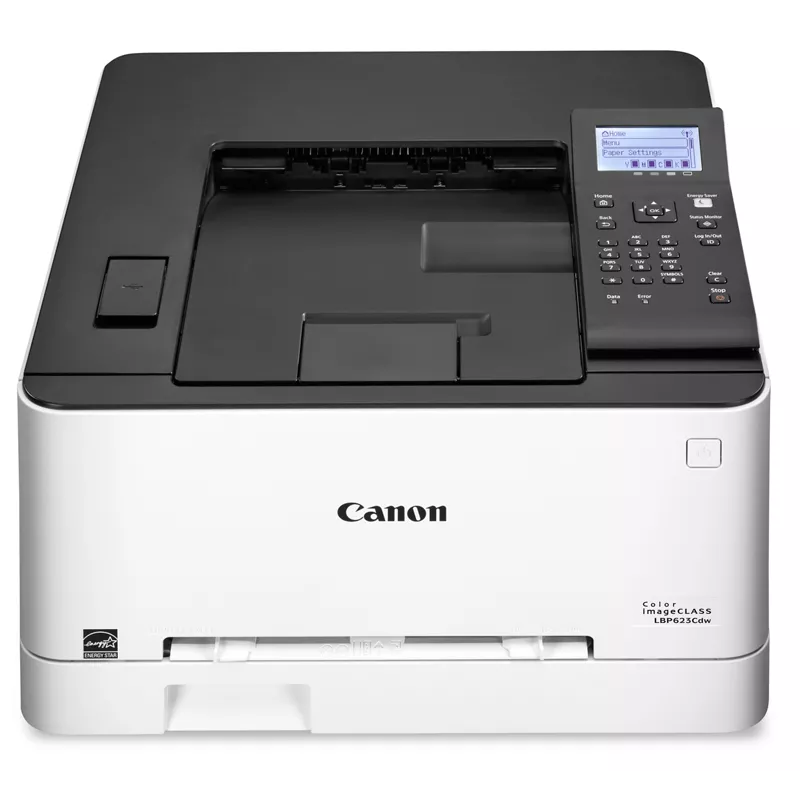

Color imageCLASS LBP623Cdw
- Print up to 22 ppm
- Print up to 8-1/2" x 14"
- 250-sheet maximum paper capacity
- One-year limited warranty standard
Return Policy
Technical Specifications
Color imageCLASS LBP623Cdw Brochure
Color imageCLASS LBP623Cdw | |
MAIN UNIT | |
CORE FUNCTIONS | |
ITEM CODE | 3104C005 |
PROCESSOR | Canon Custom Processor |
CONTROL PANEL | 5-line LCD |
MEMORY | 1 GB |
STANDARD INTERFACE CONNECTION | USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection |
PAPER CAPACITY (LETTER, 20 LB. BOND) | 250 Sheets |
PAPER SOURCES (LETTER, 20 LB. BOND) | Standard: 250-sheet Paper Cassette, 1-sheet Stack Bypass |
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND) | 75 Sheets |
SUPPORTED MEDIA TYPES | Cassettes: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (10 Envelopes) |
SUPPORTED MEDIA SIZES | Cassettes: Letter, Legal, Statement, Executive, Envelope: COM10, Monarch, C5, DL, Custom (Min. 3' x 5' to Max. 8.5' x 14') |
SUPPORTED MEDIA WEIGHTS | Cassettes: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2) |
WARM-UP TIME | From Power On: 13 Seconds or Less; |
DIMENSIONS (W x D x H) | Standard (Desktop): 17.2' x 16.7' x 11.5' (437 mm x 425 mm x 292 mm) |
INSTALLATION SPACE (W x D x H) | Standard (Desktop): 17.0' x 40.0' x 11.3' (430 mm x 1011 mm x 287 mm) |
WEIGHT | Unit: Approx. 35.2 lb. (16.0 kg) |
SUPPORTED OS | Windows 7/ Windows 8.1/ Windows 10/ Windows Server 2008/ Windows Server 2008 R2/ Windows Server 2012/ Windows Server 2012 R2/Windows Server 2016 / Mac OS X v10.9.5 (or later) |
WHAT COMES IN THE BOX | LBP623Cdw Product, Cartridge 054 CMY Starter: 680 Yield/Black Starter: 910 Yield, Power Cord, Starter Guide, User Software DVD-ROM, Warranty Card |
PRINT SPECIFICATIONS | |
PRINTING METHOD | Laser Beam Printing |
PRINT SPEED3 | Up to 22 ppm (Letter); Up to 17.9 ppm (Legal) |
FIRST PRINT-OUT TIME | Approx. 10.3 Seconds |
RECOMMENDED MONTHLY PAGE VOLUME | 150 - 2,500 Pages |
PRINT RESOLUTION (dpi) | 600 x 600 |
STANDARD PAGE DESCRIPTION LANGUAGES | UFR II, UFR II-LT, PCL5, PCL6, Adobe® PostScript®3™ |
DOUBLE-SIDED PRINTING | Automatic (Standard) |
DIRECT PRINT | Available from USB Memory (JPEG, TIFF, PDF) |
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES1 | Apple® AirPrint,® Mopria® Print Service, Canon PRINT Business |
SECURITY SPECIFICATIONS | |
AUTHENTICATION | Standard: Department ID Authentication |
NETWORK | Standard: IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X(Wired Only), IPv6, SMTP Authentication, POP Authentication, POP Authentication before SMTP |
DOCUMENT | Standard: Secure Print |
WI-FI® AUTHENTICATION METHODS | Wi-Fi Infrastructure Mode: WEP 64/128 bit, WPA-PSK (TKIP/AES) WPA2-PSK (AES) |
ENVIRONMENTAL SPECIFICATIONS | |
OPERATING ENVIRONMENT | Temperature: 50 to 86º F; |
POWER REQUIREMENTS | AC 120-127 V:6.5 A, 60 Hz |
POWER CONSUMPTION | Maximum: Approx. 900 W |
STANDARDS | ENERGY STAR® Qualified, Rated EPEAT Silver2 |
FOOTNOTES | |
1 Canon PRINT Business is a free app available on the App Store® and Google Play™ Store. For more information, including compatibility, please visit https://www.usa.canon.com/mobile-app. Please see the respective websites for Apple AirPrint and Mopria Print Service for compatibility and additional information. |
Color imageCLASS LBP623Cdw Compatible Products
Product Disclaimer
- Print speed is based on internal testing. Print speed may vary, depending on the number of copies selected as well as the settings for size, type, and orientation of paper.
- Canon PRINT Business is a free app available on the App Store® and Google Play™ Store. For more information, including compatibility, please visit usa.canon.com/mobile-app.
- Warranty program is subject to certain conditions and restrictions. See warranty card for details.
- AirPrint functionality requires a compatible iPad, iPhone, or iPod Touch device running iOS 7.0 or later, and an AirPrint-enabled printer connected to the same network as your iOS device. A printer connected to the USB port of your Mac, PC, AirPort Base Station, or Time Capsule is not supported.
- Mopria® Print Service, available for free at the Google Play Store, requires a compatible Android 4.4 or later smartphone and tablet. The printer must be either wirelessly connected to the network router or with an Ethernet cable. The mobile device and printer must be connected to the same network. Learn More.
