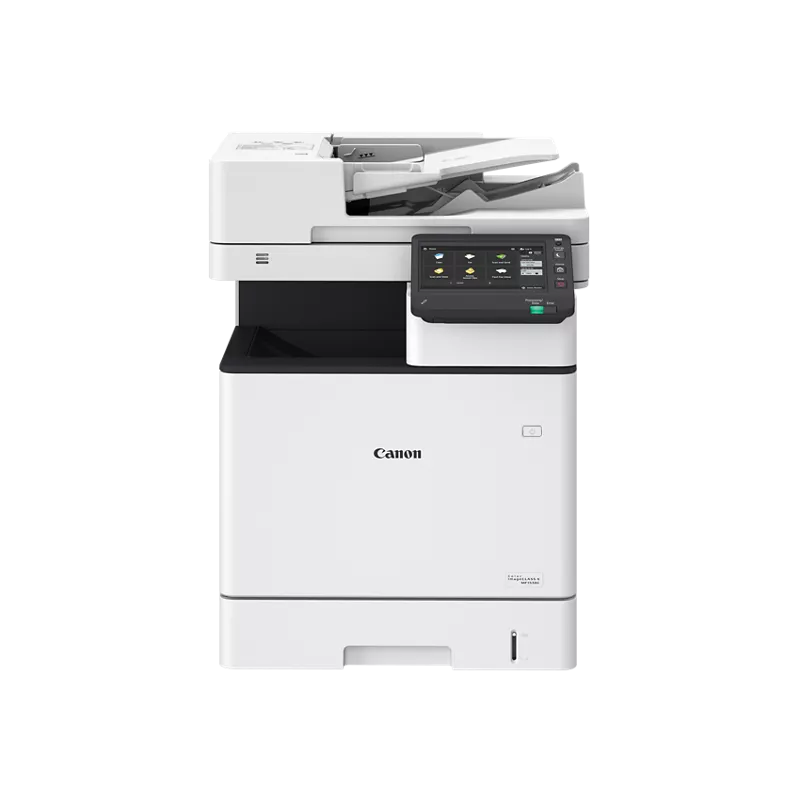

Color imageCLASS X MF1538C
- Print up to 40/40 (BW/Color)
- Scan up to 155/150 ipm (300 dpi) (BW/Color, duplex)
- 2,300-sheet maximum paper capacity
- Print up to 8-1/2" x 14"
- Color
- Multifunction
- Compact
- User-Friendly
Return Policy
Technical Specifications
Color imageCLASS X MF1538C |
|
MAIN UNIT |
|
CORE FUNCTIONS |
Standard: Print, Copy, Scan, Send, Fax |
PROCESSOR |
1 GHz Dual Core Processor |
CONTROL PANEL |
7" TFT LCD WVGA Color Touch Panel |
MEMORY |
2 GB |
STANDARD INTERFACE CONNECTION |
USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n |
PAPER CAPACITY (LETTER, 20 LB. BOND) |
Standard: 650 Sheets |
PAPER SOURCES (LETTER, 20 LB. BOND) |
Standard: 550-sheet Paper Cassette, 100-sheet Stack Bypass |
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND) |
Standard: 200 Sheets |
SUPPORTED MEDIA TYPES |
Cassette: Thin, Plain, Recycled, Color, Heavy, Pre-punched, Bond, Labels |
SUPPORTED MEDIA SIZES |
Cassette: Letter, Legal, Statement, Executive, Envelope: COM10, Monarch, C5, DL, Custom (Min. 3" x 5" to Max. 8.5" x 14") |
SUPPORTED MEDIA WEIGHTS |
Cassettes: 16 lb. Bond to 43 lb. Bond (60 to 163 g/m2) |
WARM-UP TIME |
From Power On: 12 Seconds or Less |
DIMENSIONS (W x D x H) |
Standard (Desktop): 19.7" x 21.9" x 25.2" (500 mm x 556 mm x 640 mm) |
INSTALLATION SPACE (W x D x H) |
Standard (Desktop): 28.2" x 31" (717 mm x 785 mm) |
WEIGHT4 |
Unit: Approx. 90.4 lb. (41 kg) |
OPERATING SYSTEM |
Windows® 7/Windows 8.1/Windows 10/Windows Server 2008/Windows Server 2008 R2/Windows Server 2012/ Windows Server 2012 R2/Windows Server 2016 /Mac OS X v10.10 (or later) |
PRINT SPECIFICATIONS |
|
PRINTING METHOD |
Laser Beam Printing |
PRINT SPEED (COLOR)5 |
Up to 40 ppm (Letter) |
FIRST PRINT OUT TIME |
Approx. 6 Seconds |
RECOMMENDED MONTHLY PAGE VOLUME |
2,000 - 4,000 Pages |
PRINT RESOLUTION (dpi) |
600 x 600 |
STANDARD PAGE DESCRIPTION LANGUAGES |
UFR II, PCL®6, PCL®5, Adobe PostScript® 3TM |
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES1 |
Apple® AirPrint®, Canon PRINT Business, Mopria™ Print Service, Universal Print, uniFLOW Secure Mobile Printing6 |
FONTS |
PCL: 93 Fonts |
PRINT FEATURES |
Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Toner Reduction, Poster Printing, Forced Hold Printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer |
COPY SPECIFICATIONS |
|
FIRST-COPY-OUT TIME (LETTER) |
Approx. 5.9 Seconds/6.9 seconds or Less (BW/Color) |
COPY RESOLUTION (dpi) |
600 x 600 |
COPY SIZE |
Platen: Up to Legal |
MULTIPLE COPIES |
Up to 999 Copies |
MAGNIFICATION |
25% - 400% (1% Increments) |
PRESET REDUCTIONS |
25%, 50%, 70% |
PRESET ENLARGEMENTS |
141%, 200%, 400% |
COPY FEATURES |
Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Two-sided Original, Sort, Job Build, N on 1, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Color Mode, Reserved Copy, Copy Sample |
SCAN SPECIFICATIONS |
|
TYPE |
Single-Pass Duplexing Automatic Document Feeder |
DOCUMENT FEEDER PAPER CAPACITY |
100 Sheets (20 lb. Bond) |
DOCUMENT FEEDER SUPPORTED MEDIA SIZES |
Letter, Legal, Statement, Custom Size: 1.9" x 5" to 8.5" x 14"(48 mm x 128 mm to 216 mm x 355.6 mm) |
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS |
15.5 lb. Cover to 47.3 lb. Cover (42 to 128 g/m2) |
PLATEN ACCEPTABLE ORIGINALS |
Sheet, Book |
PULL SCAN |
Color Network ScanGear 2 for both TWAIN and WIA |
SCAN RESOLUTION (dpi) |
Up to 600 x 600 |
SCAN-TO-MOBILE DEVICES |
Canon PRINT Business |
SCAN SPEED (LETTER) (BW/COLOR) |
Single-sided: 100/100 (300 dpi), 50/50 (600 dpi) |
MEMORY MEDIA |
Standard USB Memory (JPEG, TIFF, PDF) |
SEND SPECIFICATIONS |
|
DESTINATION |
E-mail/Internet FAX (SMTP), Super G3 FAX, SMB3.0, FTP, WebDAV |
ADDRESS BOOK |
LDAP (2,000)/Local (1,600)/Speed dial (200) |
SEND RESOLUTION (dpi) |
Push/Pull: Up to 600 x 600 |
COMMUNICATON PROTOCOL |
File: FTP (TCP/IP), SMB (TCP/IP), WebDAV |
FILE FORMAT |
Standard: TIFF ,JPEG, PDF (Compact, Searchable, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature, Office Open XML (PowerPoint®, Word) |
FAX SPECIFICATIONS |
|
MODEM SPEED |
Super G3: 33.6 Kbps |
COMPRESSION METHOD |
MH, MR, MMR, JBIG |
RESOLUTION (dpi) |
400 x 400, 200 x 400, 200 x 200, 200 x 100 |
SENDING/RECORDING SIZE |
Statement to Legal |
FAX MEMORY |
Up to 30,000 Pages |
SPEED DIALS |
Max. 200 |
GROUP DIALS/DESTINATIONS |
Max. 199 Dials |
SEQUENTIAL BROADCAST |
Max. 256 Addresses |
MEMORY BACKUP |
Yes |
SECURITY SPECIFICATIONS |
|
AUTHENTICATION AND ACCESS CONTROL |
User Authentication (Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) |
DOCUMENT |
Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print6 ), Recieve Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature, User Signature PDF/XPS7), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX Number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) |
NETWORK |
TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception |
DEVICE |
Standard Storage Initialize, Job Log Conceal Function, Verify System at Startup, Runtime Intrusion Detection |
DEVICE MANAGEMENT AND AUDITING |
Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting |
ENVIRONMENTAL SPECIFICATIONS |
|
OPERATING ENVIRONMENT |
Temperature: 50 to 86º F |
POWER REQUIREMENTS |
110-127V, 60Hz, 7.2A |
POWER CONSUMPTION |
Maximum: Approx. 1500 W |
STANDARDS |
ENERGY STAR® Qualified, Rated EPEAT Silver3 |
CONSUMABLES |
|
TONER |
Toner T10 Black ‐ Yields 13,000 Pages |
Color imageCLASS X MF1538C Compatible Products
Product Disclaimer
- Canon PRINT Business is a free app available on the App Store® and Google Play™ Store. For more information, including compatibility, please visit https://www.usa.canon.com/mobile-app. Please see the respective websites for Apple AirPrint and Mopria Print Service for compatibility and additional information.
- Please reference user manuals for details on settings available to export.
- For latest EPEAT ratings (Gold/Silver/Bronze), please visit www.epeat.net.
- Includes consumables.
- Print speed is based on internal testing. Print speed may vary, depending on the number of copies selected as well as the settings for size, type, and orientation of paper.
- Requires optional uniFLOW Online/uniFLOW.
- Requires optional Universal Send Digital User Signature Kit-C1.
- Based on ENERGY STAR Product Specification for Imaging Equipment Version 3.0.
- Attachment kit required.
- Ask Dealer for reader compatibility information.
- Limited warranty program is subject to certain conditions and restrictions. See warranty card for details.
