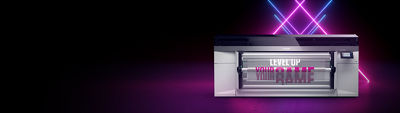

Colorado M-series
As low as
$0.00
Out Of Stock
• Highly productive 64” Roll-to-Roll printer
• Flexible UVgel 460 inks
• FLXfinish+ mixed matte and gloss finish
• White ink without the worry
• Modular – grows with your business
Technical Specifications
Main Unit Specs |
||
Colorado M3 |
Colorado M5 |
|
Printing | ||
Printing Method | UVgel piezoelectric inkjet | UVgel piezoelectric inkjet |
Printing Modes: Gloss | High Key: 1,195 ft2/hr Express: 840 ft2/hr Speed: 592 ft2/hr Production: 420 ft2/hr High Quality: 312 ft2/hr Premium: 237 ft2/hr Specialty: 215 ft2/hr |
High Key: 1,709 ft2/hr Express: 1,229 ft2/hr Speed: 861 ft2/hr Production: 610 ft2/hr High Quality: 427 ft2/hr Premium: 290 ft2/hr Specialty: 222 ft2/hr |
Printing Modes: Matte** | Express: 388 ft2/hr Speed: 291 ft2/hr Production: 237 ft2/hr High Quality: 194 ft2/hr Specialty: 140 ft2/hr Backlit: 194 ft2/hr Backlit Density: 108 ft2/hr |
Express: 495 ft2/hr Speed: 409 ft2/hr Production: 333 ft2/hr High Quality: 290 ft2/hr Specialty: 215 ft2/hr Backlit: 215 ft2/hr Backlit Density: 108 ft2/hr |
Printing Modes: Mixed Matte/Gloss** |
FLXfinish+: 75 ft2/hr | FLXfinish+: 75 ft2/hr |
Printing Modes: Spot White 1 Layer** |
Express: 291 ft2/hr Speed: 237 ft2/hr Production: 194 ft2/hr High Quality: 140 ft2/hr Specialty: 129 ft2/hr |
Express: 388 ft2/hr Speed: 323 ft2/hr Production: 258 ft2/hr High Quality: 194 ft2/hr Specialty: 129 ft2/hr |
Printing Modes: White Underflood/Overflood 2 Layers* |
Speed: 215 ft2/hr Production: 151 ft2/hr High Quality: 108 ft2/hr Specialty: 75 ft2/hr |
Speed: 215 ft2/hr Production: 151 ft2/hr High Quality: 108 ft2/hr Specialty: 75 ft2/hr |
Printing Modes: White 3 Layers** |
High Quality: 75 ft2/hr Specialty: 54 ft2/hr |
High Quality: 75 ft2/hr Specialty: 54 ft2/hr |
Printing Modes: White 5 Layers** |
High Quality: 43 ft2/hr Specialty: 32 ft2/hr |
High Quality: 43 ft2/hr Specialty: 32 ft2/hr |
Print Resolution | Up to 1,800 dpi | Up to 1,800 dpi |
Print Resolution | Canon UVgel 460 ink | Canon UVgel 460 ink |
Ink Color | CMYK / CMYKW**** | CMYK / CMYKW**** |
Ink Packaging | 1 x 700ml ink bottle Ink Reservoir per ink color: 1.8 liter Can Refill while printing |
1 x 700ml ink bottle 2 x 1 liter ink bottle Ink Reservoir per ink color: 2.1 liter Can Refill while printing |
Printhead | 4 or 5* UVgel 425 Printheads High frequency drop-on-demand piezo-electric printhead PAINT (Piezo Acoustic Integrated Nozzle Technology) Automatic Maintenance Curing: UV LED |
4 or 5* UVgel 425 Printheads High frequency drop-on-demand piezo-electric printhead PAINT (Piezo Acoustic Integrated Nozzle Technology) Automatic Maintenance Curing: UV LED |
Media | Roll Width: Up to 64” (1,625 mm) Print Margin: 0.21” (5.3 mm)2 Roll Weight: Up to 110 lbs (50 kg) Roll Diameter: Up to 8.7” (220 mm) Media Thickness: Up to 0.03” (0.8 mm) |
Roll Width: Up to 64” (1,625 mm) Print Margin: 0.21” (5.3 mm)2 Roll Weight: Up to 110 lbs (50 kg) Roll Diameter: Up to 8.7” (220 mm) Media Thickness: Up to 0.03” (0.8 mm) |
Media Input | 1 roll or optional 2nd roll** Print Side Out Media Print Side In / Double Sided Media** Magnetic Media Kit** |
1 roll or optional 2nd roll** Print Side Out Media Print Side In / Double Sided Media** Magnetic Media Kit** Jumbo Roll Interface** |
UVgel Technology | Instant pinning** and dot gain control Low temperature curing Scratch resistance Easy lamination, smooth ink film High precision color consistency Odorless and instant dry prints |
Instant pinning and dot gain control Low temperature curing Scratch resistance Easy lamination, smooth ink film High precision color consistency Odorless and instant dry prints |
Certifications | Environmental and Safe Use: GREENGUARD Gold |
Environmental and Safe Use: GREENGUARD Gold |
Software | Supported Rips: ONYX Graphics, Caldera, EFI, PrintFactory, ColorGATE, ErgoSoft, Shiraz, AGFA, SAI PRISMA Applications: PRISMAguide XL PRISMA remote app PRISMAservice |
Supported Rips: ONYX Graphics, Caldera, EFI, PrintFactory, ColorGATE, ErgoSoft, Shiraz, AGFA, SAI PRISMA Applications: PRISMAguide XL PRISMA remote app PRISMAservice |
External Modules | None | Jumbo Roll Loader X/Y Cutter Rewinder Jumbo Roll Rewinder |
Interface | Ethernet (100/1,000 Mbit/s) | Ethernet (100/1,000 Mbit/s) |
Dimensions | Printer W x D x H 3,020 x 1,095 x 1,300 mm | Printer W x D x H 3,020 x 1,095 x 1,300 mm |
Weight | 750 kg | 750 kg |
Working Environment | ||
Operation Printer | 18 - 30°C (recommended 20 – 27°C), 20 - 80% RH (no condensation) | 18 - 30°C (recommended 20 – 27°C), 20 - 80% RH (no condensation) |
Power | 0 W - Off, 250 W - Standby, 1.6 kW - Ready, 2.3 kW - Printing | 0 W - Off, 250 W - Standby, 1.6 kW - Ready, 2.3 kW - Printing |
Consumption | 2 inputs, each 200-240V +/- 10%, 50/60 Hz, 16/6 A. | 2 inputs, each 200-240V +/- 10%, 50/60 Hz, 16/6 A. |
Source | Printer is declared under Radio Equipment Directive (RED)- 2014/53/EU | Printer is declared under Radio Equipment Directive (RED)- 2014/53/EU |
Regulatory Certification | ||
Declaration of conformity | Compliant with EN62479, EN301 489-1, EN301 489-3, EN300-330 FCC Part 15 and RSS-210 certified (module) |
Compliant with EN62479, EN301 489-1, EN301 489-3, EN300-330 FCC Part 15 and RSS-210 certified (module) |
Radio | IEC/EN/UL/CSA 62368-1 compliant Applicable marks: CE, TÜV-GS, C-UL-US, RCM | IEC/EN/UL/CSA 62368-1 compliant Applicable marks: CE, TÜV-GS, C-UL-US, RCM |
Safety | Emission: Class A compliant according CISPR 32, FCC part 15 and ICES-003 Immunity: CISPR 35 compliant | Emission: Class A compliant according CISPR 32, FCC part 15 and ICES-003 Immunity: CISPR 35 compliant |
EMCEnvironmental | WEEE, RoHS directive 2011/65/EU, REACH, CE | WEEE, RoHS directive 2011/65/EU, REACH, CE |
* Base unit requires 4 printheads, adding optional white module requires and additional print head for a total of 5 printheads
**Optional module
**** White ink is an optional module
