CR-N700
- 1" 4K UHD CMOS Sensor with Dual Pixel Autofocus with EOS iTR AF X
- High Quality 4K 60p Video Output
- 15x Optical Zoom Lens (30x FHD) with Optical Image Stabilization
- Built-in ND Filter
- Renowned Canon Color Science with Support for Wide DR, Canon Log 3, HDR(HLG/PQ), EOS Standard/Neutral Image Modes
- 12G-SDI, 3G-SDI, HDMI, and IP Video Out
- Genlock, Dual XLR and 3.5mm Audio input
- Auto Tracking Lite Built-in
- Built-in NDI|HX and SRT (supports adaptive bitrate) support
- FreeD (with multiple destination support) support for AR/VR system
- Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
Return Policy
Overview

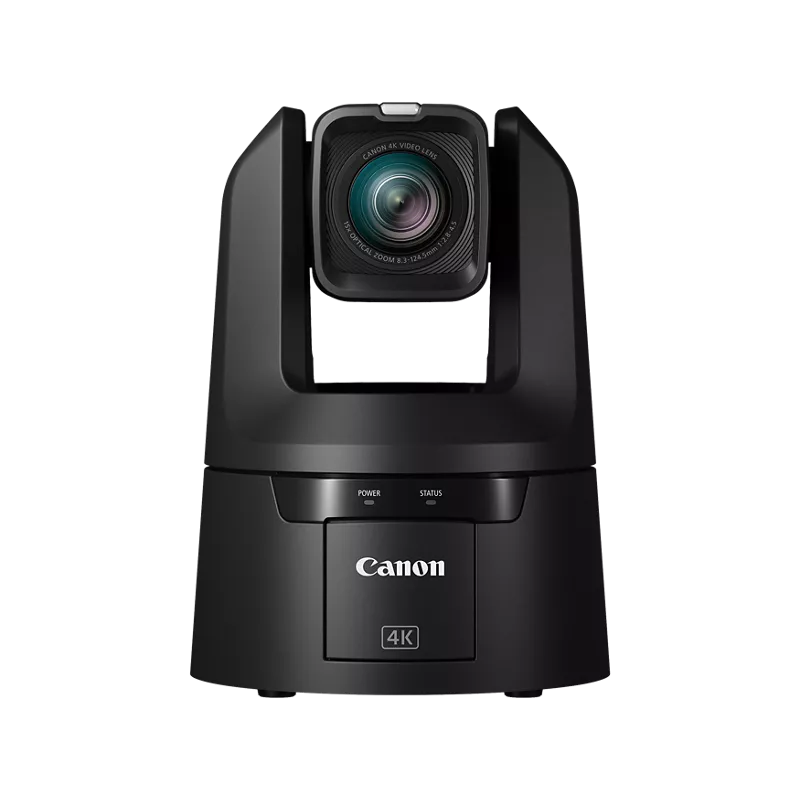

The CR-N700 4K PTZ camera is a professional 4K PTZ camera aimed at high-end Broadcast, TV Studios and Live Events. With outstanding 4K60P 4:2:2 10-bit HDR image quality, it offers broadcasters highly advantageous features such as Dual Pixel AF with ‘deep learning’ auto focus, 12G-SDI connectivity, multiple protocols for streaming and control as well as region of interest crop capabilities.
Features
4K detail for imaging excellence
A 1.0”-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Stunning optical precision
The CR-N700’s high-performance lens has a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. When conditions are unstable, Canon’s renowned Optical Image Stabilization allows you to still capture steady footage.

Award-winning Autofocus technology
Fast, intelligent, and extremely accurate focusing via multiple modes thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.

EOS iTR AF X
Deep learning autofocus technology locks on to a subject’s head, even if they turn away.

Eye Detection AF
Detects and tracks the subject’s pupil for precise focusing.

Face Priority/Face Only AF
Face Priority AF prioritizes the subject’s face, while Face Only AF responds when a face is detected.

Touch AF
Select your own focus point on screen with the Remote Camera Control Application.

Dual Pixel Focus Guide
A visual representation showing when a subject is in focus.

Multiple protocols for seamless integration
The CR-N700 features SRT (supports adaptive bitrate) and NDI|HX1 protocols that help produce high quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP and Canon XC protocol are also included, as well as FreeD (supports up to 4 destinations) for integration into virtual productions.
1 NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries
Comprehensive connectivity
Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. The CR-N700 also includes 3G-SDI. Time Code and GEN-LOCK.

Powerful HDR imagery and low light capture
Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match other Canon cameras’ look.

Smooth and precise control
The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1°/s. Compatible with the RC-IP1000 and RC-IP100 controllers and Remote Camera Control Application controllers, it can also be configured with selected third-party controllers.

Thumbnail Display for Presets and Recorded Trace Movement
To make the cameras easier for operators and directors to instantly be able to see which shot they want to call up next, thumbnail images can be added for camera presets and for recorded trace movement in both the camera’s user interface and in the Remote Camera Control Application (RCCA)*.
*requires latest firmware version, available 11/28/23

Crop function – single camera, two video feeds
Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Night Mode
Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

Remote Camera Control Application
The Remote Camera Control Application is an application for centralized control of multiple cameras. It is possible to operate up to nine cameras and display videos at the same time - achieving a "multi-camera operation".
At a video production or broadcasting site, an operator can select a camera from the videos displayed on the "Connected Camera List", within the application and operate it from the "Camera Control Area" in the control panel of the software. The software is included and can be installed immediately without having to prepare a hardware controller in advance making it easy to use for the operator while creating an effective one-person operation.

Add-On Applications
The Add-On Application System will enable the installation of paid applications directly onto the camera. These applications can then be run without the need for a computer, simplifying operations and set-up.
The Auto Tracking Application enables the camera to automatically track the speaker or other specified persons during commercial presentations, lectures and other events. Because visual analysis is performed in-camera, the system achieves excellent tracking capability. In addition to framing a person in the shot, the camera, aided by its high-performance pan/tilt mechanism and the automatic tracking application, can smoothly capture movements of people with satisfying quality for video production.
The Auto Loop Application empowers the camera to automatically repeat pan/tilt/zoom (PTZ) staging movements ordinarily performed by camera operators during the broadcast of events, as well as in the production of TV commercials and movies. What’s more, “fade mode” adjusts the acceleration and deceleration of the camera motions as the motions begin and end, enabling the automated camera system to mimic professional camerawork.
Auto Tracking Lite
The camera comes with a free version of the Auto Tracking Application, called Auto Tracking Lite. This free version provides smooth and precise auto tracking experience with a basic auto tracking configuration. For those users who require more advanced tracking customization, upgrading to the paid version of the auto tracking software is quick and easy.

Technical Specifications
View Full Technical Specs PDF
Camera
Video Output Options
Interface
Other
