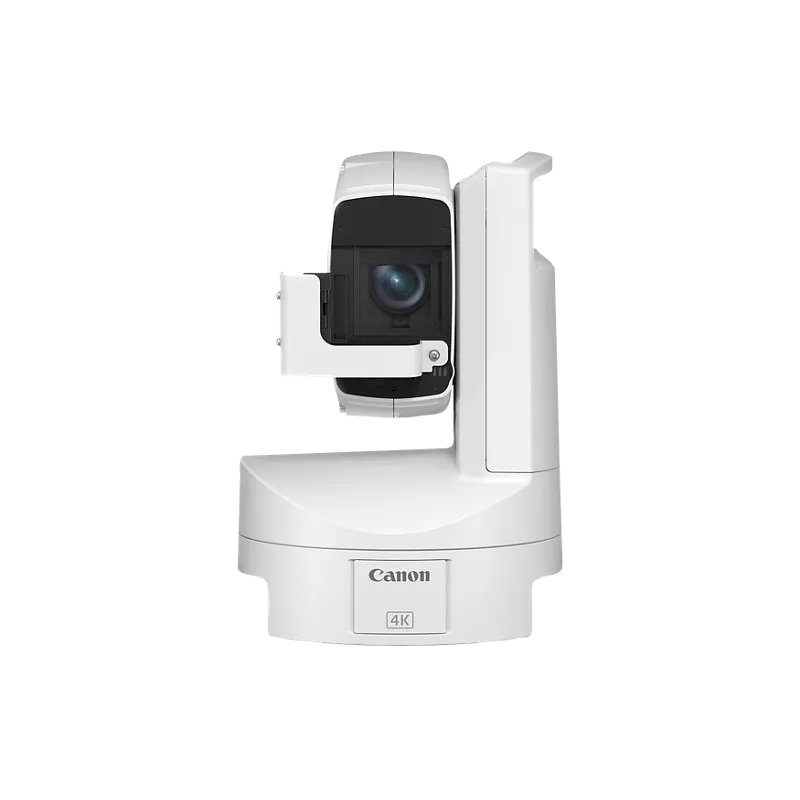

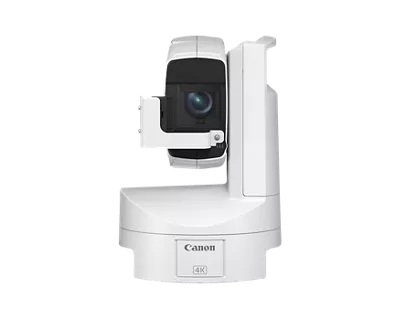

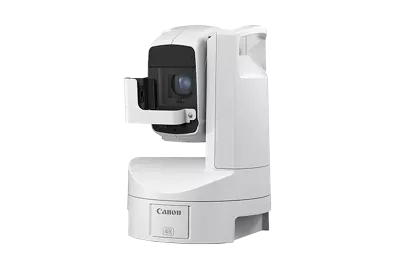

CR-X300
- 1/2.3" CMOS Sensor with Hybrid Auto Focus
- High Quality 4K 30p and Full HD 60p Video Output
- 20x Optical Zoom Lens with Optical Image Stabilization
- Renowned Canon Color Science

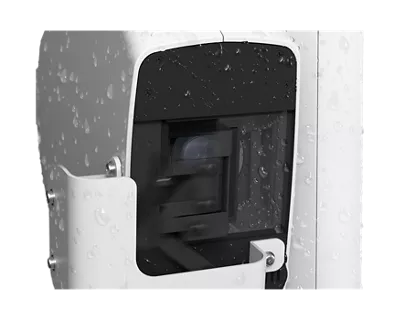

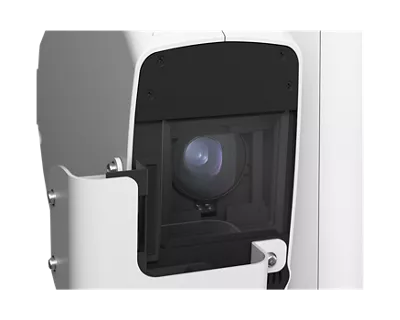

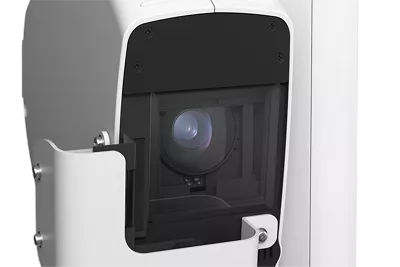

- Outdoor Camera with Wiper (IP65 Rated)
- 6G-SDI, HDMI, and IP Video Out
- Built-in NDI|HX and SRT (supports adaptive bitrate) support
- Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
- FreeD (with multiple destination support) support for AR-VR systems
Terms
The following are the terms and conditions ("Terms") for the Canon U.S.A., Inc. Auto Replenishment System (the "Service"). These Terms are between you and Canon U.S.A., Inc. ("Canon USA," "we" or "us") and govern your and our respective rights and obligations relating to the Service. Please note that your use of the Service is also governed by Canon Direct’s Terms of Use and our Privacy Statement, each of which (as changed over time) are incorporated into these Terms, and all of which govern our respective rights and obligations concerning the Service. By placing an order through, or otherwise using, the Service, you accept, and agree to be bound by, these terms, conditions, limitations and requirements. Please read these Terms carefully.
Service
We reserve the right to change the Service benefits, including discount amounts and eligibility used to determine discount amounts, at any time in our sole discretion. All such changes will apply to future orders.
When you are enrolled, the Service will automatically create a new order for Eligible Products according to the shipment schedule applicable to the frequency of the Service you have selected, until you cancel.
We may, in our sole discretion, terminate your enrollment at any time without notice. If we do so, you will only be charged for orders that have been shipped to you.
Eligible Products
The eligible products that may be ordered through the Service (the identity of which are subject to change) are set forth on the product detail page on the Canon Direct website (shop.usa.canon.com) with the option to select the Service displayed (each, an "Eligible Product"). Your participation in the Service is personal to you, and you may not assign or transfer your enrollment, or any of the benefits of the Service, to any third party without our authorization. The Service is only available to customers with shipping addresses in the 50 United States and the District of Columbia.
Offers, Orders and Returns
Discounts and any limited time promotions associated with the Service apply only to Eligible Products displaying the offer message on the product detail page on the Canon Direct website (shop.usa.canon.com). Discounts and any amounts from limited time promotions that apply to your order, if any, and which are still in effect, will be automatically deducted from your order.
Some offer details may change as you receive deliveries over time (for example, price, taxes, availability, and shipping charges). If an Eligible Product is unavailable when we plan to ship it, we will notify you that we are unable to process your order, and we will wait to process your order until the next scheduled shipping date when the Eligible Product is available. When the Eligible Product becomes available, the price will be the price when you ordered it, regardless of when it becomes available.
Returns of Eligible Products under the Service are subject to our return policy. Service enrollments are void where prohibited.
Enrollment
As part of your enrollment in the Service, you will be required to register with us so that your printer can be identified as participating in the Service. Instructions for registering your printer are contained in the introductory email sent to you after you apply for enrollment in the Service, as well as in the "My Account" section of the Canon Direct website (shop.usa.canon.com). You will be required to accept terms and conditions provided by our parent company, Canon Inc., as part of registering your printer. Canon Inc. will notify us when an ink or toner cartridge reaches a certain low ink/toner threshold, and we will fill an order for the ink or toner and ship it to you under these Terms. Information provided to us and Canon Inc. may be stored on servers outside of the United States and will be subject to our Privacy Statement. It's possible that your order for Eligible Products will not arrive prior to running out of ink or toner where your use was more than usual, particularly if such greater use occurred over 1 or 2 days.
Payment and Cancellation
The total cost charged to your payment method for each order under the Service will be the cost of the Eligible Product on the day that order is processed, less any discount offered as a percentage or dollars off at the time you registered, plus any applicable sales tax. We reserve the right to modify or cancel any discount offered at the time you registered for the Service, with notice to you, and future orders fulfilled under the Service will reflect any such change.
For each Eligible Product shipped under the Service, you authorize us to charge the payment method used when you enrolled unless otherwise directed by you. If we are unable to complete your order with the payment method you used when you enrolled, we will not fulfill the order and will notify you that your payment method needs to be updated.
Your enrollment in the Service will remain in effect until it is canceled. You can cancel or modify your enrollment at any time via the "My Account" section of the Canon Direct website (shop.usa.canon.com). If you cancel or modify your enrollment after an order has been processed, you will be charged for the order as processed. If the discount for such Eligible Product changes, the new discount will be applied to your future shipments of that Eligible Product. If, after enrollment, you are no longer in possession of your printer for any reason (e.g., due to warranty return, replacement, or exchange), the total cost for the Service will continue to be charged to your payment method until you cancel your enrollment. No refunds will be granted because of your failure to cancel your enrollment in such situation.
Your rights under these Terms will automatically terminate without notice if you fail to comply with any of its terms and conditions. In the event of such termination, we may immediately revoke your access to the Service. Our failure to insist upon or enforce your strict compliance with these Terms and will not constitute a waiver of any of our rights.
Changes to Terms
We may, in our sole discretion, change these Terms without notice to you. If any change to these Terms is found invalid, void, or for any reason unenforceable, that change is severable and does not affect the validity and enforceability of any remaining changes or conditions. YOUR CONTINUED PARTICIPATION AFTER WE CHANGE THESE TERMS CONSTITUTES YOUR ACCEPTANCE OF THE CHANGES. IF YOU DO NOT AGREE TO ANY CHANGES, YOU MUST CANCEL YOUR ENROLLMENT.
Disclaimer of Warranties and Limitation of Liability
WE DISCLAIM ALL WARRANTIES, EXPRESS OR IMPLIED, CONCERNING THE SERVICE INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. WITHOUT LIMITING THE PRECEDING SENTENCE, UNLESS OTHERWISE REQUIRED BY APPLICABLE LAW, IN NO EVENT WILL OUR, OR OUR LICENSORS’, AGGREGATE LIABILITY UNDER THESE TERMS WITH RESPECT TO ANY CLAIM EXCEED ONE HUNDRED DOLLARS ($100.00).
Return Policy
The Canon Online Store will accept, for return or exchange, defective or unopened merchandise purchased at the Canon Online Store, subject to the exceptions and timeframe for returns listed below: All merchandise returned to the Canon Online Store must be in the original packaging with all original items (such as manuals, cables, etc.) accompanying the merchandise and a copy of the invoice/packing slip included to be eligible for return or exchange. Shipping and handling fees from your original order will not be refunded, unless the merchandise is determined by the Canon Online Store, in its sole discretion, to be defective.
See Return Policy for complete information.
Overview
The CR-X300 features a 1 / 2.3-inch 4k-UHD CMOS imaging sensor and an optical 20x zoom lens, along with the a 20x digital zoom, all supported by Canon's highly advanced autofocus technology. The CR-X300 achieves astounding performance that enables this PTZ camera to be used in high-end production applications, including broadcast, sports, live events, and government. Housed in an aluminum die-cast body, it also features an IP65 rating for protection from dust and water, can be mounted right-side-up or upside down, yet it is small and lightweight enough to be carried around for portable installations Virtually anywhere.
The CR-X300 camera supports multiple professional interfaces, including single cable PoE++ connectivity, which allows you to use NDI®|HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-X300 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi. The camera supports multiple control standards, including Canon's XC protocol as well as VISCA Protocol (serial and IP) for easy connectivity to a wide range of 3rd party hardware controllers.
Technical Specifications
Camera
Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Total pixels: approx. 21.14 megapixels
Effective pixels: approx. 8.29 megapixels (3840 x 2160)
f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom 35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) – 601 mm (T)
[Full HD] approx. 30.5 (W) – 627 mm (T)
8-bladed circular aperture
12 elements in 10 groups (including 2 aspheric elements)
Optical: 20x
Digital: 20x
1 cm (0.39 in.) at maximum wide angle, 60 cm (2.0 ft.) throughout the zoom range (from the front window)
[4K UHD]
Horizontal: 65.6° (W) – 3.6° (T)
Vertical: 39.8° (W) – 2.0° (T)
[Full HD]
Horizontal: 63.5° (W) – 3.4° (T)
Vertical: 38.4° (W) – 1.9° (T)
1/6 – 1/2000 sec. (specific values depend on the frame frequency)
Focus mode: Manual, Continuous AF, Face Detection AF, Tracking AF type: Hybrid AF, Contrast AF
F.Auto, P, Tv, Av, M
Normal1, Normal3
Auto, Manual 1/3 – 1/1000 sec.
BT.709, BT.2020
ND filter: 1/8 at maximum
Enhanced ND filter: 1/32
Electrically switchable
Optical-shift (Standard IS, Powered IS)
AUTO (AWB), Set A, Set B, preset settings (daylight: approx. 5600 K*, tungsten lamp: approx. 3200 K*), color temperature setting (2000 K – 15000 K), Manual
* Color temperatures are given for reference purposes only.
0.0 dB – 36.0 dB
Approx. 3.0 lux (shutter speed 1/60 sec., frame frequency 59.94 Hz (P (Program AE) shooting mode), auto slow shutter "Off")
Supports upright/ceiling installation, flip function ("Auto Flip" enabled/disabled)
Equipped
Waterproof microphone
Video Output Signal
3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
– Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
– When 3840 x 2160 is selected for SDI, video will not be outputted to HDMI.
3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
– Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
– When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
[Frame frequency 59.94 Hz]
1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 29.97 Hz]
3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 50.00 Hz]
1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 25.00 Hz]
3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 23.98 Hz]
3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
– JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
Resolution: 1280 x 720
When frame frequency is 59.94/29.97 Hz: 14.99 fps,
When frame frequency is 50.00/25.00 Hz: 12.50 fps,
When frame frequency is 23.98 Hz: 11.99 fps
Protocols
XC (Canons original), RTSP/RTP, NDI|HX2, RTMP/RTMPS, SRT (Supports Adaptive Bitrate), FreeD (Supports up to 4 destinations)
XC (Canons original), NU (Canons original), NDI|HX,
Standard Communication (Serial), Standard Communication (IP)
Number of presets: Max. 100 (including home position)
Interface
LAN, Serial
LAN x 1, RJ45, 1000Base-T
BNC jack (output only) x 1, 0.8 Vp-p/75, unbalanced SMPTE 2081, 424, 425, ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
BNC jack x 1, 1.0 Vp-p/75, input only
HDMI connector x 1, output only
RJ45 connector x 1
AUX connector x 1
Pan/Tilt

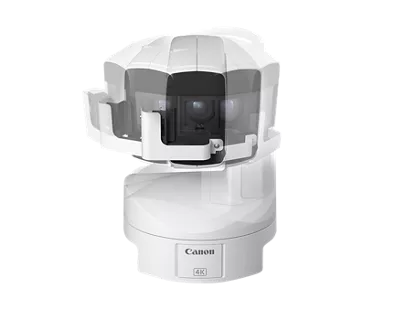

Pan operation range: Horizontal ±180°
Tilt operation range: Vertical -40° – +215°
0.3° – 60°/sec.
within ±10
NC45 or lower (when operating at 60°/sec.)
Equipped
Operating Environment
-15°C – +40°C (+5°F – +104°F), Humidity 90% or less (without condensation)
(Startup temperature -10°C – +40°C (+14°F – +104°F)
15 m/sec.: Normal operation
30 m/sec.: Operation possible
60 m/sec.: Non destruction
Other

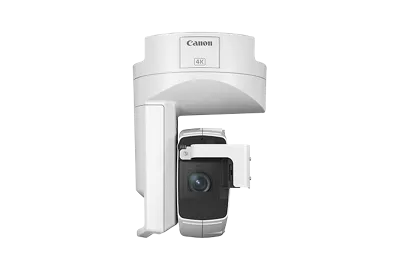

Supports upright/ceiling installation
PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant)
– PoE and PoE+ cannot be used
External power source: 12 V DC (Use the included power cable with DC plug)
PoE++ Input: Approx. 39.8 W* max. (body only)
DC Input: Approx. 37.7 W max. (body only)
* Class 5 (40.0 W required) for power supply devices
Approx. 8.54 x 12.24 x 8.54 in. (217 x 311 x 217 mm) (excluding protrusions and connector cover)
Approx. 15.5 lb. (7 kg ) (body only)
IP65
Painted for outdoor-use
Titanium white
Hardware: RC-IP100, RC-IP1000
Software: Remote Camera Control Application
