CX-G2400 Card & Badge Printer

As low as $5,999.00
Out Of Stock
  • Print up to 2" card size on inkjet paper or inkjet plastic media
  • Dye-based inks for colorful graphics and vivid colors
  • Fast first print out time: 10 seconds or less
  • Up to 3,000 cards per hour
  • Print resolution up to 1200 dpi
  • USB and ethernet connectivity

In the box

OVERVIEW

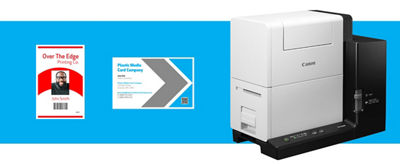

The Canon CX-G2400 card & badge printer is designed to easily produce photo-quality images on two-inch single-sided cards with speed and efficiency.

LX-D5500

ABOUT THE CX-G2400 CARD & BADGE PRINTER

WIDE VARIETY OF USES

Engineered for speed and capable of high-quality output, the CX-G2400 printer is ideal to produce single side inkjet paper or inkjet receptive plastic cards in vibrant color. For visitor badges, employee ID cards, business cards, student ID cards, loyalty cards, membership cards, gift cards, the printer can deliver the professional look needed in sectors like education, accommodations and hospitality, retail, administrative & support services, government and more. Printing cards on-demand allows users to print what is needed when it is needed, so there is no need to maintain a large inventory.


HIGH PERFORMANCE

The CX-G2400 printer is fast and can print up to 50 inkjet paper or inkjet plastic cards per minute, with a first-print-out time of approximately 10 seconds or less. With a feed hopper of up to 200 paper business cards / 100 CR80 size plastic cards and the ability to refill cards while printing, performance is maximized.


EASY TO INSTALL AND USE

The CX-G2400 printer has a small, compact footprint, allowing it to easily be installed on a desktop or under a counter. The straightforward operation buttons make the printer simple to use. Also, the CX-G2400 uses inkjet printer cartridges that are easy to replace. Plus, it supports dual media printing, able to handle printing on inkjet plastic or inkjet paper.


OUTSTANDING PRINT QUALITY

The CX-G2400 printer produces professional-looking crisp and clear photo-quality card images, with up to 1200 x 1200 dpi resolution, making text, images, and scan codes look sharp and crisp. The printer also uses dye-based inkjet printing, for vivid and vibrant color output.


CUSTOMER CARE

For investment protection, eCarePAK extended service plan options are available beyond the initial two-year advanced exchange limited warranty period. An eCarePAK can help save on costs associated with post-purchase maintenance and help maximize uptime throughout the product life.



BarTender
image icon
Download Your 30-Day Free Trial
TEKLYNX
image icon
Download Your 30-Day Free Trial

Technical Specifications

Main Unit Spec

Printing Method
Dye-based Inkjet
Print Mode
Single Sided (Simplex)
Print Speed (up to)
First Print Out Time: Business Card: 10 seconds or less1
Business Card: 50 Cards/minute (3,000 Cards Per Hour (CPH))1
Plastic Card: 50 Cards/minute ((3,000 Cards Per Hour (CPH))1
Number of Nozzles
2,816 dots
Print Resolution (Up to)
1200x1200 dpi
Ink Compatibility
4 (1 x Black, 1 x Cyan, 1 x Magenta, 1 x Yellow)
Shop Compatible Ink
Maximum Printable Area
Width: 57.4 mm
Length: 171.4 mm
Minimum Margin
Top/Bottom: 1.5 mm (Micro Margin: 0.3 mm)
Left/Right: 2.0 mm (Micro Margin: 0.3 mm)
Paper Thickness
0.21 – 0.76 mm (0.01" - 0.03")
Automatic Sheet Feeder
Paper: 200 Business Cards2 Plastic Card: 100 Cards (CR80 size)2
Inkjet Media Compatibility
Paper Card: 2.1" x 3.5" Business Cards (Inkjet Coated Matte/Glossy)
Plastic Card: 2.13" x 3.38"
Body Durability
500,000 Cards / 5 Years1
Estimated Output Number
Approx. 3,500 Cards per cartridge set2
Maximum Paper Size
Width: 58.0 mm
Length: 172.0 mm
Paper Weight
0.21 - 0.60 mm

General

OS Compatibility
Windows 10, 11 (64/32 bit), 8.1 (64/32 bit), 7 SP1 (64/32 bit)3
Standard Interface
USB 2.0
Ethernet (10/100/1000Base-T)
Power Source
AC 100v-240v, 50/60 Hz
Power Consumption (approx.)
Maximum: Approx. 150 W
Operating: Approx. 33 W
Sleep Mode: Approx. 5.6 W or Less
Dimension (W x D x H)
15.4" (W) x 7.09" (D) x 11.0" (H)6
Weight
17.63 lbs.
Operating Temperature:
41& - 95&F (5& - 35&C)
Operating Humidity:
10 - 90% RH (Non-Condensing)
Noise
Acoustic Information4:
Operating Noise (Max.): 58dB or less
Standby Noise: 35dB or less
Cartridge Fill Volume
Black / Cyan / Magenta / Yellow: 14.5 ml of each color
Maintenance Cartridge Info & Fill Volume
WT-X201 Maintenance Cartridge 1
Approx. 35,000 Sheets1
Operational Method
LCD: No
Buttons/LEDs: 3 Buttons / 7 LEDs
Warranty
2 Year Warranty5

Brochures

File Name

Canon CX-G2400 Card & Badge Printer Brochure

Date

09.14.22

File Size

0.2 MB

File Name

Canon CX-G2400 Service and Support Brochure

Date

11.29.22

File Size

3.3 MB

File Name

Canon CX-G2400 Card & Badge Printer Consumables Accessories Brochure

Date

11.29.22

File Size

0.1 MB

Product Disclaimer

  1. Based upon standard business card print conditions with no image and print size of 2"x3.5" inkjet coated matte business card, 7.5% Duty/Color, 50 sheets x 2 jobs/day. Print speed based on click to drop, average print coverage, with USB connectivity, Cards Per Hour (CPH).
  2. Based upon card weight thickness measured at 300gsm (0.3mm)
  3. Operation can only be guaranteed on a PC with pre-installed Windows® 11 (64/32-bit), Windows® 10 (64/32-bit), Windows 8.1 (64/32-bit), Windows 7 (64/32-bit).
  4. Acoustic noise is based off the measurement following ISO7779, and the display number shall follow ISO9296.
  5. Warranty and Support programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
  6. Printer weight measured excluding ink cartridges installed.
