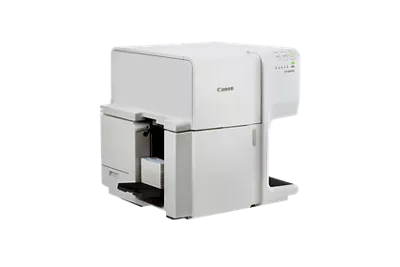

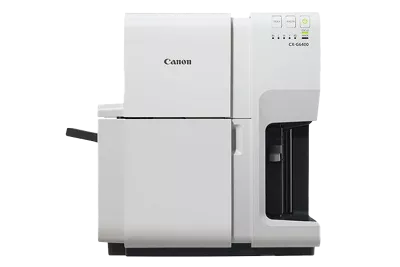

CX-G6400 Card & Badge Printer

As low as $9,999.00
Out Of Stock
  • Print up to 4" wide on inkjet paper or inkjet plastic media
  • Dye-based inks for colorful graphics and vivid colors
  • Fast first print out time: 12 seconds or less
  • Up to 2,700 cards per hour
  • Print resolution up to 1200 dpi
  • USB and ethernet connectivity

In the box

OVERVIEW

The Canon CX-G6400 card & badge printer is designed to easily produce customized photo-quality  images on four-inch single-sided paper and CR80 size plastic cards with speed and efficiency.

LX-D5500

ABOUT THE CX-G6400 CARD & BADGE PRINTER

WIDE VARIETY OF USES

Engineered for speed and capable of oversized high-quality output, the CX-G6400 printer is ideal to produce single-sided paper or CR80 size plastic cards in vibrant color. For concert badges, press passes, event badges, oversized passes, business cards, and envelopes, the printer can deliver the professional look needed in sectors like entertainment, hospitality, retail, administrative & support services, government and more. Printing cards on-demand allows users to print what is needed when it is needed, so there is no need to maintain a large inventory.


HIGH PERFORMANCE

The CX-G6400 printer is fast and can print up to 45 single-sided inkjet paper or inkjet plastic cards per minute, with a first-print-out time of approximately 12 seconds or less. With a feed hopper of up to 400 paper or plastic cards / 100 envelopes and the ability to refill while printing, performance is maximized.



EASY TO INSTALL AND USE

The CX-G6400 printer can easily be installed on a desktop or counter. The straightforward operation buttons make the printer simple to use. Also, the CX-G6400 uses inkjet printer cartridges that are easy to replace. Plus, it supports dual media printing, able to handle printing on inkjet plastic or inkjet paper.



OUTSTANDING PRINT QUALITY

The CX-G6400 printer produces professional-looking crisp and clear photo-quality images, with up to 1200 x 1200 dpi resolution, making text, images, and scan codes look sharp and crisp. The printer also uses dye-based inkjet printing, for vivid and vibrant color output.


CUSTOMER CARE

For investment protection, eCarePAK extended service plan options are available beyond the initial two-year advanced exchange limited warranty period. An eCarePAK can help save on costs associated with post-purchase maintenance and help maximize uptime throughout the product life.



BarTender
image icon
Download Your 30-Day Free Trial
TEKLYNX
image icon
Download Your 30-Day Free Trial

Technical Specifications

Main Unit Spec

Printer

Printing Method
Dye-based Inkjet
Print Mode
Single Sided (Simplex)
Print Speed (up to)
First Print Out Time: Business Card: 12 seconds or less1
Business Card: 100 Cards/minute (6,000 Cards Per Hour (CPH)) 1
Plastic Card (CR80): 45 Cards/minute (2,700 Cards Per Hour (CPH)) 1
4"x6" Postcard: 45 Cards/minute (2,700 Cards Per Hour (CPH)) 1
Envelope: 28 Envelopes/minute
Number of Nozzles
5,185 dots
Print Resolution (Up to)
1200x1200 dpi
Ink Compatibility
4 (1 x Black, 1 x Cyan, 1 x Magenta, 1 x Yellow) (105 ml of each color)

Shop Compatible Ink
Maximum Printable Area
Width: 107.8 mm / 4.2"
Length: 297.0 mm / 11.7"
Minimum Margin
Top/Bottom: 1.5 mm
Left/Right: 2.0 mm
Paper Thickness
Paper/Plastic: 0.21 - 0.76 mm / 8.27 - 30 mil
Envelope: 0.24 - 0.48 mm / 9.45 - 18.9 mil
Automatic Sheet Feeder
Paper feed capacity2
Plastic & Paper Card: 400 Cards
Envelope: 100 Envelopes
Inkjet Media Compatibility
Inkjet Paper Card: Business Cards, Credential, Envelope, Postcard
Inkjet Plastic Card: 2" x 3.5"
Custom Size: Paper/Plastic within Maximum Printable Size & Up to 30 mil"
Body Durability
1.5 Million Cards / 5 Years
Estimated Output Number
Approx. 24,000 Cards per cartridge set2
Maximum Paper Size
Width: 85.0 - 120.0 mm / 3.3 - 4.7"
Length: 49.0 - 300 mm / 1.9 - 11.8"

General

OS Compatibility
Windows 10, 11 (64/32 bit), 8.1 (64/32 bit), 7 SP1 (64/32 bit)3
Standard Interface
USB 2.0
Ethernet (10/100/1000Base-T)
Power Source
AC 100v - 240v, 50/60 Hz
Power Consumption (approx.)
Maximum: Approx. 229 W
Operating: Approx. 135 W
Sleep Mode: Approx. 8.5 W or Less
Dimension (W x D x H)
23.4" (W) x 16.1" (D) x 18.3" (H)6
Weight
55.1lbs.6
Operating Temperature:
Temperature: 41° - 95°F (5° - 35°C)
Operating Humidity:
Humidity: 10-90% RH (Non-Condensing)
Noise
Acoustic Information4:
Operating Noise (Max.): 58dB or less
Standby Noise: 35dB or less
Cartridge Fill Volume
Black / Cyan / Magenta / Yellow: 105 ml of each color
Maintenance Cartridge Info & Fill Volume
WT-X401 Maintenance Cartridge 1
Approx. 72,000 Cards1
Operational Method
LCD: No
Buttons/LEDs: 3 Buttons / 8 LEDs
Warranty
2 Year Warranty5

Brochures

File Name

Canon CX-G6400 Card & Badge Printer Brochure

Date

09.14.22

File Size

0.3 MB

File Name

Canon CX-G6400 Service and Support Brochure

Date

11.29.22

File Size

3.3 MB

File Name

Canon CX-G6400 Card & Badge Printer Consumables Accessories Brochure

Date

11.29.22

File Size

0.1 MB

Product Disclaimer

  1. Based upon standard business card print conditions with no image and print size of 2x3.5 inkjet coated matte business card, 7.5% Duty/Color, 1 sheets x 3 jobs/day x 2 days/month. Print speed based on click to drop, average print coverage, with USB connectivity, Cards Per Hour (CPH).
  2. With Standard condition: 7.5%Duty, Business card size:1 sheets x 3 jobs / day
  3. Operation can only be guaranteed on a PC with pre-installed Windows® 11 (64/32-bit), Windows® 10 (64/32-bit), Windows 8.1 (64/32-bit), Windows 7 (64/32-bit).
  4. Acoustic noise is based off the measurement following ISO7779, and the display number shall follow ISO9296.
  5. Warranty and Support programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
  6. Printer weight measured excluding printhead or ink cartridges installed.
