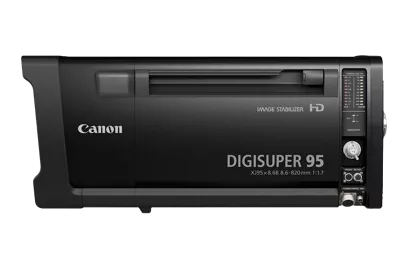

DIGISUPER 95

SKU
XJ95X8.6 BVP
As low as $163,000.00
Out Of Stock
  • Broad focal range (8.6-820mm, 17.2-1640mm with 2x extender)
  • Advanced Optical Performance
  • CAFS (Constant Angle Focusing System)
  • Advanced Image Stabilization
  • Support for Virtual Systems
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Add to Wish List

Technical Specifications

  XJ95x12.4B XJ95x8.6B
4:3 Mode
(Only IESD)
16:9 Mode 4:3 Mode
(Only IESD)
16:9 Mode
Focal Length 1x 12.4-1178 mm 8.6-820 mm
2x 24.8-2356 mm 17.2-1640 mm
Zoom Ratio 95x
Maximum Relative Aperture 1x 1:2.5 (at 12.4-491 mm)
1:6.0 (at 1178 mm)
1:1.7 (at 8.6-340 mm)
1:4.1 (at 820 mm)
2x 1:5.0 (at 24.8-982 mm)
1:12.0 (at 2356 mm)
1:3.4 (at 17.2-680 mm)
1:8.2 (at 1640 mm)
Image Format 8.8 x 6.6 mm
(Diagnal 11 mm)
9.6 x 5.4 mm
(Diagnol 11 mm)
8.8 x 6. mm
(Diagnol 11 mm)
9.6 x 5.4 mm
(Diagnol 11 mm)
Angular Field of View Wide 1x 39.1 x 29.8 (at 12.4 mm) 42.3 x 24.6 (at 12.4 mm) 54.2 x 42.0 (at 8.6 mm) 58.3 x 34.9 (at 8.6 mm)
2x 20.1 x 15.2 (at 24.8 mm) 21.9 x 12.4 (at 24.8 mm) 28.7 x 21.7 (at 17.2 mm) 31.2 x 17.8 (at 17.2 mm)
Tele 1x 0.43 x 0.32 (at 1178 mm) 0.47 x 0.26 (at 1178 mm) 0.61 x 0.46 (at 820 mm) 0.67 x 0.38 (at 820 mm)
2x 0.21 x 0.16 (at 2356 mm) 0.23 x 0.13 (at 2356 mm) 0.31 x 0.23 (at 1640 mm) 0.34 x 0.19 (at 1640 mm)
Minimum Object Distance
(M. O. D.)
(From the lens vertex)
3.0 m
Object Dimensions at M. O. D. Wide 1x 191.9 x 143.9 cm (at 12.4 mm) 209.5 x 117.8 cm (at 12.4 mm) 274.1 x 205.6 cm (at 8.6 mm) 298.1 x 167.7 cm (at 8.6 mm)
2x 96.0 x 72.0 cm (at 24.8 mm) 104.8 x 58.9 cm (at 24.8 mm) 137.1 x 102.8 cm (at 17.2 mm) 149.1 x 83.9 cm (at 17.2 mm)
Tele 1x 2.1 x 1.6 cm (at 1178 mm) 2.3 x 1.3 cm (at 1178 mm) 3.0 x 2.3 cm (at 820 mm) 3.2 x 1.8 cm (at 820 mm)
2x 1.1 x 0.8 cm (at 2356 mm) 1.2 x 0.7 cm (at 2356 mm) 1.5 x 1.2 cm (at 1640 mm) 1.6 x 0.9 cm (at 1640 mm)
Zoom Speed Max. speed in all range: 0.6 0.1s
Focus Speed Max. speed in all range: 0.8 0.1s
Iris Speed 0.8 0.15s
Mount B4
Input Voltage DC12V (DC10 to 17V)
Power Consumption 24W Max.
Operating Temperature -20C to +45C
Dimensions See external view
Flange Back See external view
