DP-V2730

SKU
DPV2730
As low as $18,999.00
Backorder
  • 27” 4K HDR Display
  • Canon HDR Toolkit
  • Brilliant Image Quality
  • Dual/Quad Display
  • Remote Control/Multi-Display Link
  • 12G-SDI Connectivity
Have a MyCanon Account? We’ll add registration details for this product. Learn More
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Overview

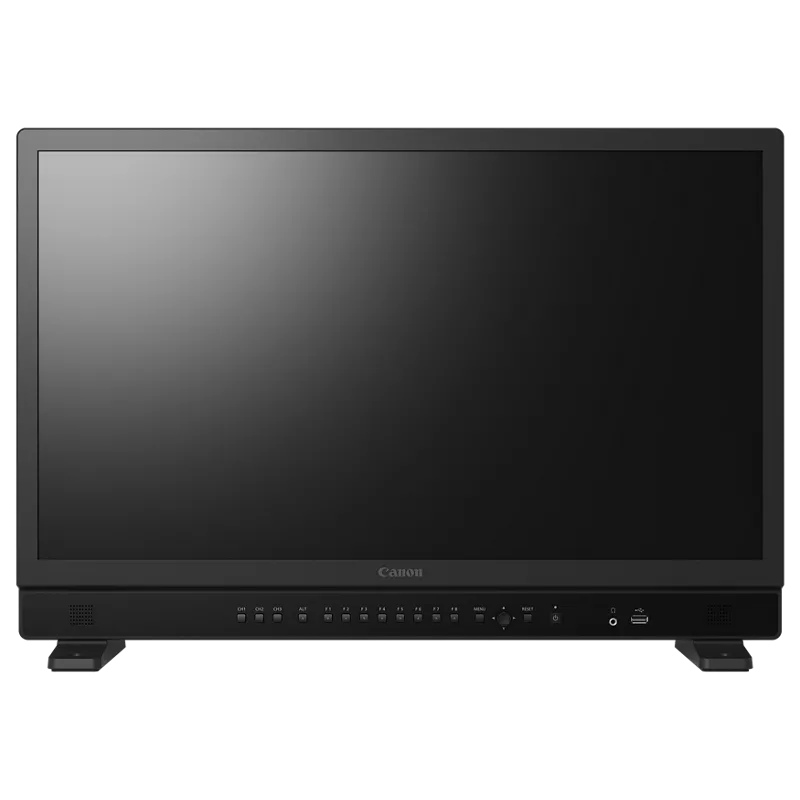

With a 27-inch screen and 1,000 cd/m² full screen peak brightness, the DP-V2730 4K  reference display has a suite of award-winning monitoring tools such as a waveform monitor, pixel value check and configurable false color, driven by Canon’s latest processing platform for superb performance.

DP-V2730 Refence Display 3 Quarter View

27” Display with Stunning Brightness

The DP-V2730 features a 27-inch 4K UHD LCD Panel with full-screen and uniform brightness up to 1,000 cd/m². Canon’s local dimming technology gives an ultra-low black level of 0.001 cd/m².

27" measurement of screen

HDR Waveform Monitor/RGB Parade

Analyze the brightness of an image from left to right with a monitor scale supporting IRE, PQ, HLG and Log signals from multiple manufacturers.

HDR Waveform Graphs

Award-winning Advanced HDR Monitoring Tools

The DP-V2730 features Canon’s award-winning advanced HDR monitoring tools to assist in evaluating HDR content over every aspect of the displayed signal.

HPA Award logo

HDR False Color

Visually represents exposure and image clipping based on detailed and customizable color scales for IRE, PQ or HLG.

HDR False Color Demo

Range Check

Switches the display output to monochrome and enables users to specify a peak brightness level to easily identify areas that require adjustment.

Range Check Demo

Pixel Value Check/Chromaticity Diagram

Accurately examine the color and brightness values of a specific pixel. A CIE diagram is also displayed to illustrate the pixel color space location or overall gamut of the entire image.

Color and Brightness Graph
Pixel Check Demo

Out of Gamut Display

Switches the display output to monochrome and highlights colors outside the selected color gamut. Users can select either ITU-R BT.709 or Native gamut.

Out of Gamut Demo

HDR/ SDR Comparison

An advanced function that converts HDR content to SDR for side-by-side evaluation. This function can be used to compare original content alongside enabled User LUTs or CDLs.

HDR/SDR Comparison

HDR Histogram

A graphical representation of the brightness distribution in an image. This feature can also illustrate SDR and HDR brightness ranges.

HDR Histogram

Frame Luminance Monitor

An innovative tool that allows users to closely monitor changes in peak brightness over time when viewing video sequences.

Frame Luminance Graph

Multi Information View

Utilize multiple HDR monitoring tools simultaneously without obstructing the displayed image.

Multi Information Demo

Faithful HDR Color Reproduction

Canon’s cutting-edge brightness, detailed shadows and wide color gamut across the entire screen satisfies industry-recognized standards for mastering and color-grading HDR video content.1

Simultaneous Dual/Quad Display

View up to 4K in either Dual or Quad array from both SDI and HDMI signals, as well as individual Picture Profiles or User LUTs.

Quad Display Demo

Versatile Connectivity

The DP-V2730 has an HDMI input and 12G-SDI Terminals (4x Inputs and 5x Outputs) capable of delivering 4K60P 4:2:2 10-bit or 4K30P 4:4:4 12-bit signals, ideal for seamless integration into multiple workflows.

Input and Output Ports

Remote Control/Multi-Display Link

Link the DP-V2730 to a computer, tablet or smartphone and multiple Canon Displays (via a LAN connection) with the Remote Control Web UI. This touch-optimized interface provides live image viewing, detailed signal information and direct control over inputs, monitoring tools and settings.

PC and Tablet Display

Built-in SDI Switcher

Use 4-way SDI input switching thanks to a MULTI-FUNC SDI Output* that supports workflow applications such as sending an output feed to a director’s monitor, external recorder or live streaming solution.

* Paid license required.

Color Calibration Services

Canon USA is now offering a comprehensive display color calibration service. Whether you operate in the film, post-production, broadcast, corporate or educational world, our goal is the same: to help ensure image fidelity.. This service supports both standard and high dynamic range (HDR) workflows, and ensures your device meets industry standard specifications (SMPTE, DCI, and ITU). To learn more, please click here.

Image Alt Text

Technical Specifications

View Full Technical Specs PDF

Panel

Image Quality

General

Interface

Output

Others
