EOS R5

Name: EOS R5 Body
Brand: Canon
SKU: 4147C002
Price: 3399 USD
Availability: BackOrder

SKU

EOS R5 BODY

As low as $3,399.00

Backorder

High Image Quality featuring a New 45 Megapixel Full-frame CMOS Sensor.
DIGIC X Image Processor with an ISO range of 100-51200; Expandable to 102400*¹.
High-Speed Continuous Shooting of up to 12 fps with Mechanical Shutter and up to 20 fps Electronic (Silent) Shutter.
Dual Pixel CMOS AF II covering Approx. 100% Area with 1,053 AF Areas.
Subject tracking of People and Animals*² using Deep Learning Technology.
8K RAW, 4K and Full-HD up to 120fps, 10-bit 4:2:2 with Canon Log, Canon Log3 or HDR PQ, Internal Recording in all Formats, with Auto Focus.

Terms
The following are the terms and conditions ("Terms") for the Canon U.S.A., Inc. Auto Replenishment System (the "Service"). These Terms are between you and Canon U.S.A., Inc. ("Canon USA," "we" or "us") and govern your and our respective rights and obligations relating to the Service. Please note that your use of the Service is also governed by Canon Direct’s Terms of Use and our Privacy Statement, each of which (as changed over time) are incorporated into these Terms, and all of which govern our respective rights and obligations concerning the Service. By placing an order through, or otherwise using, the Service, you accept, and agree to be bound by, these terms, conditions, limitations and requirements. Please read these Terms carefully.

Service
We reserve the right to change the Service benefits, including discount amounts and eligibility used to determine discount amounts, at any time in our sole discretion. All such changes will apply to future orders.

When you are enrolled, the Service will automatically create a new order for Eligible Products according to the shipment schedule applicable to the frequency of the Service you have selected, until you cancel.

We may, in our sole discretion, terminate your enrollment at any time without notice. If we do so, you will only be charged for orders that have been shipped to you.

Eligible Products
The eligible products that may be ordered through the Service (the identity of which are subject to change) are set forth on the product detail page on the Canon Direct website (shop.usa.canon.com) with the option to select the Service displayed (each, an "Eligible Product"). Your participation in the Service is personal to you, and you may not assign or transfer your enrollment, or any of the benefits of the Service, to any third party without our authorization. The Service is only available to customers with shipping addresses in the 50 United States and the District of Columbia.

Offers, Orders and Returns
Discounts and any limited time promotions associated with the Service apply only to Eligible Products displaying the offer message on the product detail page on the Canon Direct website (shop.usa.canon.com). Discounts and any amounts from limited time promotions that apply to your order, if any, and which are still in effect, will be automatically deducted from your order.

Some offer details may change as you receive deliveries over time (for example, price, taxes, availability, and shipping charges). If an Eligible Product is unavailable when we plan to ship it, we will notify you that we are unable to process your order, and we will wait to process your order until the next scheduled shipping date when the Eligible Product is available. When the Eligible Product becomes available, the price will be the price when you ordered it, regardless of when it becomes available.

Returns of Eligible Products under the Service are subject to our return policy. Service enrollments are void where prohibited.

Enrollment
As part of your enrollment in the Service, you will be required to register with us so that your printer can be identified as participating in the Service. Instructions for registering your printer are contained in the introductory email sent to you after you apply for enrollment in the Service, as well as in the "My Account" section of the Canon Direct website (shop.usa.canon.com). You will be required to accept terms and conditions provided by our parent company, Canon Inc., as part of registering your printer. Canon Inc. will notify us when an ink or toner cartridge reaches a certain low ink/toner threshold, and we will fill an order for the ink or toner and ship it to you under these Terms. Information provided to us and Canon Inc. may be stored on servers outside of the United States and will be subject to our Privacy Statement. It's possible that your order for Eligible Products will not arrive prior to running out of ink or toner where your use was more than usual, particularly if such greater use occurred over 1 or 2 days.

Payment and Cancellation
The total cost charged to your payment method for each order under the Service will be the cost of the Eligible Product on the day that order is processed, less any discount offered as a percentage or dollars off at the time you registered, plus any applicable sales tax. We reserve the right to modify or cancel any discount offered at the time you registered for the Service, with notice to you, and future orders fulfilled under the Service will reflect any such change.

For each Eligible Product shipped under the Service, you authorize us to charge the payment method used when you enrolled unless otherwise directed by you. If we are unable to complete your order with the payment method you used when you enrolled, we will not fulfill the order and will notify you that your payment method needs to be updated.

Your enrollment in the Service will remain in effect until it is canceled. You can cancel or modify your enrollment at any time via the "My Account" section of the Canon Direct website (shop.usa.canon.com). If you cancel or modify your enrollment after an order has been processed, you will be charged for the order as processed. If the discount for such Eligible Product changes, the new discount will be applied to your future shipments of that Eligible Product. If, after enrollment, you are no longer in possession of your printer for any reason (e.g., due to warranty return, replacement, or exchange), the total cost for the Service will continue to be charged to your payment method until you cancel your enrollment. No refunds will be granted because of your failure to cancel your enrollment in such situation.

Your rights under these Terms will automatically terminate without notice if you fail to comply with any of its terms and conditions. In the event of such termination, we may immediately revoke your access to the Service. Our failure to insist upon or enforce your strict compliance with these Terms and will not constitute a waiver of any of our rights.

Changes to Terms
We may, in our sole discretion, change these Terms without notice to you. If any change to these Terms is found invalid, void, or for any reason unenforceable, that change is severable and does not affect the validity and enforceability of any remaining changes or conditions. YOUR CONTINUED PARTICIPATION AFTER WE CHANGE THESE TERMS CONSTITUTES YOUR ACCEPTANCE OF THE CHANGES. IF YOU DO NOT AGREE TO ANY CHANGES, YOU MUST CANCEL YOUR ENROLLMENT.

Disclaimer of Warranties and Limitation of Liability
WE DISCLAIM ALL WARRANTIES, EXPRESS OR IMPLIED, CONCERNING THE SERVICE INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. WITHOUT LIMITING THE PRECEDING SENTENCE, UNLESS OTHERWISE REQUIRED BY APPLICABLE LAW, IN NO EVENT WILL OUR, OR OUR LICENSORS’, AGGREGATE LIABILITY UNDER THESE TERMS WITH RESPECT TO ANY CLAIM EXCEED ONE HUNDRED DOLLARS ($100.00).

Qty:

Need to order more than 5? Learn More

Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Backorder

Features Overview Specs Specifications Compatibility Reviews Resources Support Software

Overview

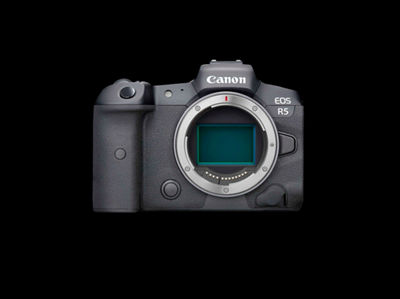

EOS R5 Full-Frame Mirrorless Camera

The EOS R5 builds off of the powerful legacy of Canon's full frame cameras offering next generation refinements in image quality, performance and reliability. It's an ideal choice for a large range of photographic and cinematographic environments from weddings, portraits, sports, journalism, landscape, cinematography and more.

Introducing the Canon EOS R5 Digital Camera

Canon’s all-new 45 Megapixel full-frame sensor is at the heart of the EOS R5’s superb image quality, which also leads the way for impressive 8K DCI cinematic movie capture with the ability to extract 35.4 Megapixel still images. Focus and speed are paramount in the EOS R5, providing impressive continuous capture at speeds of up to 20 frames-per-second and with Dual Pixel CMOS AF II capability, to track split second movements of even the most elusive of subjects. With 1,053 Automatic AF zones, it is easier than ever to photograph people with the use of Eye, Face and Head Detection AF, or intuitively track the whole body, face or eye of cats, dogs, or birds with Animal Detection*2 AF. The 5-axis in-body image stabilization can effectively compensate for camera shake with approximately 8 stops of stabilization* with use of certain non-stabilized, and optically image stabilized lenses. Connectivity like 5GHz and 2.4GHz Wi-Fi® and Bluetooth®, is also included.

Learn more about the improvements in the EOS R5.

Introducing the Canon EOS R5 Digital Camera

SAMPLE IMAGES

black and white image of model with headdress

IMAGE QUALITY

In-body Image Stabilizer High Resolution Shot

Using the EOS R5 with firmware 1.8.1 or later, the IBIS High Resolution shot mode can create 400 megapixel (approx.) files in camera, without the need for external software. This feature can be used for some specific situations when a high-resolution file with fine detail is required. Examples include art reproduction and building signage.

DIGIC X Image Processor

The EOS R5 camera is the first Canon EOS camera – in the Mirrorless series camera line — to feature a powerful DIGIC X Image Processor, which helps to enhance fine detail in your image.

SPEED AND AUTOFOCUS

Up to 12 fps with Mechanical Shutter

Delivering incredible performance at speeds of up to 12 fps, the EOS R5 camera can capture the split-second details between a subject's movements. This is ideal for dynamic action photos such as athletes, animals or vehicles in motion.

High-speed Focusing with Dual Pixel CMOS AF

The EOS R5 camera's highly responsive Dual Pixel CMOS AF II system features an incredible 1,053 Automatic AF zones that can be designated as auto-focus focal points (when Face + Tracking priority AF is selected). This ensures higher-precision Eye Detection AF, or allows for you to focus on the desired AF point. Fast action can be captured and focus can be maintained with speed, accuracy and ease.

AF Area Coverage of Approx. 100% x 100%^{^2}

The EOS R5 camera features an expansive focus area of approx. 100% horizontal and 100% vertical^{^2} when working with select RF and EF lenses. With older EF lenses, or with Extender types I and II, the EOS R5 focuses on approx. 80% horizontally and 80% vertically of the image. This means fast and impressive focusing even when composing your subject far from the center of the frame.

EV -6^{^3} Low-light Autofocus

Amazing for nighttime photography or in very low light settings, the EOS R5 camera's brilliant AF can operate in light as dim as a light rating of EV -6^{^3} where other AF systems may fail or search. Phenomenal AF is achieved even when using lenses with high F numbers.

VIDEO CAPABILITIES

Canon VR with RF5.2mm F2.8 L Dual Fisheye Lens Support and Workflow

Pairing just this one lens to an EOS R5 camera provides the capability of delivering a single file -- creating a powerful and convenient solution compared to traditional VR systems which capture a 3D scene with two separate fisheye lenses, recording that imagery to two separate cameras or image sensors, which write two files. This can save the user time and effort behind the camera, and in post-production by helping to solve issues such as multi-camera positioning, multi-lens syncing, image stitching, audio syncing, encoding and more.

LEARN MORE ABOUT THE EOS VR SYSTEM

When you hear the word artist, you might think of a painter, a museum, a fancy degree. When I hear the word artist, … I think of the little kid with a flashlight dreaming of the stars – Peter McKinnon

Supercharge Your Stop Motion Animation

Stop Motion Animation firmware increases your Live View resolution to 1920x1280 from Canon’s normal of 960x640 when connecting to compatible stop motion animation software, like Dragonframe. This makes it easy for animators to confirm focus and movement within every frame. Other features include Live View Manual Focus Peaking, Focus Position Memory, and Aperture Lock.

LEARN MORE

IMAGE STABILIZATION

In-body Image Stabilizer can provide up to 8 stops of Shake Correction

The EOS R5 is Canon's first camera to incorporate 5-axis IBIS (In-Body Image Stabilization). This camera will not only enhance the ability to shoot still images at slower shutter speeds but it will also help reduce camera shake when shooting movies. Additionally, the EOS R5's IBIS will work in combination with Optical Image Stabilization found in many Canon RF and EF lenses.

PERFORMANCE

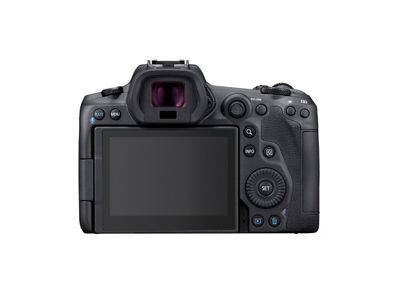

0.5-type OLED EVF with Approx. 5.76 Million Dots

The EOS R5 camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 5.76 million dots and a 23mm eyepoint. Displaying a bright image and extensive shooting information that rotates with the camera. The EOS R5's EVF supports a 120 fps refresh rate^{^1} and has been created to provide a bright, sharp and colorful 100% view of the subject at hand, displaying a crisp and vivid image with minimal aberration or distortion.

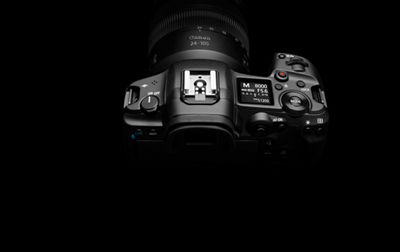

Dot-matrix LCD Panel

An LCD panel on the top of the camera features a dot-matrix display that shows information on the camera's status, recording mode and more. It gives real-time setting information both when the camera is in use or on standby, and can be inverted from black to white to suit viewing preferences or the ambient light source.

CONNECTIVITY

Connect easily to smartphones via Bluetooth®

Built-in Bluetooth® Capability

Bluetooth® pairing helps you connect the camera to compatible smart devices using the free Canon Camera Connect app. This low-energy wireless connection helps preserve battery life, while providing remote control of the camera. It also sends continuously updated GPS location data from your phone, letting you geotag what you've captured so you know precisely where you captured the photo.

Simply switch to a Wi-Fi connection to view and transfer images

Built-in Wi-Fi Capability

Enable wireless functions, such as file viewing and transfer, by connecting to Wi-Fi quickly and seamlessly, and exchange data with other Wi-Fi compatible Canon cameras. Using the Canon Camera Connect app, you can also transfer files to your mobile device to browse and share on social media. Built-in NFC capabilities help you connect directly to NFC-compliant Android devices by simply touching the NFC icon located on the camera.

OPERABILITY

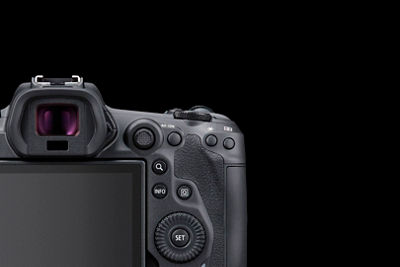

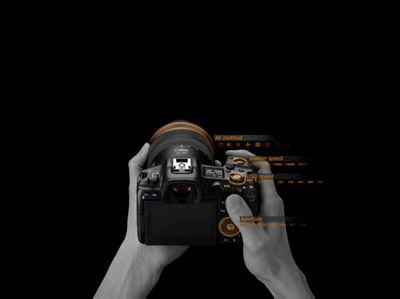

Main Dial and Quick Main Dials 1 & 2

With its compact body size, the EOS R5 camera features a three dial User Interface in the main dial, quick control dial 1 and quick control dial 2 which provide direct control over the traditional exposure controls such as Shutter Speed, Aperture, and ISO –and are fully customizable to the users’ preference.

Wireless File Transmitter WFT-R10A

The optional Wireless File Transmitter WFT-R10A, which also serves as a vertical battery grip, provides both a fast throughput for image uploading and several features that make dynamic wireless photography simple and fast. It has 5 GHz 802.11ac support for high-speed image transfer, a user interface that enables speedy set-up and configuration of wireless networks and even compatible smartphone connection. The Wireless File Transmitter WFT-R10A makes it simple to use a compatible smartphone as a remote control for still and video capture even from a far distance. It can even transfer recorded images back for viewing on the device's screen.

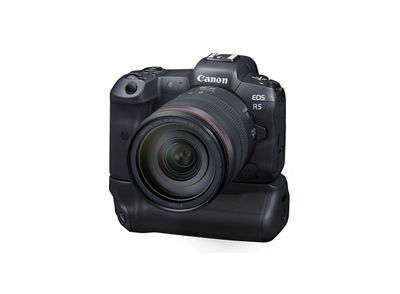

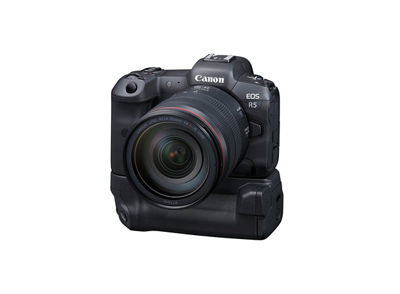

Battery Grip BG-R10

The EOS R5 camera's optional Battery Grip BG-R10 holds 2 Battery Packs LP-E6NH, while enabling virtually seamless vertical and horizontal operation and additional functions with all buttons similarly configured in a comfortable and dedicated grip. The Battery Grip BG-R10 also has a useful battery charging function (with optional USB power delivery adapter attached) that's particularly helpful for power-hungry operations like video recording or shooting over an extended period of time.

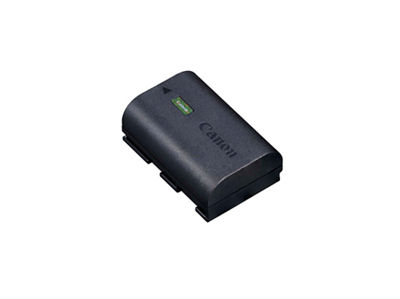

High-Capacity Battery Pack LP-E6NH

For increased power and the convenience of compatibility among multiple cameras, the EOS R5 camera uses Battery Packs LP-E6NH, the same batteries used on the EOS R camera and others. Especially helpful for photographers with multiple EOS cameras, the Battery Pack LP-E6NH is a robust, long-lasting battery that helps deliver power, shot after shot.

DURABILITY

Shutter Durability

The EOS R5 camera has a durability rated at approx. 500,000 cycles and full-frame focal-plane shutter that offers approx. 12 shots/sec.

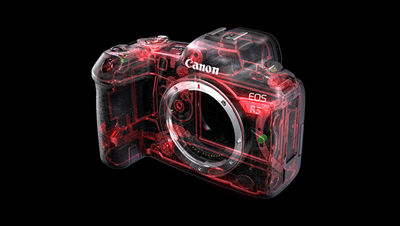

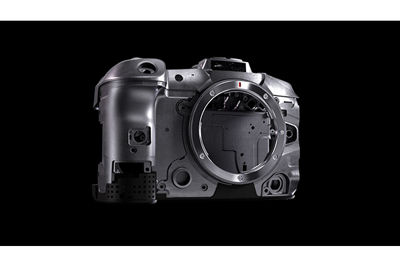

Dust- & Water-resistant Sealing

The EOS R5 camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas like the buttons, terminal covers, the battery compartment and the card slot cover. Precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body. Combined with an RF lens, or any other weather-sealed EF/EF-S lens, the EOS R5 camera proves to be a reliable partner in virtually any climate.

Technical Specifications

View Full Technical Specs PDF

Type

Digital single-lens non-reflex AF/AE camera

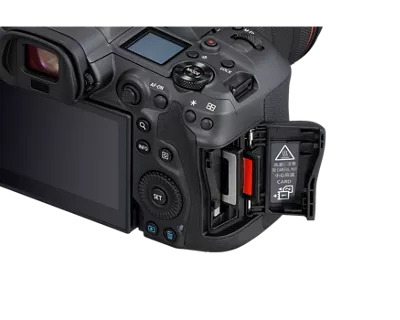

Recording Media

CFexpress card

Type B: Card slot
SD card speed class-compatible

SD card

Compatible with UHS-II
Eye-Fi cards and Multimedia cards (MMC) are not supported.

Compatible Lenses

Canon RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Lens Mount

Canon RF mount

Image Sensor

Type

CMOS sensor (compatible with Dual Pixel CMOS AF)

Effective pixels

Approx. 45.0 megapixels

Pixel Unit

Approx. 4.40 µm square

Total Pixels

Approx. 47.1 megapixels

Aspect Ratio

3:2 (Horizontal:Vertical)

Color Filter System

RGB primary color filters

Low Pass Filter

Installed in front of the image sensor, non-detachable

Dust Deletion Feature

Self Cleaning Sensor Unit
- Removes dust adhering to the low-pass filter.
- At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indi-cated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen).
- After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
- When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
Dust Delete Data acquisition and appending
- The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
- The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software (v. 4.14 and higher) to automatically erase the dust spots.
- Not available with EF-S lenses, in cropped shooting or multi-exposure shooting.
Manual cleaning (by hand)

Recording System

Recording Format

Compliant to Design rule for Camera File system 2.0 and Exif 2.3*.
*Supports time difference information in Exif 2.31.

File Size

3:2 Aspect Ratio
Large/RAW/C-RAW: 8192 x 5464
Medium: 5808 x 3872
Small 1: 4176 x 2784
Small 1: 2976 x 1984
Small 2: 2400 x 1600

1.6x (Crop)*
Large/RAW/C-RAW: 5088 x 3392
Small 2: 2400 x 1600

4:3 Aspect Ratio
Large: 7280 x 5464
Medium: 5152 x 3872
Small 1: 3712 x 2784
Small 2: 2112 x 1600
RAW/C-RAW: 8192 x 5464

16:9 Aspect Ratio
Large: 8192 x 4608
Medium: 5808 x 3264
Small 1: 4176 x 2344
Small 2: 2400 x 1344
RAW/C-RAW: 8192 x 5464

1:1 Aspect Ratio
Large: 5456 x 5456
Medium: 3872 x 3872
Small 1: 2784 x 2784
Small 2: 1600 x 1600
RAW/C-RAW: 8192 x 5464

Values for Recording Pixels are rounded to the nearest 100,000 or 10,000.
For RAW and JPEG images, information outside the cropping area is not retained.
JPEG images are generated in the set aspect ratio.
RAW images are generated in [3:2], and the set aspect ratio is appended.

* Indicate an inexact proportion.

File Numbering

The following file numbers can be set:

File numbering methods
- Continuous numbering
  - The numbering of captured images continues even after you replace the card.
- Auto reset
  - When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
Manual reset

Resets the file number to 0001, and creates a new folder automatically.

*When manually resetting the file number, folders can also be renamed.

RAW + JPEG Simultaneous Recording / HEIF Simultaneous Recording

Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.

Color Space

Selectable between sRGB and Adobe RGB

Picture Style

Auto
Standard
Portrait
Landscape
Fine Detail
Neutral
Faithful
Monochrome
User Defined 1-3
- In Scene Intelligent Auto, [Auto] will be set automatically.
- [Standard] is the default setting for [User Def. 1-3].

White Balance

Settings

Auto
Day Light
Shade
Cloudy*
Tungsten light
White fluorescent light
Flash
Custom (Custom WB)
Color temperature

* Effective also in twilight and sunset.

Auto White Balance

Option between ambience priority and white priority settings.

Color Temperature Compensation

Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
Corrected in reference to the current WB modes color temperature.

Viewfinder

Type

OLED color electronic viewfinder; approx. 5.76 million dots resolution

Coverage

Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).

Magnification / Angle of View

Approx. 0.76x / Approx. 35.5 degrees (with 50mm lens at infinity, -1 m^-1)

Eye Point

Approx. 23mm (at -1 m^-1 from the eyepiece lens end)

Viewfinder Information

Maximum burst
Possible shots/Sec. until self-timer shoots
Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
Shooting mode
AF method
AF operation
Image quality
Card
Drive mode
Metering mode
No. of remaining shots for focus bracketing, multiple exposures, or interval timer
Electronic level
Movie recording time available
Battery level
Image Stabilizer (IS mode)
Histogram (Brightness/RGB)
Quick Control button
Anti-flicker shooting
White balance/White balance correction
Picture style
Auto Lighting Optimizer
Still photo cropping / Aspect ratio
AF point (1-point AF)
AEB/FEB
View Assist
HDR PQ
Flash ready / FE lock / High-speed sync
Electronic shutter
Touch shutter / Create folder
AE lock
Shutter speed / Multi-function lock warning
Aperture value
Wi-Fi® function
Wi-Fi® signal strength
Bluetooth® function
Exposure simulation
Magnify button
ISO speed
Highlight tone priority
Exposure compensation
Exposure level indicator

Autofocus

Type

Dual Pixel CMOS AF

AF Working Range

EV -6 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at 73°F/23°C, ISO 100, One-Shot AF)
* Except RF lenses with a Defocus Smoothing (DS) coating.

AF Methods

AF Method

Face+Tracking AF

Spot AF

1-point AF

Expand AF Area
(Above, below, left and right/Around)

Zone AF

Large Zone AF (Vertical/Horizontal)

Exposure Control

Metering Modes

Real-time metering with image sensor (384 [24x16 zone metering])

Evaluative metering (AF point-linked)
Partial metering (approx. 6.1% of the area at the center of the screen)
Spot metering (approx. 3.1% of the area at the center of the screen)
Center-weighted average metering

Metering Range

EV -3 - 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting)

Exposure Control Modes

Scene Intelligent Auto
Flexible-priority AE (Fv)
Program AE (P)
Shutter-priority AE (Safety shift possible) (Tv)
Aperture-priority AE (Safety shift possible) (Av)
Manual exposure (M)
Bulb
Custom shooting mode C1, C2, C3

ISO Speed Range

Available ISO speeds; user-set

Normal	ISO 100-51200 (1/3- or 1-stop increments)
Expanded	L: equivalent to ISO 50, H: 102400

For [Highlight tone priority], the minimum ISO speed limit will be ISO 200 to 51200.
Expanded ISO cannot be set for HDR mode or during HDR PQ shooting.

User-defined ISO range - still photo shooting

ISO Speed Range	ISO Speed
Minimum	L (50)–51200 (in 1-stop increments)
Maximum	ISO 100–H (102400) (in 1-stop increments)

* Expanded ISO speeds are noted as being “equivalent” to these speeds.

User-defined Auto ISO range - still photo shooting

Auto Range	ISO Speed
Minimum	ISO 100–25600 (in 1-stop increments)
Maximum	ISO 200–51200 (in 1-stop increments)

ISO Auto details in still photo shooting

Shooting Mode	No Flash	Using Flash
Auto	ISO 100-12800	ISO 100-1600*³
P	ISO 100¹²-51200*²	ISO 100¹²-6400*²⁴
TV
AV
M
B	ISO 400³

*¹ ISO 200 when [Highlight tone priority] is set to [Enable] or [Enhanced].
*² Varies depending on [Maximum] and [Minimum] of [Auto range].
*³ If outside the setting range, changed to the value most close to ISO 400.
*⁴ISO 1600 when using a lens that is not compatible with "Variable control of maximum ISO Auto limit for E-TTL".

Exposure Compensation

Manual	±3 stops in 1/3- or 1/2-stop increments
AEB	±3 stops in 1/3- or 1/2-stop increments

AE Lock

Auto AE lock
- The metering mode for AE lock after focus can be customized.
User-applied AE lock
- In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
- Enabled in all metering modes.

Shutter

Type

Electronically controlled focal-plane shutter

Electronic first curtain or mechanical shutter
Electronic shutter*

*Cannot be used in conjunction with the following functions: flash photography, HDR shooting,multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High].
* A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.
* In electronic shutter shooting under conditions such as flash firing by other cameras or with fluores-cent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.

Shutter Speeds

When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb
When [Electronic] is set: 1/8000-0.5 sec.

Shutter Release

Soft-touch electromagnetic release

Self Timer

10-sec. delay, 2-sec. delay

Shutter Lag Time

	Flash	Mechanical Shutter	Electronic 1st Curtain	Electronic shutter
*Shutter-release time lag Measured with shutter button pressed fully from half-pressed position**	Not used	Approx. 81 ms	Approx. 50 ms	Approx. 50 ms
	Used	N/A	N/A	-

External Speedlite

E-TTL balance

Ambience priority, standard, flash priority

Compatible E-TTL Speedlites

Canon EX- and EL-series Speedlites

E-TTL II Flash Metering

Evaluative (Face Priority)
Evaluative
Average

Flash Exposure Compensation

±3 stops in 1/3- or 1/2-stop increments

FE Lock

Provided

External Flash Settings

The camera can set the following with EX series Speedlites:

External flash control
- Flash firing, E-TTL II Flash metering, Slow synchro, Safety FE, Flash mode, Wireless function, Flash zoom, Shutter synchronization and Flash exposure compensation
Flash Custom Function setting
- The setting options for both (1) and (2) will differ depending on the Speedlite used.

Video Shooting

Canon Log

Provided (Off / Canon Log / Canon Log 3)

Shooting Times

Resolution and Frame Rate	Mode	*Approx. shooting time (23°C / 73°F)¹**	Recommended scene
8K 30p	Full Sensor Width	20 min	8K productions where a full-frame mirrorless can be utilized to get unique angles alongside a main camera or additional cropping for 4K productions.
8K 30p	Full Sensor Width RAW	20 min	As above but with the additional workflow flexibility of RAW.
4K 120p	Full Sensor Width	15min*²	Shorter bursts of slow motion.
4K 60p	Full Sensor Width	35min*³	High-frame rate high resolution productions and independent films.
4K 60p	APS-C Crop (5.1K Oversampled)	25 min	When additional reach is required with higher frame rates – e.g. wildlife and sports and news gathering within a 4K production or even for tighter Full HD crops in post.
4K 30p	Full Sensor Width	Not limited by heat	Interviews, longer duration capture such as weddings.
	Full Sensor Width Hig Quality (8.2K oversampling)	30 min	When additional resolution is required with a 4K30p production or for a Full HD workflow where cropping can be desirable with high resolution.
	APS-C Crop (5.1K Oversampled)	Not limited by heat	When additional reach is required – e.g. wildlife and sports and news gathering within a 4K production or even for tighter Full HD crops in post.

*¹ Time available for continuous shooting in 23°C / 73°F environment, from a cold start. If the camera is in LV mode standby before shooting or the ambient temperature is high, the shooting time may be shorter.

*² Recording stops at 7minutes and 30seconds for high frame rate video. Indicates the time when recording can be resumed immediately.

*³ Recording is limited to 29 minutes 59 seconds. Indicates the time when recording can be resumed immediately.

Estimated Camera Recovery Time

Estimated recovery times are indicated below. These are affected by various factors such as ambient temperature, continued camera operation and the selected shooting resolution.The time until full record time is available will vary with ambient temperature.

Resolution and Frame Rate	Waiting period (minutes) (23°C / 73°F)*	Approximate maximum recording time after waiting period (minutes)
8K 30p	10	3
8K 30p	20	8
4K 60p	10	10

Video Recording Size and Frame Rates

Movie-recording Quality
8K DCI	256 GB	1 TB
8K UHD	12 min.	49 min.
4K DCI Fine 4K HQ Mode - Enable	25 min.	1 hr. 40 min.
4K DCI (Movie cropping [Disable/Enable])	24 min.	1 hr. 39 min.
4K DCI (High Frame Rate)	50 min.	3 hr. 20 min.
4K UHD Fine 4K HQ Mode - Enable	9 min.	36 min.
4K (UHD) (Movie cropping [Disable/Enable])	23 min.	1 hr. 34 min.
4K UHD (High Frame Rate)	42 min.	2 hr. 50 min.
Full HD (Movie cropping [Disable/Enable])	46 min.	3 hr. 6 min.

Estimated Cumulative Data

Canon Log: Off, HDR PQ: Off

Video Recording Size			Theoretical Time Capacity^			Bit Rate/File Size (approx.)
Video Recording Size			64 GB	256 GB	1 TB	Bit Rate/File Size (approx.)
8K DCI	29.97 fps 23.98 fps	RAW	3 min.	13 min.	51 min.	2600 Mbps 18668 MB/min.
	29.97 fps	RAW (Light)	4 min.	19 min.	1 hr. 17 min.	1700 Mbps 12230 MB/min.
	23.98 fps	RAW (Light)	6 min.	25 min.	1 hr. 38 min.	1350 Mbps 9715 MB/min.
	29.97 fps 23.98 fps	ALL-I	6 min.	26 min.	1 hr. 42 min.	1300 Mbps 9309 MB/min.
		IPB	18 min.	1 hr. 12 min.	4 hr. 42 min.	470 Mbps 3373 MB/min.
		IPB (Light)	37 min.	2 hr. 28 min.	9 hr. 42 min.	230 Mbps 1647 MB/min
8K UHD	29.97 fps 23.98 fps	ALL-I	6 min.	26 min.	1 hr. 42 min.	1300 Mbps 9309 MB/min
		IPB	18 min.	1 hr. 12 min.	4 hr. 42 min.	470 Mbps 3373 MB/min
		IPB (Light)	37 min.	2 hr. 28 min.	9 hr. 39 min.	230 Mbps 1646 MB/min
4K DCI	59.94 fps	ALL-I	9 min.	36 min.	2 hr. 21 min.	940 Mbps 6734 MB/min
		IPB	36 min.	2 hr. 27 min.	9 hr. 35 min.	230 Mbps 1656 MB/min
		IPB (Light)	1 hr. 10 min.	4 hr. 43 min.	18 hr. 28 min.	470 Mbps 3373 MB/min
4K DCI 4K HQ mode- FINE	29.97 fps 23.98 fps	ALL-I	18 min.	9 hr. 26 min.	4 hr. 42 min.	120 Mbps 869 MB/min
		IPB	1hr. 10min.	18 min.	18 hr. 17 min.	60 Mbps 431 MB/min
		IPB (Light)	2 hr. 21 min.	9 hr. 26 min.	36 hr. 52 min.	60 Mbps 431 MB/min
4K DCI	119.88 fps	ALL-I	4 min.	18 min.	1 hr. 10 min.	1880 Mbps 13447 MB/min

Focusing

Dual Pixel CMOS AF

Exposure Compensation

±3 stops in 1/3- or 1/2-stop increments

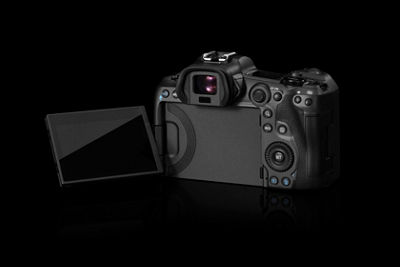

LCD Monitor

Type

TFT color, liquid-crystal monitor

Monitor Size

3.2-inch (screen aspect ratio of 3:2)
3.15 in./8.01cm diagonal (2.63 in./6.67cm width, 1.75 in./4.44cm height)

Dots

Approx. 2.1 million dots

Coverage

Approx. 100% vertically/horizontally

Brightness Control

Manually adjustable to one of seven brightness levels

Coating

Clear View LCD II

Anti-smudge coating applied.
Anti-reflection coating not applied.

Interface Languages

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Playback

Display Format

Item	Still Photo	Movie
Item	Still Photo	-
Magnify zoom display	1.5x-10x (5 levels)	-
AF point display	Yes	-
Grid display	Off / 3×3 / 6×4 / 3×3+diag	-
Rating	OFF / 1 to 5 Stars Select images / Select range / All images in folder / All images on card / All found images
Image Search	Search conditions Rating / Date / Folder / Protect / Type of file
Protect	Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card /All found images
In-camera RAW image processing	Supported	-
Resizing	Supported	-
Cropping	Supported	-

Highlight Alert

The white areas with no image data will blink.

Quick Control Function

Image Protection and Erase

Protection

Single image (select image)
Select range
All images in a folder
All images on card
- Image browsing and image search can be based on ratings.
- Ratings-based image selections also possible with DPP.
All found images (only during image search)

Erase

Except protected images

Select images to erase
Select range
All images in folder
All images on card
All found images (only during image search)

Direct Printing

DPOF: Digital Print Order Format

Customization

Custom Controls

Customizable Buttons

Still Photo Shooting

Shutter button

Movie button

MODE button

AF-ON button

AE lock button

AF point selection button

Depth of field preview button

Lens AF stop button

Multi-function button

LCD panel illumination button

Set button

Multi-controller

Customizable Dials

Main dial

Quick control dial 1 and 2

Control ring

My Menu Registration

Up to six top-tier menu items and Custom Functions can be registered.
Up to five My Menu tabs can be added.

My Menu tab overall operations	Adding a tab Deleting tabs in a batch Deleting all tab items Setting the menu display
My Menu tab detailed operations	Selecting a registered item Sorting registered items Deleting selected registered items Deleting registered items in a batch Deleting tabs Changing a tab name (16 ASCII characters)

Interface

USB Terminal

Equivalent to Hi-Speed USB (USB 3.1 Gen 2)

For PC communication
Terminal type: USB Type-C
Shared with terminal for in-camera charging with USB Power Adapter PD-E1.
In-camera Charging: Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1.

Video Out Terminal

HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible

Images can be displayed through the HDMI output and on screen at the same time.
Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.

Microphone Input Terminal

3.5mm diameter stereo mini jack

Headphone Terminal

3.5mm diameter stereo mini jack

Power Source

Battery

LP-E6NH/LP-E6N/LP-E6

With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible.
With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible. The USB Power Adapter PD-E1 is not compatible with powering the camera.

Battery Check

Automatic battery check when the power switch is turned ON.
Displayed in 6 levels on top LCD panel.

Battery level can be checked on the LCD panel and in the viewfinder.
attery Info display in Set-up Menu:
Type of power source used.
Remaining capacity (percentage of battery charge remaining).
Recharge performance: (3-level display of batterys ability to hold a charge)

Start-up Time

Approx. 0.4 sec.

Based on CIPA testing standards.

Dimensions and Weight

Dimensions (W x H x D)

Approx. 5.45 x 3.84 x 3.46 in. / 138 x 97.5 x 88.0mm

Based on CIPA standards.

Weight

Approx. 1.63 lbs. / 738g (including battery, CFexpress card; without body cap)
Approx. 1.43 lbs. / 650g (body only; without battery, card or body cap)

Operating Environment

Working Conditions

Reviews

How is your Canon product performing for you?

Videos

Current Video: Video Title Here

From: Channel Name

Current Video: Video Title Here

From: Channel Name

Sort By:

Untitle Video

As dawn breaks over NYC, aerial photographer Paul Seibert and filmmaker Alex Geiger board a helicopter to capture New York in a way that’s never been done before. Their plan is to capture the city from 15,000’ above - a first-of-its-kind flight. Follow along as they bring us inside the helicopter with them, and detail how the Canon EOS R5 and Canon EOS C70 Cinema Camera paired with RF lenses, allowed them to focus on the task at hand, and capture razor-sharp images, and footage from new angles.

Canon Ambassador Peter McKinnon and the EOS R5

Untitle Video

View the film, “The Artist” shot by Peter using the full-frame mirrorless EOS R5 digital camera, providing him with the size, speed and features needed to capture impressive footage even in challenging conditions.

Canon Explorer of Light Lindsay Adler and the EOS R5 and imagePROGRAF PRO-300

Untitle Video

Watch Lindsay bring her fashion and portrait visions to life with the full-frame mirrorless EOS R5 digital camera* and the imagePROGRAF PRO-300 printer, using the camera and printer's many advanced and intuitive features to capture and produce stunning detail and vibrant color.

Canon Explorer of Light Sal Cincotta and the EOS R5 and imagePROGRAF PRO-300

Untitle Video

Watch as Sal takes the EOS R5 on a journey of three projects in one day, from outdoors to bridal to fashion, using the amazing capabilities of both still and video shooting to capture inspiring results.

Canon Explorer of Light Roberto Valenzuela and the EOS R5

Untitle Video

With the enhanced autofocus, stabilization and low-light capabilities of the full-frame mirrorless EOS R5 digital camera, Roberto was able to get stunning results. See how it was all done.

In-Body Image Stabilization in the EOS R5 and EOS R6

Untitle Video

The EOS R5 and EOS R6 are the first Canon cameras to feature In-body Image Stabilization and the results are more impressive than ever. Lear more with Canon U.S.A. expert Drew MacCallum.

Untitle Video

Discover all the new, enhanced and amazing features in the EOS R5 including Dual Pixel CMOS AF II, In-body Image Stabilization, 8K video capability, People and Animal Detection and more.

Untitle Video

Reach a whole new level of recording video with the EOS R5, with up to 8K resolution, up to 30p, full-frame with no crop, 4K in either DCI or UHD from 24 to 60p, and 4K 120p for amazing slow motion. Get all the details from our Canon U.S.A. expert Ryan Snyder.

EOS R5 Compatible Products

Adapters, Chargers & Couplers Stations

EOS R5 Compatible Products

Adapters, Chargers & Couplers Stations

Add to Wish List

AC Adapter AC-E6N

Special Price $88.00 Regular Price $110.00

Add to Wish List

USB Power Adapter PD-E1

As low as $190.00

Batteries & Grips

Cables & Cords

Cases, Bags & Straps

Controllers, Remotes & Microphones

Wireless File Transmitters And Adapters

Other Accessories

Adapters, Chargers & Couplers Stations

Batteries & Grips

Cables & Cords

Cases, Bags & Straps

Controllers, Remotes & Microphones

Wireless File Transmitters And Adapters

Other Accessories

EOS R5 Compatible Products

Adapters, Chargers & Couplers Stations

Add to Wish List

AC Adapter AC-E6N

Special Price $88.00 Regular Price $110.00

Add to Wish List

USB Power Adapter PD-E1

As low as $190.00

EOS R5

Overview

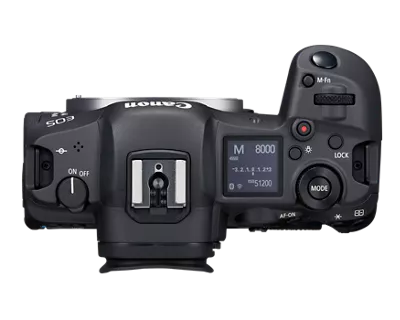

EOS R5 Full-Frame Mirrorless Camera

Introducing the Canon EOS R5 Digital Camera

SAMPLE IMAGES

IMAGE QUALITY

High Image Quality featuring a New 45 Megapixel Full-frame CMOS Sensor

In-body Image Stabilizer High Resolution Shot

DIGIC X Image Processor

ISO range of 100-51200; Expandable to 102400

SPEED AND AUTOFOCUS

Up to 12 fps with Mechanical Shutter

Up to 20 fps Electronic (Silent) Shutter

High-speed Focusing with Dual Pixel CMOS AF

AF Area Coverage of Approx. 100% x 100%^2

EV -6^3 Low-light Autofocus

Head and Eye Detection

Animal Detection*2

Animal Detection*2

VIDEO CAPABILITIES

Canon VR with RF5.2mm F2.8 L Dual Fisheye Lens Support and Workflow

8K RAW, 4K up to 120fps Internal Recording in all Formats, with Auto Focus

Supercharge Your Stop Motion Animation

IMAGE STABILIZATION

In-body Image Stabilizer can provide up to 8 stops of Shake Correction

Dual Card Slots for CFexpress** and UHS-II SD Memory Cards***

PERFORMANCE

0.5-type OLED EVF with Approx. 5.76 Million Dots

Vari-angle Touchscreen LCD

0.5-type OLED EVF with Approx. 5.76 Million Dots

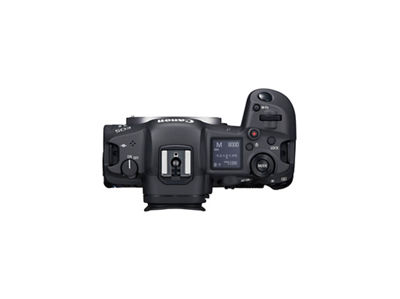

Dot-matrix LCD Panel

CONNECTIVITY

Built-in Bluetooth® Capability

Built-in Wi-Fi Capability

OPERABILITY

Main Dial and Quick Main Dials 1 & 2

Multi-controller Customization

Magnesium Body

Wireless File Transmitter WFT-R10A

Battery Grip BG-R10

High-Capacity Battery Pack LP-E6NH

DURABILITY

Shutter Durability

Dust- & Water-resistant Sealing

Technical Specifications

View Full Technical Specs PDF

Type

Image Sensor

Recording System

White Balance

Viewfinder

Autofocus

Exposure Control

Shutter

External Speedlite

Video Shooting

LCD Monitor

Playback

Quick Control Function

Image Protection and Erase

Direct Printing

DPOF: Digital Print Order Format

Customization

Interface

Power Source

Dimensions and Weight

Operating Environment

Working Conditions

Reviews

Videos

Current Video: Video Title Here

Contents

Current Video: Video Title Here

Contents

Untitle Video

Untitle Video

Untitle Video

Untitle Video

Untitle Video

Untitle Video

AF Area Coverage of Approx. 100% x 100%^{^2}

EV -6^{^3} Low-light Autofocus

Animal Detection^*2

Animal Detection^*2

Dual Card Slots for CFexpress and UHS-II SD Memory Cards*
